CMC C55Pi AIO
Chipset
Socket
FSB speed 66MHz
Form factorLPX (max 229 x 330 mm)
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
Empty
RAM types 72-pin FPM72-pin EDO
PSU connector
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VGA
Expansion slots3x
16-bit ISA
2x
32-bit PCI
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
The riser card from the Intel Advanced/AL works on this board.
Last updated 2025-11-13T17:09:21Z
Board info score is 7.9/10
Chips
-> Chipset part
-> Human Interface
-> Signal transmitter/receiver
-> Super I/O
-> Video
CPU family support
2 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.00
OS support
MS-DOS
OS/2 2.x
Windows 3.1x
Windows 9x
Windows NT 3.1
Arch
x86
Size
5.5MB
Filename
Name
Version
2.13
OS support
MS-DOS
OS/2 Warp 3.x
OS/2 Warp 4.x
Windows 9x
Windows NT 3.1
Windows NT 3.5x
Windows NT 4.0
Arch
Size
Empty
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2009-10
File
Logs
Chip
Release date
2013-04
File
Logs
Chip
Release date
2004-11
File
Logs
Chip
Release date
2025-10
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-30
File
Logs
Chip
Release date
2006-01
File
Logs
Chip
Release date
2002-10-20
File
Logs
Chip
Release date
1995-11-22
File
Logs
Chip
Release date
1994-07
File
Logs
Chip
Release date
1996-01
File
Logs

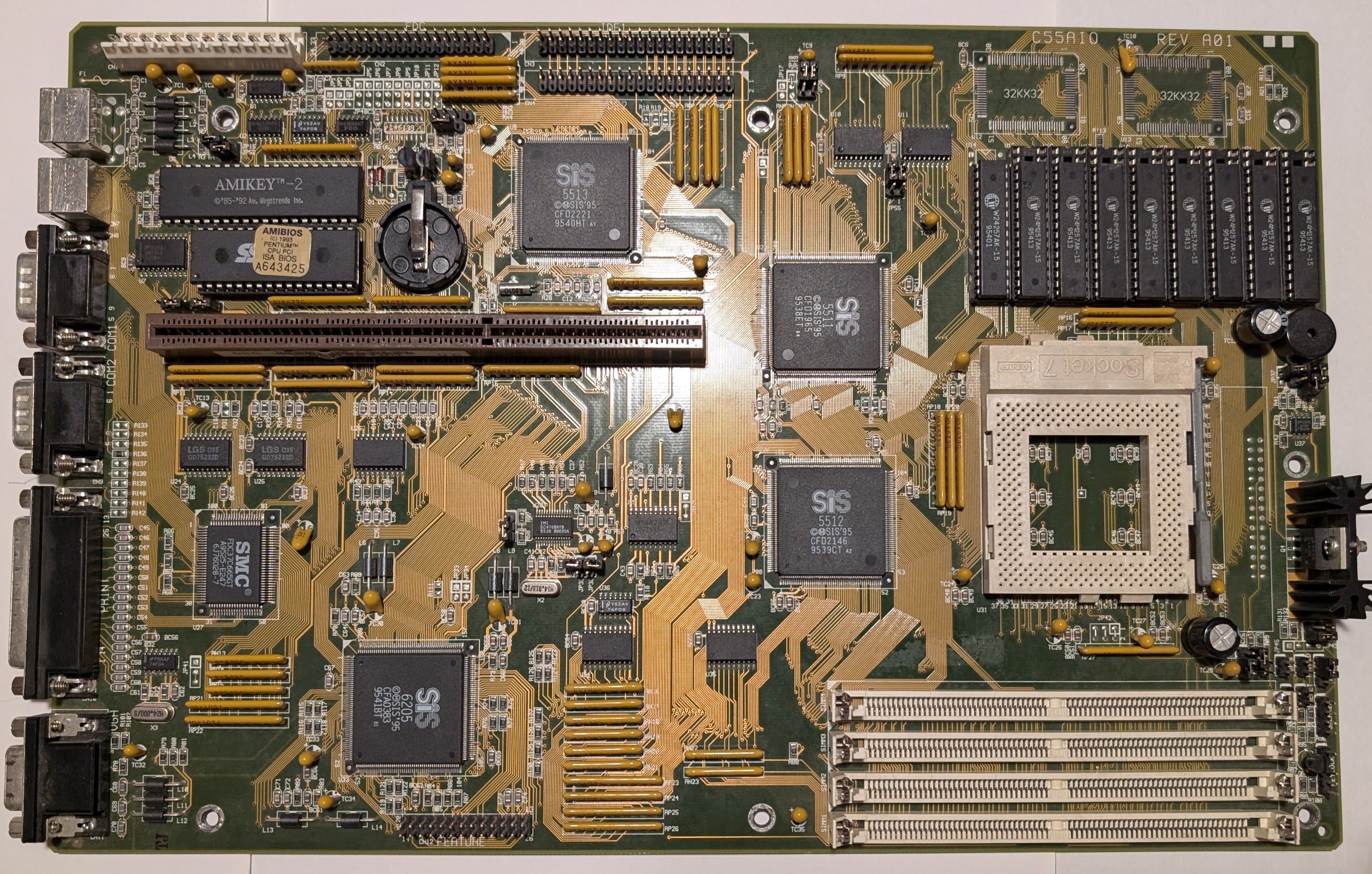

Image 1 of 2 (perhenden)

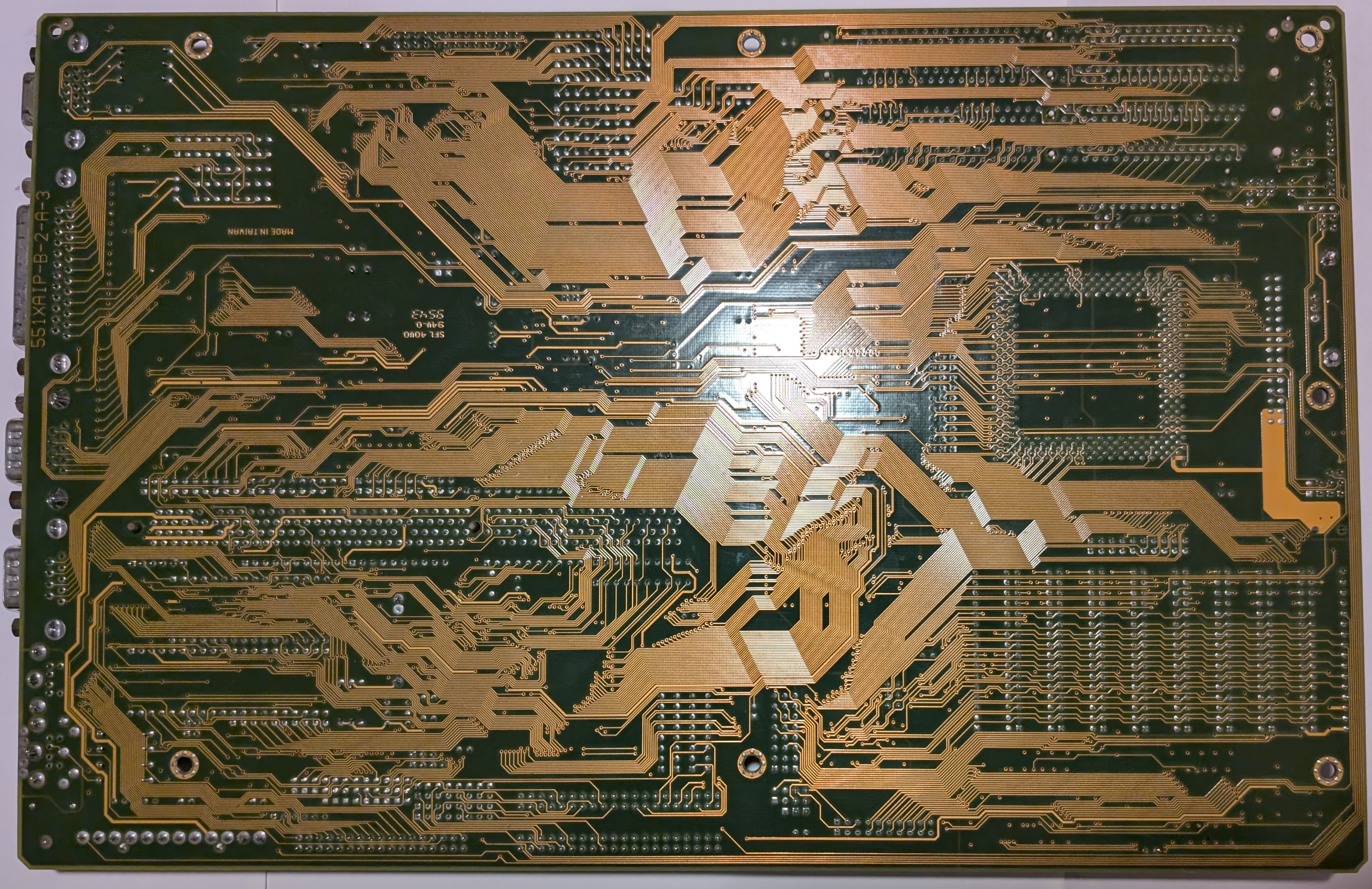

Image 2 of 2 (perhenden)
