CMC C55Pi
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz
moboForm factor
Baby AT (max 220 x 330 mm)
dimDimensions
Empty
chipCache
256KB512KB
ramMax RAM size
128MB
ramRAM types
72-pin FPM72-pin EDO
pwrPSU connector
AT (6-pin P8 + 6-pin P9)
tag Also known as
connI/O ports
1x
AT Keyboard
1x
Floppy interface
2x
IDE interface
1x
PS/2 mouse
1x
Parallel
2x
Serial
cardExpansion slots
4x
16-bit ISA
4x
32-bit PCI
wrench No board specific known issues
  • Faulty IDE Controller

The IDE controller(s) is known to be faulty, which may cause problems with IDE devices such as data corruption or lockups.

Last updated 2025-03-27T19:16:26Z
Board info score is 8.3/10
bios 2 BIOS files available

vendor AMI - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
51-7901-001608-00111111-101094-SiS551x
Note
Core version
101094
BIOS version
Logs
POST string
51-6328-001608-00111111-101094-SiS551x
Note
Core version
101094
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.13
OS support
MS-DOS OS/2 Warp 3.x OS/2 Warp 4.x Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Arch
Size
Empty
Filename

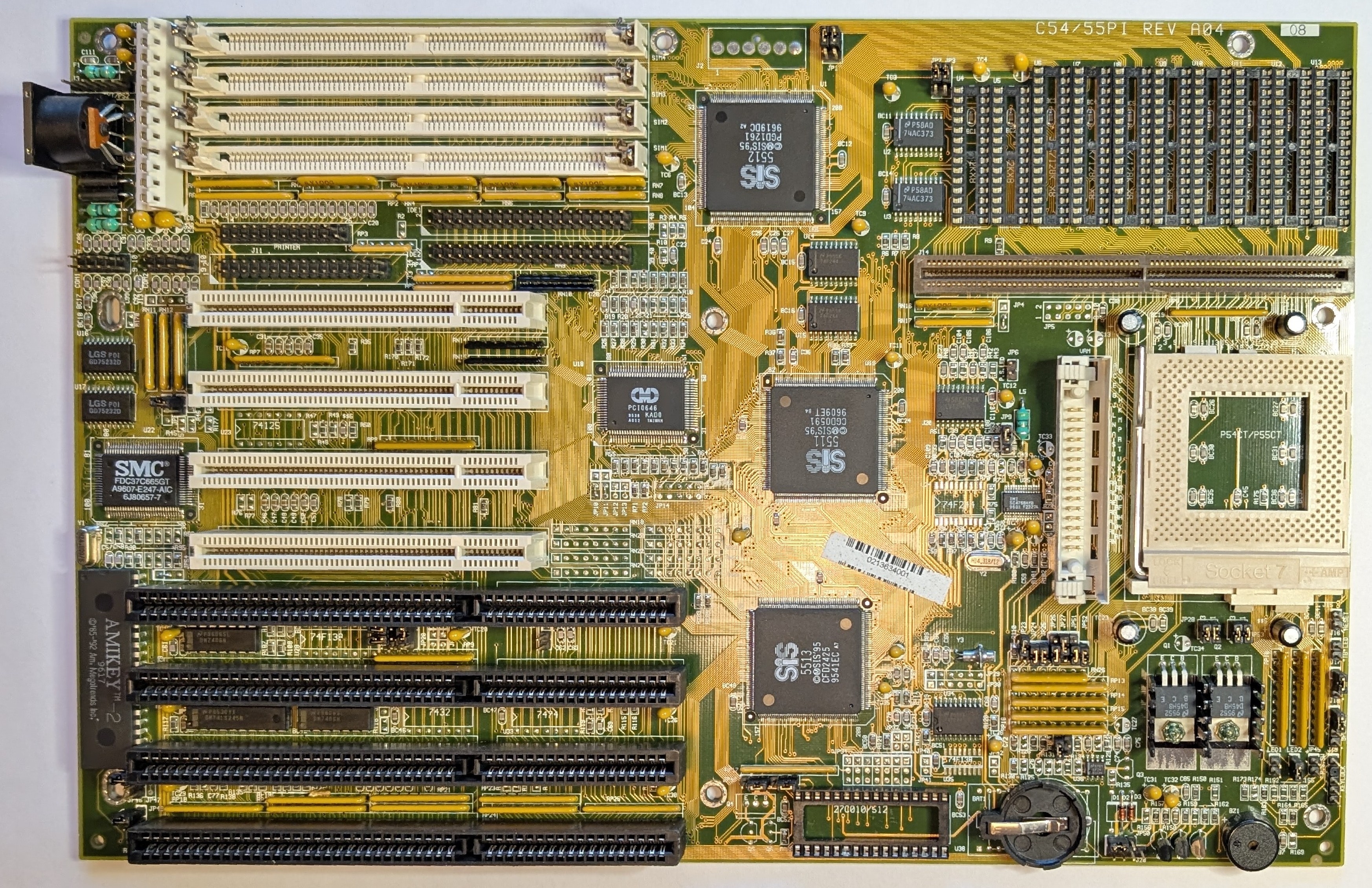

image1 Image 1 of 2 (perhenden)

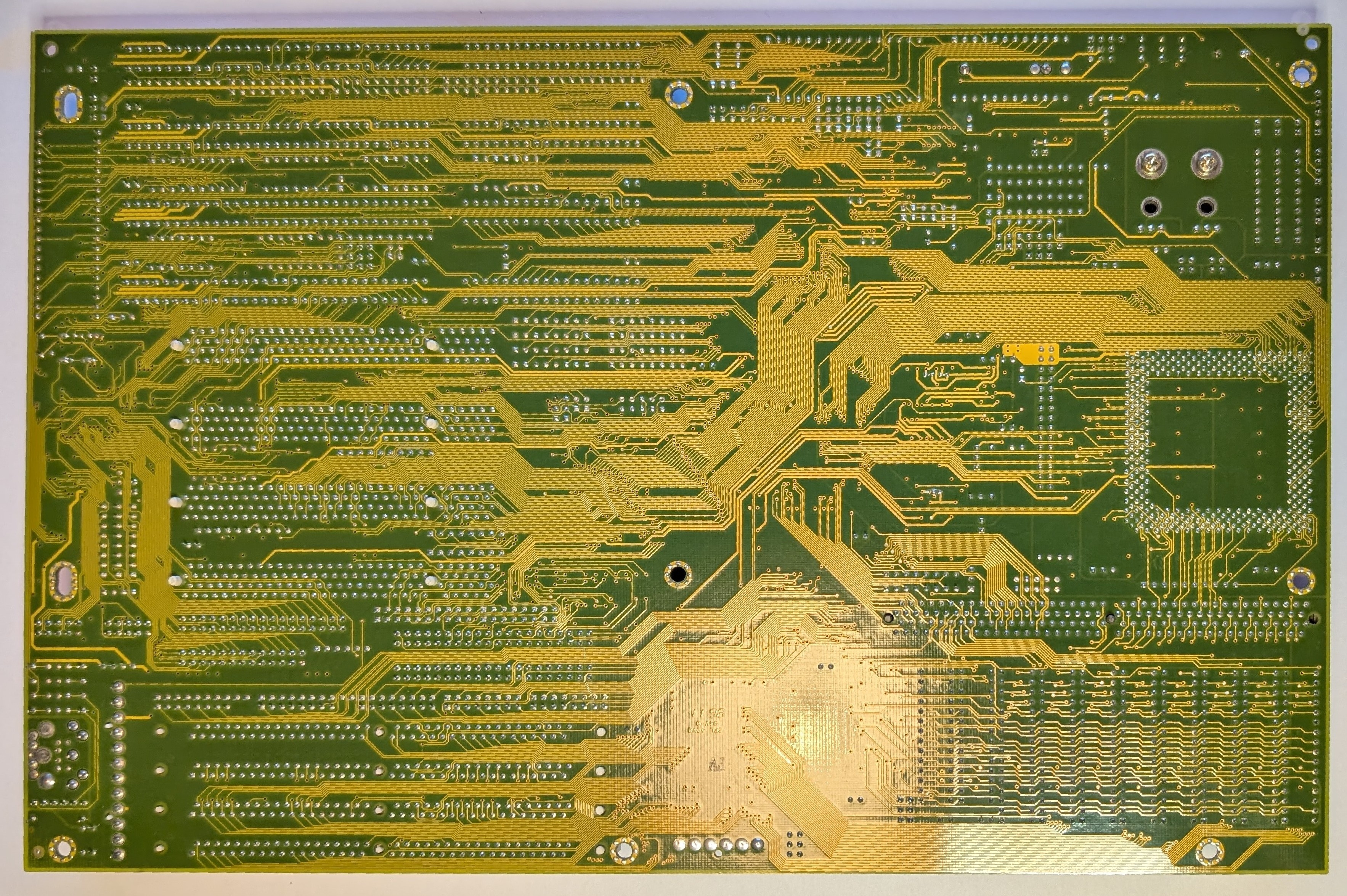

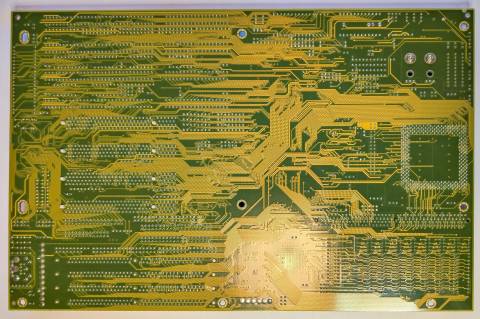

image2 Image 2 of 2 (perhenden)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
