Chassis Plans JXT6966
Chipset
Socket
FSB speed Empty
Form factorSingle Board Computer
Dimensions338mm x 126mm
Max VRAM size32MB
Cache
None/Integrated in the CPU
Max RAM size
32GB
RAM type 204-pin DDR3 SO-DIMM
PSU connector
Empty
Multi CPU support2 CPUs
Also known as
- Chassis Plans S6966-xxx
I/O ports1x
Floppy interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
6x
SATA II
2x
Serial
4x
USB 2.0
1x
VGA
Expansion slots1x
PCIe x1
1x
PICMG 1.3 (SHB Express) Full-size
Notes
- 12x USB 2.0 ports (Four ports through backplane).
- PS/2 mouse&keyboard ports through separate bracket/cable.
- 1x 10/100 LAN through backplane
Last updated 2025-12-31T12:08:31Z
Board info score is 7.2/10
Chips
-> Chipset part
-> Network
-> Video
CPU family support
0 BIOS files available
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 2000
Windows XP/2k3
Arch
Size
12.2MB
Filename
3 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-09-14
File
Logs
Family
Release date
2011-09-14
File
Logs
Socket
Release date
File
Logs

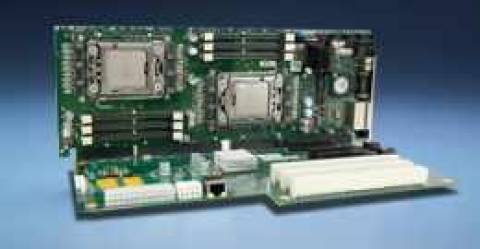

Image 1 of 3 (Chassis Plans)

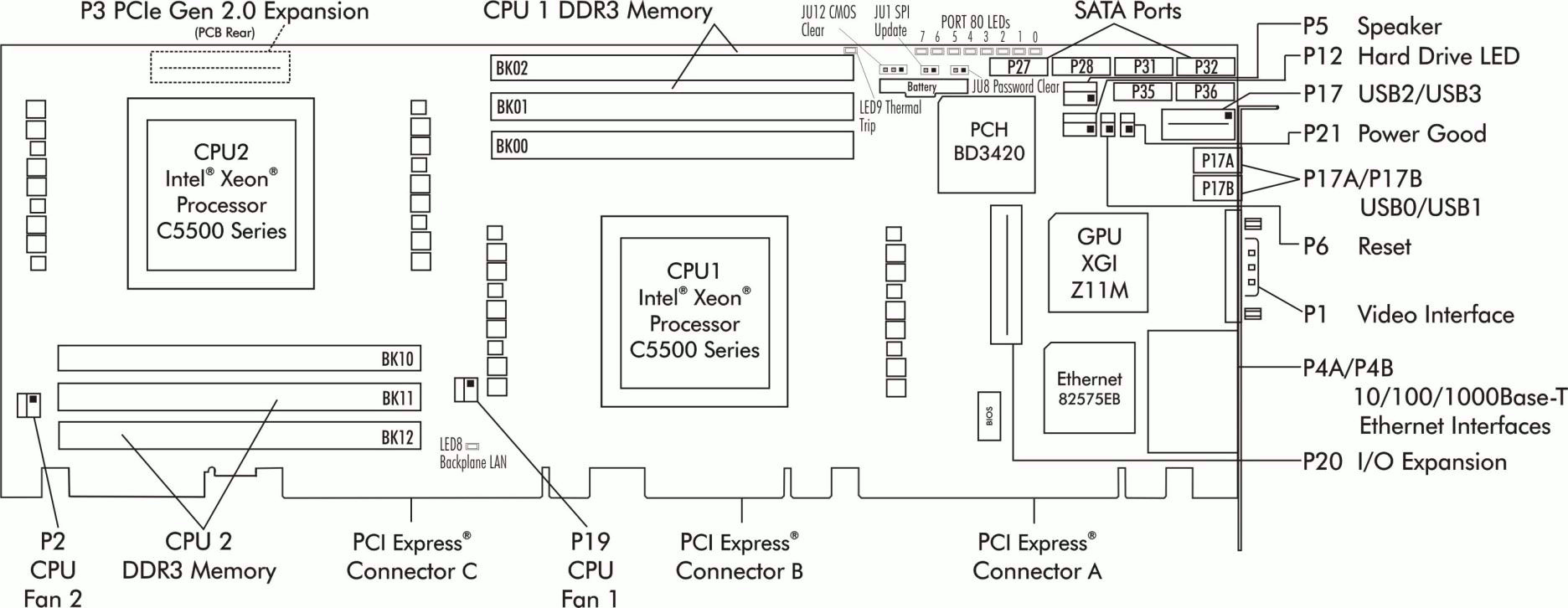

Image 2 of 3 (Chassis Plans)

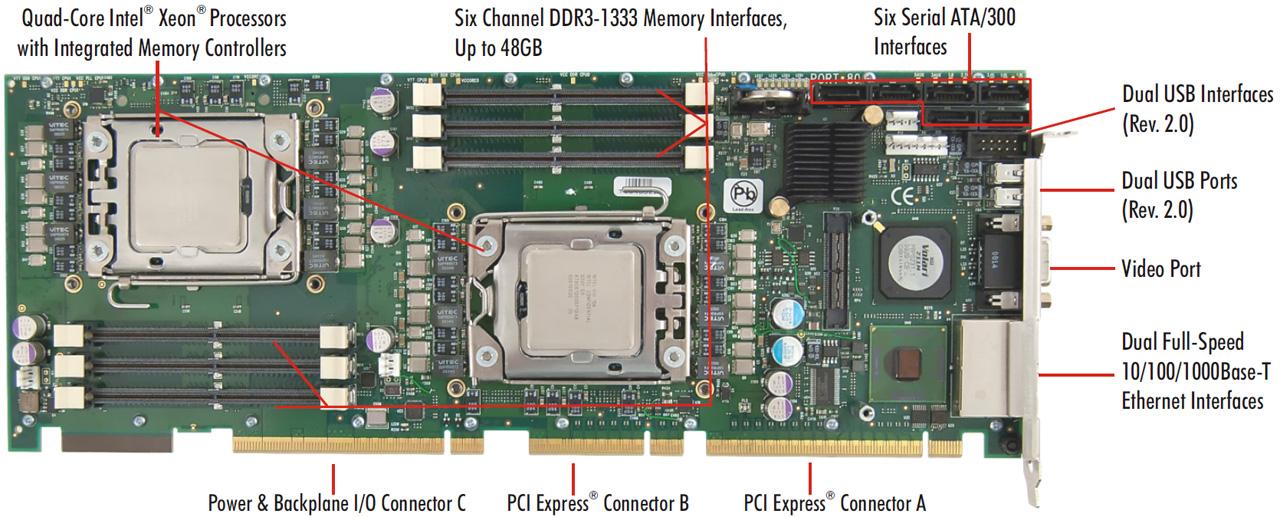

Image 3 of 3 (Chassis Plans)
