CFI S76
Logs
Chipset
Socket
FSB speeds 200MHz266MHz
Form factorFlex ATX (max 228.6 × 190.5 mm)
Dimensions220 mm x 170 mm
Max VRAM size128MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type DDR UDIMM
PSU connector
Also known as
- Acorp Sis 740
I/O ports2x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
1x
TV-Out
4x
USB 2.0
1x
VGA
Expansion slots1x
32-bit PCI
Last updated 2025-12-24T15:19:29Z
Board info score is 8.7/10
Chips
CPU family support
7 BIOS files available
Award - 7 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
4 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
3.73
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
1.21
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
Size
Empty
Filename
2 board documents available
Release date
File
Logs
Chip
Release date
File
Logs

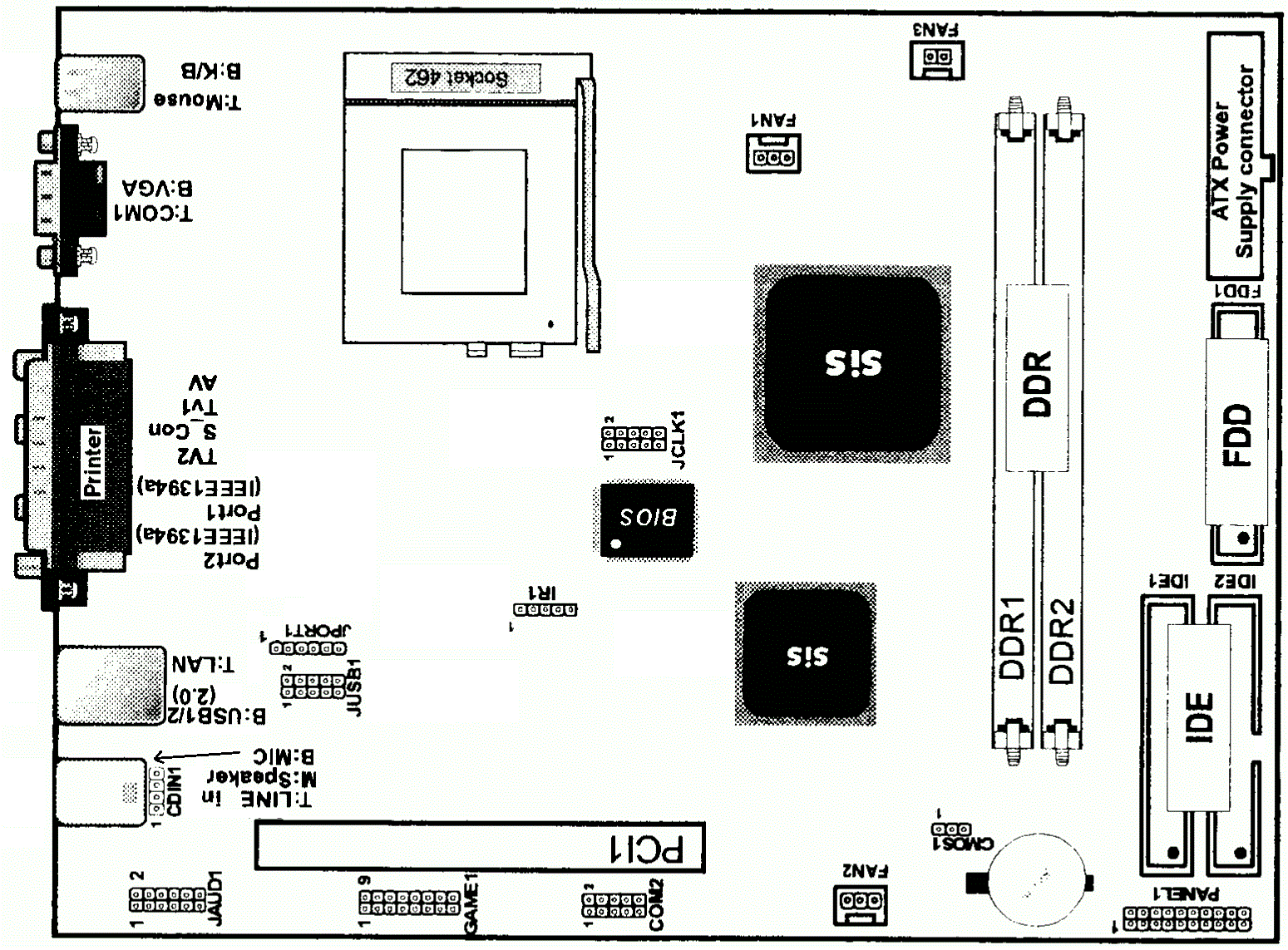

Image 1 of 1 (Acorp)
