Biostar M7VIK
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz333MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
SATA I
2x
Serial
6x
USB 1.x
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
1x
CNR
Last updated 2025-05-21T14:49:34Z
Board info score is 9.4/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/06/2003-KT400-8235-6A6LYB09C-00
Note
No logo
Core version
6.00PG
BIOS version
Logs
POST string
09/10/2002-KT400-8235-6A6LYB09C-00
Note
No logo
Core version
6.00PG
BIOS version
Logs
POST string
09/10/2002-KT400-8235-6A6LYB09C-00
Note
Logo
Core version
6.00PG
BIOS version
Logs
POST string
03/26/2003-KT400-8235-6A6LYB09C-00
Note
No logo
Core version
6.00PG
BIOS version
Logs
POST string
03/26/2003-KT400-8235-6A6LYB09C-00
Note
Logo
Core version
6.00PG
BIOS version
Logs
POST string
03/11/2003-KT400-8235-6A6LYB09C-00
Note
Logo
Core version
6.00PG
BIOS version
Logs
drv 15 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.98
OS support
MS-DOS
Arch
x86
Size
64.9KB
Filename
Name
Version
4.03
OS support
Linux
Arch
x86
Size
210.2KB
Filename
Name
Version
2.23
OS support
Windows NT 4.0
Arch
x86
Size
62.2KB
Filename
Name
Version
4.06.1096
OS support
Windows 9x
Arch
x86
Size
1.8MB
Filename
Name
Version
5.12.01.0639
OS support
Windows 9x
Arch
x86
Size
3.1MB
Filename
Name
Version
2.30
OS support
Windows NT 4.0
Arch
x86
Size
156KB
Filename
Name
Version
5.21.01.643
OS support
Windows 2000 Windows 9x
Arch
x86
Size
3.2MB
Filename
Name
Version
5.12.01.0639
OS support
Windows XP/2k3
Arch
x86
Size
3.1MB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Arch
x86
Size
26.2KB
Filename
Version
OS support
Windows 2000
Arch
x86
Size
3.1MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-10-30
File
Logs
Chip
Release date
2002-07-19
File
Logs

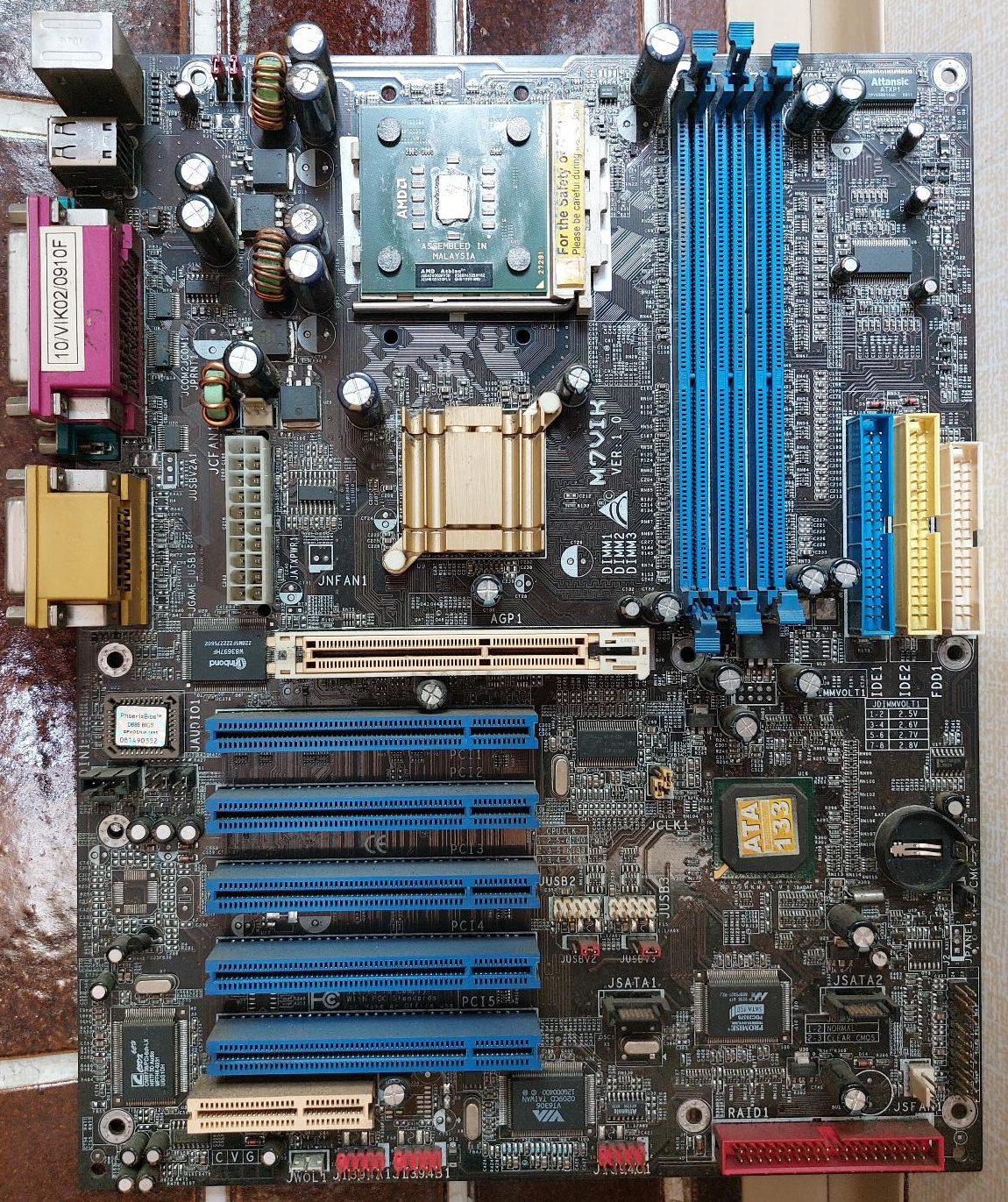

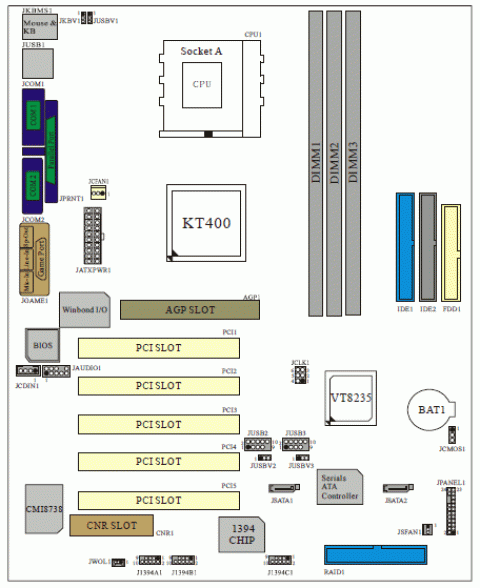

image1 Image 1 of 2 (evasive)
image2 Image 2 of 2
