AT&T MODEL 6386SX/EL WGS
Chipset
Sockets
FSB speed 16MHz
Form factorLPX (max 229 x 330 mm)
Dimensions330mm x 218mm
Max VRAM size256KB
Cache
None/Integrated in the CPU
Max RAM size
32MB
RAM type 30-pin SIMM
PSU connector
I/O ports1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
VESA Feature Connector
1x
VGA
Expansion slots3x
16-bit ISA
Known issues
- Expansion slots are on proprietary riser

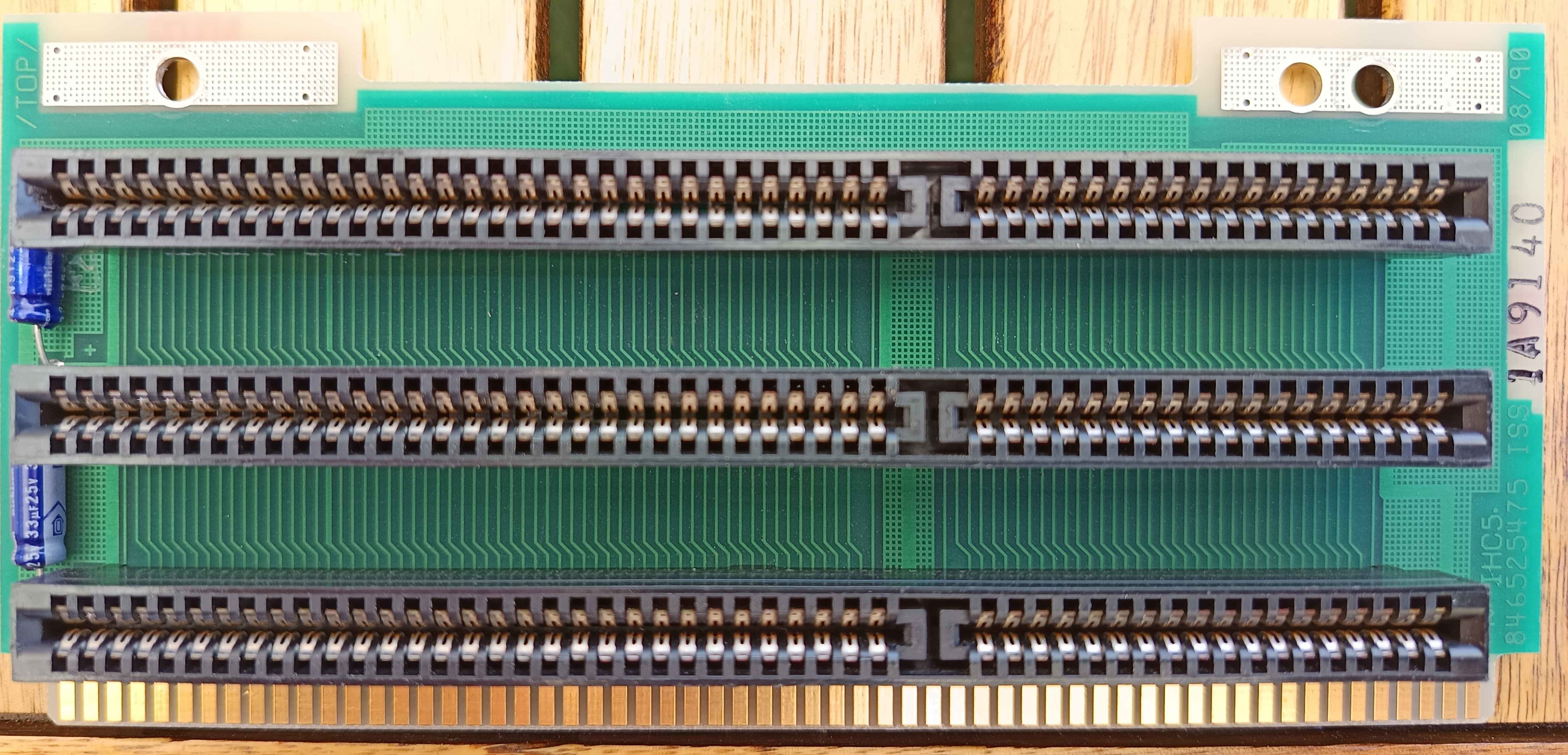

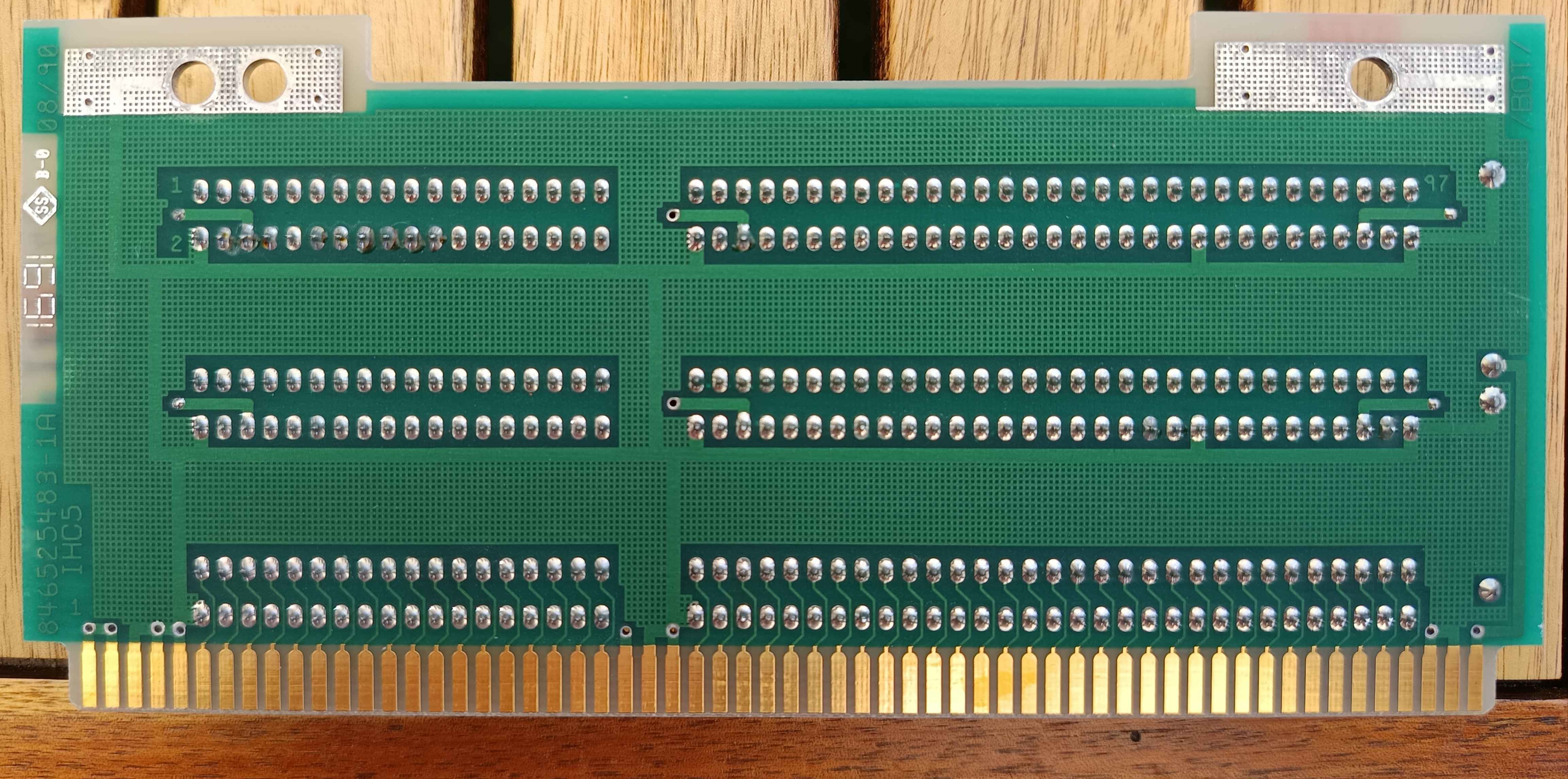

The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
Ctrl-Alt-Ins to enter bios
Last updated 2025-09-08T20:36:31Z
Board info score is 7.2/10
Chips
-> Chipset part
Western Digital FE3010B (AT CPU & Peripheral Controller)
Western Digital FE3001 (AT Control Logic)
Western Digital FE3021 (Addr. Buffer and Memory Ctrl)
Western Digital FE3031 (AT Data Buffer)
-> Floppy ctrl.
-> RAMDAC
-> Real-Time Clock
-> Super I/O
-> Video
0 BIOS files available
Phoenix - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
BIOS version
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
4.00
OS support
MS-DOS
Arch
Size
11KB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
1989-08-29
File
Logs
Chip
Release date
1990-10-20
File
Logs
Chip
Release date
File
Logs
Image 1 of 3 (Maliggno)
Image 2 of 3 (Maliggno)
Image 3 of 3 (Maliggno)
