ASUS SPAX
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz60MHz66MHz75MHz83MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
244mm x 210mm
ramMax VRAM size
8MB
chipCache
512KB
ramMax RAM size
256MB
ramRAM types
SDR UDIMM168-pin EDO UDIMM168-pin FPM DIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as
connI/O ports
1x
3.5mm Line-In
1x
3.5mm Line-Out
1x
3.5mm Microphone
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
1x
TV-Out
2x
USB 1.x
1x
VGA
cardExpansion slots
3x
16-bit ISA
3x
32-bit PCI
notes Notes

Used in HP Pavilion U.S./Canada 6330, 6333, 6336, 6343, 6350,6356, 6357, and 6360. Mexico 6329, 6331, and 6351. Asia Pacific 6305, 6305H, 6306, 6308, 6308H, 6325, 6325H, and 6329H. United Kingdom 6350 and 6355. France 6345 and 6350

Last updated 2025-05-21T21:00:48Z
Board info score is 9/10
bios 2 BIOS files available

vendor Phoenix - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
4.0 Release 6.0
BIOS version
Logs
POST string
Note
Core version
4.0 Release 6.0
BIOS version
Logs
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
195KB
Filename
Name
Version
N/A
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
281.5KB
Filename
Name
Version
4.10.1.3000
OS support
Windows 2000 Windows 9x
Arch
x86
Size
89.1KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
2.8MB
Filename
Name
Version
PV2860
OS support
Windows 9x
Arch
x86
Size
932.8KB
Filename
Name
Version
2.00
OS support
Windows 3.1x
Arch
x86
Size
880.7KB
Filename
Name
Version
N/A
OS support
Windows NT 3.5x
Arch
x86
Size
1.7MB
Filename
Name
Version
N/A
OS support
Windows NT 4.0
Arch
x86
Size
1.7MB
Filename
Name
Version
1.13
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
Size
Empty
Filename
Name
Version
2.04A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
2.13
OS support
MS-DOS OS/2 Warp 3.x OS/2 Warp 4.x Windows 9x Windows NT 3.1 Windows NT 3.5x Windows NT 4.0
Arch
Size
Empty
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

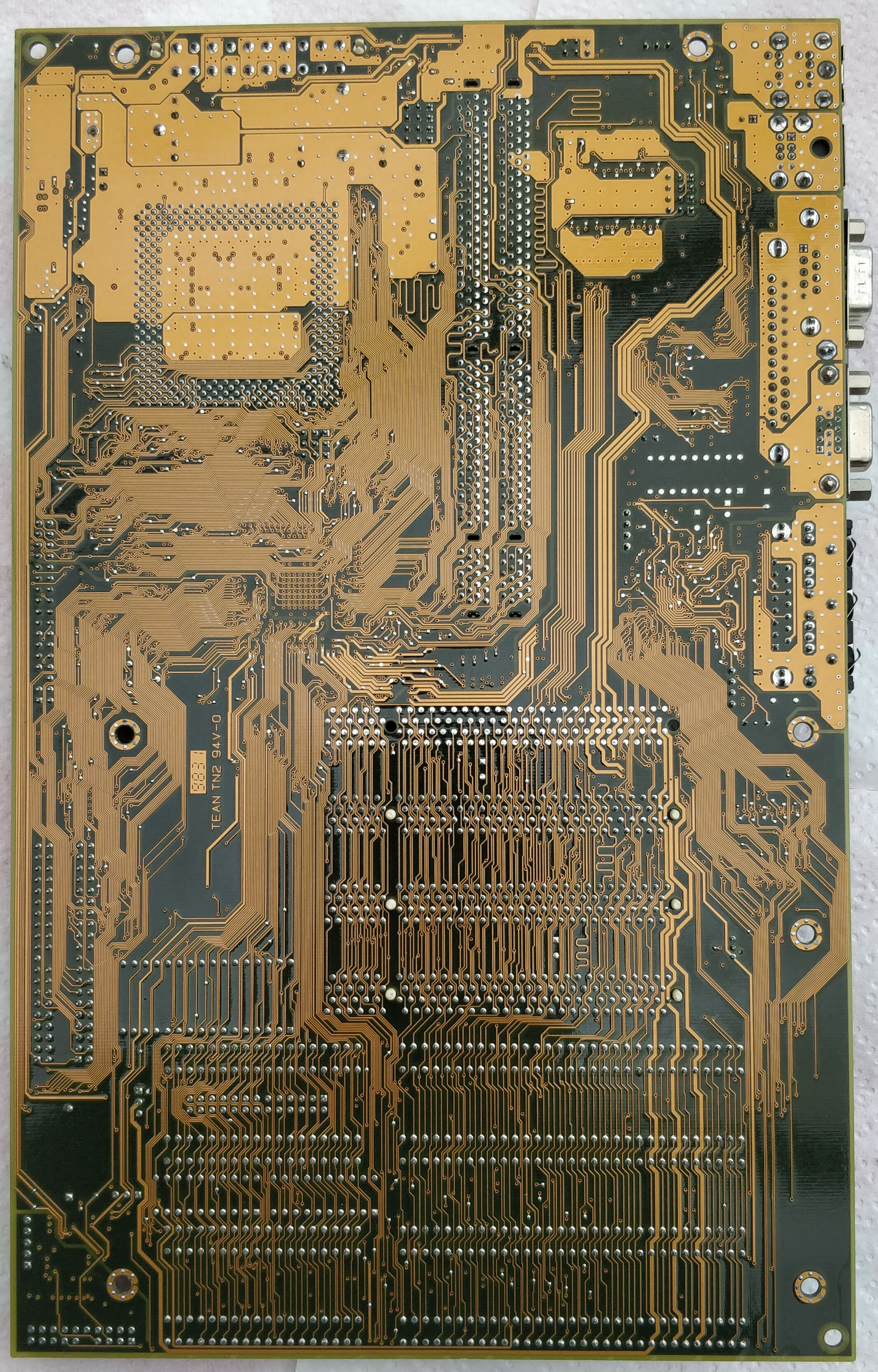

image1 Image 1 of 5

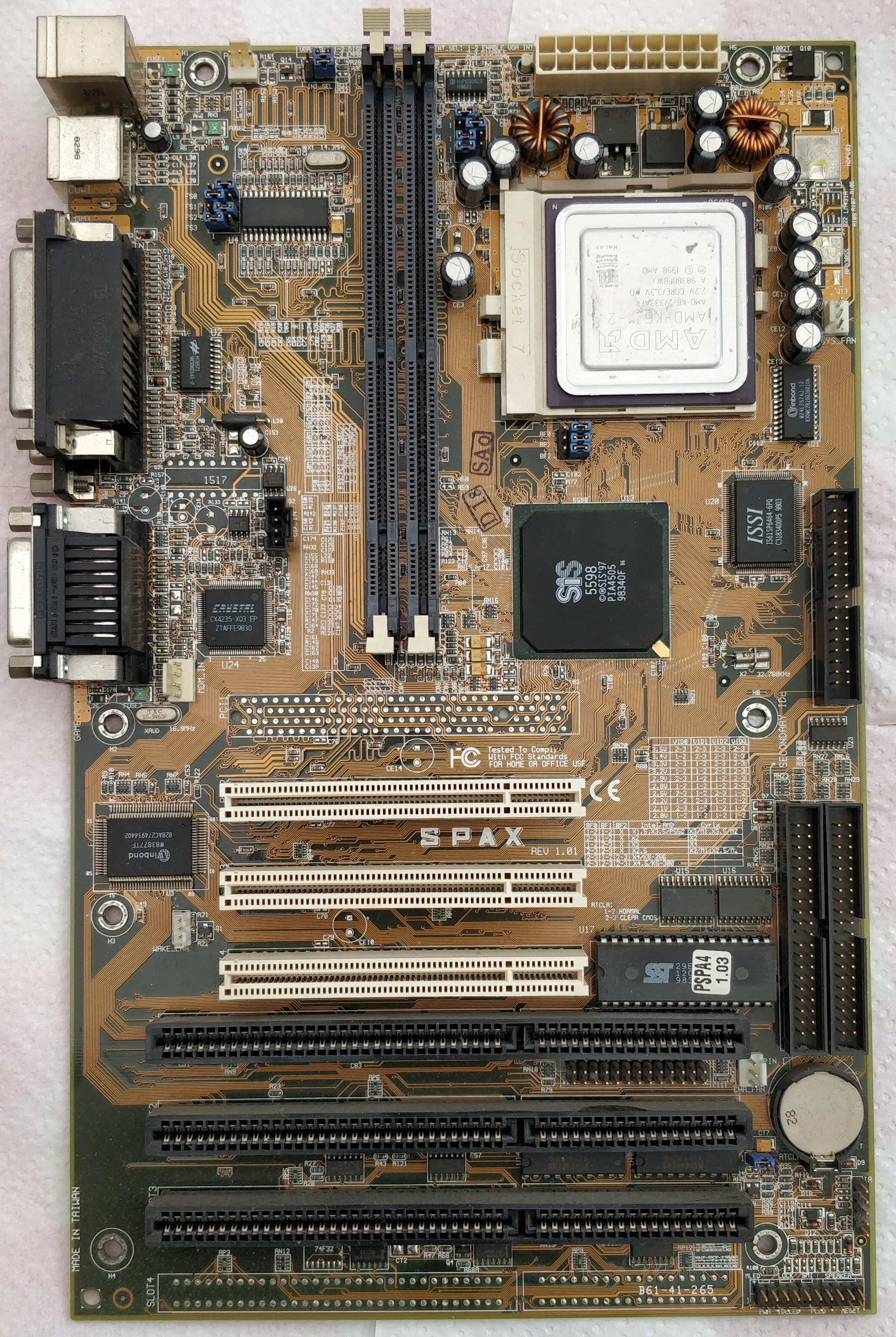

image2 Image 2 of 5 (deksor)

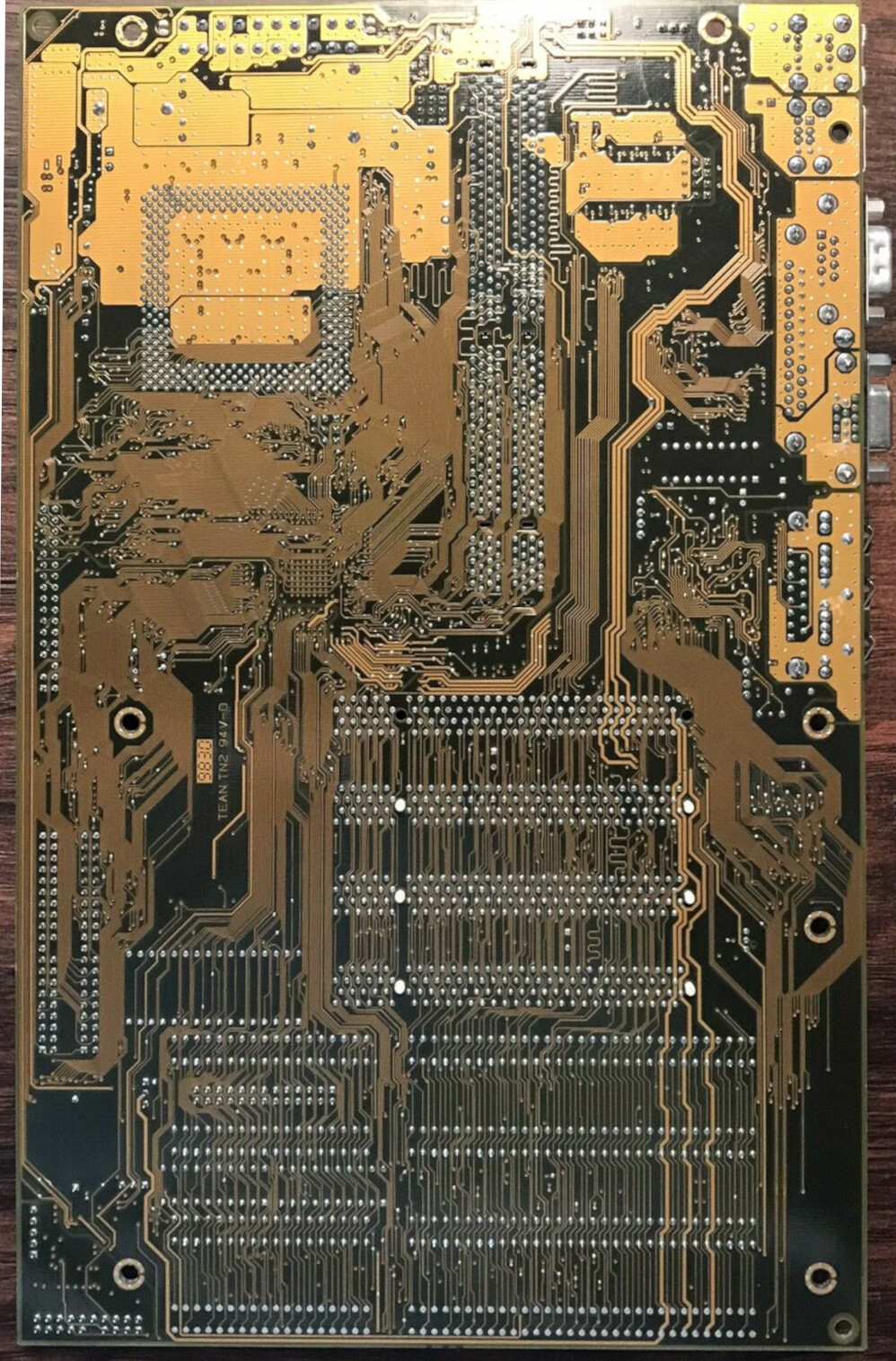

image3 Image 3 of 5

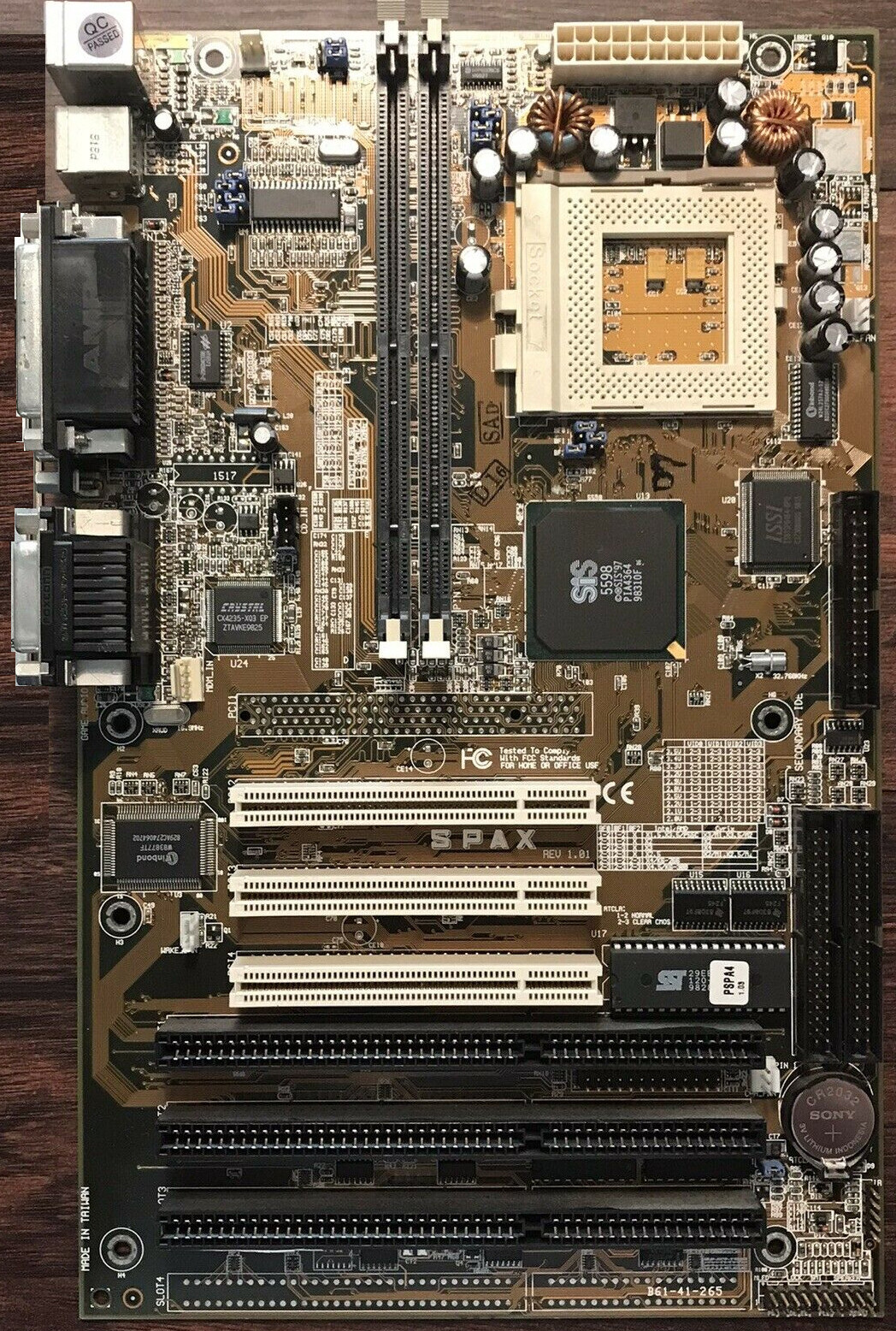

image4 Image 4 of 5 (deksor)

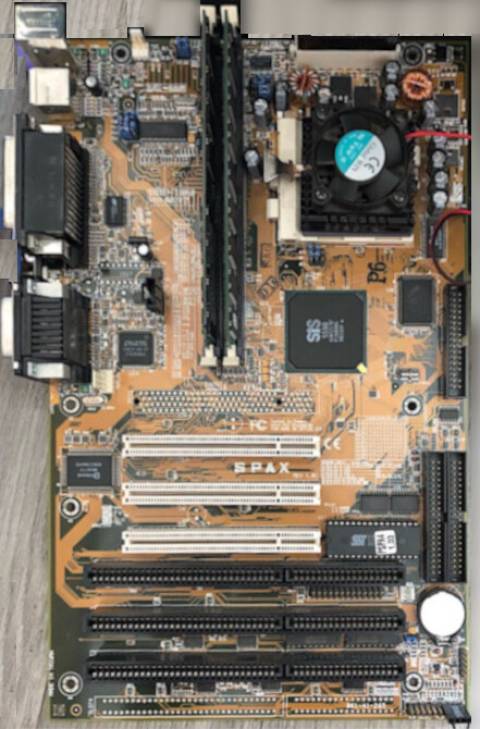

image5 Image 5 of 5
