ASUS P8P67 LE (Rev. 1.03)
Logs
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 224mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
3x
SATA III
1x
Serial
1x
Toslink
14x
USB 2.0
2x
USB 3.0
1x
eSATA III
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
wrench No board specific known issues
  • Recalled Product (Certain revisions only)

One or more revisions of this hardware component were recalled from the market because of certain reasons like defects (including major breaking ones), overheating, fire, or safety hazards. Users of said hardware component should take precaution while using it or even avoid using it altogether.

Always look the hardware compoment's page for more info about it.

notes Notes
  • Due to the CrossFireX limitation, PCIe x16_2 slot must run at x4 mode to set up a CrossFireX configuration. The default setting is x2 mode. Go to the BIOS setup to change the settings. See section 2.5.6 Onboard Devices Configuration in the BIOS for details.
  • The PCIe x1 slots share the bandwidth with the PCIe x16_2 slot. Thus, all PCIe x1 slots will be disabled when you install two CrossFireX graphics cards on both the PCIe x16 slots to set up a CrossFireX configuration.
Last updated 2025-08-02T04:27:00Z
Board info score is 9.4/10
bios 13 BIOS files available

vendor AMI - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-101111-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-020510-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-020510-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-020510-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-020510-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-020510-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-020510-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-020510-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 4 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
2010-11
File
Logs
Release date
2011-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2011-03-31
File
Logs
Chip
Release date
2025-02-18
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-11-28
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2013-01
File
Logs

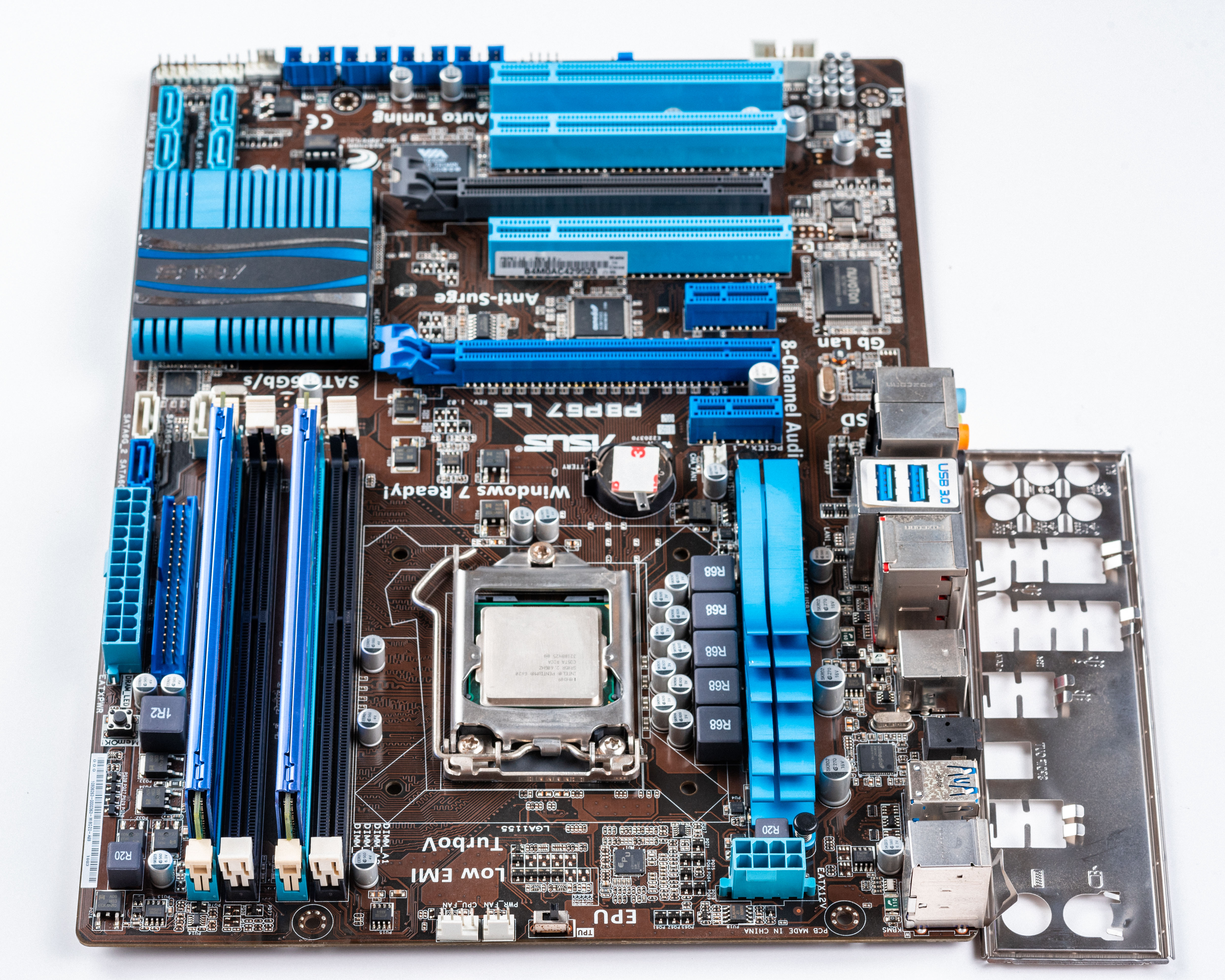

image1 Image 1 of 8 (ASUS)

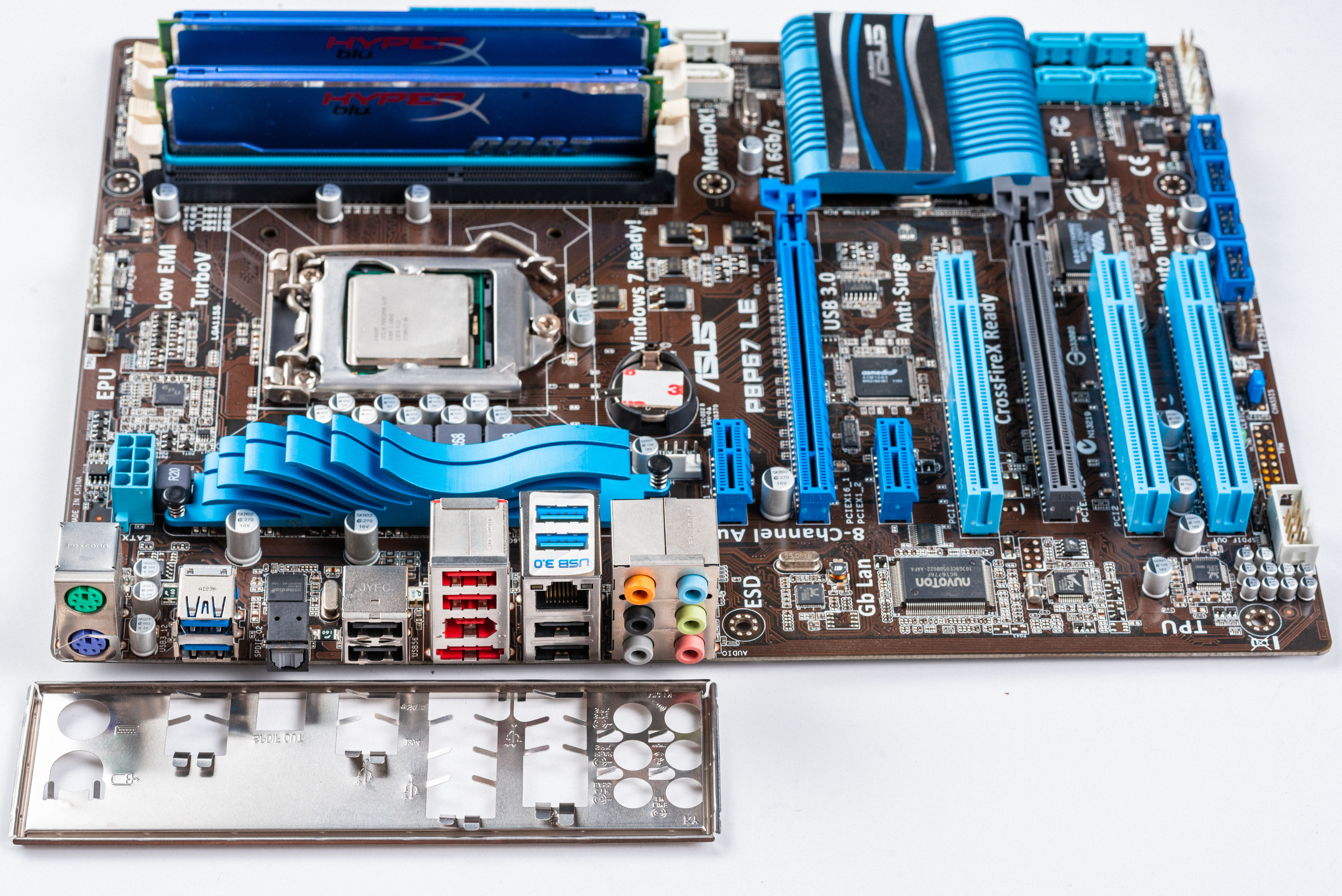

image2 Image 2 of 8 (Motherboard Continuum)

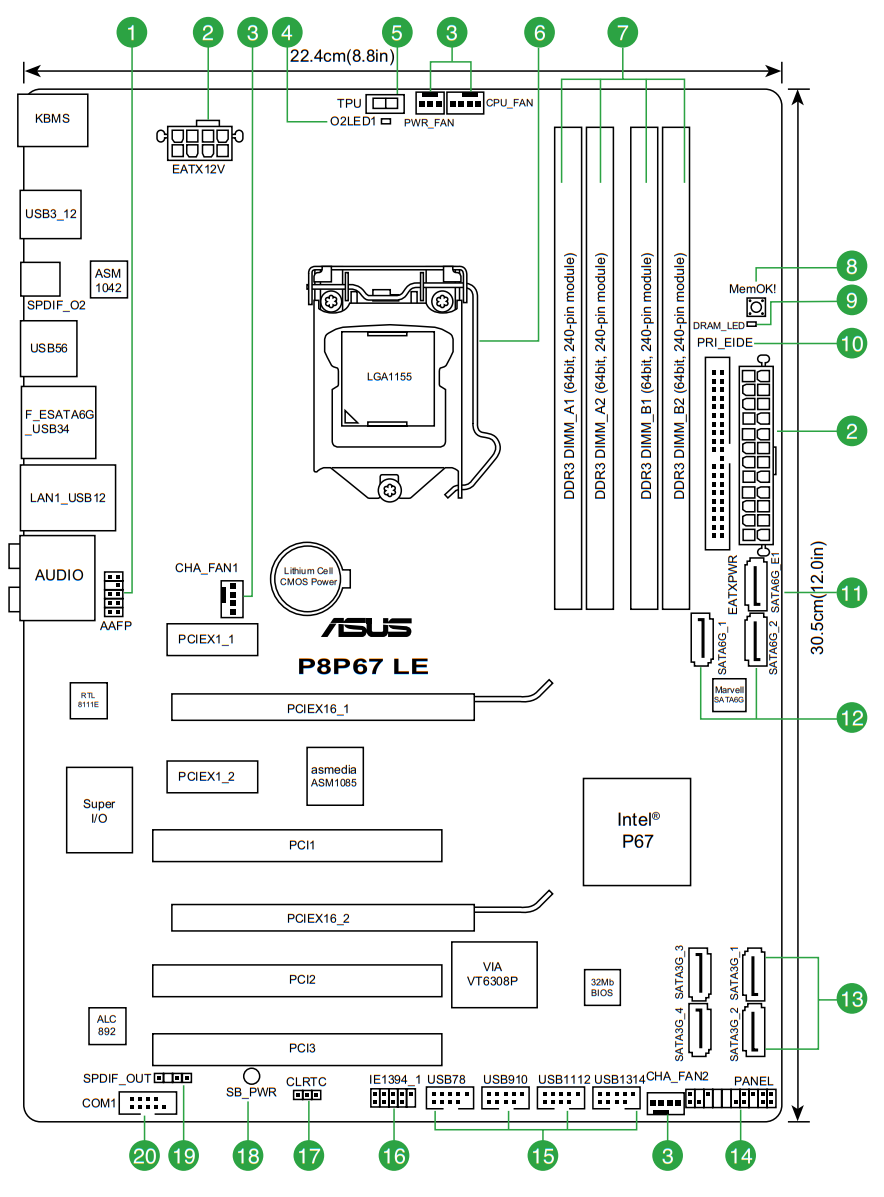

image3 Image 3 of 8 (Motherboard Continuum)

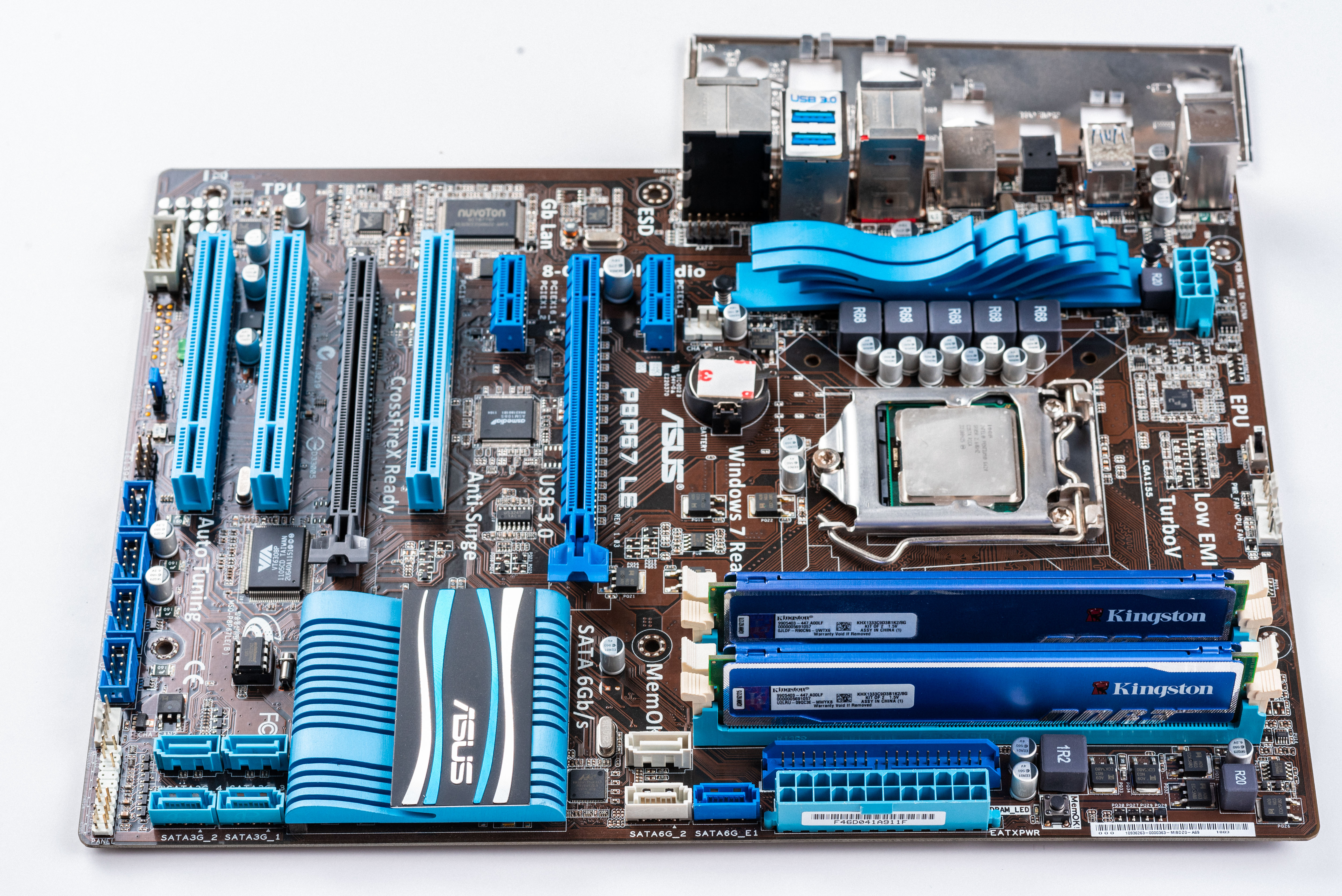

image4 Image 4 of 8 (Motherboard Continuum)

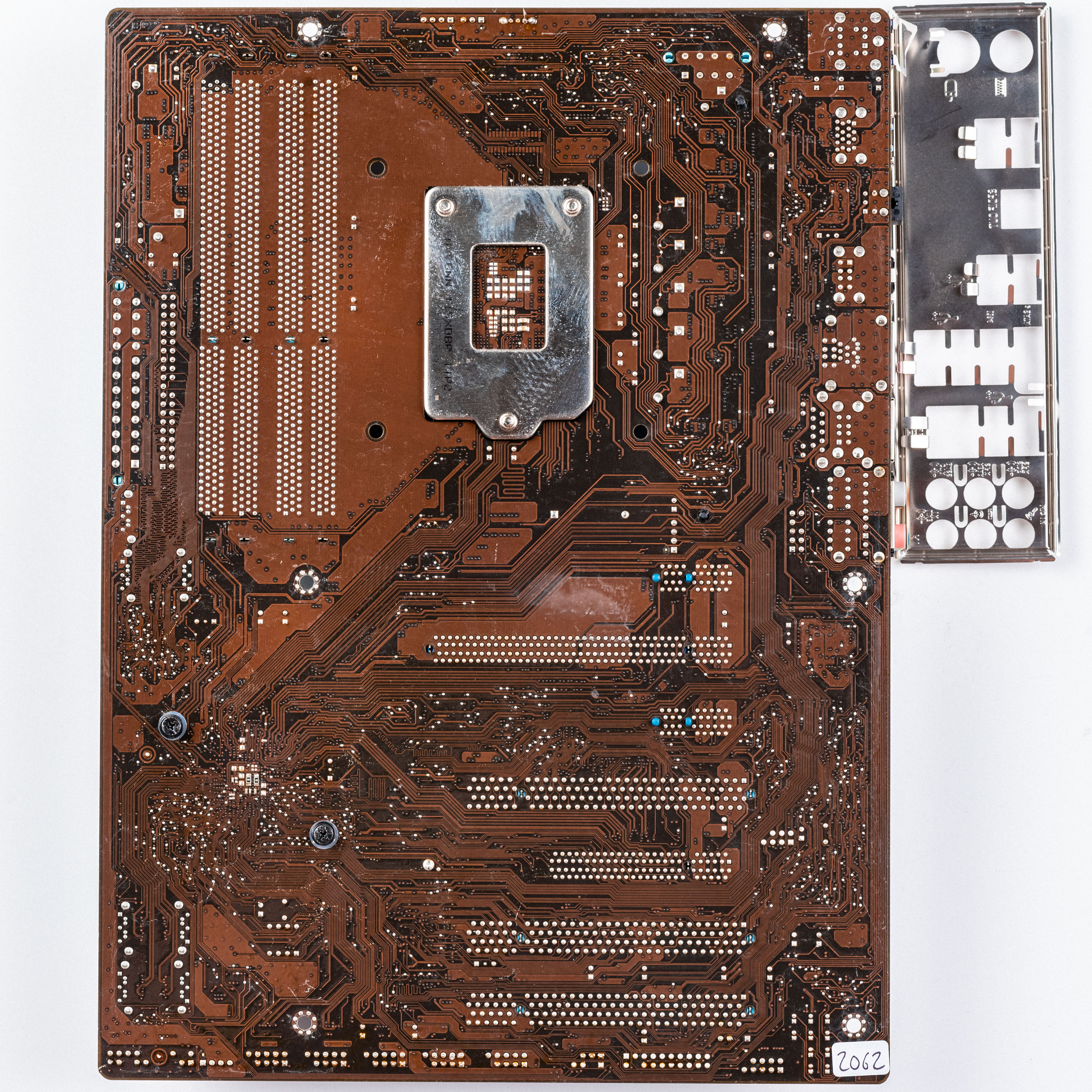

image5 Image 5 of 8 (Motherboard Continuum)

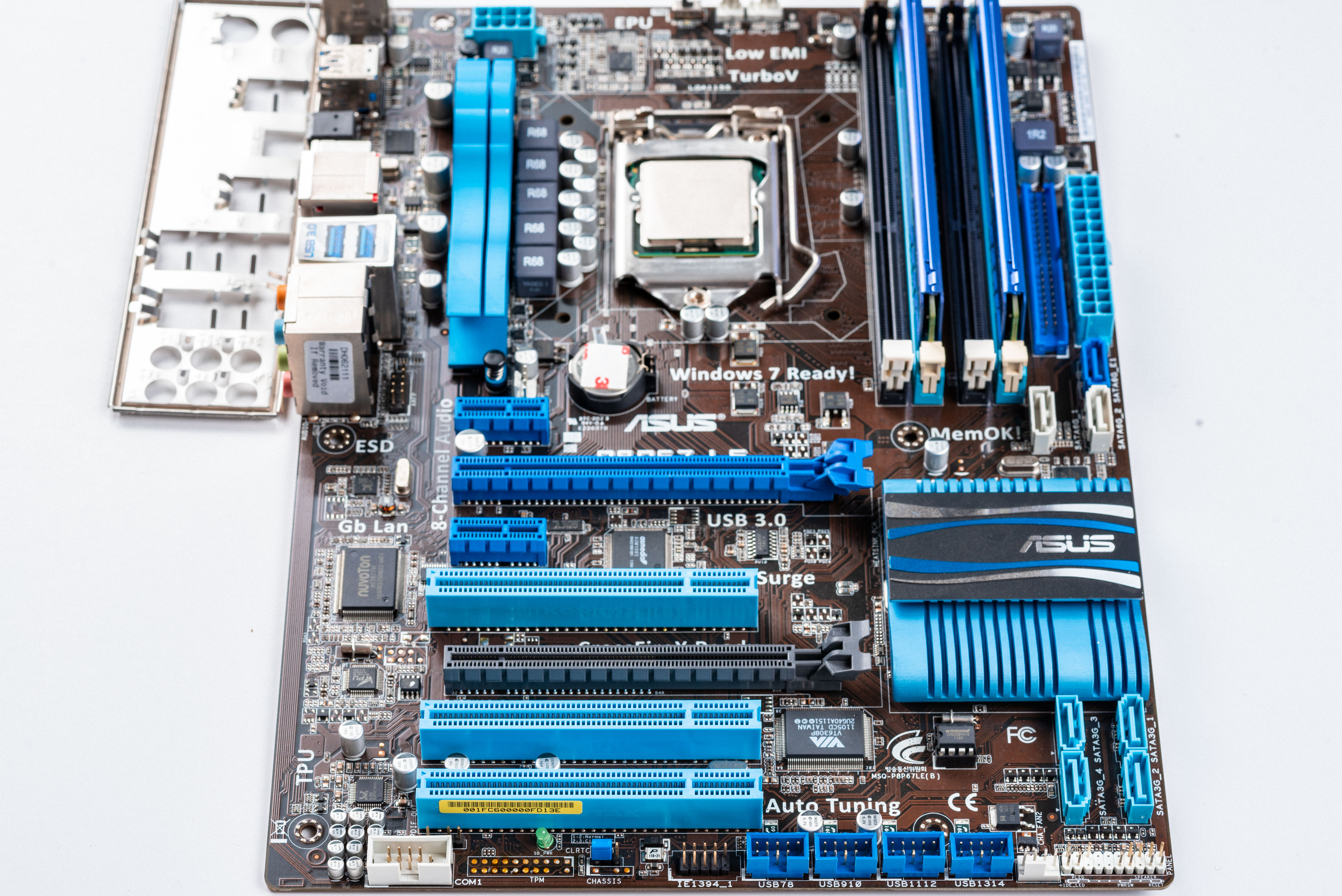

image6 Image 6 of 8 (Motherboard Continuum)

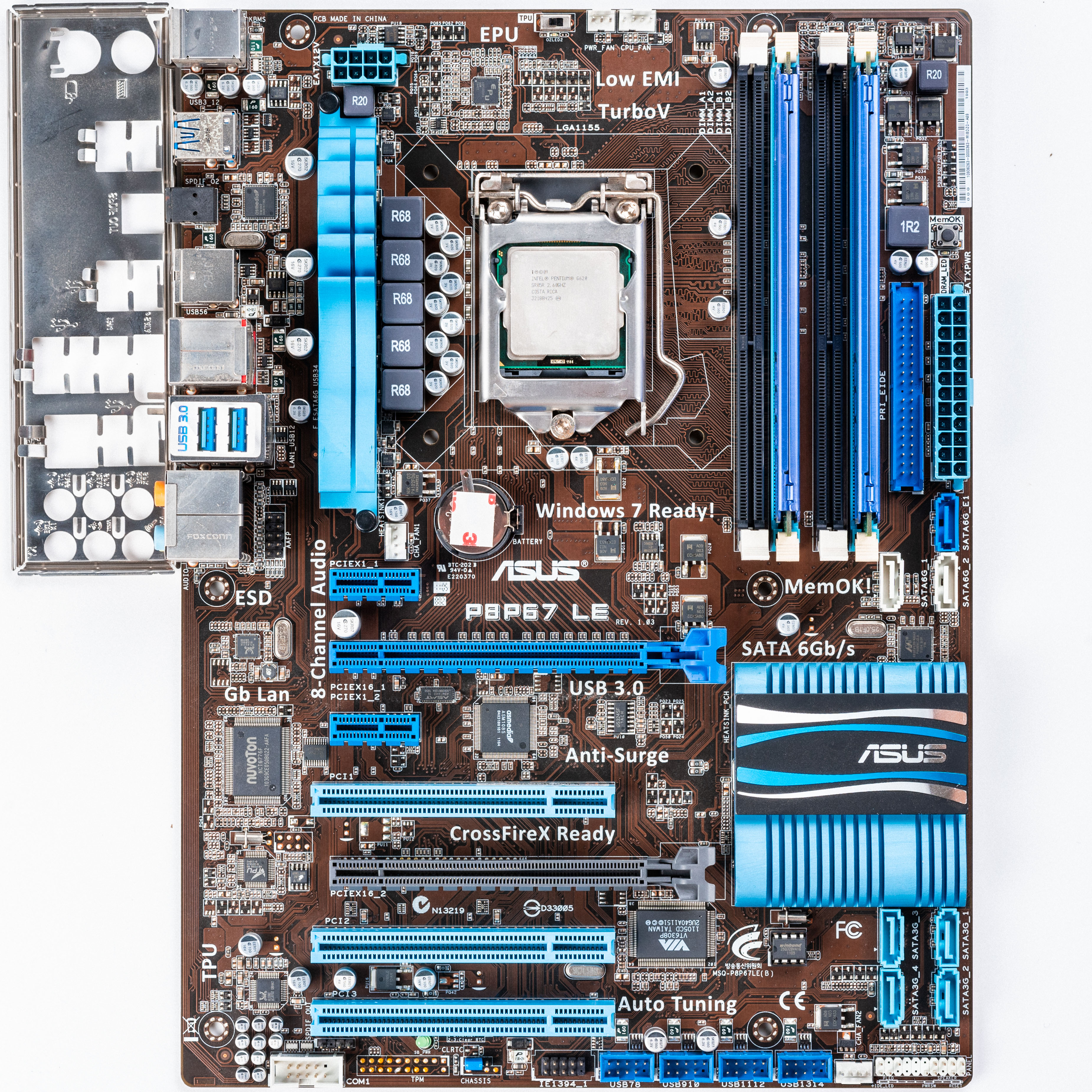

image7 Image 7 of 8 (Motherboard Continuum)
