ASUS P7P55D-E (Rev. 1.02G)
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
7x
SATA II
2x
SATA III
1x
Serial
1x
Toslink
12x
USB 2.0
2x
USB 3.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
3x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-08-07T12:46:27Z
Board info score is 9.4/10
bios 13 BIOS files available

vendor AMI - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-1601-000001-00101111-062612-P55-A1511001
Note
Needs to be updated together with the Asus IRST Driver v10.5.0.1026
Core version
080015
BIOS version
Logs
POST string
65-1504-000001-00101111-121410-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-1404-000001-00101111-102910-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-1301-000001-00101111-082710-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-1207-000001-00101111-073010-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-1101-000001-00101111-060810-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-1002-000001-00101111-052110-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-0910-000001-00101111-051110-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-0806-000001-00101111-032510-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-0711-000001-00101111-022210-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-0610-000001-00101111-121509-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-0501-000001-00101111-112309-P55-A1511001
Note
Core version
080015
BIOS version
Logs
POST string
65-0304-000001-00101111-111209-P55-A1511001
Note
Core version
080015
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.17.39
OS support
Windows 2000 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
3.8MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.3MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
11.3MB
Filename
Version
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2009-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-02-06
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2008-11-28
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs
image1 Image 1 of 4 (ASUS)

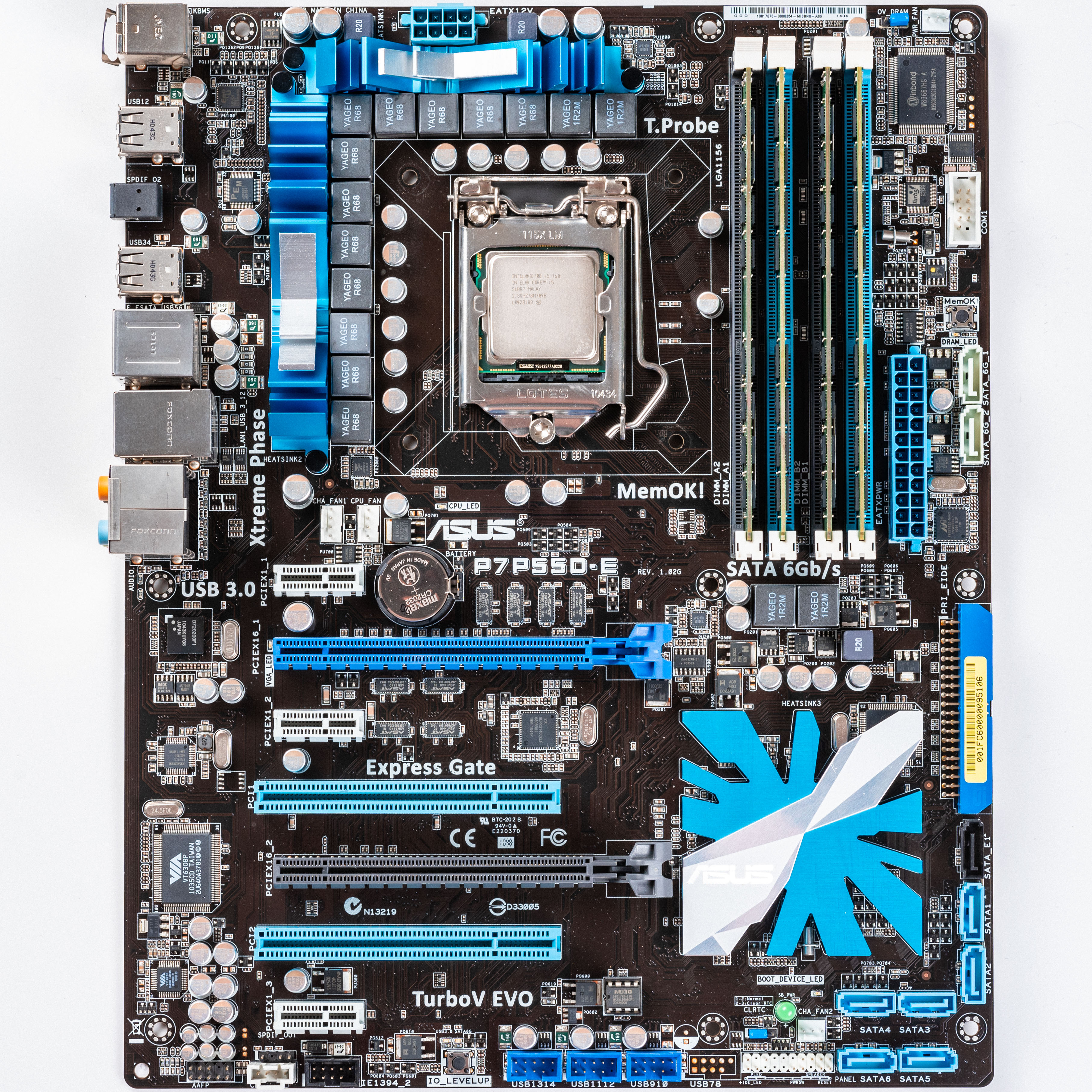

image2 Image 2 of 4 (Motherboard Continuum)

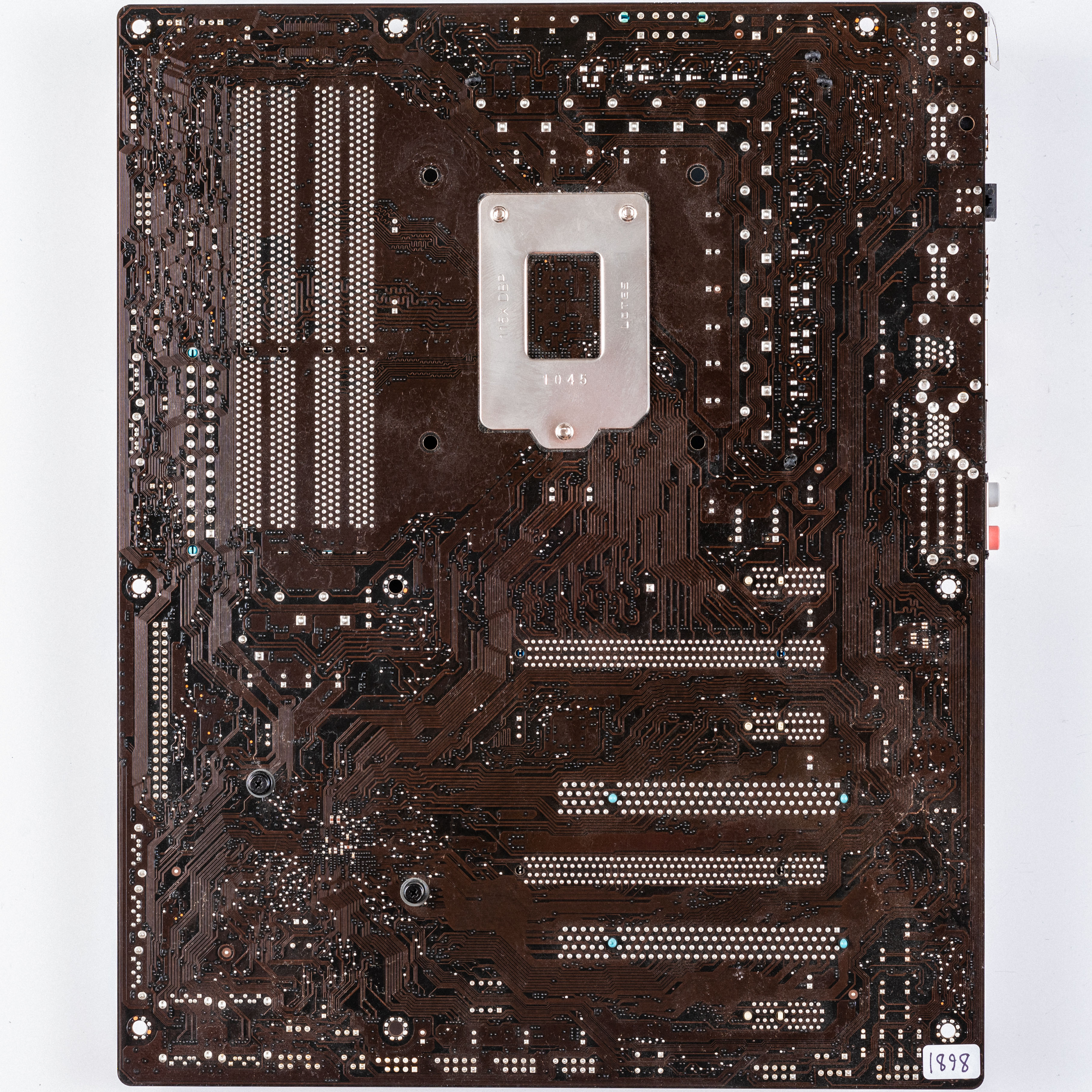

image3 Image 3 of 4 (Motherboard Continuum)

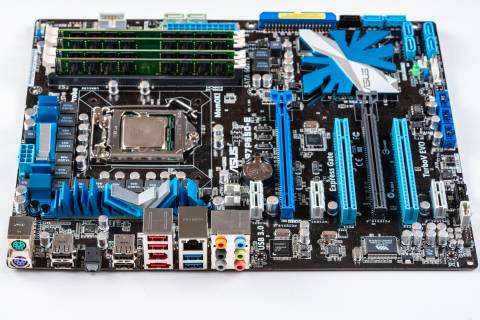

image4 Image 4 of 4 (Motherboard Continuum)
