ASUS P7F-M
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB(UDIMM)32GB(RDIMM)
ramRAM types
DDR3 UDIMMDDR3 RDIMM ECCDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
PS/2 keyboard
1x
PS/2 mouse
3x
RJ-45 LAN
6x
SATA II
2x
Serial
7x
USB 2.0
1x
VGA
cardExpansion slots
2x
32-bit PCI
1x
PCIe x16
1x
PCIe x8 @ x4
notes Notes

2x Intel 82574L + 1x Management LAN

Last updated 2026-01-07T23:26:32Z
Board info score is 7.5/10
bios 0 BIOS files available
drv No drivers available
doc 1 board document available
Release date
File
Logs
Release date
2009-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs
Family
Release date
2011-03-21
File
Logs

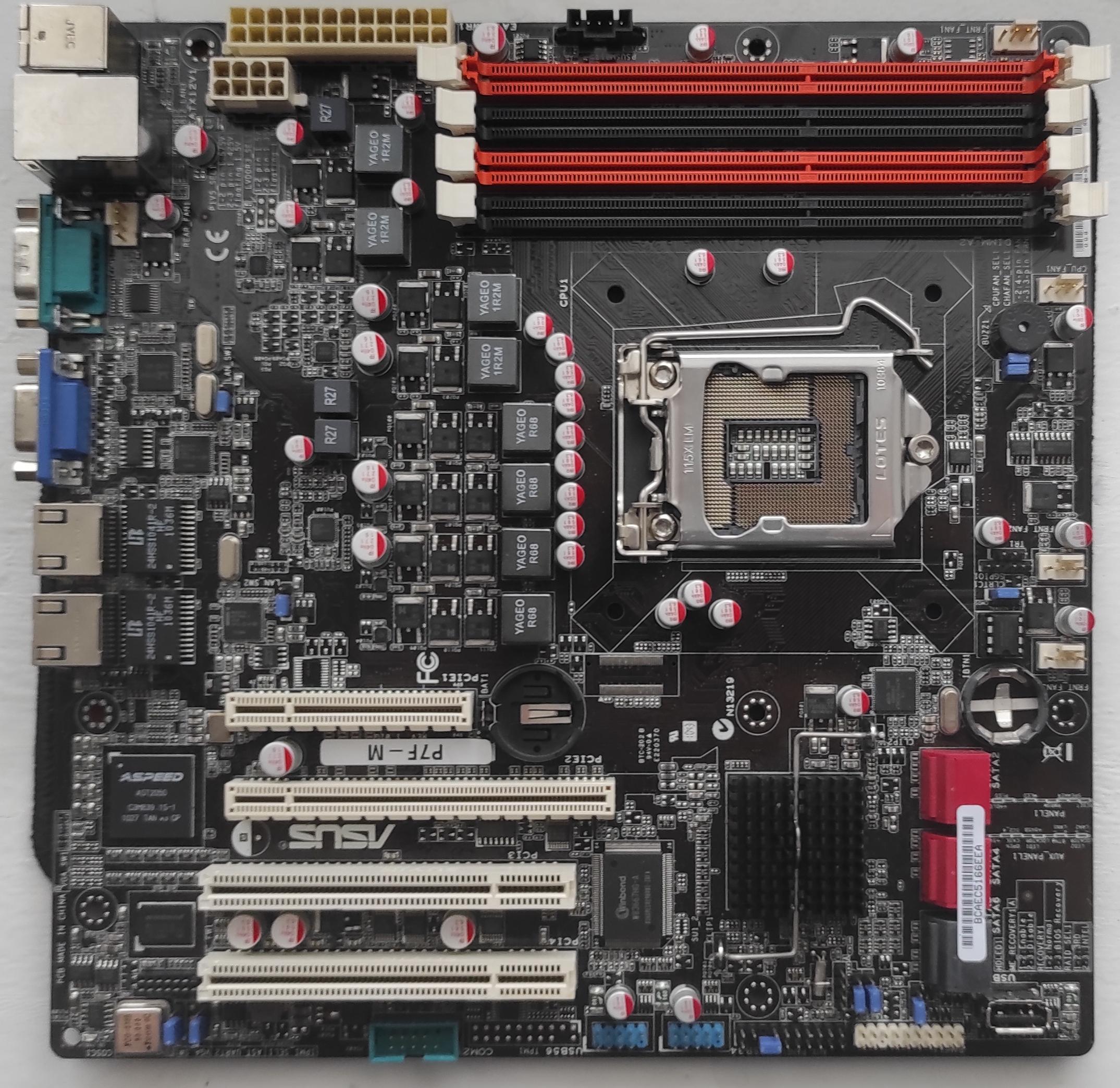

image1 Image 1 of 3 (ASUS)

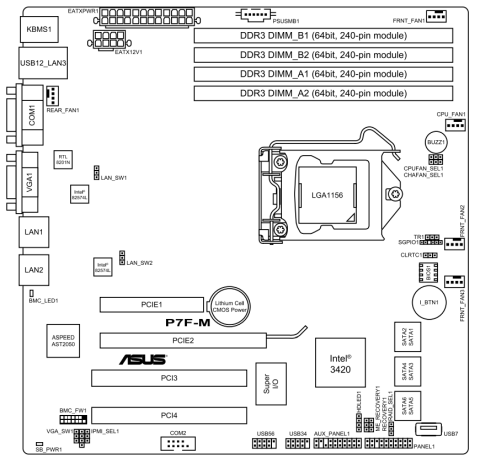

image2 Image 2 of 3 (ApostolCV)

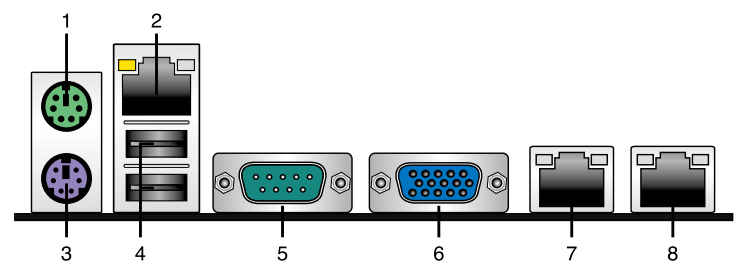

image3 Image 3 of 3 (ASUS)
