ASUS Maximus V Extreme
Logs
chipChipset
cpuSocket
Socket H2 (LGA1155)
speedFSB speed
Empty
moboForm factor
Extended ATX/EATX (max 305 × 330 mm)
dimDimensions
305mm x 272mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
PCIe (6-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS) ATX P4 connector 12v (4-pin P4)

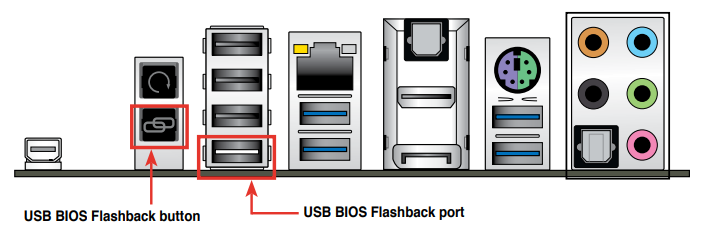

connI/O ports
1x
3.5mm Audio Combo
1x
DisplayPort
1x
HDMI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
S/PDIF
3x
SATA II
6x
SATA III
1x
Thunderbolt
2x
Toslink
8x
USB 2.0
8x
USB 3.0
1x
mSATA
cardExpansion slots
1x
Mini-PCIe
2x
PCIe x16
3x
PCIe x16 @ x8
1x
PCIe x4
notes Notes

PCIe x16 slots: single at x16, dual at x8/x8, triple at x8/x16/x8, quad at x8/x16/x8/x8.

Supports Nvidia 4-Way SLI and AMD CrossfireX

Has mPCIe and mSATA on a mPCIe Combo Card

Last updated 2023-11-22T16:12:39Z
Board info score is 8.4/10
bios 10 BIOS files available

vendor AMI - 10 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
POST string
Note
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.16.32.1
OS support
Windows 10 Windows 7 Windows 8.x Windows Vista
Arch
x86 , x86-64 , IA-64
Size
8.9MB
Filename
doc 5 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-04-16
File
Logs
Chip
Release date
2012-09-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2010-10-20
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2011-05
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2011-09
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2012-01
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2014-10
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
2016-04
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs
Socket
Release date
2013-01
File
Logs
doc 1 other file available
Title
File
Logs
Title
Intel Management Engine Firmware upgrade program (2012/09/05)
File
Logs

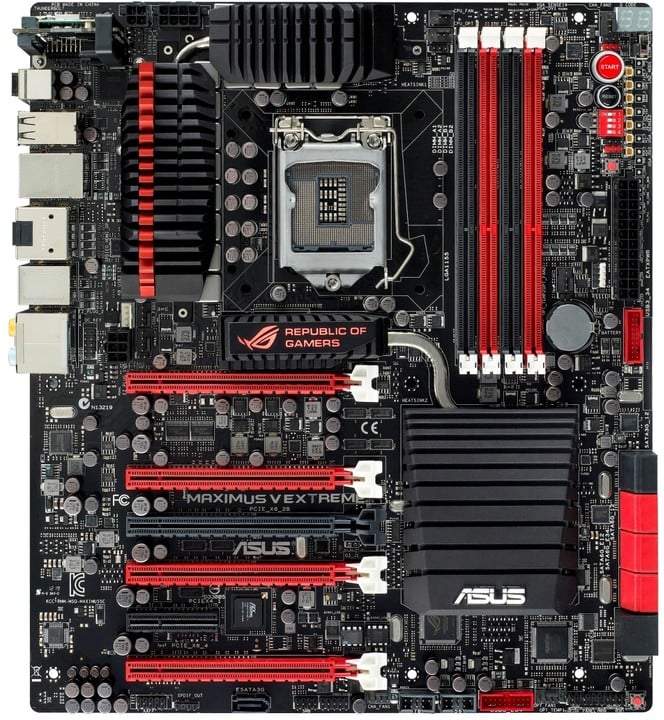

image1 Image 1 of 3 (ASUS)

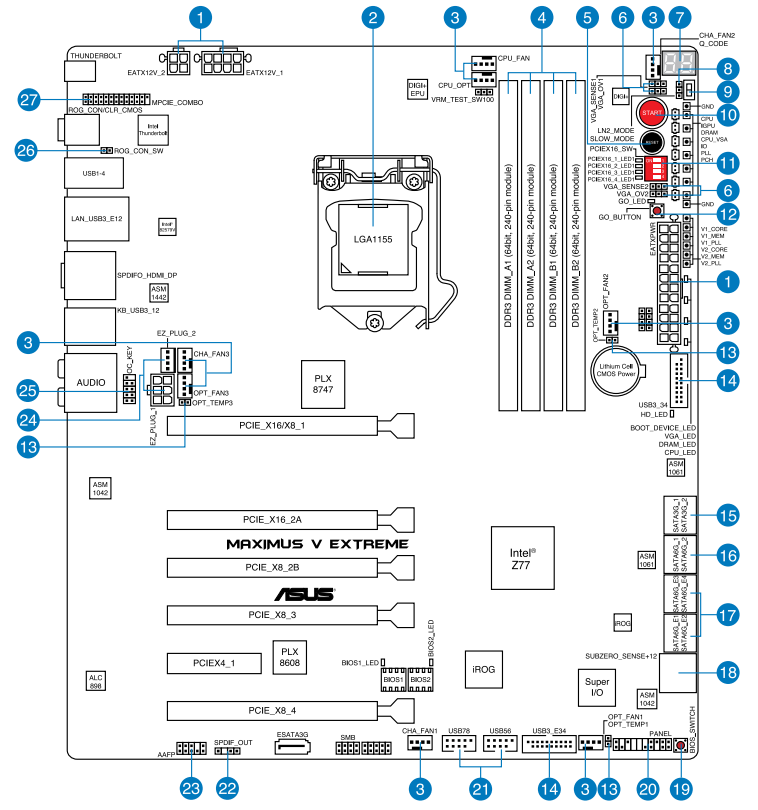

image2 Image 2 of 3 (ASUS)
image3 Image 3 of 3 (ASUS)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
