ASUS M4N68T V2 (polymer capacitors)
Logs
chipChipset
cpuSocket
Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • ASUS M4N68T LE V2 (regular capacitors)

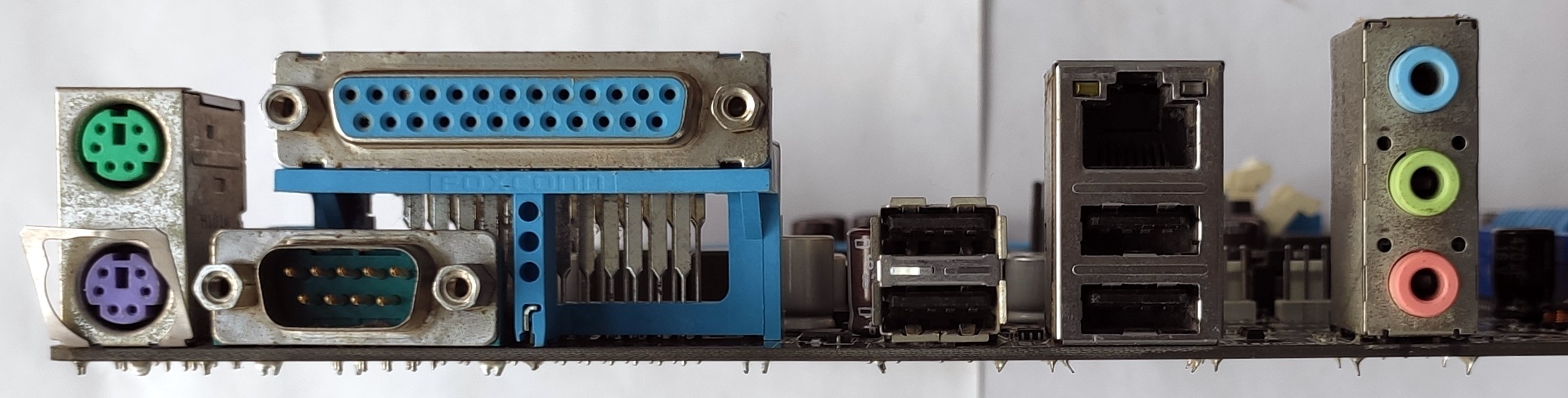

connI/O ports
1x
3.5mm Audio Combo
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
10x
USB 2.0
cardExpansion slots
4x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
Last updated 2025-10-09T12:34:58Z
Board info score is 9.1/10
bios 3 BIOS files available

vendor AMI - 3 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0602-000001-00101111-061411-MCP68SE-A1713000
Note
BIOS Date: 06/14/11 09:24:26 Ver: 08.00.14
Core version
080014
BIOS version
Logs
POST string
64-0502-000001-00101111-012611-MCP68SE-A1713000
Note
BIOS Date: 01/26/11 18:07:46 Ver: 08.00.14
Core version
080014
BIOS version
Logs
POST string
64-0304-000001-00101111-073010-MCP68SE-A1713000
Note
BIOS Date: 07/30/10 12:44:00 Ver: 08.00.14
Core version
080014
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.10.00.5010
OS support
Windows XP/2k3
Arch
x86
Size
6.7MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs

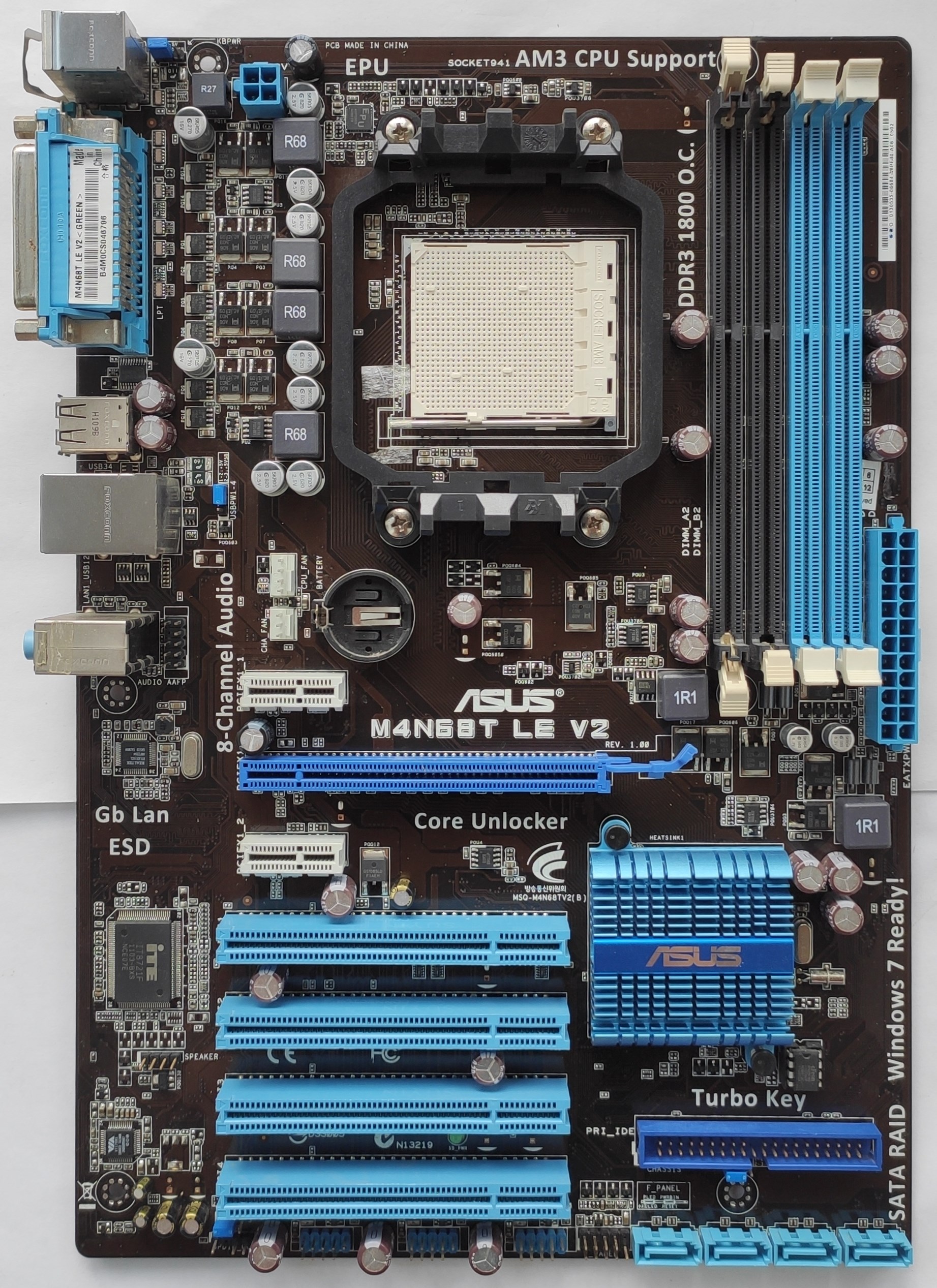

image1 Image 1 of 5 (Paul Roux)
image2 Image 2 of 5 (VanoRu)
image3 Image 3 of 5 (Paul Roux)
image4 Image 4 of 5 (VanoRu)
image5 Image 5 of 5 (VanoRu)
