ASUS M2N32-SLI Premium Vista Edition (Rev. 1.00G)
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

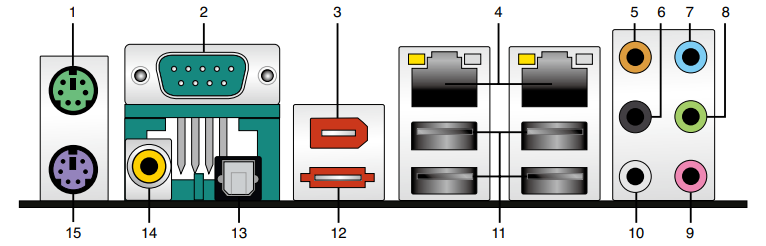

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
7x
SATA II
1x
Serial
1x
Toslink
8x
USB 2.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
1x
PCIe x4
notes Notes

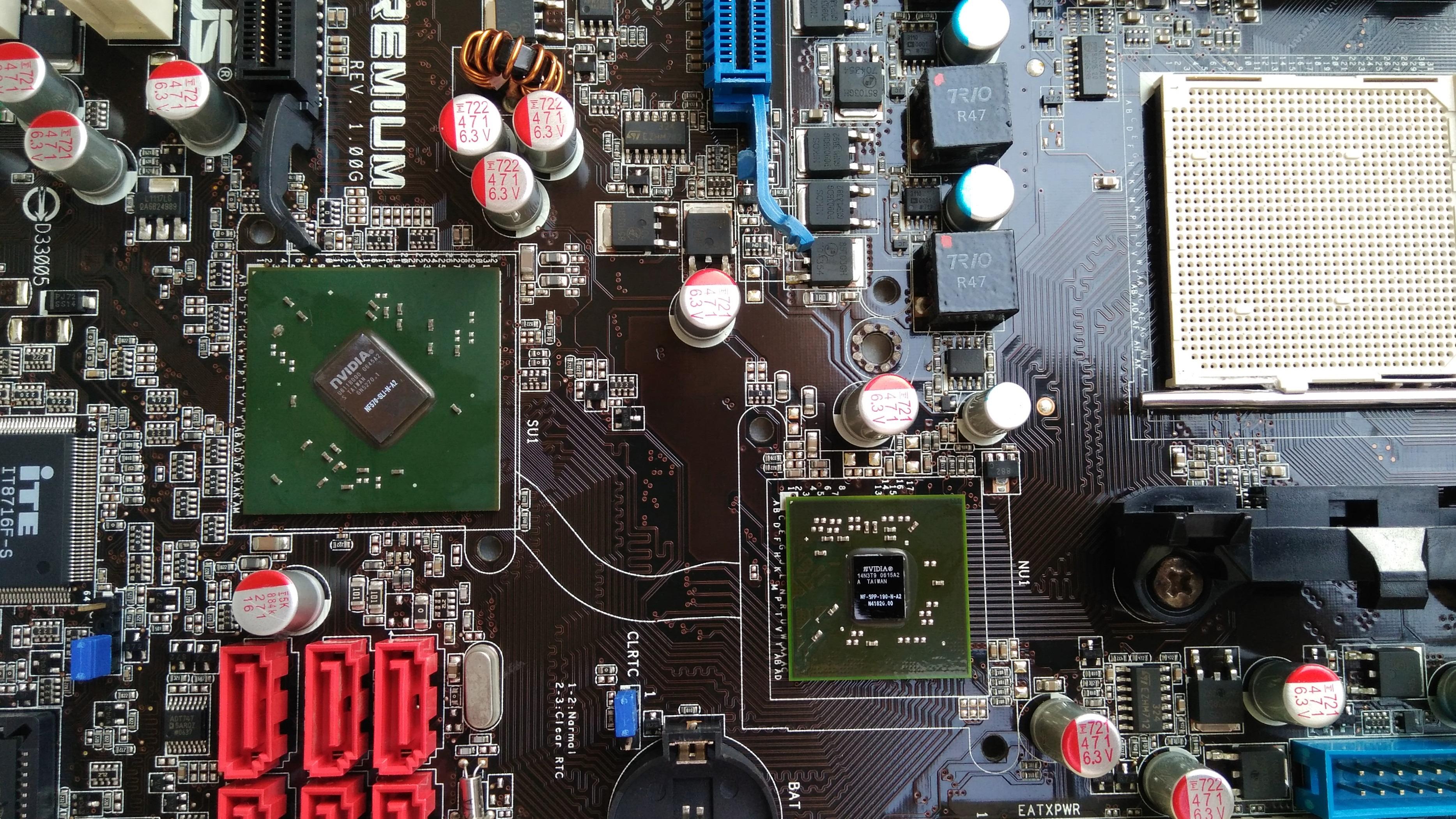

User Manual specifies the chipset as nForce 590 SLI, but the board may have a nForce 570 SLI Chipset onboard

Last updated 2026-01-07T22:43:25Z
Board info score is 9.4/10
bios 13 BIOS files available

vendor Award - 13 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
07/09/2009-C51XEMCP55PXE-M2N32-P-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
05/21/2009-C51XEMCP55PXE-M2N32-P-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
08/15/2008-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/18/2008-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
03/07/2008-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/26/2007-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/07/2007-C51XEMCP55PXE-M2N32-P-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
11/07/2007-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
09/26/2007-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/05/2007-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/10/2007-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/30/2007-C51XEMCP55PXE-M2N32-P-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
Note
Core version
6.00PG
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.10.02.6585
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
Size
12.2MB
Filename
Name
Version
9.16
OS support
Windows XP/2k3
Arch
x86
Size
32MB
Filename
Name
Version
9.14
OS support
Windows XP/2k3
Arch
x86-64
Size
30.9MB
Filename
Name
Version
6.08
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
71.7MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2007-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-05
File
Logs
Chip
Release date
2011-05-09
File
Logs
Chip
Release date
2020-12-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-02-23
File
Logs
Chip
Release date
2004-08-24
File
Logs
Chip
Release date
2001-12
File
Logs
image1 Image 1 of 5 (ASUS)
image2 Image 2 of 5 (Karbist)
image3 Image 3 of 5 (Karbist)
image4 Image 4 of 5 (Karbist)
image5 Image 5 of 5 (ASUS)
