ASUS M2N32-SLI Deluxe (Rev. 1.04G)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 245mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM types
DDR2 UDIMMDDR2 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • ASUS M2N32-SLI Deluxe Wireless Edition
  • ASUS M2N32-SLI Deluxe/WiFi
connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
RJ-45 LAN
1x
S/PDIF
7x
SATA II
1x
Serial
1x
Toslink
10x
USB 2.0
1x
eSATA II
cardExpansion slots
2x
32-bit PCI
1x
PCIe x1
2x
PCIe x16
1x
PCIe x4
notes Notes

Supports NVIDIA SLI

Wireless Edition has 8 USB 2.0 Ports

Standard Edition has 10 USB 2.0 Ports

Last updated 2025-04-08T20:37:27Z
Board info score is 9.4/10
bios 24 BIOS files available

vendor Award - 24 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/18/2010-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
09/07/2009-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
07/09/2009-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
05/21/2009-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
03/02/2009-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/19/2008-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/01/2008-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/31/2008-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/26/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
12/17/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/07/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/25/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
09/26/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
06/20/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/23/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
05/08/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
01/02/2007-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
11/28/2006-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
11/21/2006-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
11/16/2006-C51XEMCP55PXE-M2N32SLI-00
Note
Beta Version
Core version
6.00PG
BIOS version
Logs
POST string
09/01/2006-C51XEMCP55PXE-M2N32SLI-00
Note
Unofficial Version
Core version
6.00PG
BIOS version
Logs
POST string
08/21/2006-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/27/2006-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/14/2006-C51XEMCP55PXE-M2N32SLI-00
Note
Core version
6.00PG
BIOS version
Logs
drv 8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
6.10.02.6585
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
Size
12.2MB
Filename
Name
Version
9.16
OS support
Windows XP/2k3
Arch
x86
Size
32MB
Filename
Name
Version
9.14
OS support
Windows XP/2k3
Arch
x86-64
Size
30.9MB
Filename
Name
Version
6.08
OS support
Windows 7 Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
71.7MB
Filename
Name
Version
N/A
OS support
MS-DOS
Arch
x86
Size
26.8KB
Filename
Name
Version
N/A
OS support
Windows XP/2k3
Arch
Size
26.8KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
2006-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-05
File
Logs
Chip
Release date
2011-05-09
File
Logs
Chip
Release date
2020-12-01
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2007-02-23
File
Logs
Chip
Release date
2004-08-24
File
Logs
Chip
Release date
2001-12
File
Logs

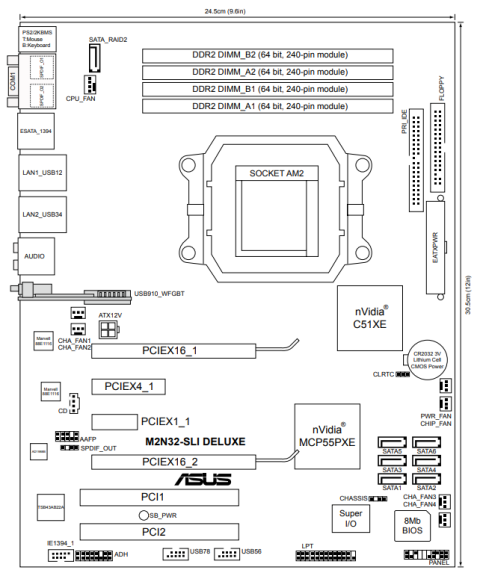

image1 Image 1 of 4 (ASUS)

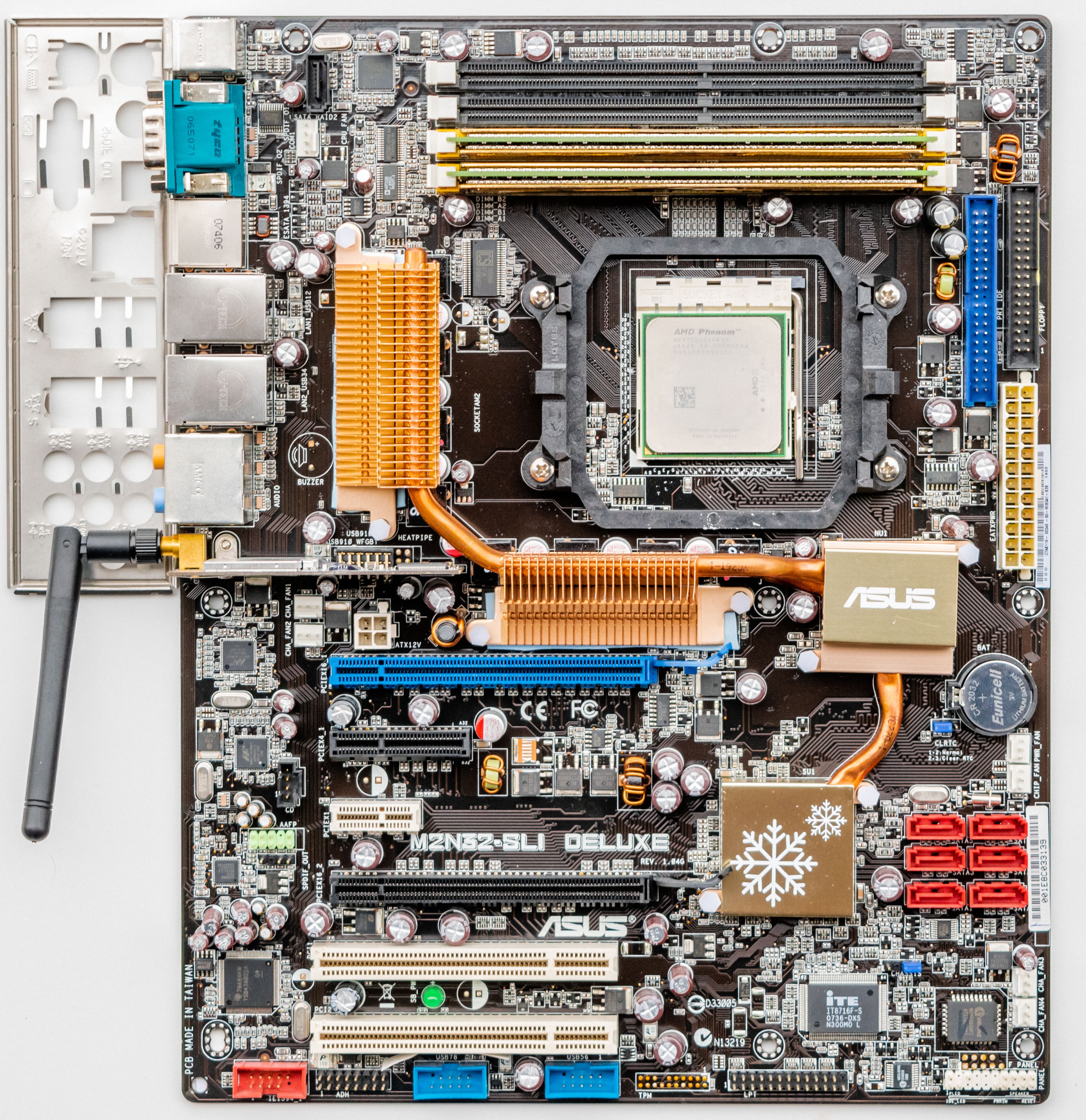

image2 Image 2 of 4 (Motherboard Continuum)

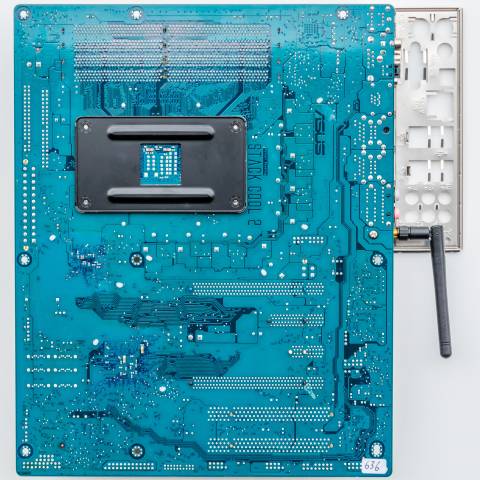

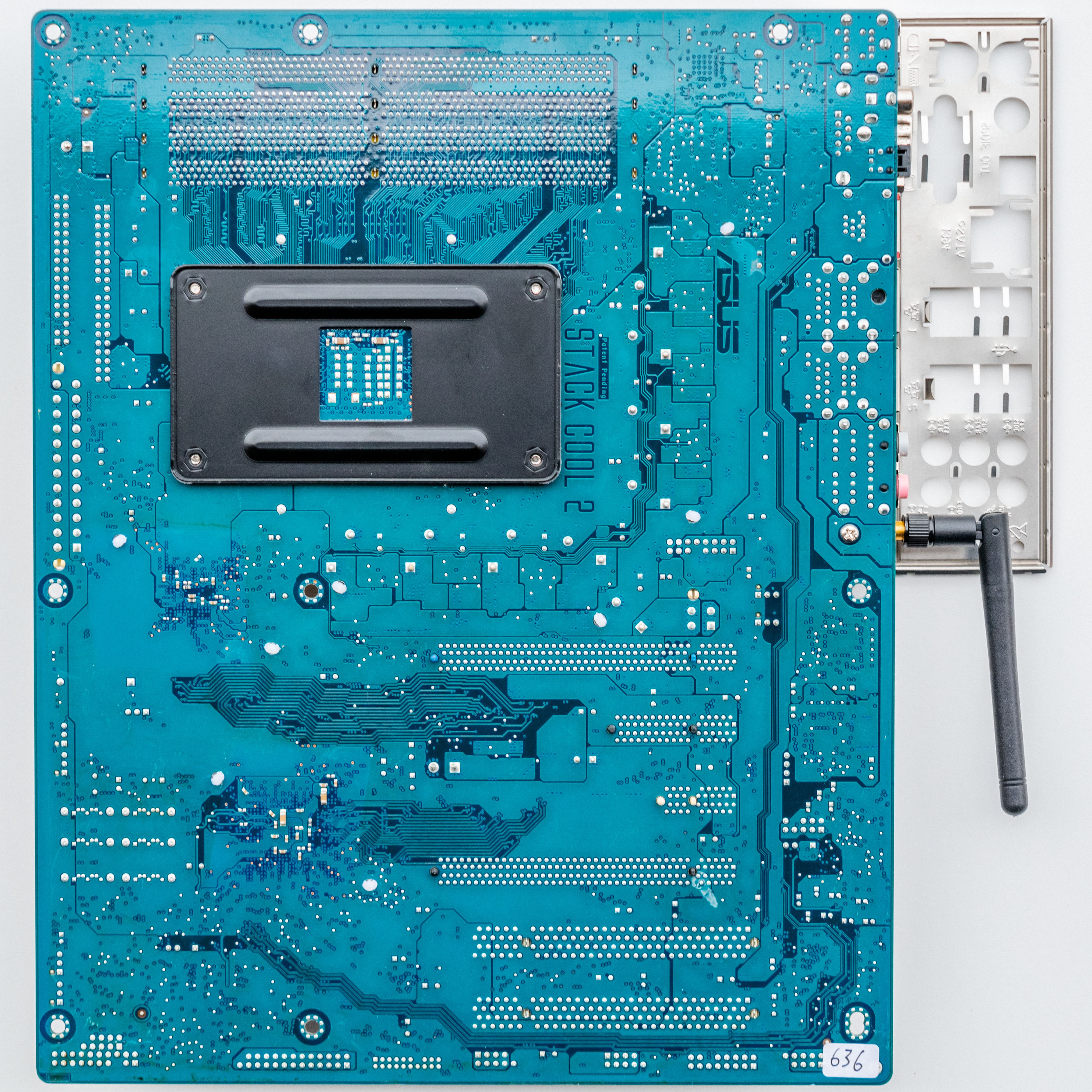

image3 Image 3 of 4 (Motherboard Continuum)

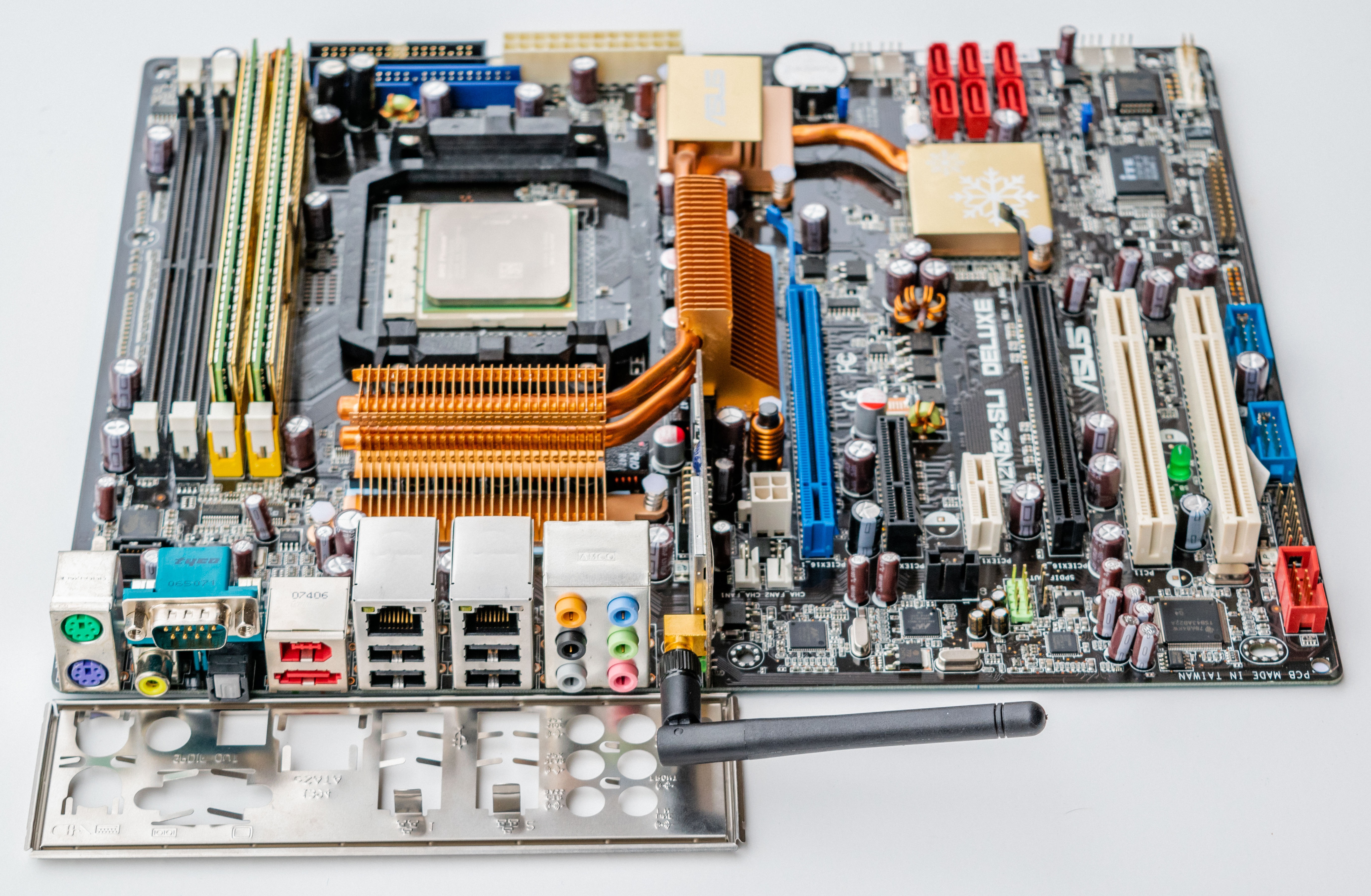

image4 Image 4 of 4 (Motherboard Continuum)
