ASUS M2N DH
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 206mm
chipCache
None/Integrated in the CPU
ramMax RAM size
8GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

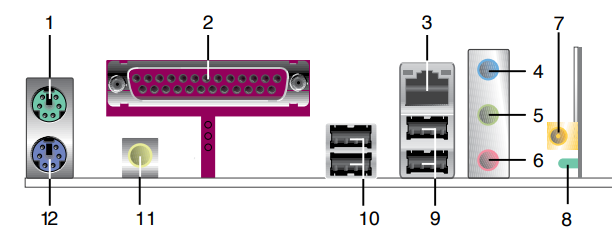

connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
1x
Serial
8x
USB 2.0
cardExpansion slots
3x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-02-22T18:15:13Z
Board info score is 9.2/10
bios 12 BIOS files available

vendor AMI - 11 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0807-000001-00101111-032708-MCP61-A0627000
Note
Core version
080012
BIOS version
Logs
POST string
63-0806-000001-00101111-022908-MCP61-A0627000
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
63-0803-000001-00101111-091807-MCP61-A0627000
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
63-0702-000001-00101111-052807-MCP61-A0627000
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
63-0604-000001-00101111-051107-MCP61-A0627000
Note
Core version
080012
BIOS version
Logs
POST string
63-0502-000001-00101111-043007-MCP61-A0627000
Note
Core version
080012
BIOS version
Logs
POST string
63-0501-000001-00101111-030507-MCP61-A0627000
Note
Beta Version
Core version
080012
BIOS version
Logs
POST string
63-0407-000001-00101111-011207-MCP61-A0627000
Note
Core version
080012
BIOS version
Logs
POST string
63-0406-000001-00101111-121906-MCP61-A0627000
Note
Core version
080012
BIOS version
Logs
POST string
63-0306-000001-00101111-102006-MCP61-A0627000
Note
Core version
080012
BIOS version
Logs
POST string
63-0201-000001-00101111-082206-MCP61-A0627000
Note
Core version
080012
BIOS version
Logs

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/15/2006-NF-MCP61-M2N-VMDH-00
Note
Core version
080012
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.1.0.21
OS support
Windows 7 Windows 8.x Windows Vista Windows XP/2k3
Arch
x86 , x86-64
Size
5.8MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
image1 Image 1 of 3 (ASUS)

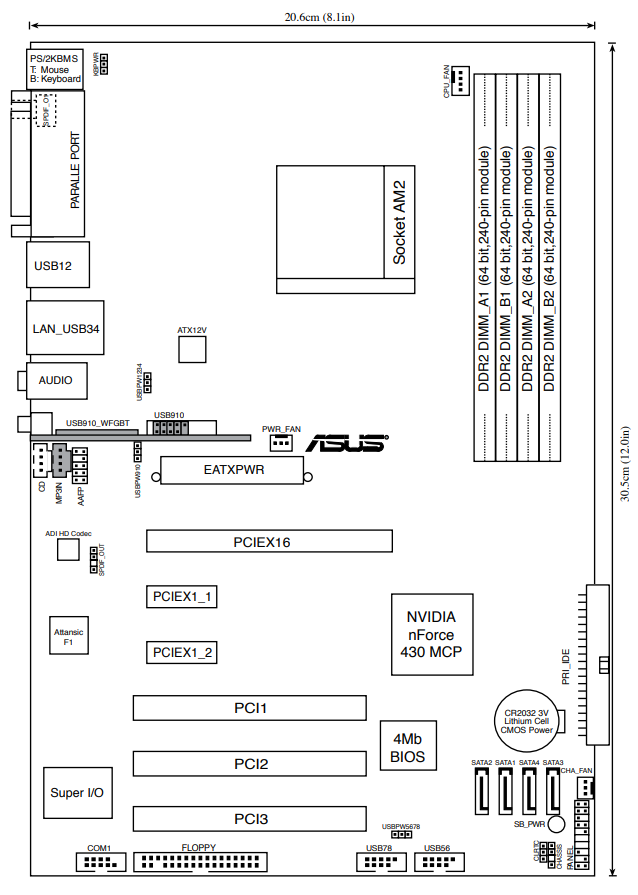

image2 Image 2 of 3

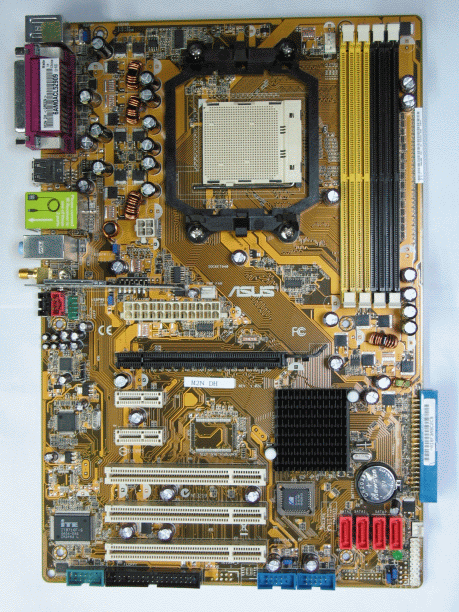

image3 Image 3 of 3 (ASUS)
