ASUS KCMA-D8
Logs
chipChipset
cpuSocket
Socket C32 (LGA1207)
speedFSB speeds
200MHz2600MHz3200MHz
moboForm factor
SSI CEB (max 305 × 267 mm)
dimDimensions
305 mm x 254 mm
ramMax VRAM size
8MB
chipCache
None/Integrated in the CPU
ramMax RAM size
128GB(RDIMM)64GB(UDIMM)
ramRAM types
DDR3 UDIMMDDR3 RDIMM ECCDDR3 LRDIMM ECCDDR3 UDIMM ECC
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
connI/O ports
1x
PS/2 keyboard
1x
PS/2 mouse
3x
RJ-45 LAN
6x
SATA II
2x
Serial
7x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
Asus PIKE
1x
PCIe x16
1x
PCIe x16 @ x8
1x
PCIe x8 @ x4
notes Notes

1x Top RJ-45 port is for AST2050 BMC baseband management controller (BMC) interface only.

All revisions B9 and later of the board support any generation of C32 Opterons, however may first require a BIOS update to POST. See document "How to identify Opteron 4200 support."

Last updated 2025-05-21T15:55:54Z
Board info score is 9.6/10
bios 9 BIOS files available

vendor AMI - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-0304-000001-00101111-112910-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-2001-000001-00101111-110411-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-3303-000001-00101111-102814-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-3001-000001-00101111-100112-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-0204-000001-00101111-092410-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-0403-000001-00101111-071411-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-2102-000001-00101111-051012-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-2101-000001-00101111-033012-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
POST string
65-3102-000001-00101111-013113-LISBON-S0110000
Note
Core version
080015
BIOS version
Logs
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

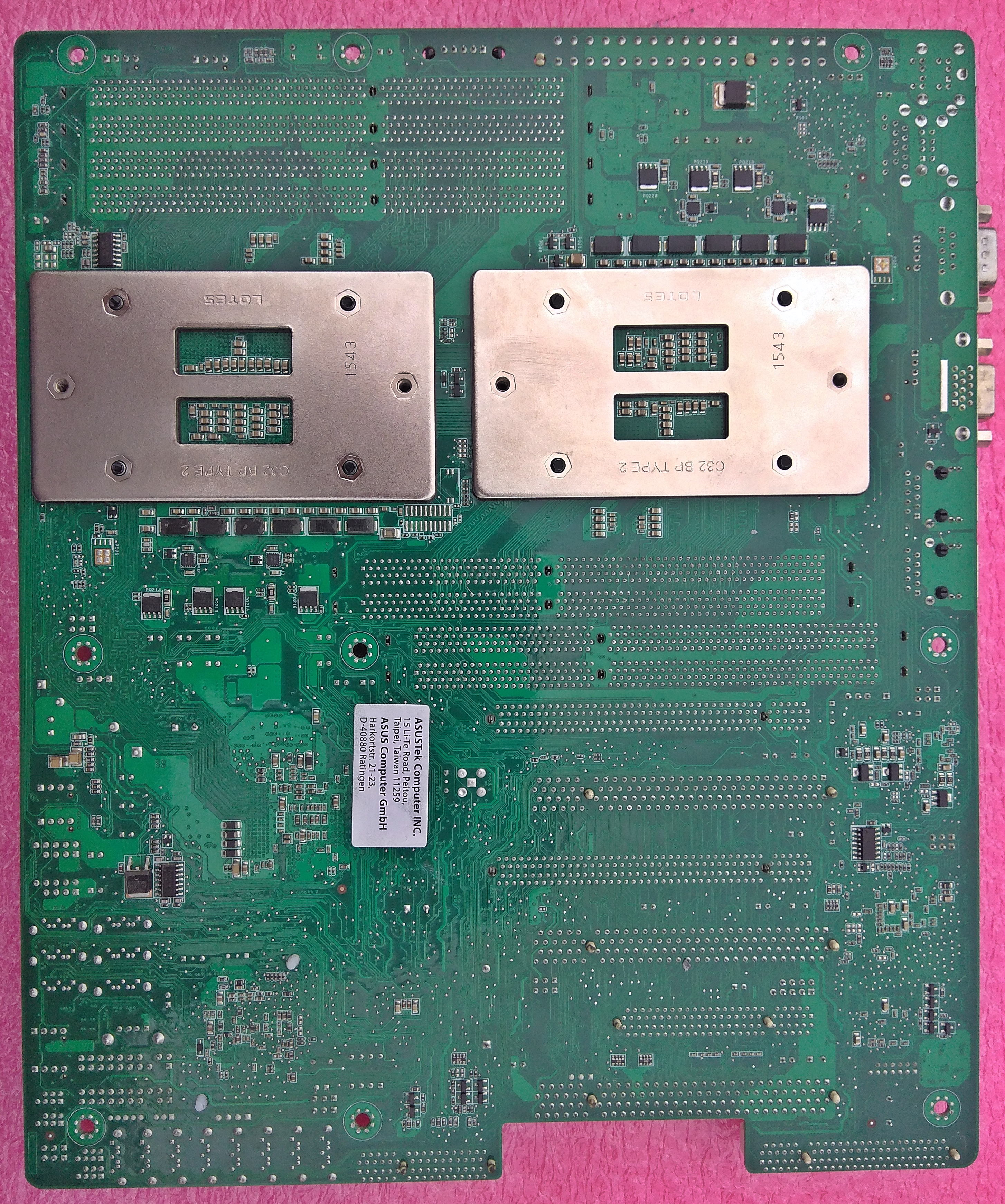

image1 Image 1 of 4 (ASUS)

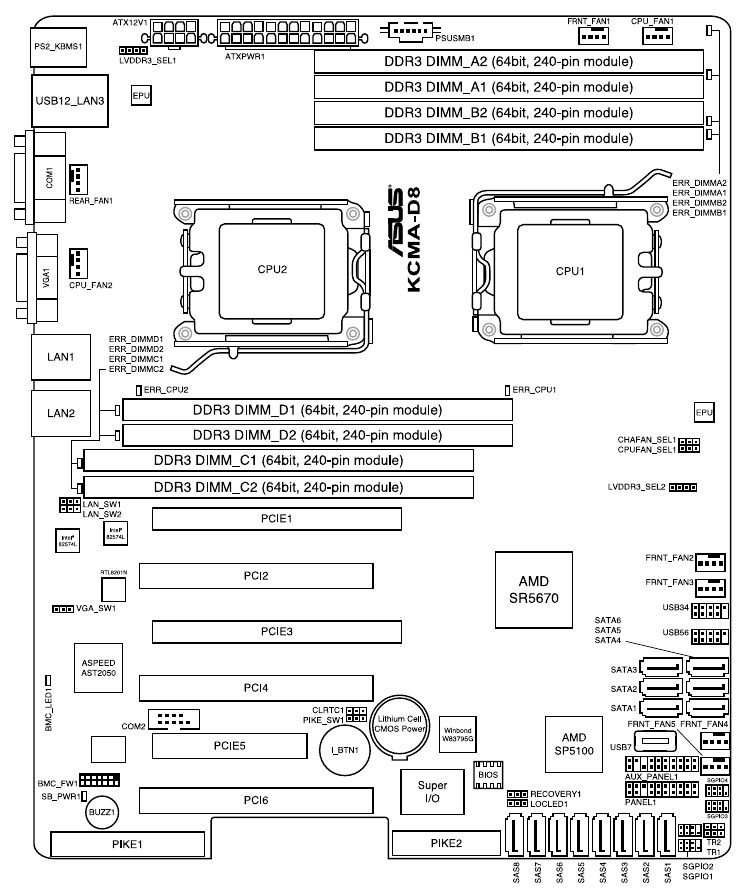

image2 Image 2 of 4 (Rigo "0xCats" Reddig)

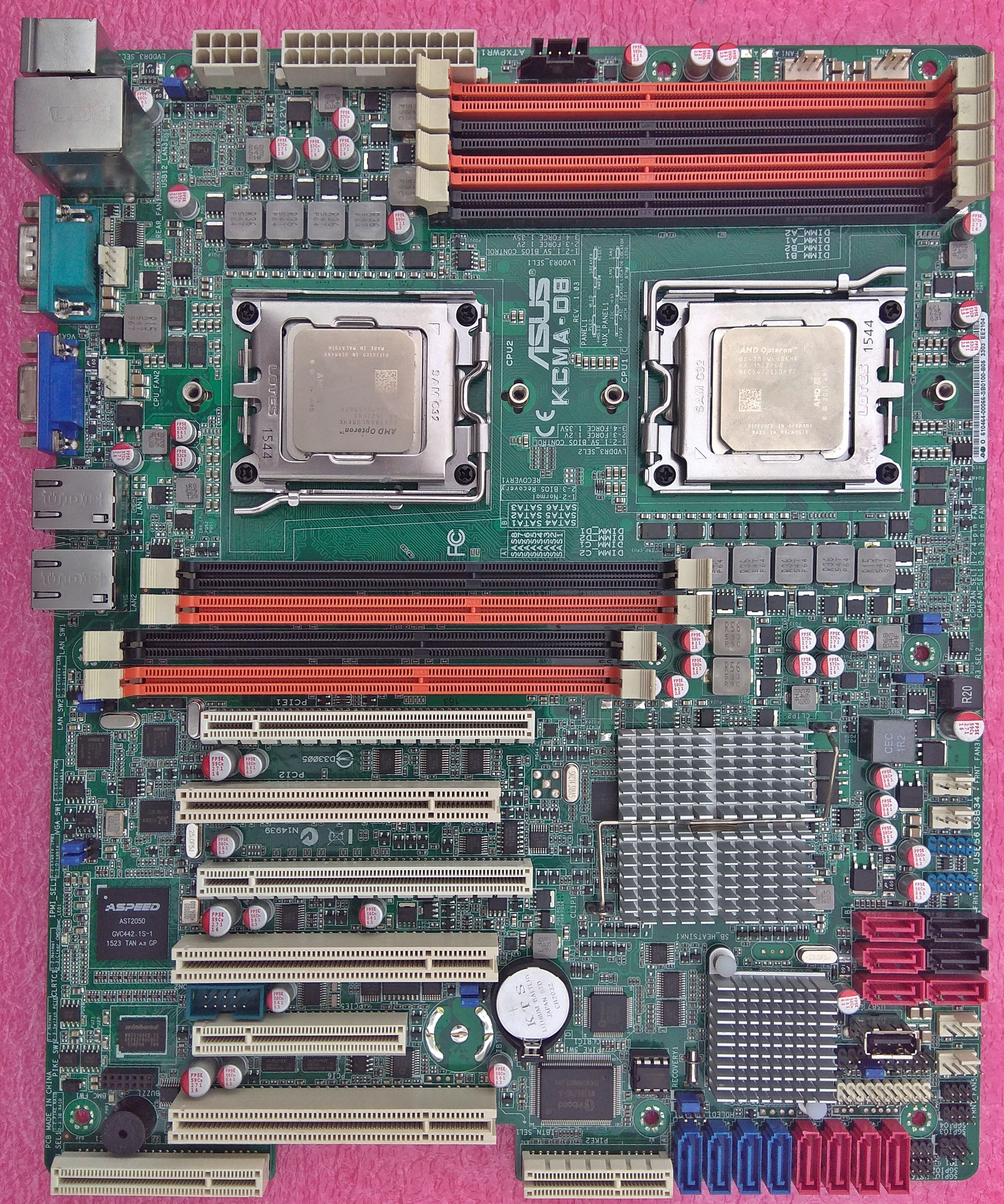

image3 Image 3 of 4 (Rigo "0xCats" Reddig)

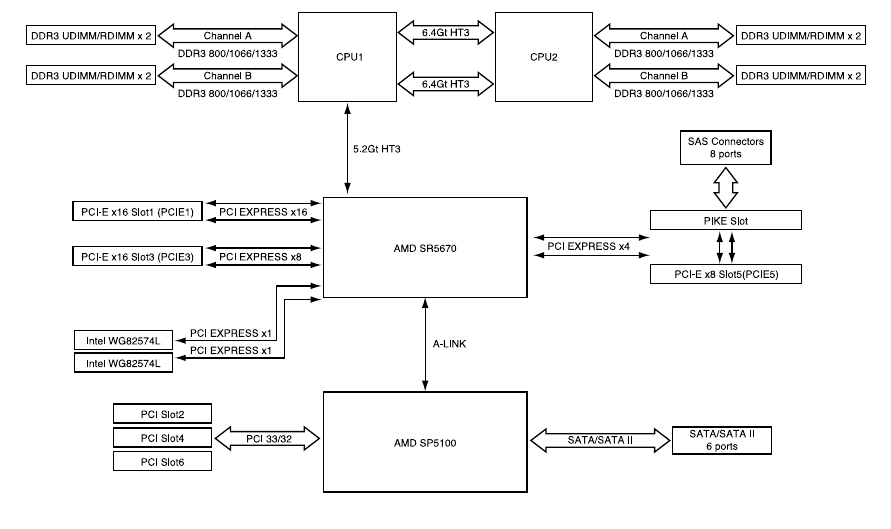

image4 Image 4 of 4 (ASUS)
