ASUS A8M2N-LA Rev. 1.06 (HP OEM)
Logs
chipChipset
cpuSocket
Socket AM2 (mPGA940)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 244mm
ramMax VRAM size
128MB
chipCache
None/Integrated in the CPU
ramMax RAM size
4GB(DDR2-533)
ramRAM type
DDR2 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)
tag Also known as
  • HP NodusM3-GL8E
  • HP 5188-5622
  • HP 5188-6007

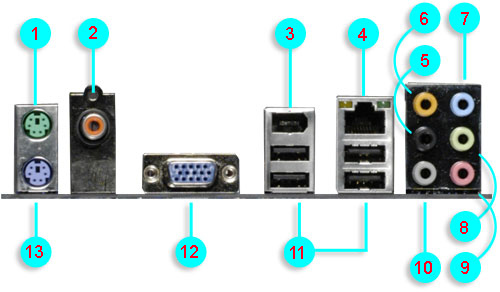

connI/O ports
1x
3.5mm Audio Combo
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
4x
SATA II
10x
USB 2.0
1x
VGA
cardExpansion slots
3x
32-bit PCI
1x
PCIe x16
wrench No board specific known issues
  • Bumpgate

These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.

On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).

You can see a very detailed explanation of this issue by RIP Felix on YouTube

Last updated 2025-10-02T20:17:58Z
Board info score is 8.4/10
bios 2 BIOS files available

vendor Award - 2 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/19/2007-C51/MCP51-A8M2N-LA-00
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/02/2006-C51/MCP51-A8M2N-LA-00
Note
Core version
v6.00PG
BIOS version
Logs
drv 3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
37.8MB
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
image1 Image 1 of 9 (ASUS)
image2 Image 2 of 9 (Motherboard Continuum)
image3 Image 3 of 9 (Motherboard Continuum)
image4 Image 4 of 9 (Motherboard Continuum)

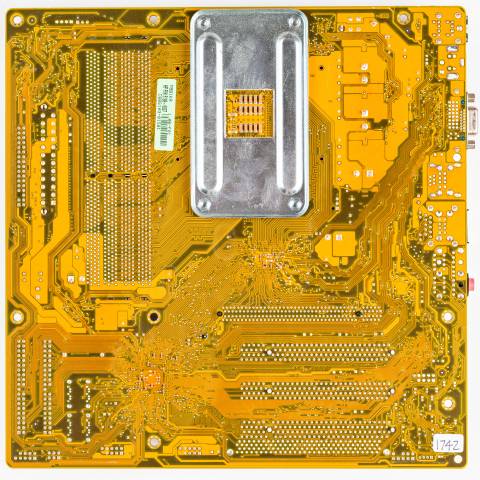

image5 Image 5 of 9 (Motherboard Continuum)

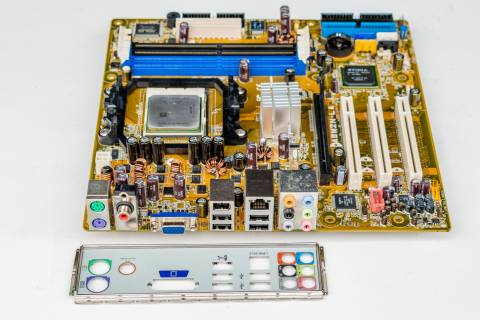

image6 Image 6 of 9 (Motherboard Continuum)
image7 Image 7 of 9 (Motherboard Continuum)

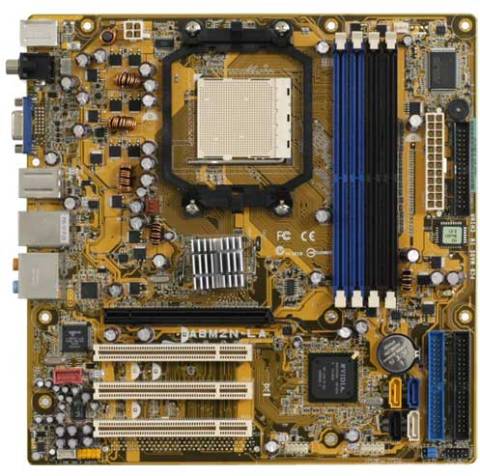

image8 Image 8 of 9
image9 Image 9 of 9
