ASRock Z97 Extreme4 (Rev. 1.03)
Logs
chipChipset
cpuSocket
Socket H3 (LGA1150)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
32GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

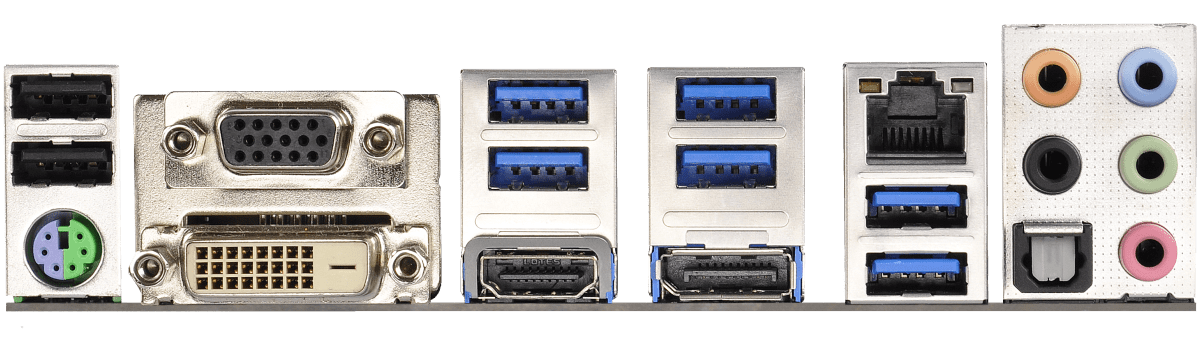

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
DisplayPort
1x
HDMI
1x
PS/2 KB+MS Combo
1x
RJ-45 LAN
1x
SATA Express
8x
SATA III
1x
Serial
1x
Toslink
6x
USB 2.0
8x
USB 3.0
1x
VGA
cardExpansion slots
1x
M.2 (M key)
3x
PCIe x1
3x
PCIe x16
notes Notes

3 x PCI Express 3.0 x16 Slots: single at x16; dual at x8/x8; triple at x8/x4/x4

Supports AMD Quad CrossFireX, 3-Way CrossFireX and CrossFireX

Supports NVIDIA Quad SLI and SLI

Supports Intel Xeon E3-1285 v4, E3-1285L v4 and E3-1265L v4 Broadwell CPUs (since BIOS P2.00 and P2.10)

Last updated 2025-12-30T15:04:12Z
Board info score is 9.6/10
bios 16 BIOS files available

vendor AMI - 16 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Beta Version
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Beta Version
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-080514-Chipset-0AAAA000
Note
Beta Version
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-080514-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-080514-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122413-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122413-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122413-Chipset-0AAAA000
Note
Beta Version
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-122413-Chipset-0AAAA000
Note
Core version
UEFI
BIOS version
Logs
POST string
63-0100-000001-00101111-040215-Chipset-0AAAA000
Note
Beta Version
Core version
UEFI
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.16.32.1
OS support
Windows 10 Windows 7 Windows 8.x Windows Vista
Arch
x86 , x86-64 , IA-64
Size
8.9MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
2014-10
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2012-04-16
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2015-03
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2014-07
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2015-10
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-12
File
Logs
Family
Release date
2013-06-03
File
Logs

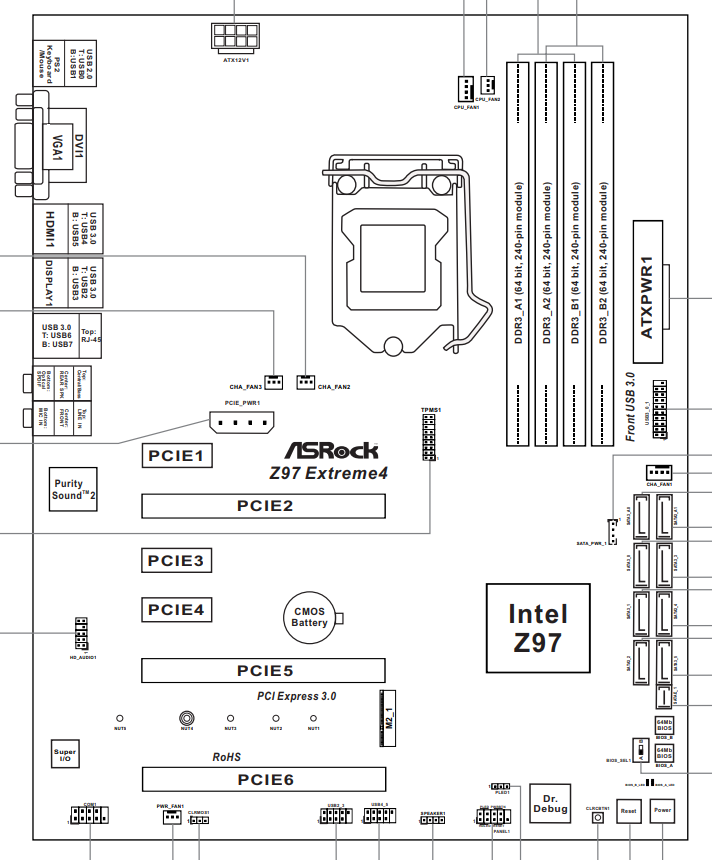

image1 Image 1 of 6 (ASRock)

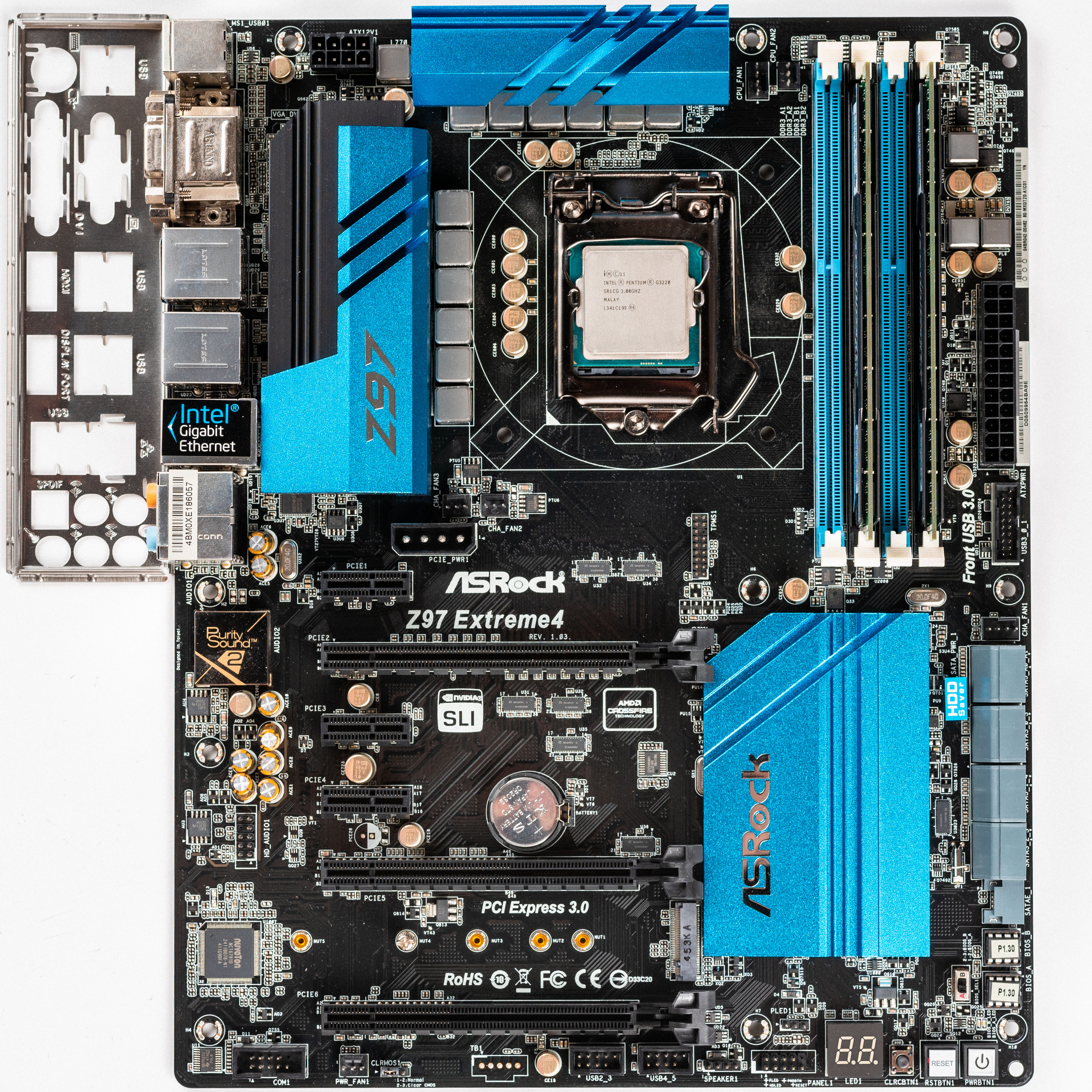

image2 Image 2 of 6 (Motherboard Continuum)

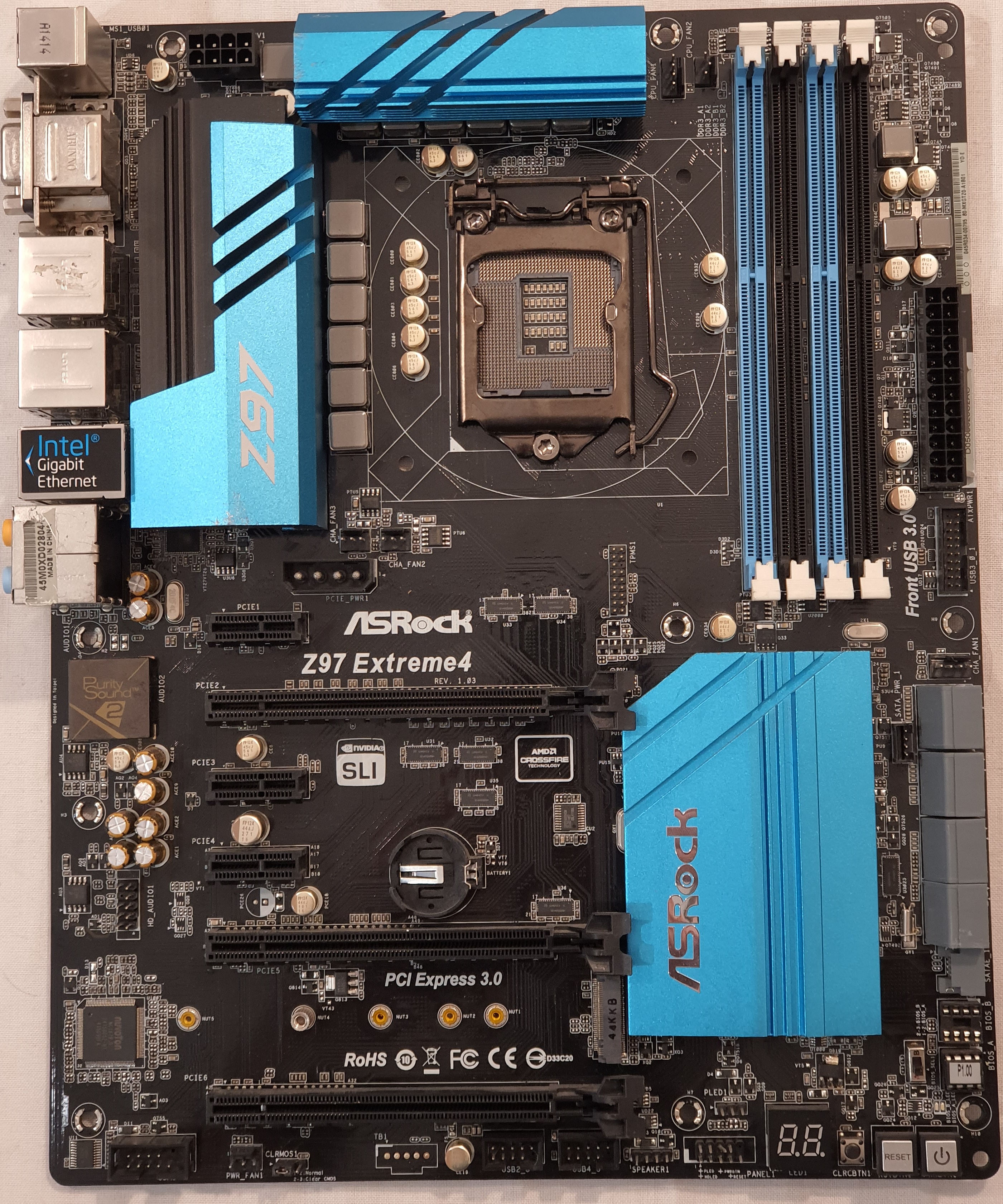

image3 Image 3 of 6 (computerguy096)

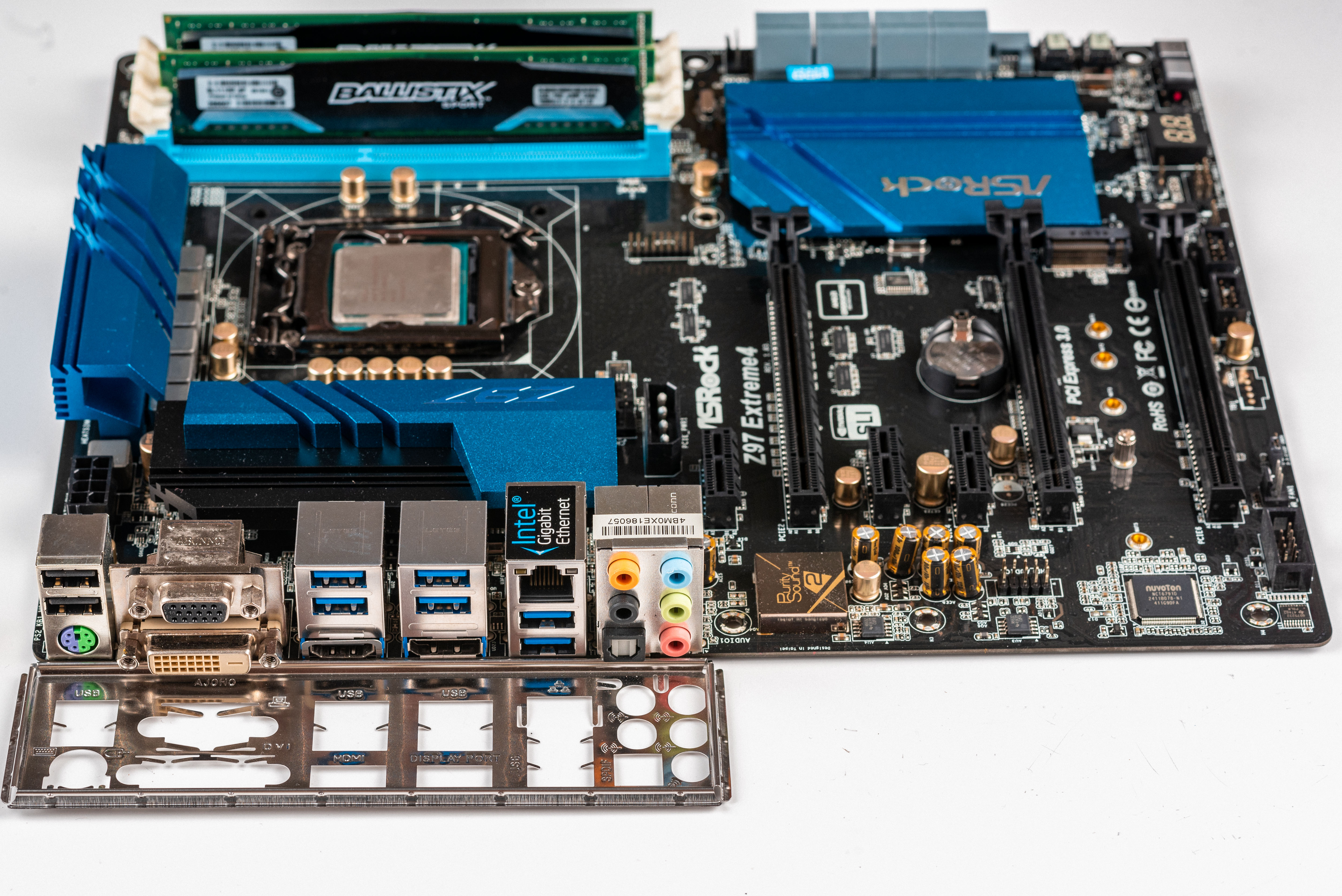

image4 Image 4 of 6 (Motherboard Continuum)
image5 Image 5 of 6 (Motherboard Continuum)

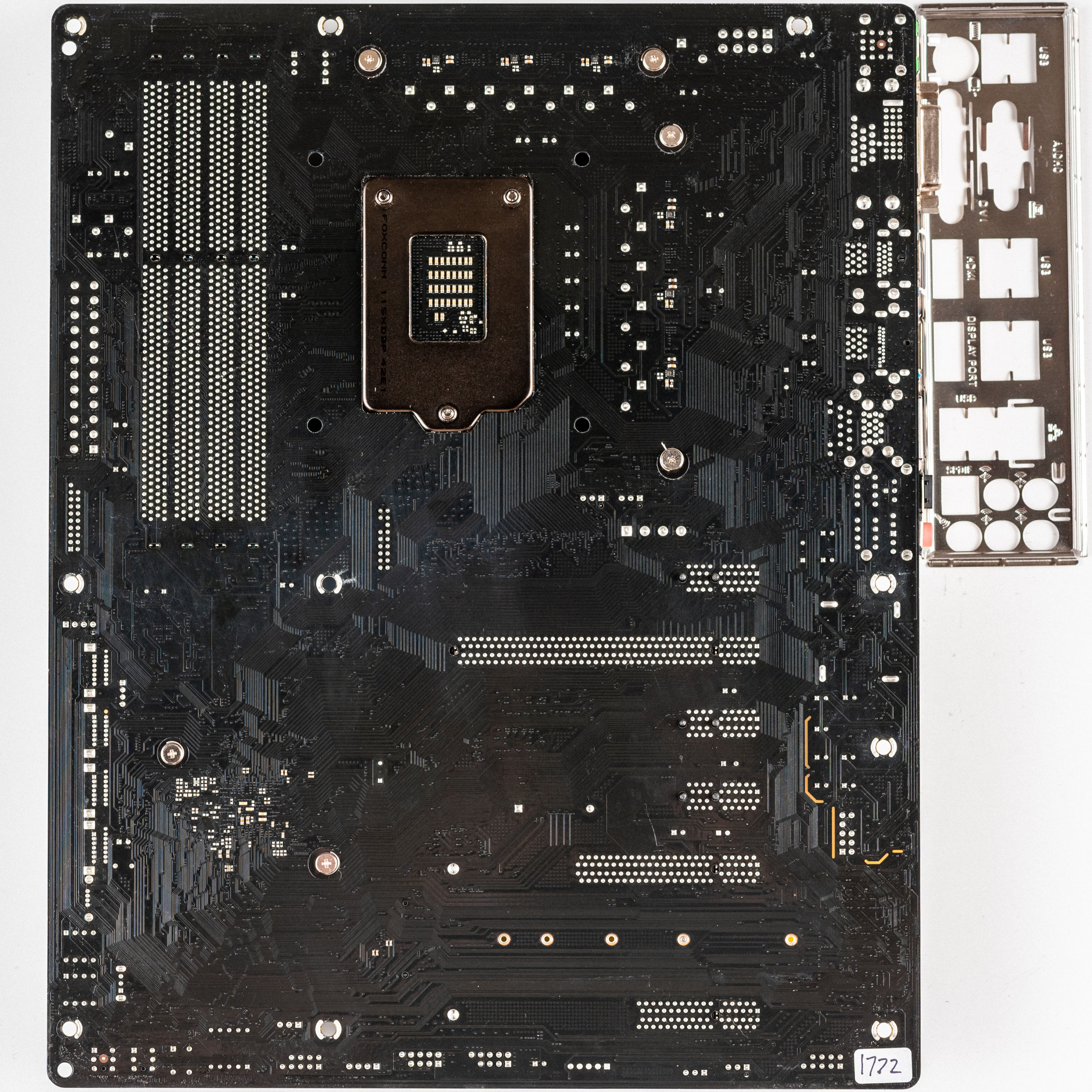

image6 Image 6 of 6 (ASRock)

Disclaimer

The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
