ASRock H55DE3
Logs
chipChipset
cpuSocket
Socket H (LGA1156)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 211mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)
connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
HDMI
1x
IrDA
1x
PS/2 keyboard
1x
RJ-45 LAN
1x
Serial
1x
Toslink
10x
USB 2.0
1x
VGA
2x
eSATA II
cardExpansion slots
2x
32-bit PCI
2x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x4
Last updated 2025-07-02T19:28:19Z
Board info score is 8.4/10
bios 6 BIOS files available

vendor AMI - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
65-271-0000010-00101111-100810-INTEL-AS296271
Note
Core version
080015
BIOS version
Logs
POST string
65-231-0000010-00101111-080610-INTEL-AS296231
Note
Core version
080015
BIOS version
Logs
POST string
65-229-0000010-00101111-072810-INTEL-AS296229
Note
Core version
080015
BIOS version
Logs
POST string
65-218-0000010-00101111-041310-INTEL-AS296218
Note
Core version
080015
BIOS version
Logs
POST string
65-210-0000010-00101111-022510-INTEL-AS296210
Note
Core version
080015
BIOS version
Logs
POST string
65-046-0000010-00101111-120309-INTEL-AS296046
Note
Core version
080015
BIOS version
Logs
drv No drivers available
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2013-06
File
Logs
Family
Release date
2011-01
File
Logs
Family
Release date
2010-07
File
Logs
Family
Release date
2009-09
File
Logs
Family
Release date
2015-02
File
Logs
Family
Release date
2011-03
File
Logs
Family
Release date
2011-03-21
File
Logs

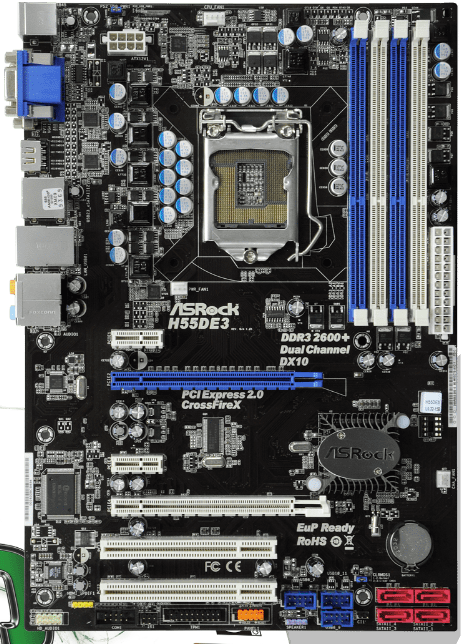

image1 Image 1 of 3 (ASRock)

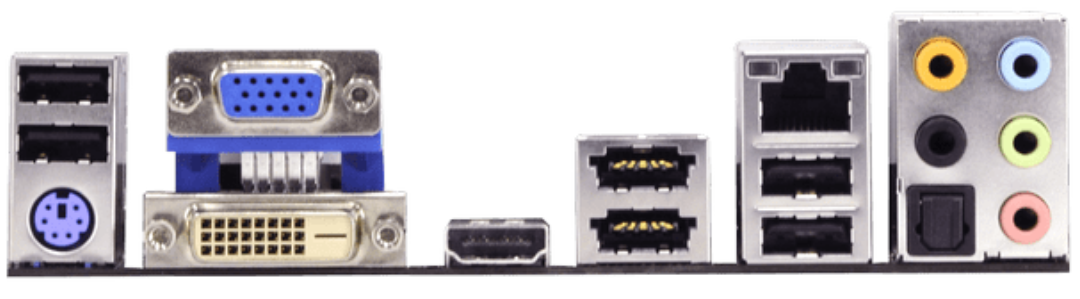

image2 Image 2 of 3 (ASRock)

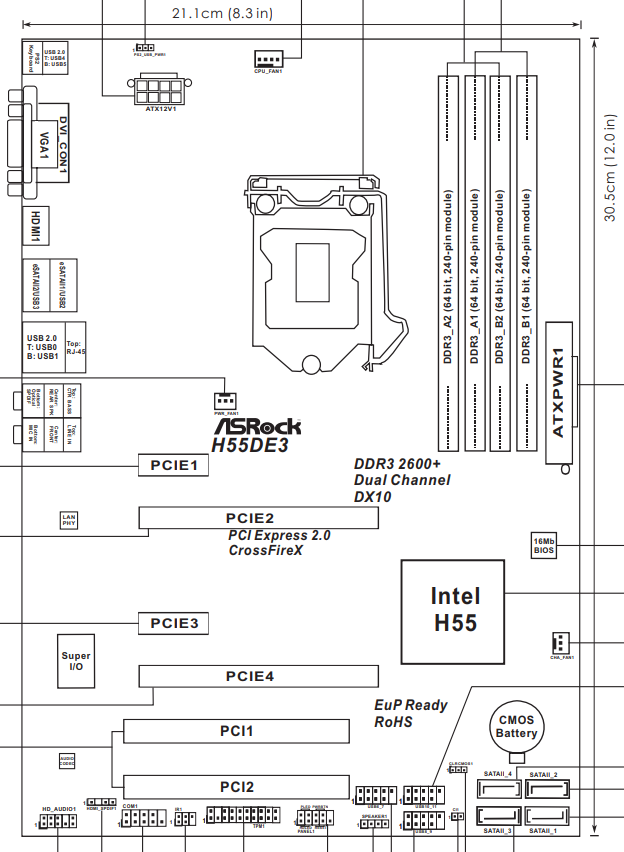

image3 Image 3 of 3 (ASRock)
