ASRock A780GXE/128M (Rev. 1.00)
Logs
chipChipset
cpuSockets
Socket AM2 (mPGA940) Socket AM2+ (mPGA940) Socket AM3 (mPGA941)
speedFSB speed
Empty
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
ramMax VRAM size
640MB
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR2 UDIMM
pwrPSU connector
Molex (4-pin) ATX 2.x (24-pin ATX) ATX EPS connector 12v (8-pin EPS)

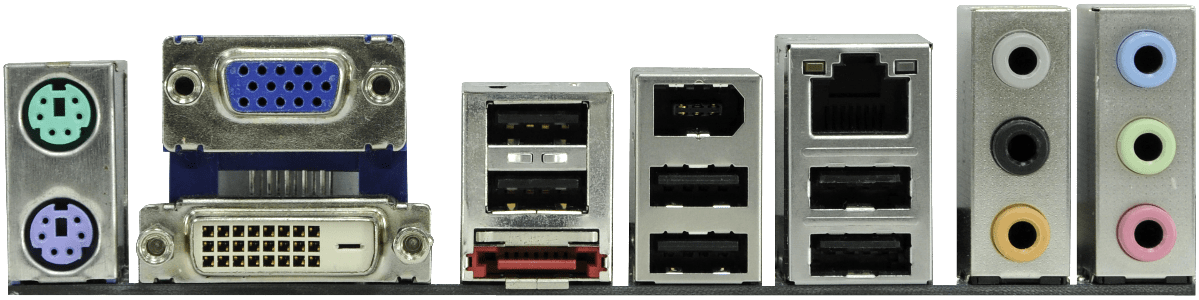

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
2x
FireWire 400
1x
Floppy interface
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
1x
S/PDIF
6x
SATA II
1x
Serial
10x
USB 2.0
1x
VGA
1x
eSATA II
cardExpansion slots
3x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
1x
PCIe x16 @ x8
notes Notes
  • Onboard 128MB side port memory for integrated graphics.
Last updated 2025-12-06T18:52:39Z
Board info score is 9.2/10
bios 8 BIOS files available

vendor AMI - 8 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-172-0000010-00101111-052510-AMD-AS150172
Note
Core version
080015
BIOS version
Logs
POST string
64-163-0000010-00101111-120309-AMD-AS150163
Note
Core version
080015
BIOS version
Logs
POST string
64-151-0000010-00101111-080409-AMD-AS150151
Note
Core version
080015
BIOS version
Logs
POST string
64-144-0000010-00101111-041509-AMD-AS150144
Note
Core version
080015
BIOS version
Logs
POST string
64-131-0000010-00101111-021009-AMD-AS150131
Note
Core version
080015
BIOS version
Logs
POST string
64-124-0000010-00101111-121108-AMD-AS150124
Note
Core version
080015
BIOS version
Logs
POST string
64-111-0000010-00101111-110608-AMD-AS150111
Note
Core version
080015
BIOS version
Logs
POST string
64-009-0000010-00101111-082608-AMD-AS150009
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-04-25
File
Logs
Chip
Release date
2008-04-07
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

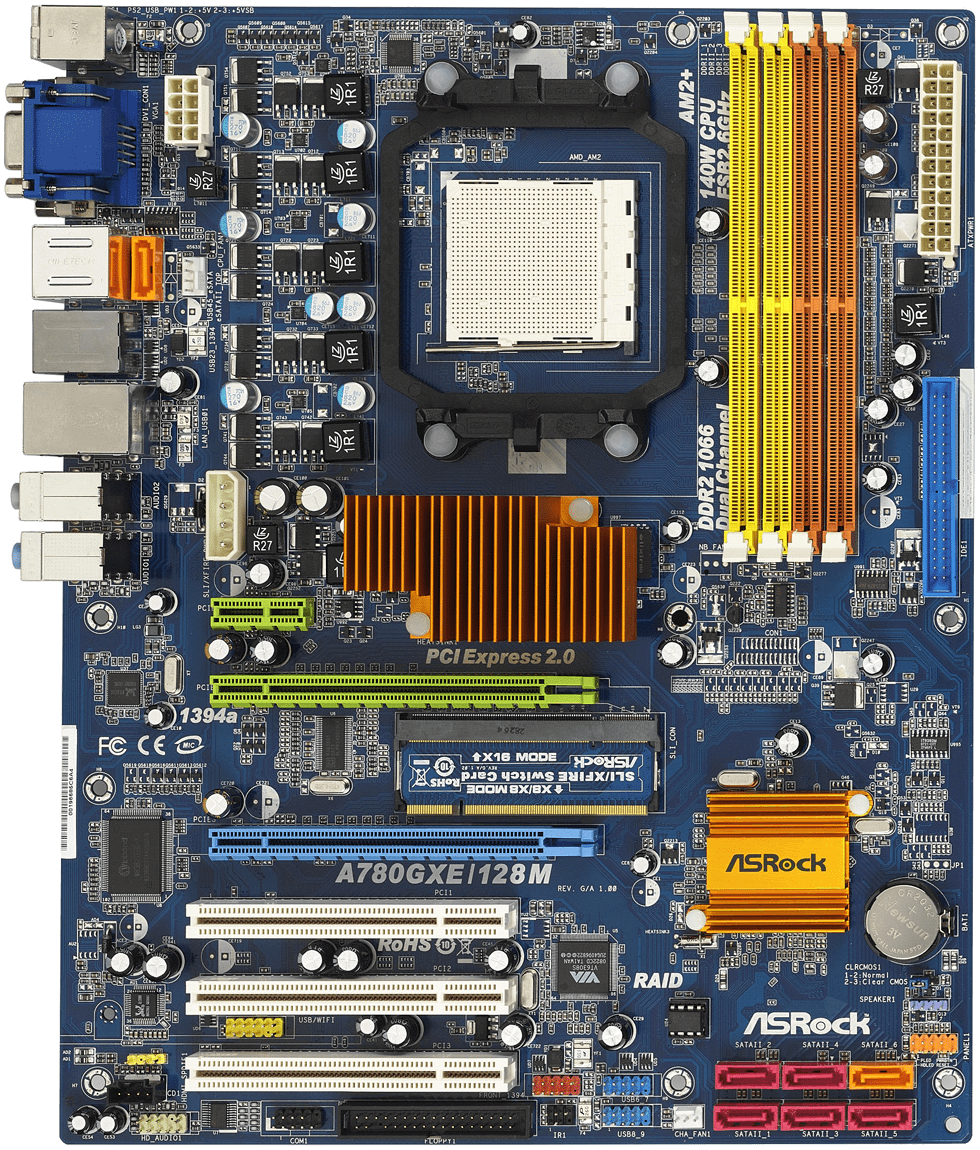

image1 Image 1 of 3 (ASRock)
image2 Image 2 of 3 (ASRock)
image3 Image 3 of 3 (ASRock)
