ASRock 960GM/U3S3 FX (Rev. 1.01)
Logs
chipChipset
cpuSockets
Socket AM3 (mPGA941) Socket AM3+ (mPGA942)
speedFSB speed
Empty
moboForm factor
microATX (max 244 x 244 mm)
dimDimensions
244mm x 198mm
chipCache
None/Integrated in the CPU
ramMax RAM size
16GB
ramRAM type
DDR3 UDIMM
pwrPSU connector
ATX 2.x (24-pin ATX) ATX P4 connector 12v (4-pin P4)

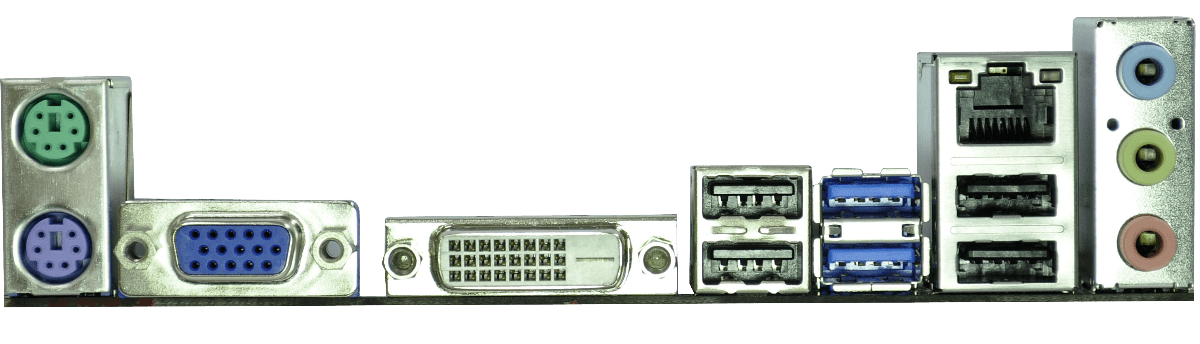

connI/O ports
1x
3.5mm Audio Combo
1x
DVI
1x
IDE interface
1x
IrDA
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
4x
SATA II
2x
SATA III
1x
Serial
8x
USB 2.0
2x
USB 3.0
1x
VGA
cardExpansion slots
1x
32-bit PCI
1x
PCIe x1
1x
PCIe x16
Last updated 2025-07-11T05:50:23Z
Board info score is 9.4/10
bios 5 BIOS files available

vendor AMI - 5 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-142-0000010-00101111-072315-AMD-AS618142
Note
Core version
080015
BIOS version
Logs
POST string
64-132-0000010-00101111-100213-AMD-AS618132
Note
Core version
080015
BIOS version
Logs
POST string
64-122-0000010-00101111-020513-AMD-AS618122
Note
Core version
080015
BIOS version
Logs
POST string
64-112-0000010-00101111-052112-AMD-AS618112
Note
Core version
080015
BIOS version
Logs
POST string
64-101-0000010-00101111-020312-AMD-AS618101
Note
Core version
080015
BIOS version
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
30.7MB
Filename
image1 Image 1 of 6 (ASRock)
image2 Image 2 of 6 (ASRock)
image3 Image 3 of 6 (Motherboard Continuum)
image4 Image 4 of 6 (Motherboard Continuum)

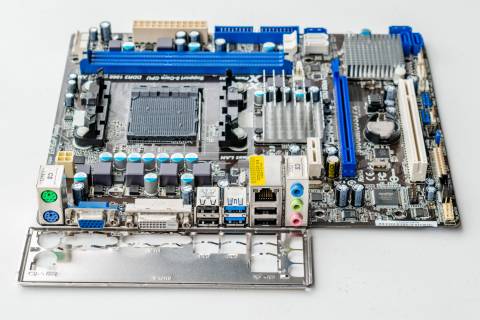

image5 Image 5 of 6 (Motherboard Continuum)
image6 Image 6 of 6 (ASRock)
