Arima BF55X
Logs
chipChipset
cpuSocket
Socket J (LGA771)
speedFSB speeds
667MHz1066MHz1333MHz
moboForm factor
Enhanced Extended ATX/EEATX (max 347 × 330 mm)
dimDimensions
347mm x 330mm
ramMax VRAM size
16MB
chipCache
None/Integrated in the CPU
ramMax RAM size
64GB
ramRAM type
DDR2 FB-DIMM
pwrPSU connector
12V EPS Connector (24-pin EPS) ATX EPS connector 12v (8-pin EPS)
maxcpuMulti CPU support
2 CPUs
tag Also known as
connI/O ports
1x
Floppy interface
1x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
2x
RJ-45 LAN
6x
SATA II
1x
Serial
8x
USB 2.0
1x
VGA
cardExpansion slots
1x
64-bit PCI-X
1x
IPMI Card
1x
PCIe x16 @ x8
1x
PCIe x4
1x
PCIe x8
Last updated 2025-05-28T14:45:53Z
Board info score is 8.8/10
bios 1 BIOS file available

vendor Phoenix - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
Note
Core version
4.0 Release 6.0
BIOS version
Logs
drv 2 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows XP/2k3
Arch
Size
Empty
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
Size
2.4MB
Filename

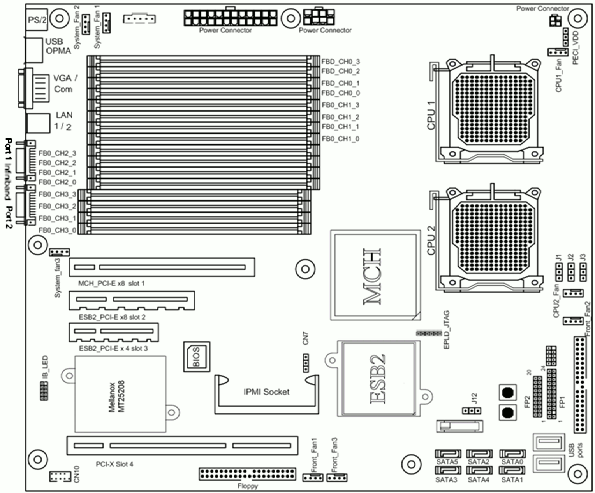

image1 Image 1 of 2 (Arima)

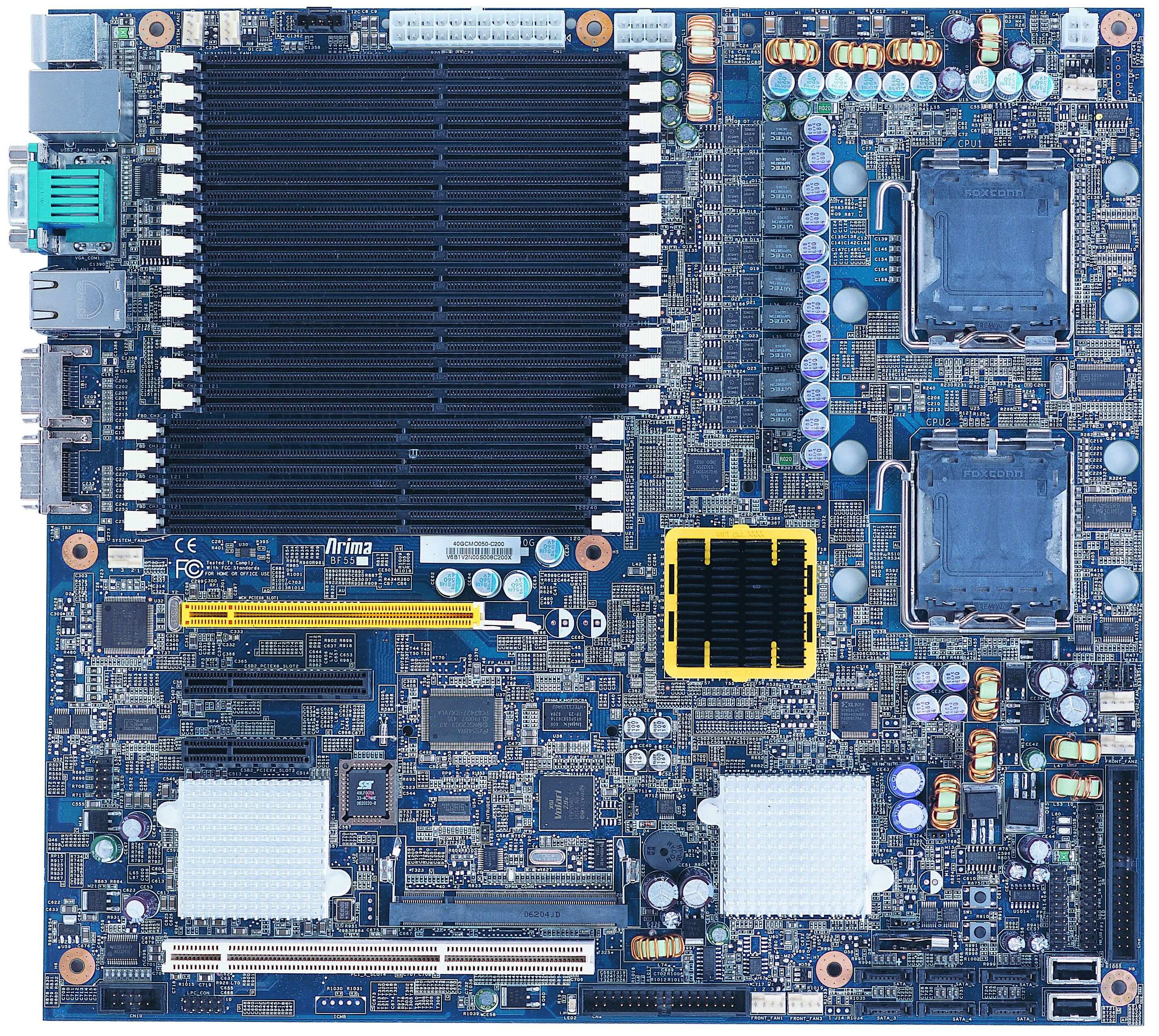

image2 Image 2 of 2 (Arima)
