Aquarius Systems/BCOM ASI-009
Chipset
Socket
FSB speeds 4.77MHz10MHz
Form factorOEM / Proprietary
DimensionsEmpty
Cache
None/Integrated in the CPU
Max RAM size
640KB
RAM types DIP-18 (4bit)DIP-16 (1bit)
PSU connector
I/O ports1x
Floppy interface
1x
MDA
1x
Parallel
2x
Serial
1x
XT Keyboard
Expansion slotsEmpty
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Last updated 2025-11-24T11:35:28Z
Board info score is 7.4/10
Chips
-> Chipset part
-> Floppy ctrl.
-> Real-Time Clock
-> Super I/O
-> Video
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
No drivers available
No board documents available
Chip
Release date
File
Logs
Chip
Release date
1989-08-29
File
Logs
Chip
Release date
1989
File
Logs
Chip
Release date
1990-10
File
Logs
Chip
Release date
File
Logs

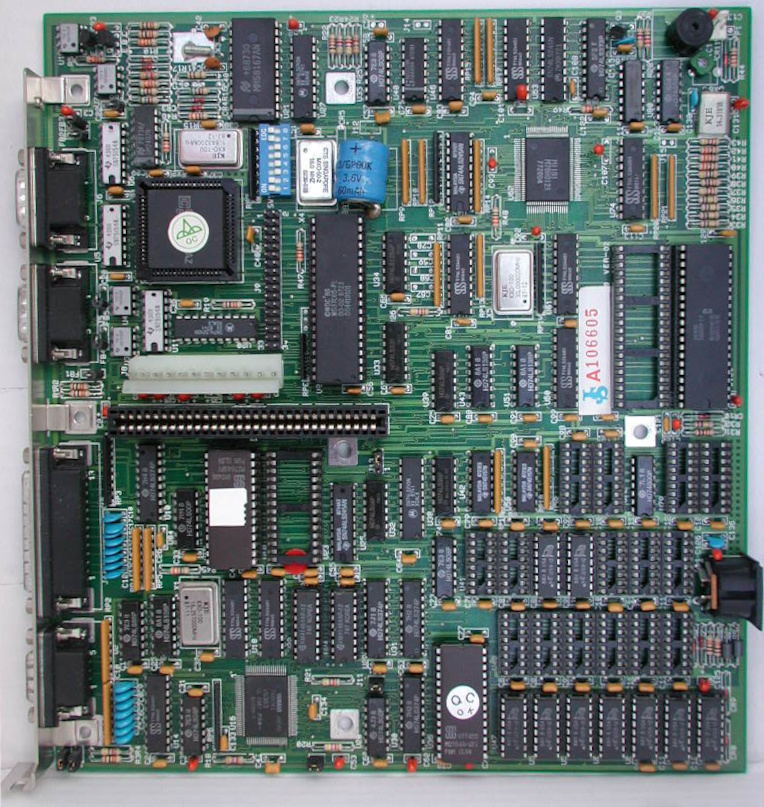

Image 1 of 1 (sciXT88)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
