AOpen MX4LS
Chipset
Socket
FSB speed 400MHz
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Max VRAM size64MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type SDR UDIMM
PSU connector

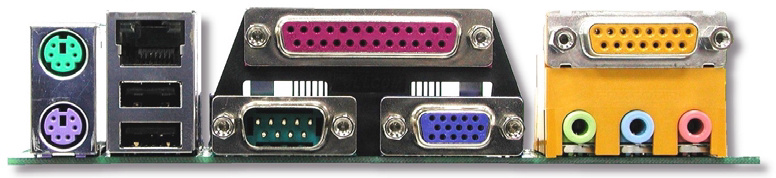

I/O ports1x
3.5mm Audio Combo
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
6x
USB 2.0
1x
VGA
Expansion slots3x
32-bit PCI
1x
ADD (add-on card AGP)
1x
CNR
Known issues
- Fake AGP slot
Any AGP cards inserted into this slot operate in PCI 33Mhz Fallback mode.
- DO NOT use 1.5V exclusive AGP cards (rear notch away from IO side) in this board.
- ONLY use true universal AGP cards with both slots, these support 1.5V and 3.3V operation.
- This is a PCI bus connected to an AGP slot.
- The PCI bus operates at 3.3V and may damage 1.5V exclusive cards.
- AGP cards are backwards compatible with PCI signalling logic.
- Performance is greatly reduced vs a true AGP bus.
Last updated 2025-05-30T21:02:52Z
Board info score is 9.3/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
-> Video
5 BIOS files available
Award - 5 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
03/13/2003-i845GL-W83627-6A69VABIC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/09/2002-i845GL-W83627-6A69VABIC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
12/09/2002-i845GL-W83627-6A69VABIC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
09/27/2002-i845G-W83627-6A69VABIC-00
Note
Core version
v6.00PG
BIOS version
Logs
POST string
08/16/2002-i845G-W83627-6A69VABIC-00
Note
Core version
v6.00PG
BIOS version
Logs
14 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.10.3.4342
OS support
Windows 2000
Windows XP/2k3
Arch
Size
Empty
Filename
Name
Version
3.5.1.6
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
Name
Version
6.3.0.1007
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
4.1
OS support
Windows 2000
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
4.2MB
Filename
Name
Version
2.11.15
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.11.15.0
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
3.4MB
Filename
Name
Version
3.40.1001
OS support
Windows 2000
Windows 9x
Windows XP/2k3
Arch
x86
Size
2.2MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
14.5MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Linux
MS-DOS
NetWare Server 3
NetWare Server 4
Netware Client32
OS/2 2.x
Windows 2000
Windows 9x
Windows NT 4.0
Arch
x86
Size
64.3MB
Filename
Version
OS support
Windows 2000
Windows 9x
Windows NT 4.0
Windows XP/2k3
Arch
x86
Size
7.2MB
Filename
Version
OS support
Arch
Size
Filename
6 board documents available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2003-05
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2006-06-09
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-02
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2002-11
File
Logs
Family
Release date
2004-02
File
Logs
Family
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
2001-08
File
Logs
Family
Release date
File
Logs
Family
Release date
2002-05
File
Logs
Family
Release date
File
Logs
Socket
Release date
File
Logs

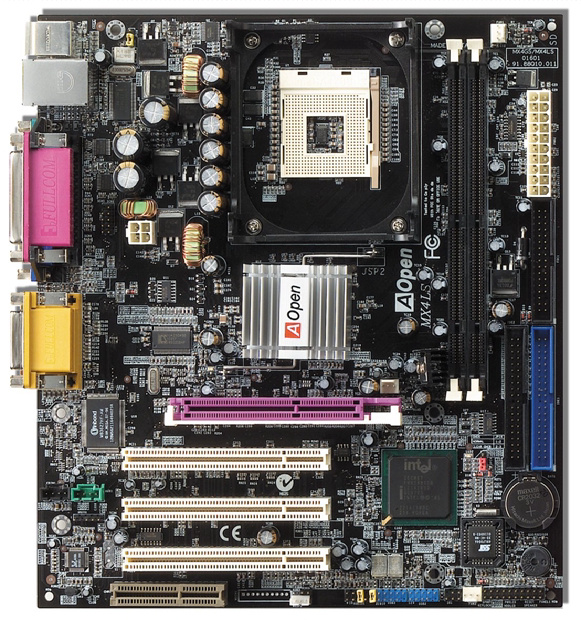

Image 1 of 2 (AOpen)
Image 2 of 2 (AOpen)
