ADLink cPCI-3915
Chipset
Socket
FSB speeds 400MHz533MHz
Form factorCompactPCI 3U (100 mm x 160 mm)
Dimensions160mm x 100mm
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
2GB
RAM type 200-pin DDR2 SO-DIMM
PSU connector
I/O ports1x
CF Card Slot
1x
IDE interface
1x
PS/2 KB+MS Combo
2x
RJ-45 LAN
1x
SATA I
2x
Serial
2x
USB 2.0
1x
VGA
Expansion slots1x
PICMG 2.0 (CompactPCI)
Notes
cPCI-3915A has only one USB in the back, no PS/2 and no serial
cPCI-3915B has the ports as specified
Last updated 2024-06-15T23:47:33Z
Board info score is 9.4/10
Chips
-> Chipset part
-> Network
-> Video
CPU family support
8 BIOS files available
Award - 8 entries
POST string
Note
Core Ver.
BIOS Ver.
Logs
3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
14.25.50
OS support
Windows 2000
Windows XP/2k3
Arch
x86
Size
Empty
Filename
Name
Version
11.45.4.3
OS support
Windows 7
Windows 8.x
Windows Vista
Windows XP/2k3
Arch
x86
, x86-64
Size
1.8MB
Filename
Name
Version
10.15.9.3
OS support
Empty
Arch
x86
Size
853.1KB
Filename
2 board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Socket
Release date
File
Logs

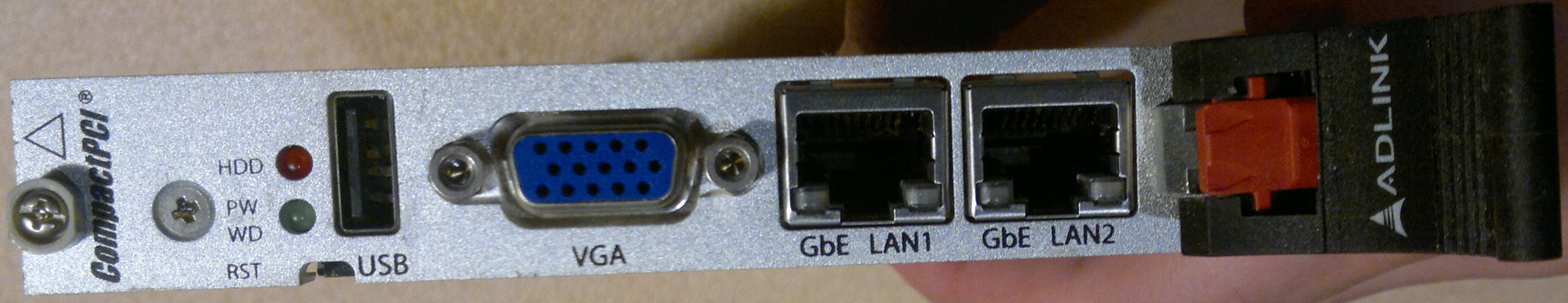

Image 1 of 4 (pc2005)

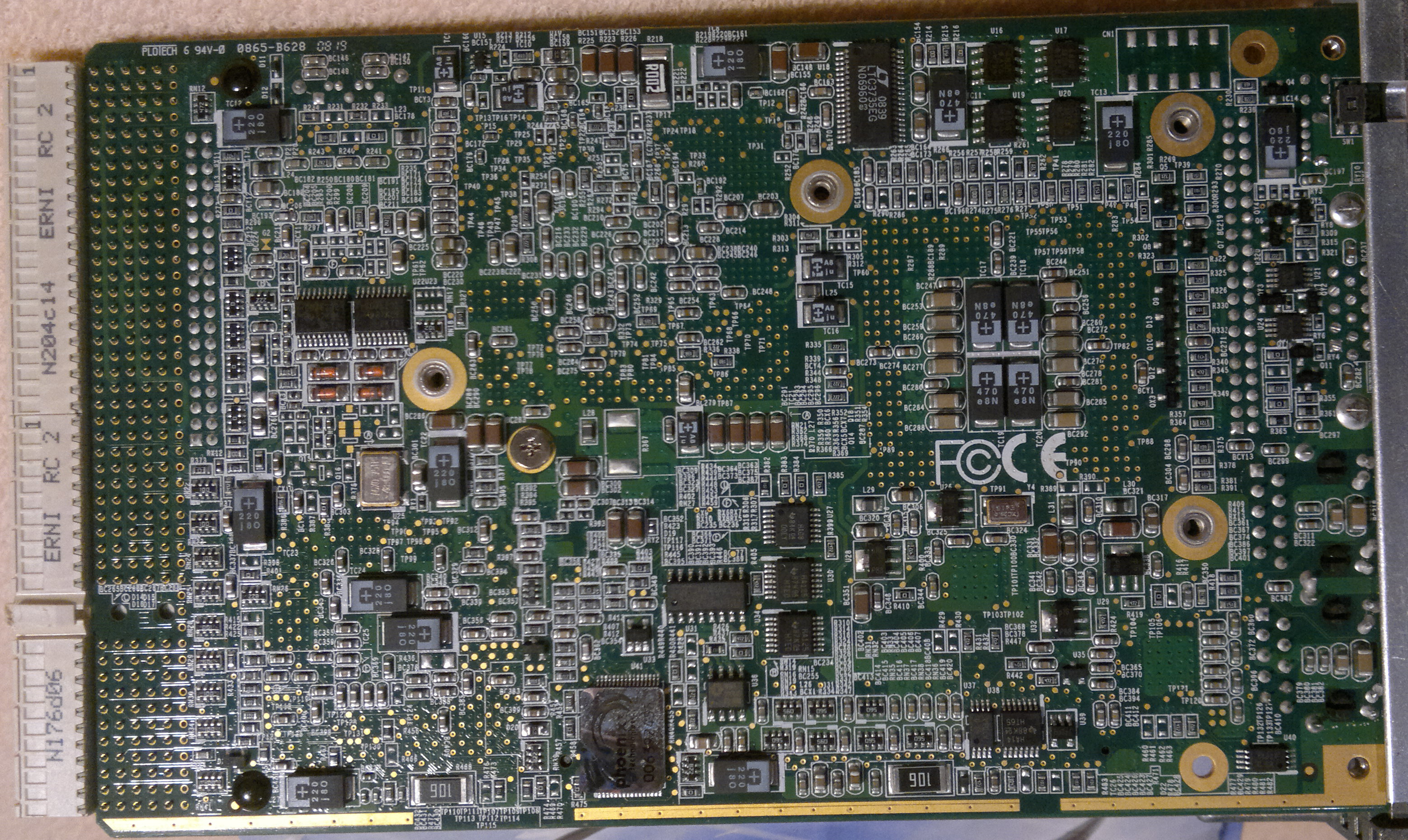

Image 2 of 4 (pc2005)

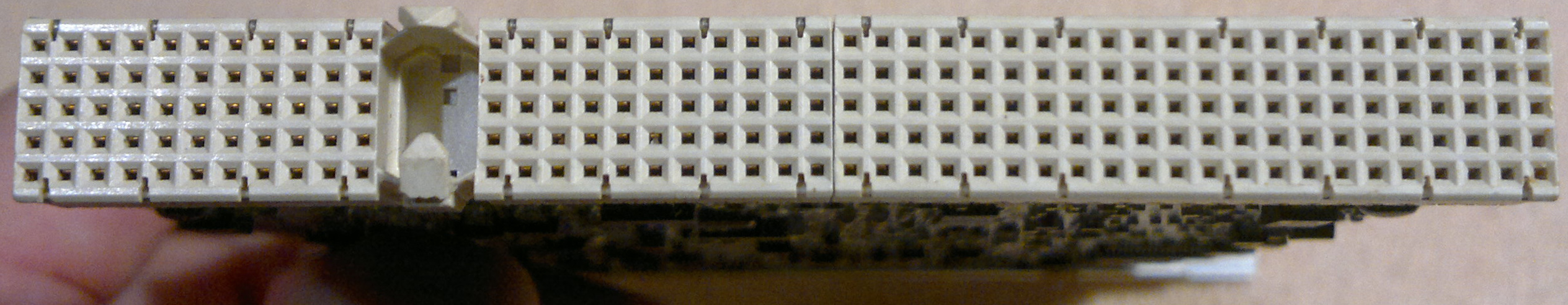

Image 3 of 4 (pc2005)
Image 4 of 4 (pc2005)
