Acorp 7KT400
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz333MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
Empty
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
3.5mm Audio Combo
1x
Floppy interface
1x
Gameport
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
2x
Serial
6x
USB 2.0
cardExpansion slots
1x
1.5V AGP
5x
32-bit PCI
Last updated 2026-01-04T14:37:46Z
Board info score is 9.5/10
chip Chips
-> Chipset part
VIA VT8368 (KT400) VIA VT8235
-> Audio
VIA VT1616 (AC97)
cpufam CPU family support
bios 7 BIOS files available

vendor Award - 9 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
10/07/2004-KT400-8235-6A6LYX39C-00
Note
PCB 1.2
Core version
6.00PG
BIOS version
1.7
Logs
POST string
11/18/2003-KT400-8235-6A6LYX39C-00
Note
PCB 1.2
Core version
6.00PG
BIOS version
1.6
Logs
POST string
04/01/2003-KT400-8235-6A6LYX39C-00
Note
PCB 1.2
Core version
6.00PG
BIOS version
Logs
POST string
03/17/2003-KT400-8235-6A6LYX39C-00
Note
PCB 1.2
Core version
6.00PG
BIOS version
Logs
POST string
02/10/2003-KT400-8235-6A6LYX39C-00
Note
PCB 1.2
Core version
6.00PG
BIOS version
Logs
POST string
01/21/2003-KT400-8235-6A6LYX39C-00
Note
PCB 1.2
Core version
6.00PG
BIOS version
Logs
POST string
04/03/2003-KT400-8235-6A6LYX39C-00
Note
PCB 1.1
Core version
6.00PG
BIOS version
Logs
POST string
12/27/2002-KT400-8235-6A6LYX39C-00
Note
PCB 1.1
Core version
6.00PG
BIOS version
Logs
POST string
11/22/2002-KT400-8235-6A6LYX39C-00
Note
PCB 1.1
Core version
6.00PG
BIOS version
Logs
drv 5 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
12.7MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.4MB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

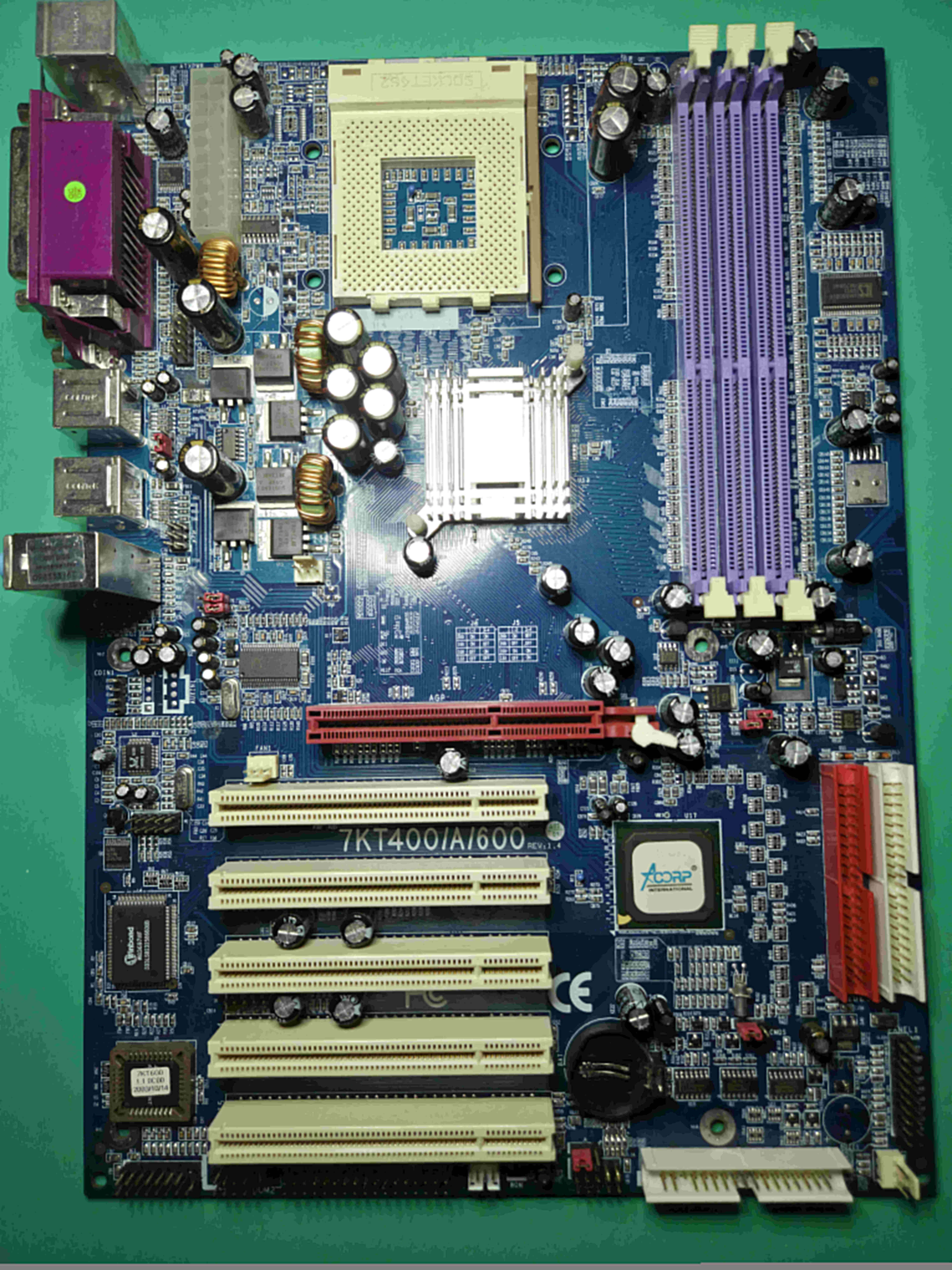

image1 Image 1 of 3 (Acorp)
image2 Image 2 of 3 (ciornyi)

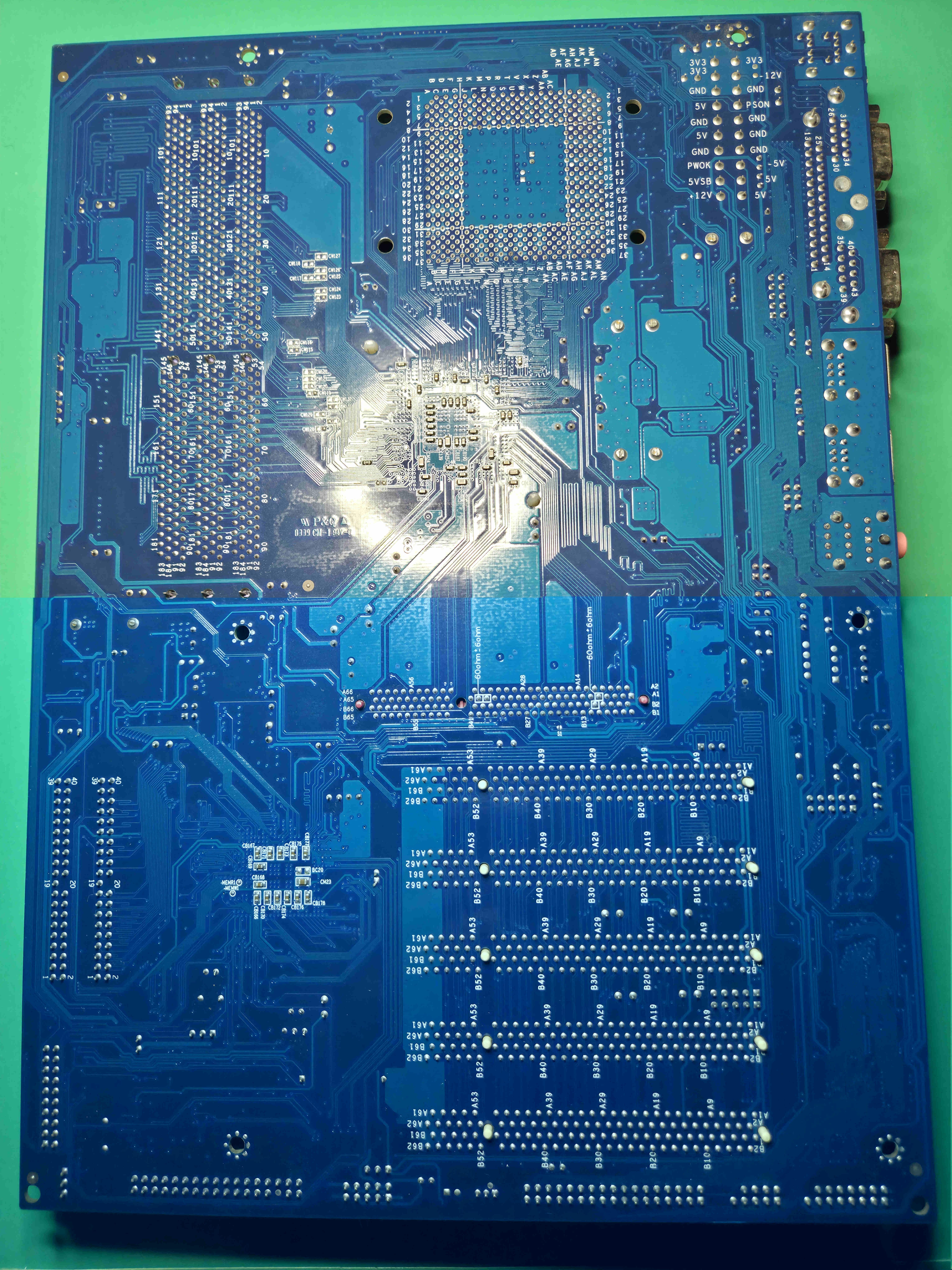

image3 Image 3 of 3 (ciornyi)
