Acer V36LA
Chipset
Socket
FSB speeds 50MHz60MHz66MHz
Form factorLPX (max 229 x 330 mm)
DimensionsEmpty
Max VRAM size4MB
Cache
None/Integrated in the CPU
Max RAM size
256MB(in practice, hangs with more than 128MB)
RAM types 72-pin FPM72-pin EDO
PSU connector
Empty
Also known as
I/O ports1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
1x
VGA
Expansion slotsEmpty
Known issues
- Expansion slots are on proprietary riser
The listed slots are on the riser card that came with the motherboard.
If you have this board make sure you have the riser for it.
Notes
Also used in: Fujitsu FMV-DESKPOWER S13, SC16, S165, S16P, S16T, S167, S20, SII15, SII15P, SCII16, SII16A, SII16T, SII165, SII167, SII205, SII20
Last updated 2025-06-28T13:16:25Z
Board info score is 5.6/10
Chips
-> Chipset part
-> Audio
-> Video
0 BIOS files available
8 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
3.00
OS support
OS/2 Warp 3.x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
1.2MB
Filename
Name
Version
1.12.000
OS support
Windows 9x
Arch
x86
Size
841.8KB
Filename
Name
Version
N/A
OS support
Windows 3.1x
Windows 9x
Windows NT 3.5x
Windows NT 4.0
Arch
x86
Size
14.6MB
Filename
Name
Version
3.7B / 3.7D
OS support
MS-DOS
NetWare Server 3
NetWare Server 4
OS/2 Warp 3.x
Windows 3.1x
Windows 9x
Windows NT 3.5x
Arch
x86
Size
1.6MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Arch
Size
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1998-01
File
Logs

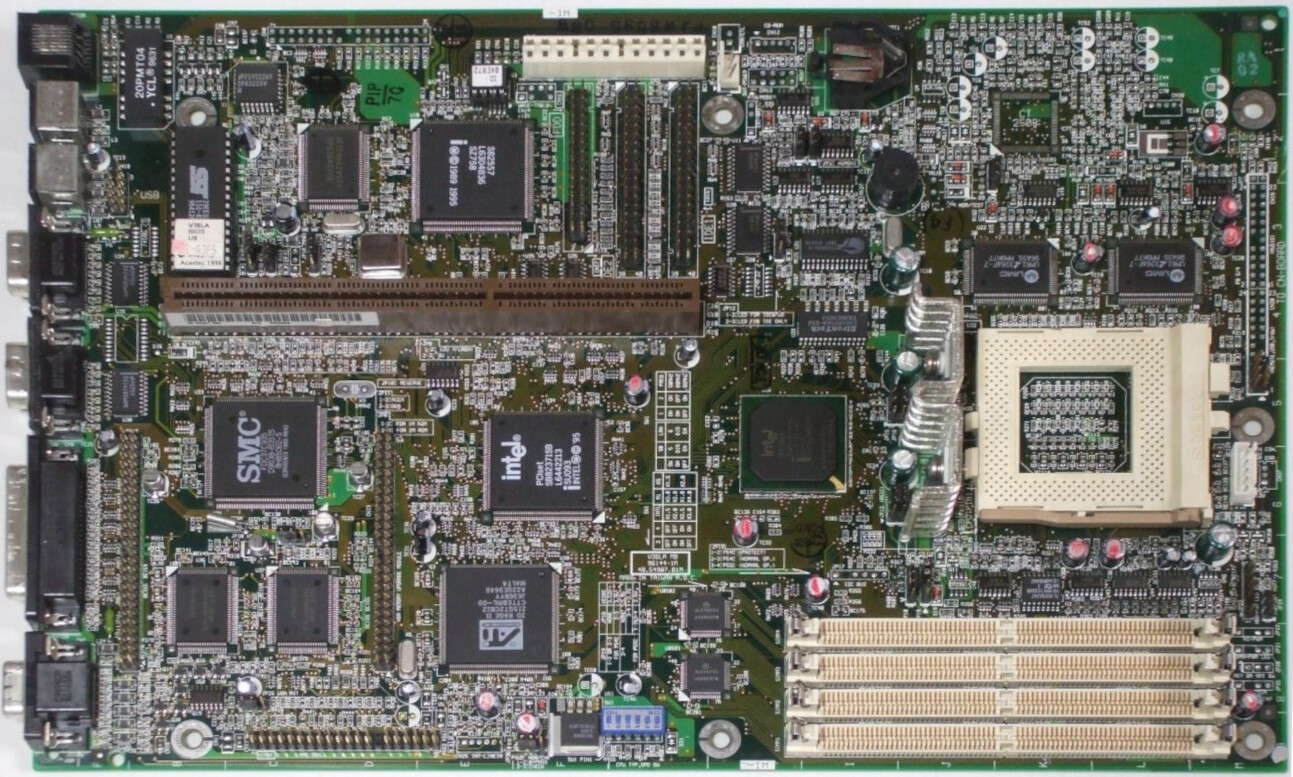

Image 1 of 1 (Acer Motherboard Wiki FC2)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
