Acer DA061L-3D
Chipset
Sockets
FSB speed Empty
Form factormicroATX (max 244 x 244 mm)
DimensionsEmpty
Max VRAM size256MB
Cache
None/Integrated in the CPU
Max RAM size
8GB
RAM type DDR3 UDIMM
PSU connector
Also known as
- Acer 09178-1M / 48.3BU01.01M
- eMachines EL1350 EL1352 EL1358
- Acer Aspire X14xx
- Packard Bell iMedia S1350

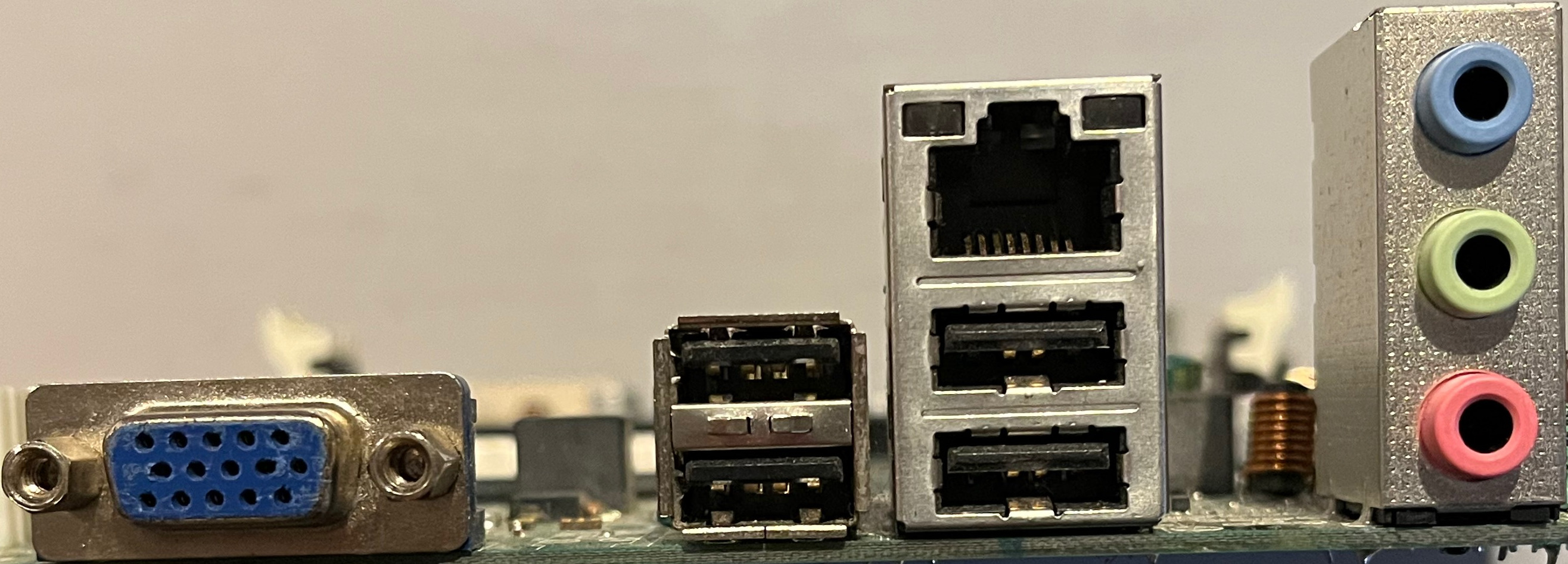

I/O ports1x
3.5mm Audio Combo
1x
PS/2 keyboard
1x
PS/2 mouse
1x
RJ-45 LAN
2x
SATA II
10x
USB 2.0
1x
VGA
Expansion slots1x
PCIe x1
1x
PCIe x16
No board specific known issues
- Bumpgate
These cards are likely to suffer a premature failure due to the defective 90nm process node from TSMC used back in the day, where the die underfill used was inappropriate for the chip design.
On Nvidia GPUs it mainly affects all 90/80/65 and some 55 nm GPUs (the A revisons of G9x and GT200 chips).
You can see a very detailed explanation of this issue by RIP Felix on YouTube
Notes
Somehow uses an LGA775 cooler layout, not AM2/AM3
Last updated 2025-09-13T19:44:56Z
Board info score is 8.1/10
Chips
-> Chipset part
-> Audio
-> Network
-> Super I/O
1 BIOS file available
AMI - 1 entry
POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
64-0100-000001-00101111-033010-ATHLON64-D0610000
Note
eMachines EL1350 OEM
Core version
080015
BIOS version
Logs
3 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R2.74
OS support
Windows 2000
Windows 7
Windows Vista
Windows XP/2k3
Arch
Size
30.7MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
50.9MB
Filename
No board documents available
Chip
Release date
File
Logs
Chip
Release date
2007-09-05
File
Logs
Chip
Release date
2008-09-02
File
Logs

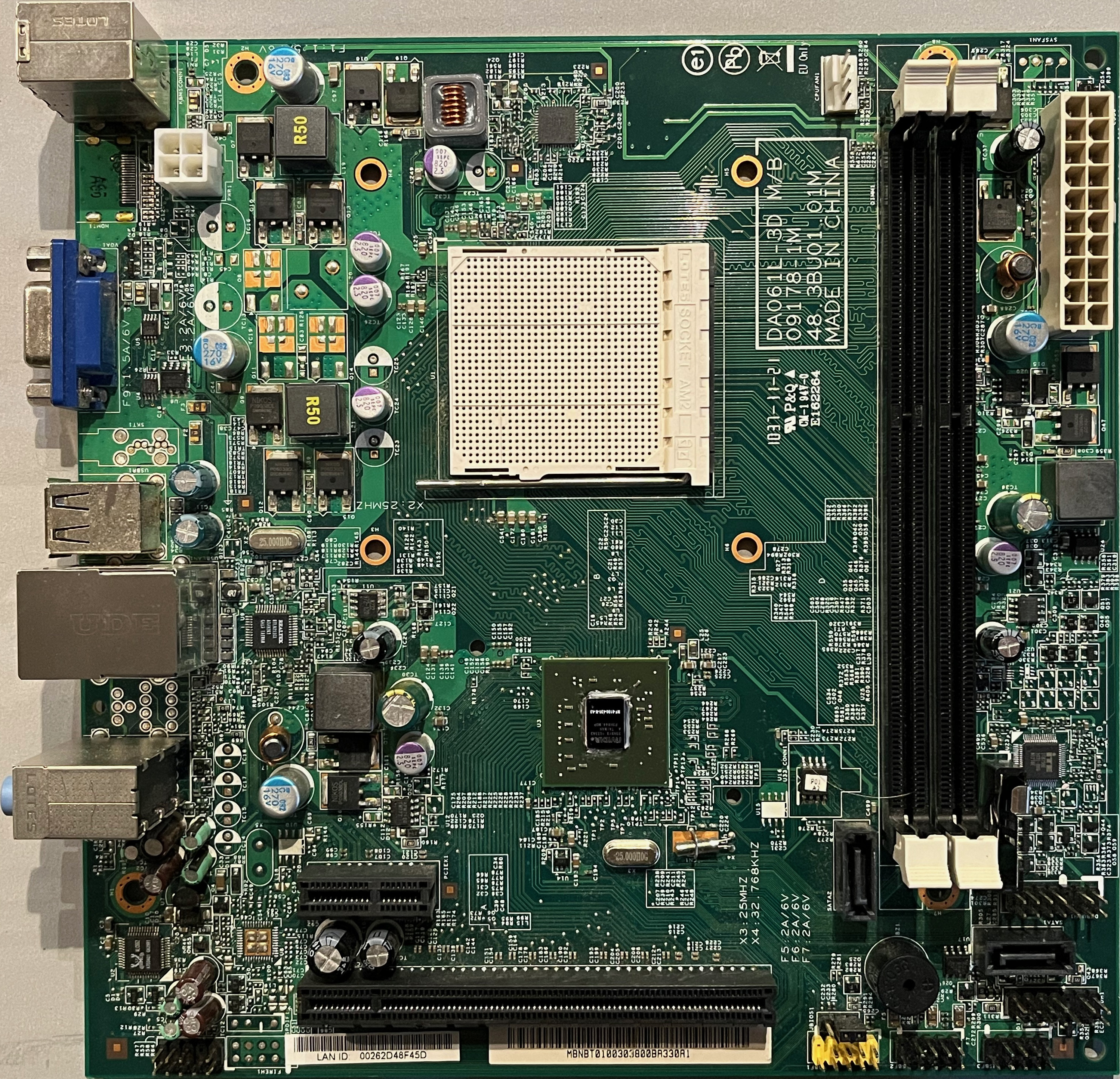

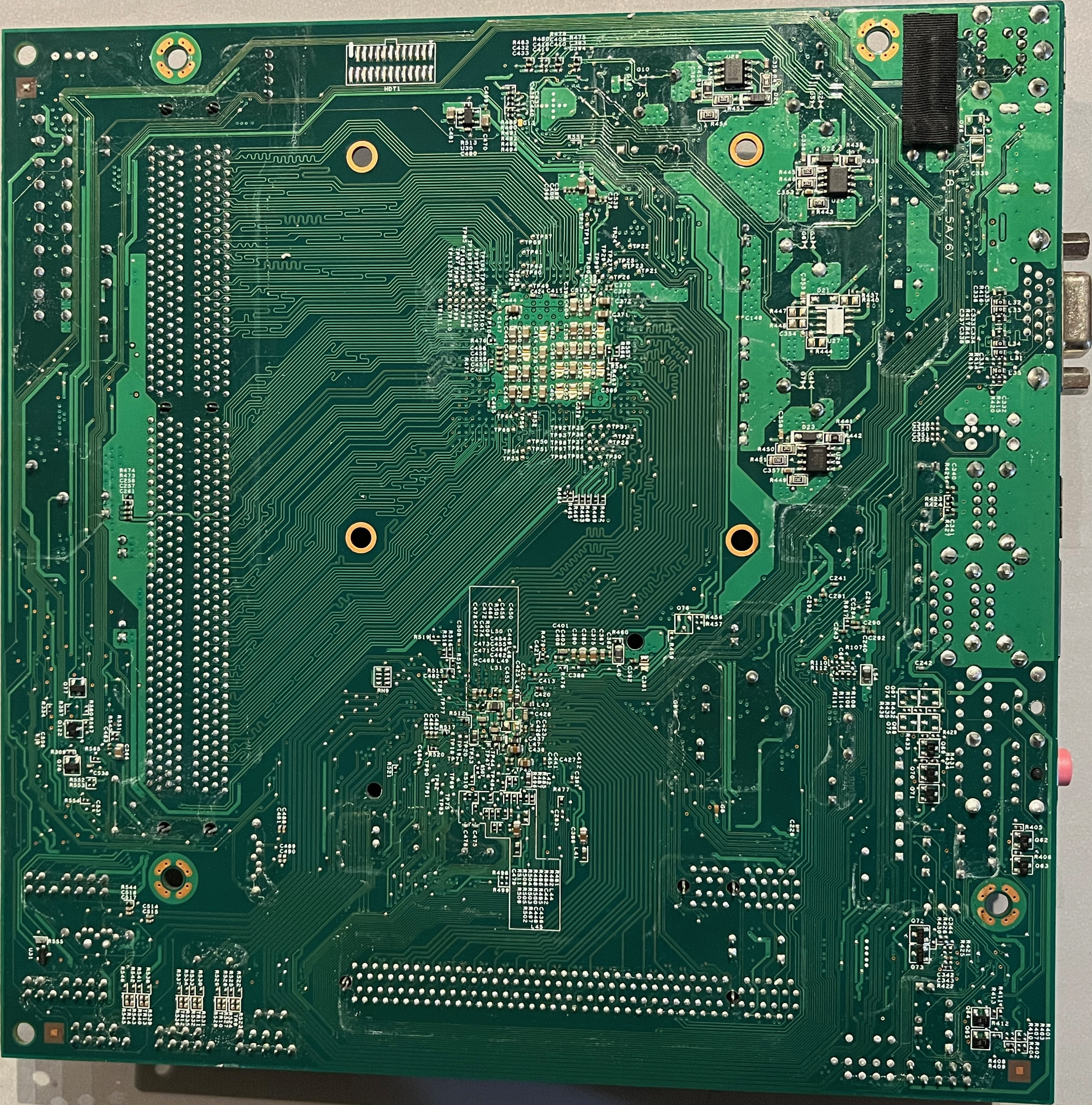

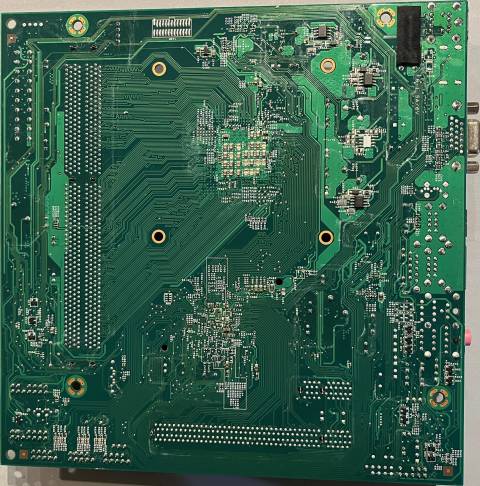

Image 1 of 4 (dogecode)
Image 2 of 4 (dogecode)
Image 3 of 4 (dogecode)
Image 4 of 4 (dogecode)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
