ABit AB-AT7
Logs
chipChipset
cpuSocket
Socket A (PGA462)
speedFSB speeds
200MHz266MHz
moboForm factor
ATX (max 305 x 244 mm)
dimDimensions
305mm x 244mm
chipCache
None/Integrated in the CPU
ramMax RAM size
3GB
ramRAM type
DDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
tag Also known as

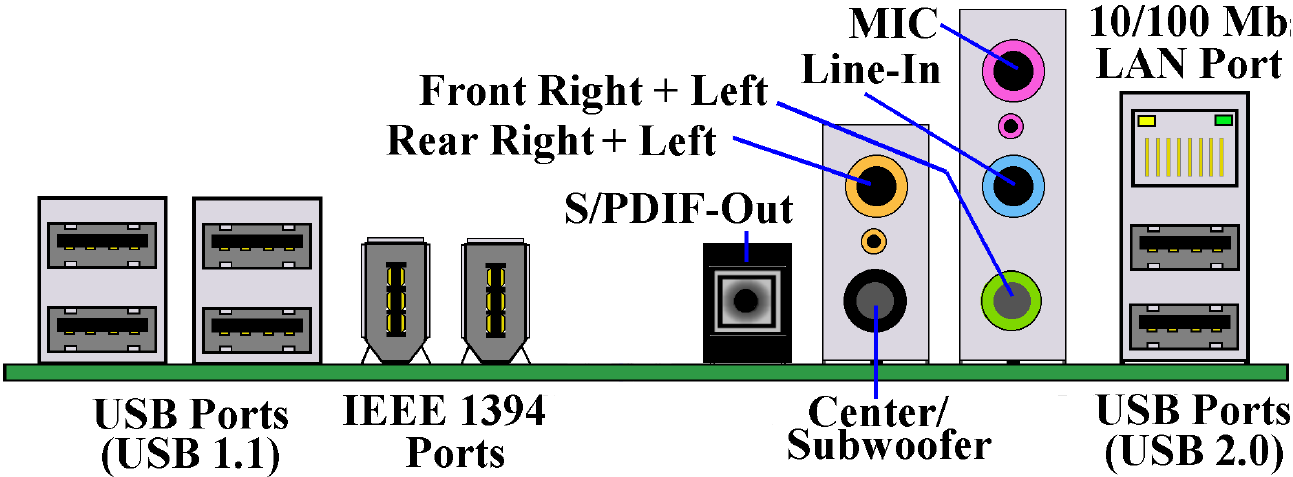

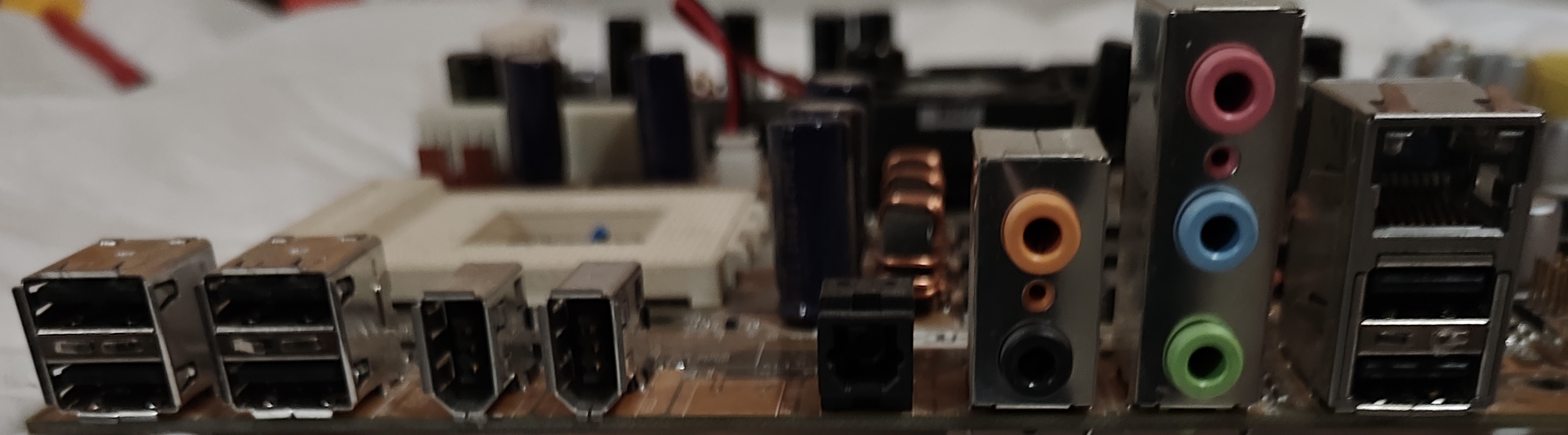

connI/O ports
3x
FireWire 400
1x
Floppy interface
6x
IDE interface
1x
RJ-45 LAN
1x
S/PDIF
1x
Toslink
6x
USB 1.x
4x
USB 2.0
cardExpansion slots
1x
1.5V AGP
3x
32-bit PCI
wrench Known issues
  • Faulty or Leaking Electrolytic Capacitors

Some motherboards may contain faulty or leaking electrolytic capacitors, which can negatively impact system performance or stability. These capacitors may exhibit issues such as bulging, leaking, or even exploding, potentially damaging other components on the motherboard. Users should inspect their capacitors regularly and replace any that are faulty or leaking to avoid damage or system instability.

notes Notes

The HPT374 RAID controller is optional.

Last updated 2025-03-08T14:14:29Z
Board info score is 10/10
bios 6 BIOS files available

vendor Award - 6 entries

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
08/29/2003-VT8367-8233A-6A6LVA1CC-ED
Note
Core version
6.00PG
BIOS version
Logs
POST string
10/11/2002-VT8367-8233A-6A6LVA1CC-C4
Note
Core version
6.00PG
BIOS version
Logs
POST string
08/22/2002-VT8367-8233A-6A6LVA1CC-AN
Note
Core version
6.00PG
BIOS version
Logs
POST string
06/05/2002-VT8367-8233A-6A6LVA1CC-8V
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/09/2002-VT8367-8233A-6A6LVA1CC-8R
Note
Core version
6.00PG
BIOS version
Logs
POST string
04/03/2002-VT8366A-8233-6A6LVA1CC-8C
Note
Core version
6.00PG
BIOS version
Logs
drv 11 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
A4.06
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
17.9MB
Filename
Name
Version
V5.00
OS support
MS-DOS Mac OS X NetWare Server 3 NetWare Server 4 Netware Client32 SCO Unix - OpenServer Windows 2000 Windows 3.1x Windows 9x Windows NT 3.5x Windows NT 4.0
Arch
x86 , PPC
Size
3.3MB
Filename
Name
Version
1.0
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
490.9KB
Filename
Name
Version
5.70d
OS support
Windows 2000 Windows 9x Windows NT 3.5x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
3.9MB
Filename
Name
Version
V3.00a
OS support
MS-DOS Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
1.9MB
Filename
Name
Version
2.56
OS support
Windows 2000 Windows 9x
Arch
x86
Size
13.1MB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
1.1MB
Filename
Version
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
Size
973.7KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows 2000 Windows 7 Windows Vista Windows XP/2k3
Arch
x86
Size
190.6KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
220.9KB
Filename
Version
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
x86
Size
216.1KB
Filename
doc 1 board document available
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2002-10-25
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001-11-09
File
Logs
Chip
Release date
2003-02
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

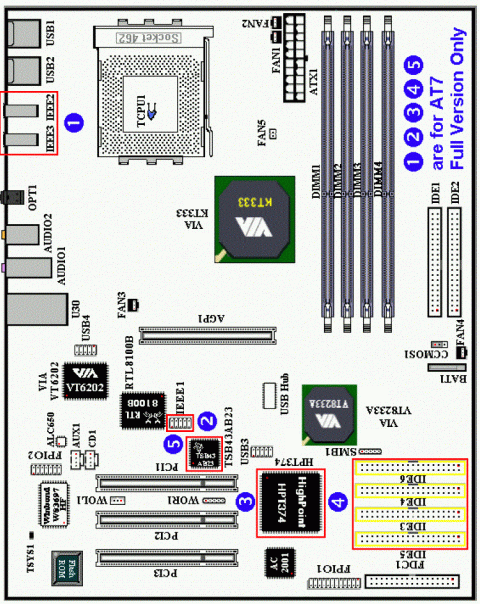

image1 Image 1 of 5 (evasive)

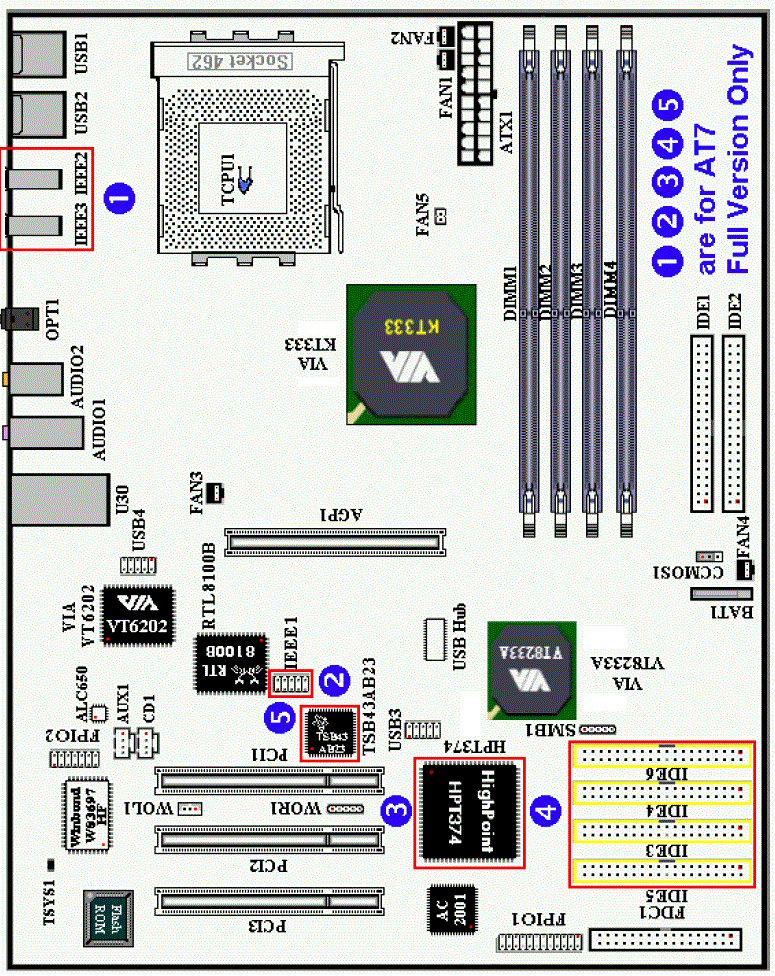

image2 Image 2 of 5 (kothnaaken)

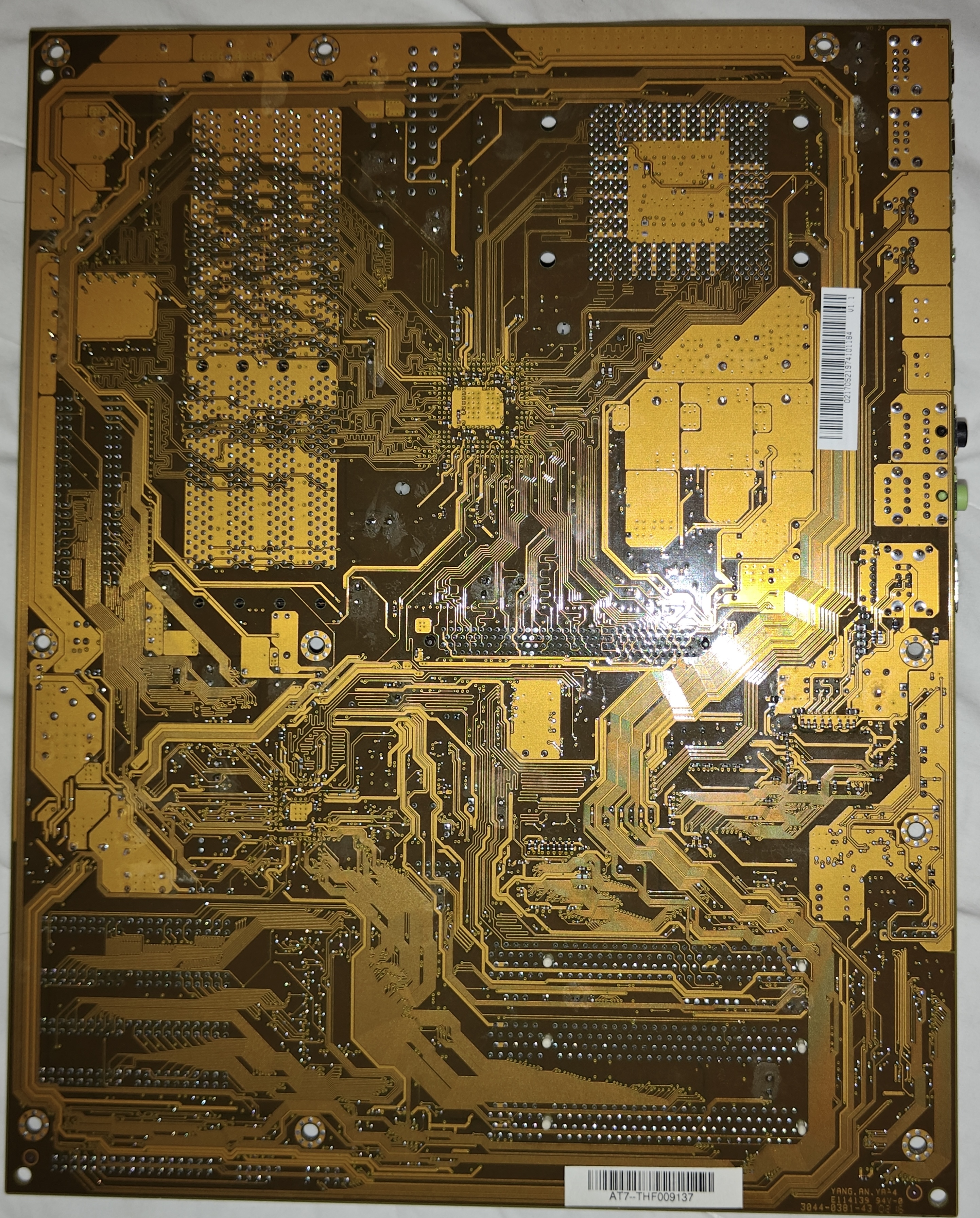

image3 Image 3 of 5 (kothnaaken)
image4 Image 4 of 5 (kothnaaken)

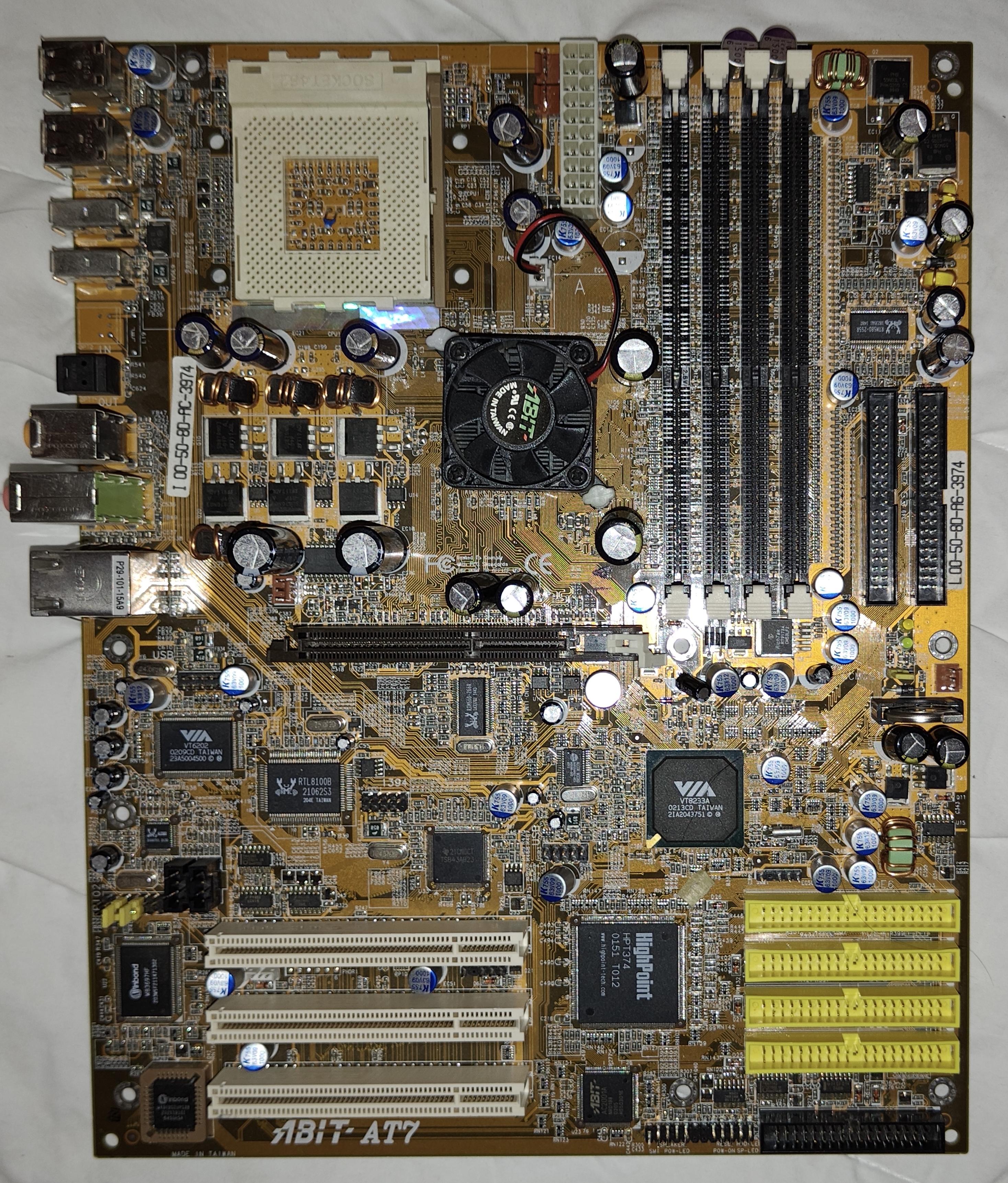

image5 Image 5 of 5
