AAEON Technology PCM-5896
Logs
chipChipset
cpuSocket
Socket 7 (PGA321)
speedFSB speeds
50MHz66MHz
moboForm factor
EBX/Little Board/Biscuit SBC 5.25" (max 203 x 146 mm)
dimDimensions
203mm x 146mm
ramMax VRAM size
2MB
chipCache
512KB
ramMax RAM size
128MB
ramRAM type
SDR UDIMM
pwrPSU connector
ATX 1.x (20-pin ATX)
connI/O ports
1x
Floppy interface
2x
IDE interface
1x
PS/2 keyboard
1x
PS/2 mouse
1x
Parallel
1x
RJ-45 LAN
2x
Serial
2x
USB 1.x
1x
VGA
cardExpansion slots
1x
32-bit PCI
Last updated 2023-08-31T15:59:33Z
Board info score is 9.6/10
bios 1 BIOS file available

vendor Award - 1 entry

POST string
Note
Core Ver.
BIOS Ver.
Logs
POST string
01/30/2004-ALADDIN5-2A5KKAK9C-00
Note
Core version
4.51PG
BIOS version
Logs
drv 16 drivers available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.0.1.2
OS support
Windows 2000 Windows XP/2k3
Arch
Size
30.4KB
Filename
Name
Version
1.20
OS support
Windows 9x
Arch
Size
615.5KB
Filename
Name
Version
3.56
OS support
Windows 9x Windows NT 4.0
Arch
Size
880.3KB
Filename
Name
Version
1.00
OS support
Windows 9x
Arch
x86
Size
1.5MB
Filename
Name
Version
2.13
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
7.3MB
Filename
Name
Version
2.20
OS support
Windows 2000 Windows 9x Windows NT 4.0 Windows XP/2k3
Arch
Size
10.1MB
Filename
Name
Version
1.3.2
OS support
MS-DOS Windows 3.1x
Arch
x86
Size
1019.2KB
Filename
Name
Version
2.2.7
OS support
OS/2 Warp 3.x OS/2 Warp 4.x
Arch
x86
Size
1.1MB
Filename
Name
Version
3.06
OS support
Windows 9x
Arch
x86
Size
148.7KB
Filename
Name
Version
4.05
OS support
Windows 9x
Arch
x86
Size
251.3KB
Filename
Name
Version
N/A
OS support
Windows 9x
Arch
x86
Size
1.7MB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
158.5KB
Filename
Name
Version
1.14
OS support
Windows NT 3.5x
Arch
x86
Size
41.4KB
Filename
Name
Version
1.29
OS support
Windows NT 4.0
Arch
x86
Size
304KB
Filename
Name
Version
4.06.1154
OS support
Windows 9x Windows NT 4.0
Arch
Size
20.9MB
Filename
Name
Version
5.12.01.4107
OS support
Windows 2000 Windows 9x
Arch
x86
Size
2.8MB
Filename
doc 2 board documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1998-10-15
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Family
Release date
File
Logs
Family
Release date
1999-12
File
Logs
Family
Release date
2000-04
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
mP6
Release date
1999-05-27
File
Logs
Family
Release date
2000-11
File
Logs
Family
Release date
1997-06
File
Logs
Family
Release date
1998-01
File
Logs

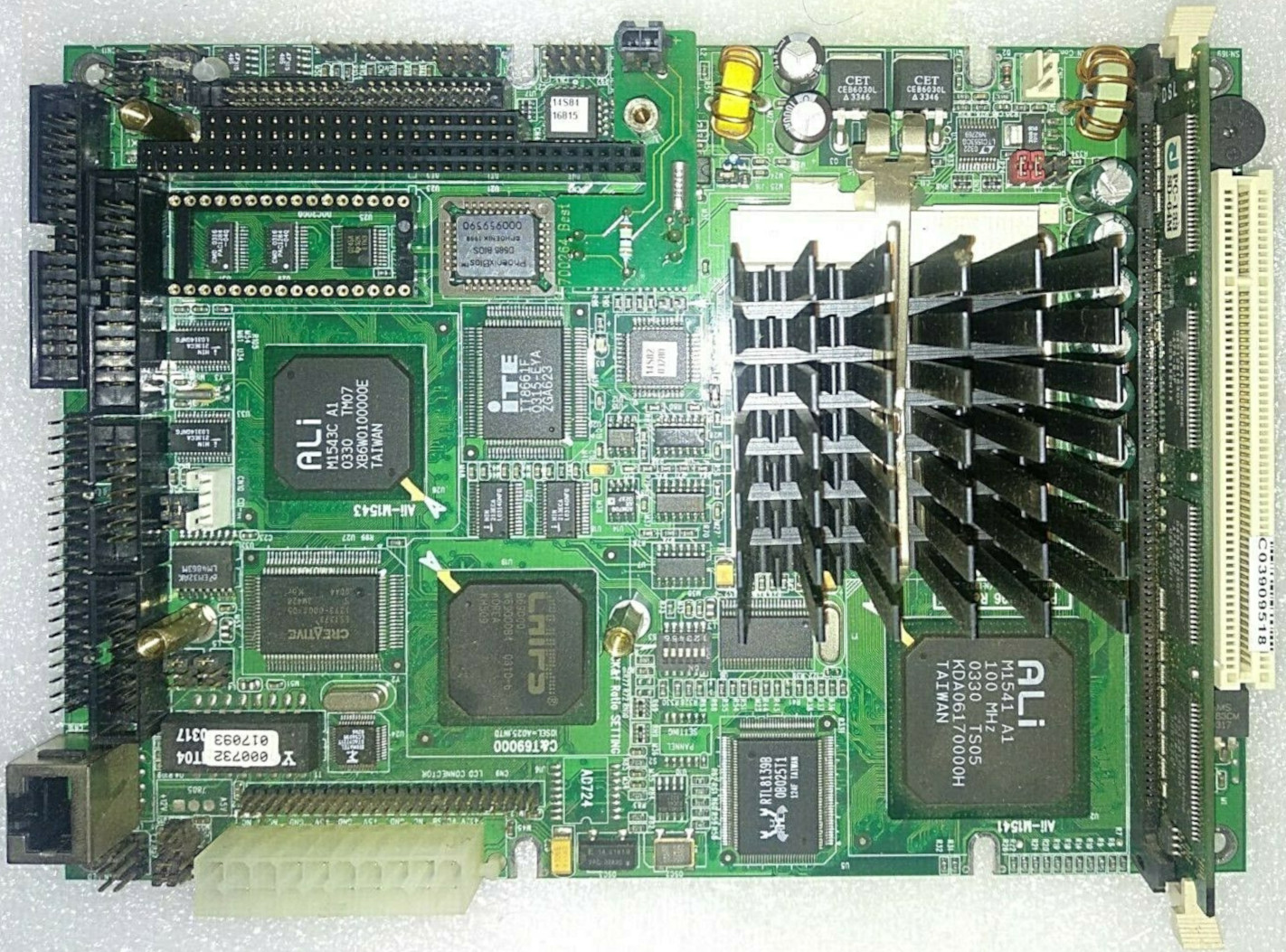

image1 Image 1 of 3 (Microhouse)

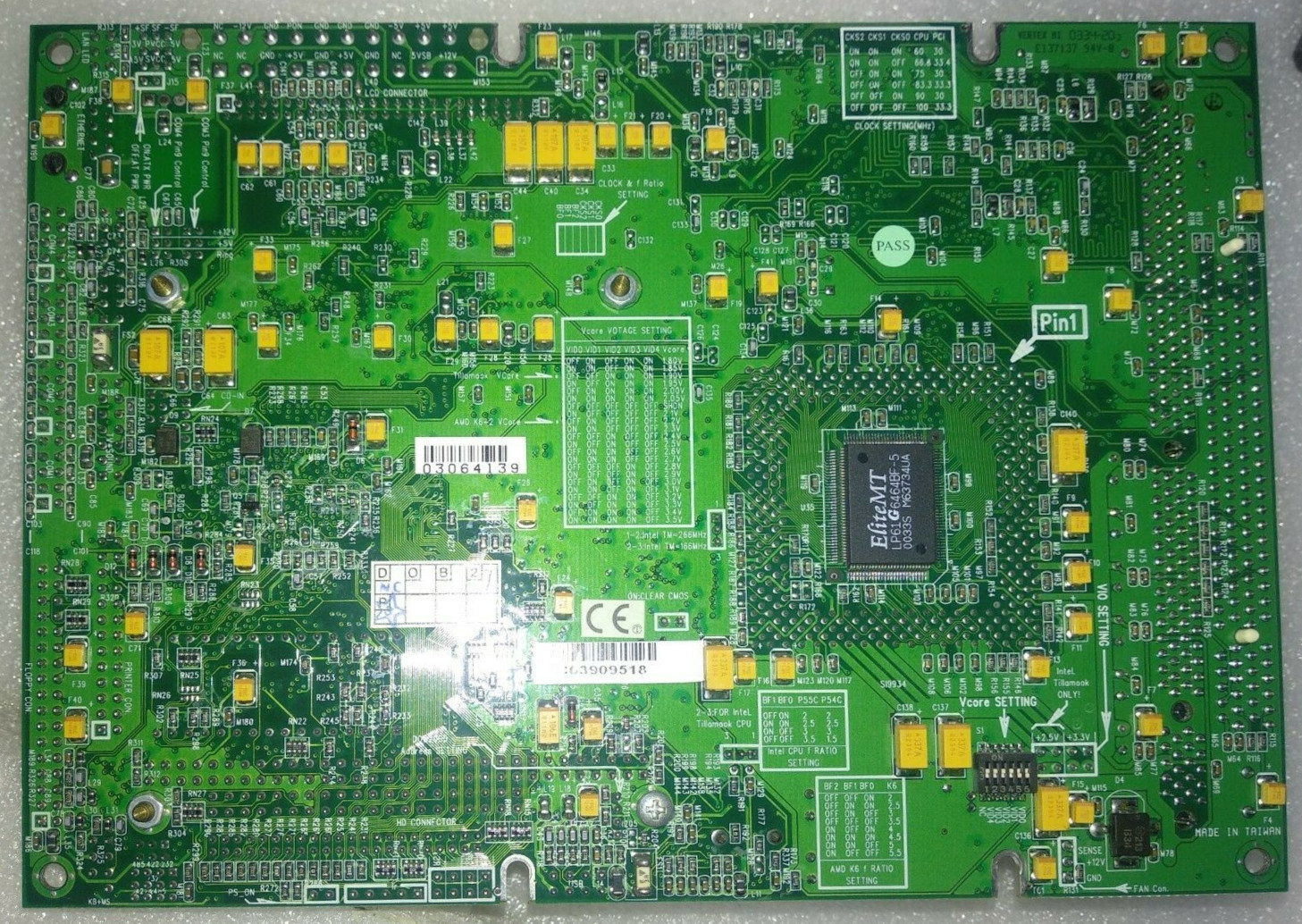

image2 Image 2 of 3

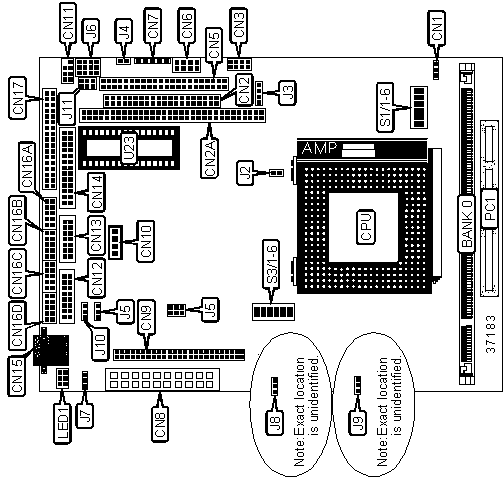

image3 Image 3 of 3
