Xilinx XUPV5-LX110T Evaluation Platform
Logs
typeType
Peripheral/Misc
interfaceInterface
signalSignaling
PCIe 1.0
dimSlot height
1
datePCI ID
Empty
ramRAM type
DDR2 UDIMM
ramRAM size
256MB
chip Chips and specs
-> Audio
Analog Devices AD1981B (SoundMAX AC97)
-> Network
Marvell 88E1111 (Alaska Ultra Gigabit PHY)
-> Signal transmitter/receiver
Chrontel CH7301C (DVI Transmitter)
-> Video
Analog Devices AD9980 (8-Bit ADC Display Interface)
portintI/O ports
1x
  • RJ45
2x
  • 3.5mm TRS jack
2x
  • 3.5mm TRS jack
1x
  • CF Card Slot
1x
  • DVI-D
2x
  • 3x32 2.54mm pin header
1x
  • 6-pin Mini-DIN
1x
  • 6-pin Mini-DIN
1x
  • RCA Jack
2x
  • SATA
1x
  • SFF-8431
1x
  • DE-9
1x
  • USB-A
1x
  • USB-B
1x
  • DE-15
powerPower connectors
1x
1x
Last updated 2025-10-20T19:39:26Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
5.12
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
18.5MB
Filename
doc 3 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
2011-05-16
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2005
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

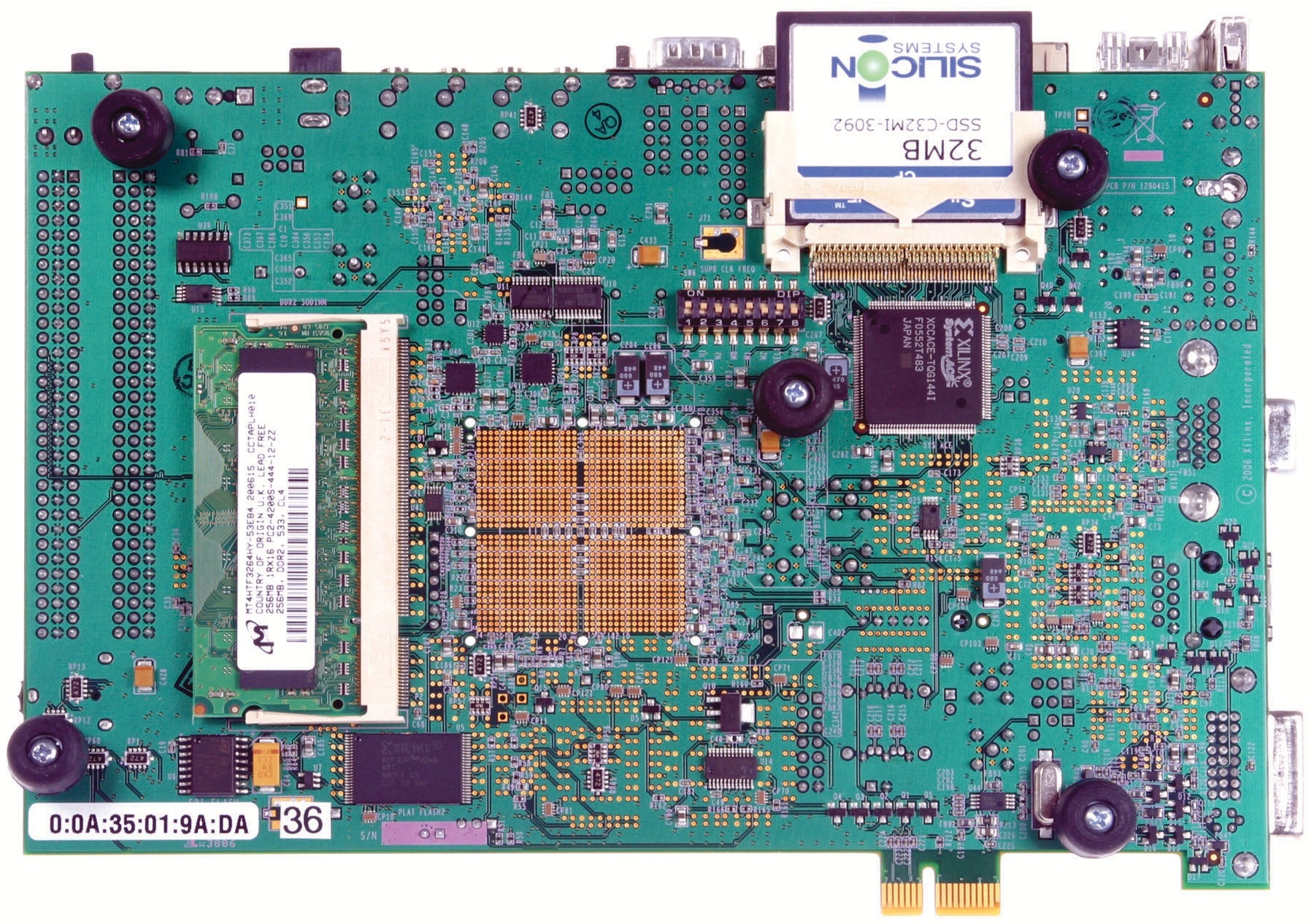

image1 Image 1 of 2 (Xilinx)
