[Unknown] MIO1025
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
HBQ4MC8635
chip Chips and specs
-> Signal transmitter/receiver
UMC UM82C865F (I/O coupler)
-> Super I/O
UMC UM82C863F
MTL
Size: Half-length, half-height card
Data bus: 16-bit, ISA
HadProblem
Hard drive supported: Two IDE (AT) Interface drives
Floppy drives supported: 360KB, 720KB, 1.2MB, 1.44MB
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
notes Notes

FCC ID is for the chips not for the card and there should be an U instead of 4 in that string.

Last updated 2025-09-22T19:44:30Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

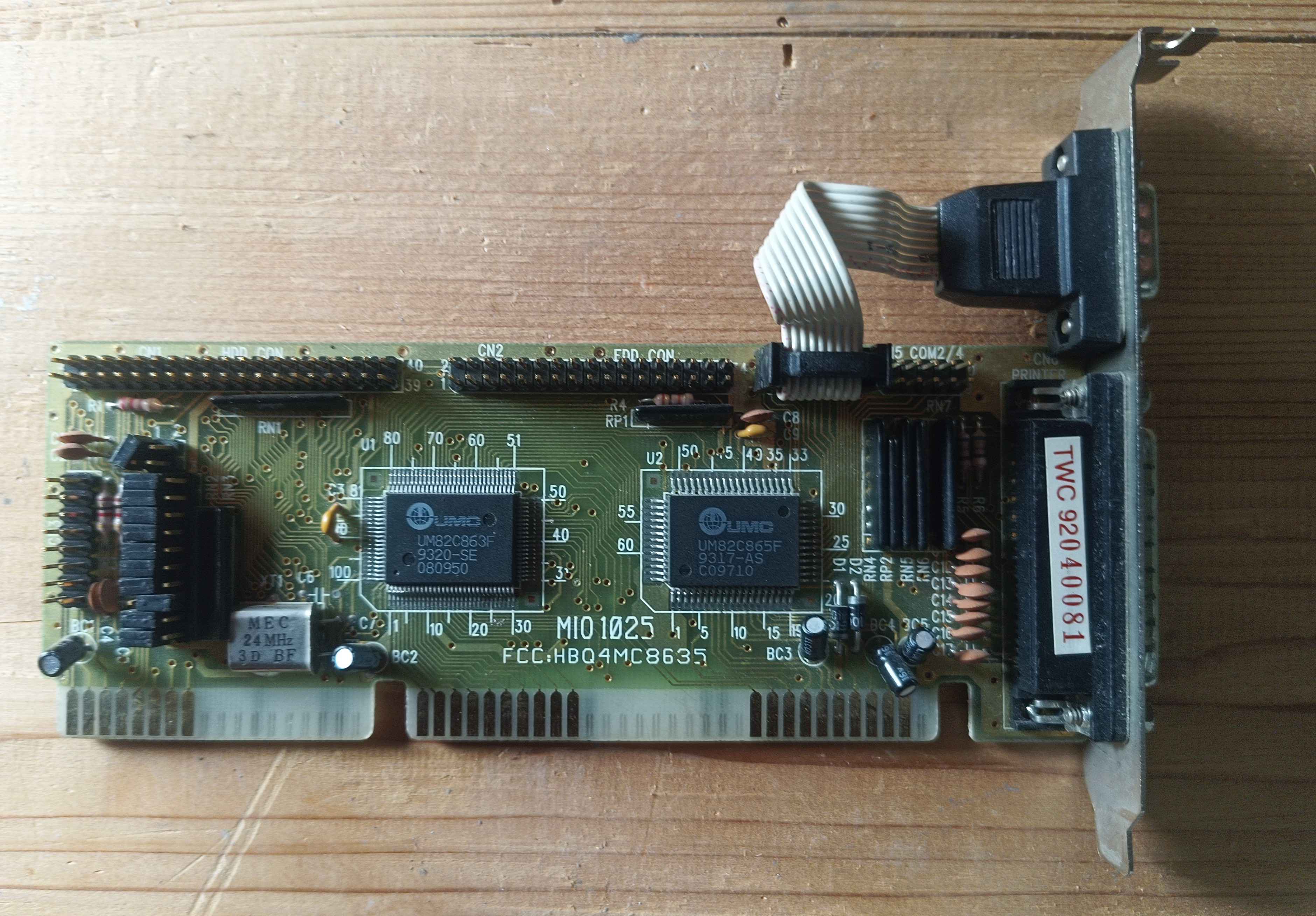

image1 Image 1 of 2 (Shadowdestroyer777)
