Ungermann-Bass NIUpc/EOTP
Logs
typeType
Network
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Network
Intel 82586 (Ethernet LAN Coprocessor)
-> Processor
Intel 80186-8 (N80C186-8)
MTL
Boot ROM Available
Data Bus 8-bit ISA/16-bit ISA
NIC Type Ethernet
Topology Linear bus
Wiring Type Unshielded twisted pair AUI transceiver via DB15 DIX transceiver via DB15
Transfer Rate 10Mbps
Network speed
10Mb/s
Microarchitecture
CPUID
Process node
Core
Bus speed 8MHz
Frequency 8MHz
Multiplier 1x
Power
Voltage 5V
tag Also known as
portintI/O ports
1x
  • DA-15
1x
  • RJ45
powerPower connectors
Empty
Last updated 2025-09-05T11:13:27Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
31345-05/PV1049
Note
NIUpc/EOTP
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
1.2
OS support
OS/2 1.x
Arch
x86
Size
23KB
Filename
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1991-11
File
Logs

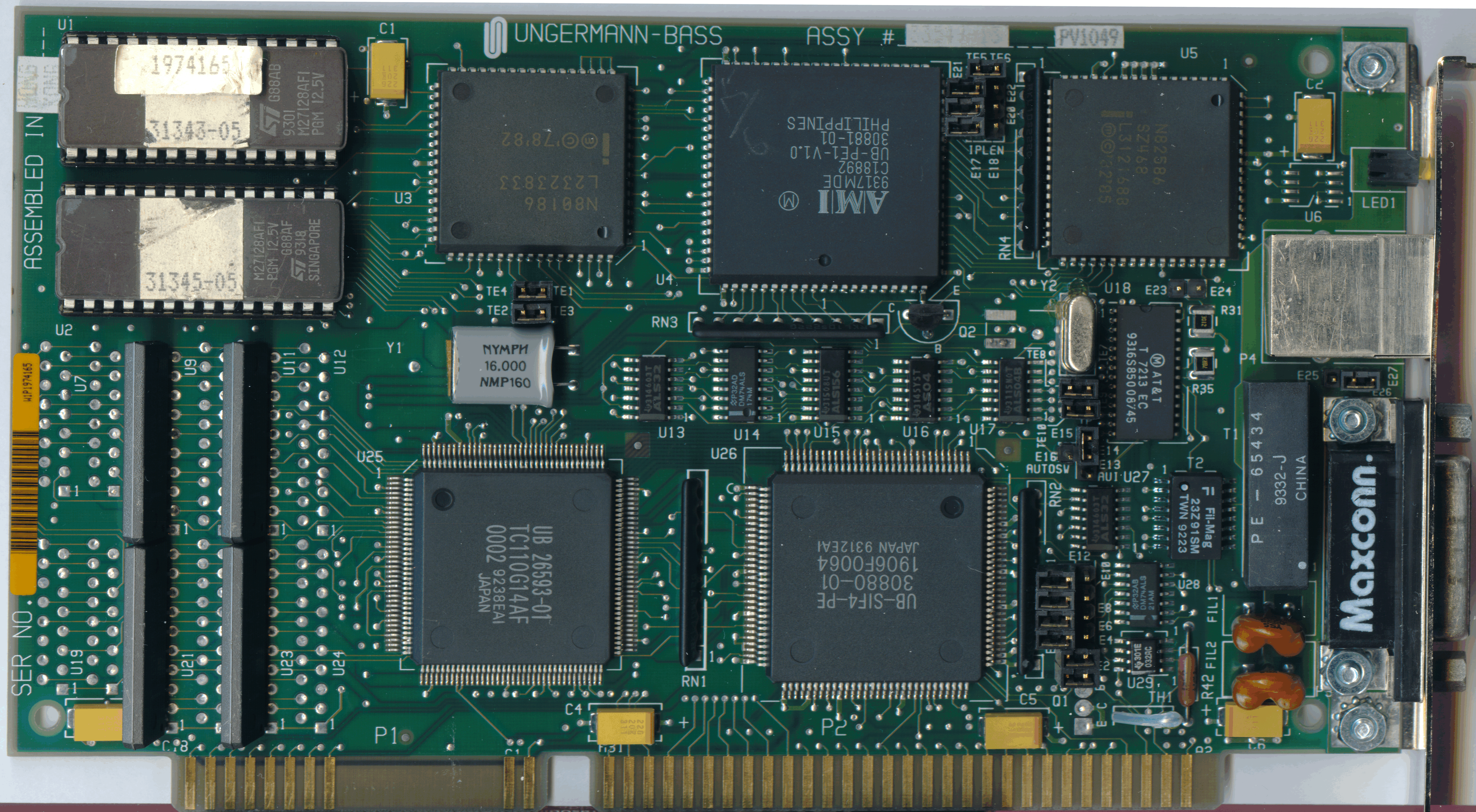

image1 Image 1 of 3 (Microhouse)

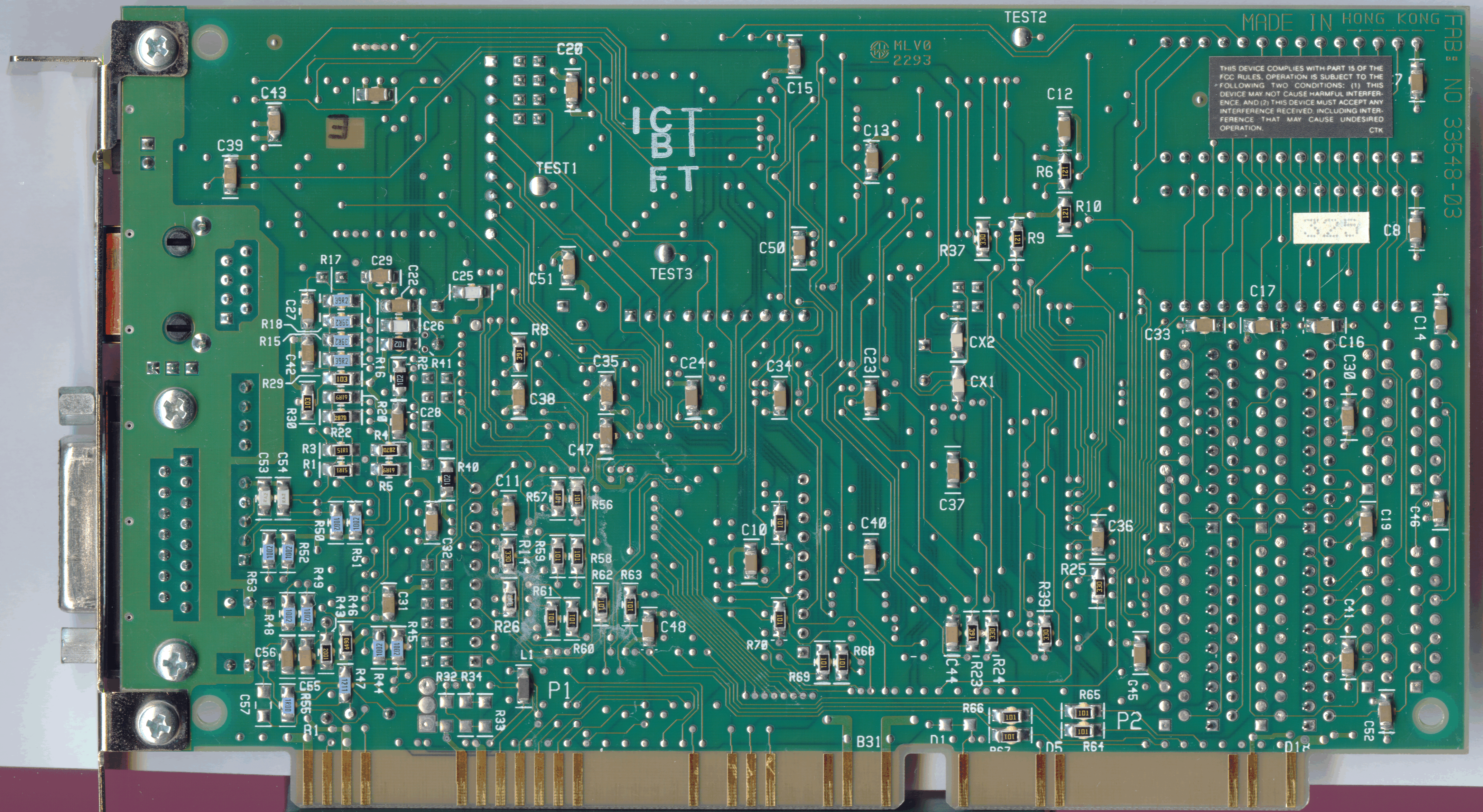

image2 Image 2 of 3 (Rafal Rzeczkowski)
image3 Image 3 of 3 (Rafal Rzeczkowski)
