TK TK-82C863/865-2J-D02
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA
datePCI ID
Empty
chip Chips and specs
-> Signal transmitter/receiver
UMC UM82C865F (I/O coupler)
-> Super I/O
UMC UM82C863F
tag Also known as
  • MG MG-82C863
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • 2x8 2.54mm pin header
1x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
Last updated 2025-06-18T17:35:21Z
biosc No BIOS files available
drv No drivers available
doc 2 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 6 (Simmi Valgeirsson)

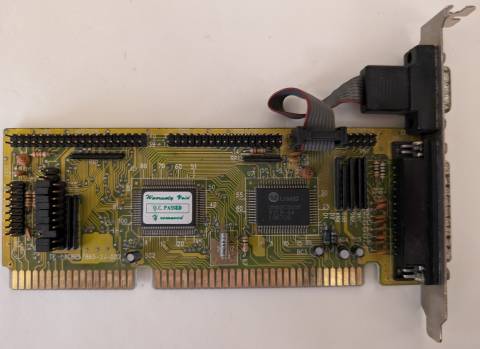

image2 Image 2 of 6 (davidg)
image3 Image 3 of 6 (Boohyaka)
image4 Image 4 of 6 (Simmi Valgeirsson)
image5 Image 5 of 6 (davidg)

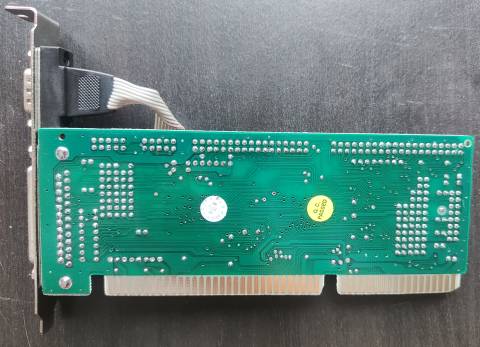

image6 Image 6 of 6 (Boohyaka)
