TK 8287 2J D01B
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
16-bit ISA 32-bit VLB 8-bit ISA
datePCI ID
Empty
fccFCC ID
HBQUMC8287D1A
chip Chips and specs
-> IDE ctrl.
UMC UM8672F (VLB IDE Controller)
-> Signal transmitter/receiver
UMC UM8667 (2 Port RS-232 Driver/Receiver)
-> Super I/O
UMC UM82C863F
portintI/O ports
1x
  • 2x17 2.54mm pin header
2x
  • 2x20 2.54mm pin header
1x
  • DB-25
1x
  • DE-9
1x
  • 2x5 2.54mm pin header
powerPower connectors
Empty
notes Notes

Marked with a fake FCC ID

Last updated 2025-05-25T19:59:48Z
biosc No card BIOS files available
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
2.2
Note
UM82C872 / UM8672F
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.1
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
Size
990.1KB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs

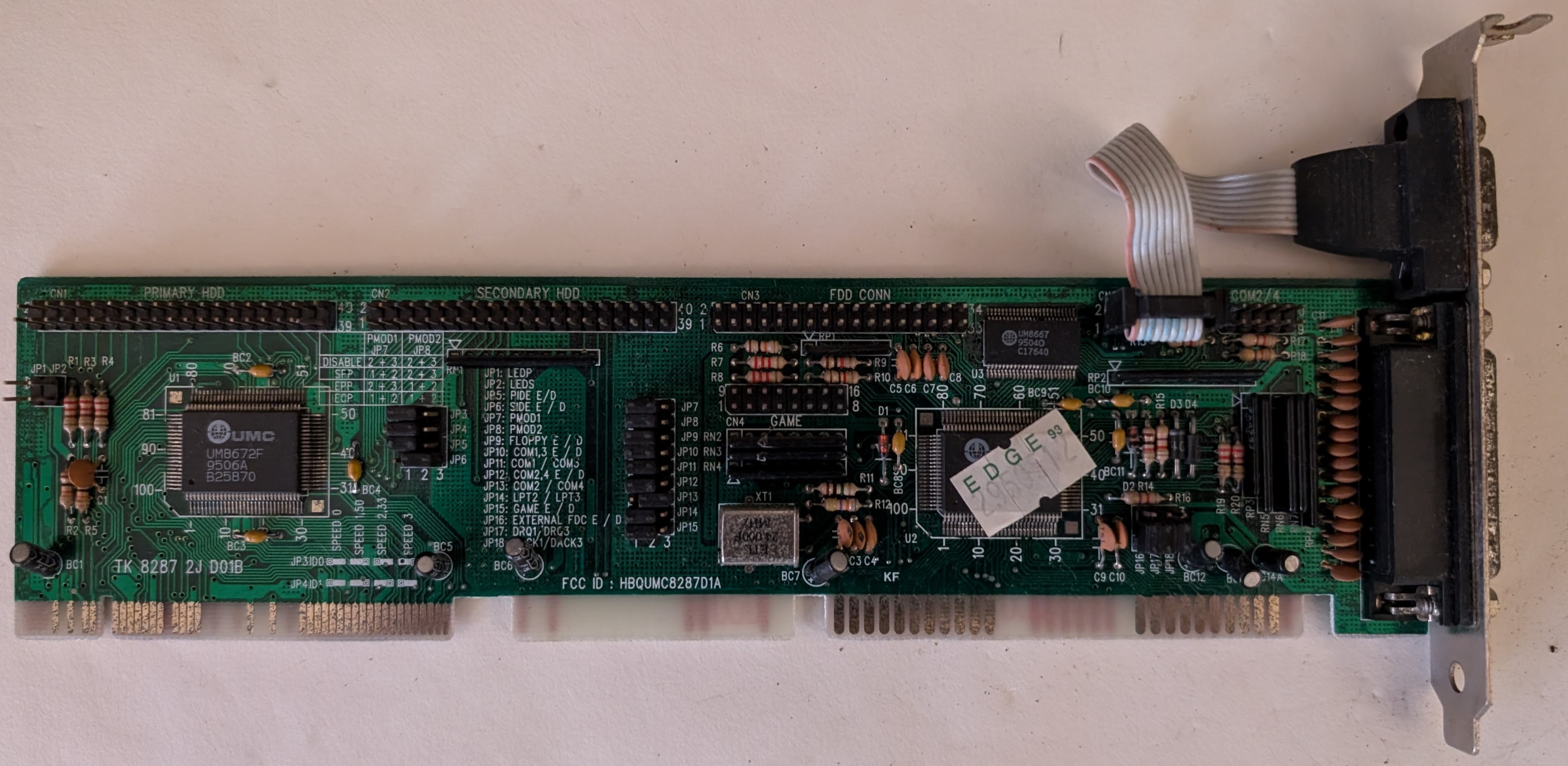

image1 Image 1 of 3 (davidg)

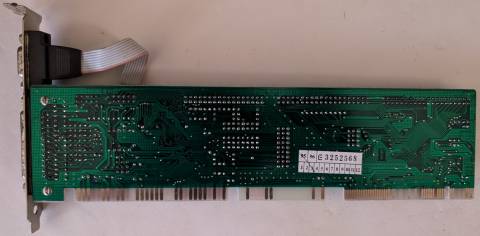

image2 Image 2 of 3 (davidg)

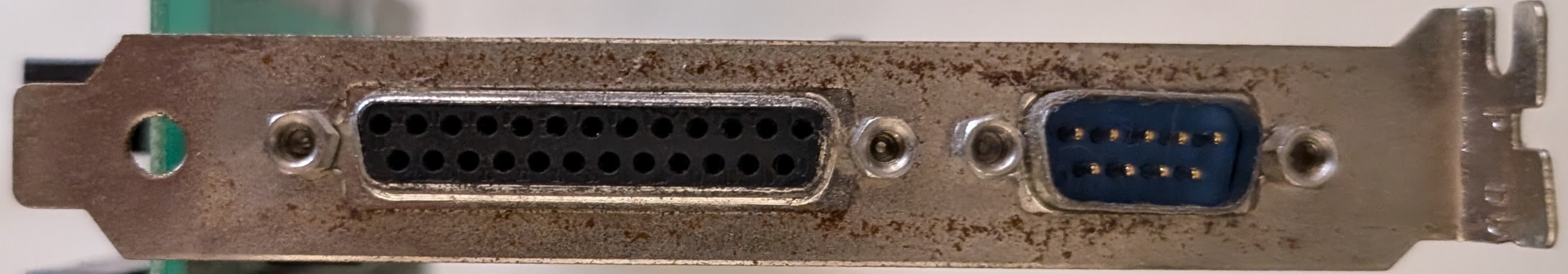

image3 Image 3 of 3 (davidg)
