Tekram DC-680C
Logs
Interface
Signaling
Slot height
PCI IDEmpty
RAM type 30-pin SIMM
RAM size
16MB
Chips and specs
-> Floppy ctrl.
-> IDE ctrl.
-> Processor
| MTL | |
|---|---|
| Size: | Three/quarter-length, half-height card |
| Data bus: | 32-bit, VL-bus |
| HadProblem | |
| Hard drive supported: | Four IDE (AT) Interface drives |
| Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
| Microarchitecture | |
|---|---|
| Core | |
| Bus speed | 20MHz |
| Frequency | 20MHz |
| Multiplier | 1x |
| Power | |
|---|---|
| Voltage | 5V |
I/O ports
1x
- 2x17 2.54mm pin header
2x
- 2x20 2.54mm pin header
Power connectorsEmpty
Last updated 2025-07-11T08:03:54Z
2 card BIOS files available
Version
Note
File
Logs
No drivers available
2 card documents available
Release date
File
Logs
Chip
Release date
File
Logs
Image 1 of 4 (Microhouse)
Image 2 of 4 (limsup)

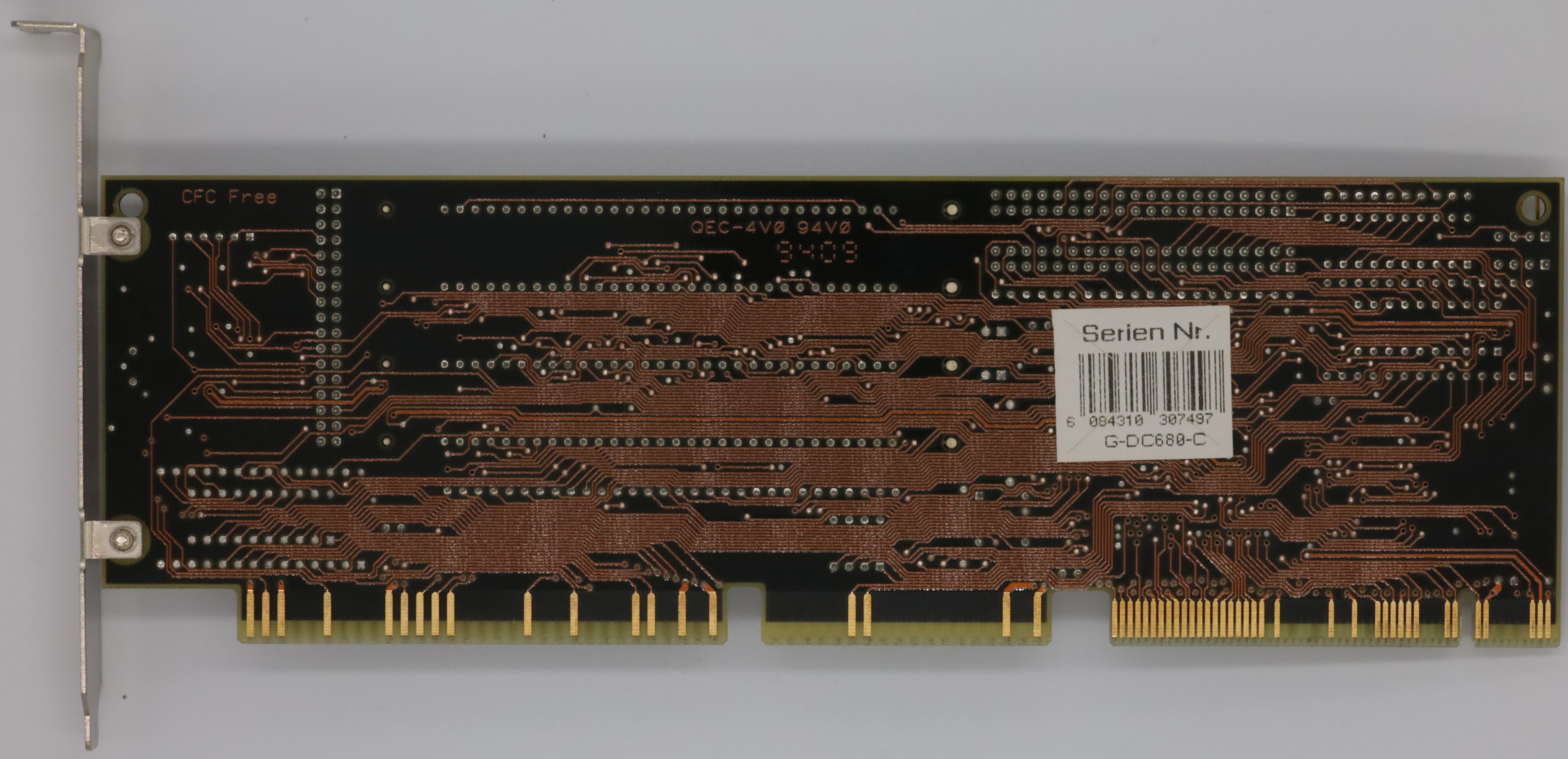

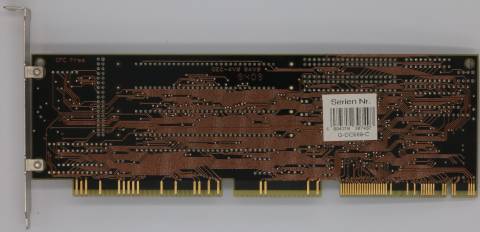

Image 3 of 4 (Carsten Braeuer)

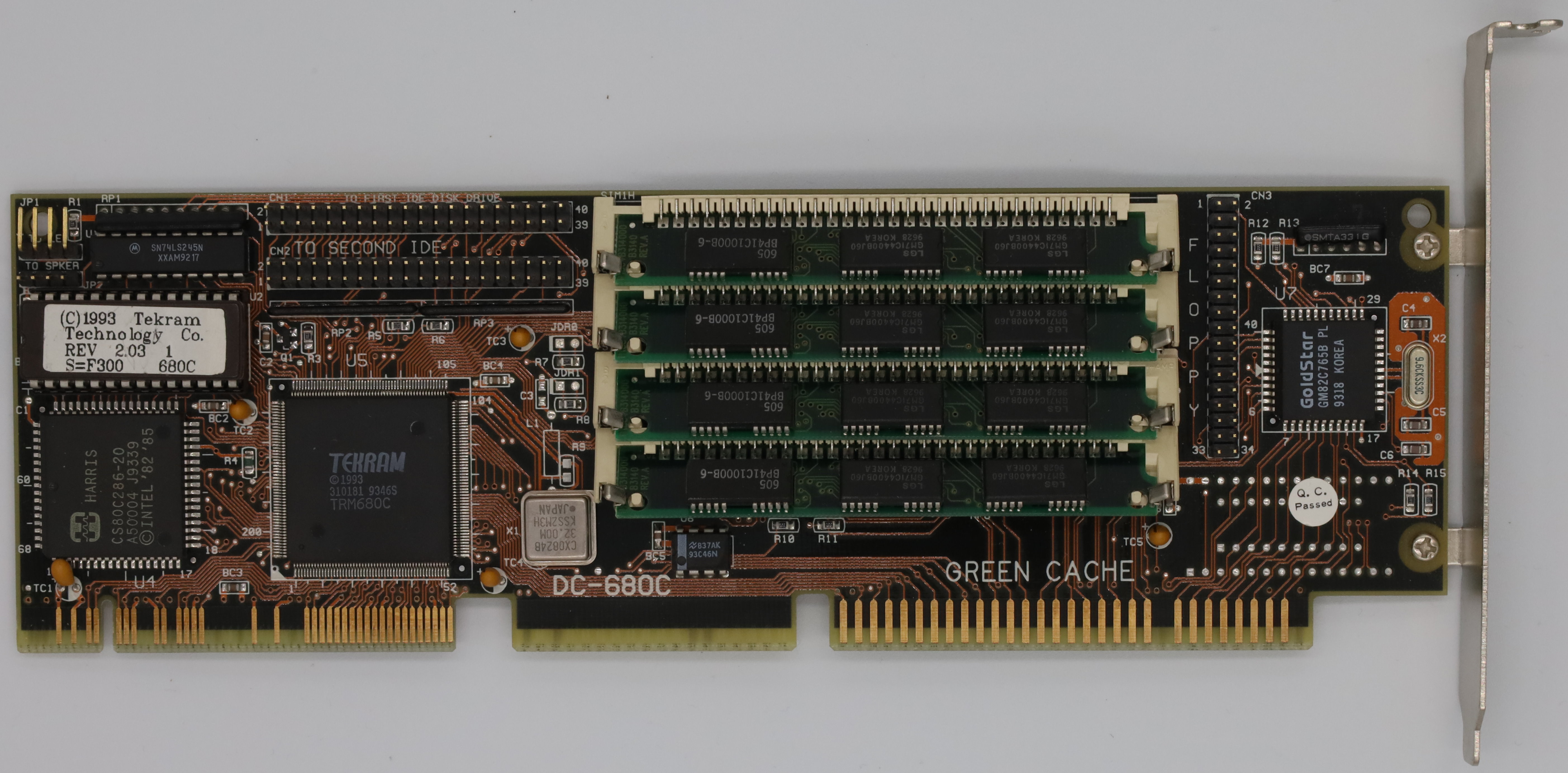

Image 4 of 4 (Carsten Braeuer)
