Tekram DC-600T
Logs
Interface
Signaling
Slot height
PCI IDEmpty
RAM type 30-pin SIMM
RAM size
16MB
Chips and specs
-> Floppy ctrl.
-> IDE ctrl.
-> Processor
| MTL | |
|---|---|
| Size: | Three/quarter-length, full-height card |
| Data bus: | 16-bit, ISA |
| HadProblem | |
| Hard drive supported: | Four IDE (AT) Interface drives |
| Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
| Microarchitecture | |
|---|---|
| CPUID | |
| Process node | |
| Core | |
| Bus speed | 12MHz |
| Frequency | 12MHz |
| Multiplier | 1x |
| Power | |
|---|---|
| Voltage | 5V |
I/O ports
1x
- 2x17 2.54mm pin header
2x
- 2x20 2.54mm pin header
Power connectorsEmpty
Last updated 2025-09-05T15:07:33Z
1 card BIOS file available
Version
Note
File
Logs
No drivers available
2 card documents available
Release date
File
Logs
Chip
Release date
File
Logs
Image 1 of 2 (Microhouse)

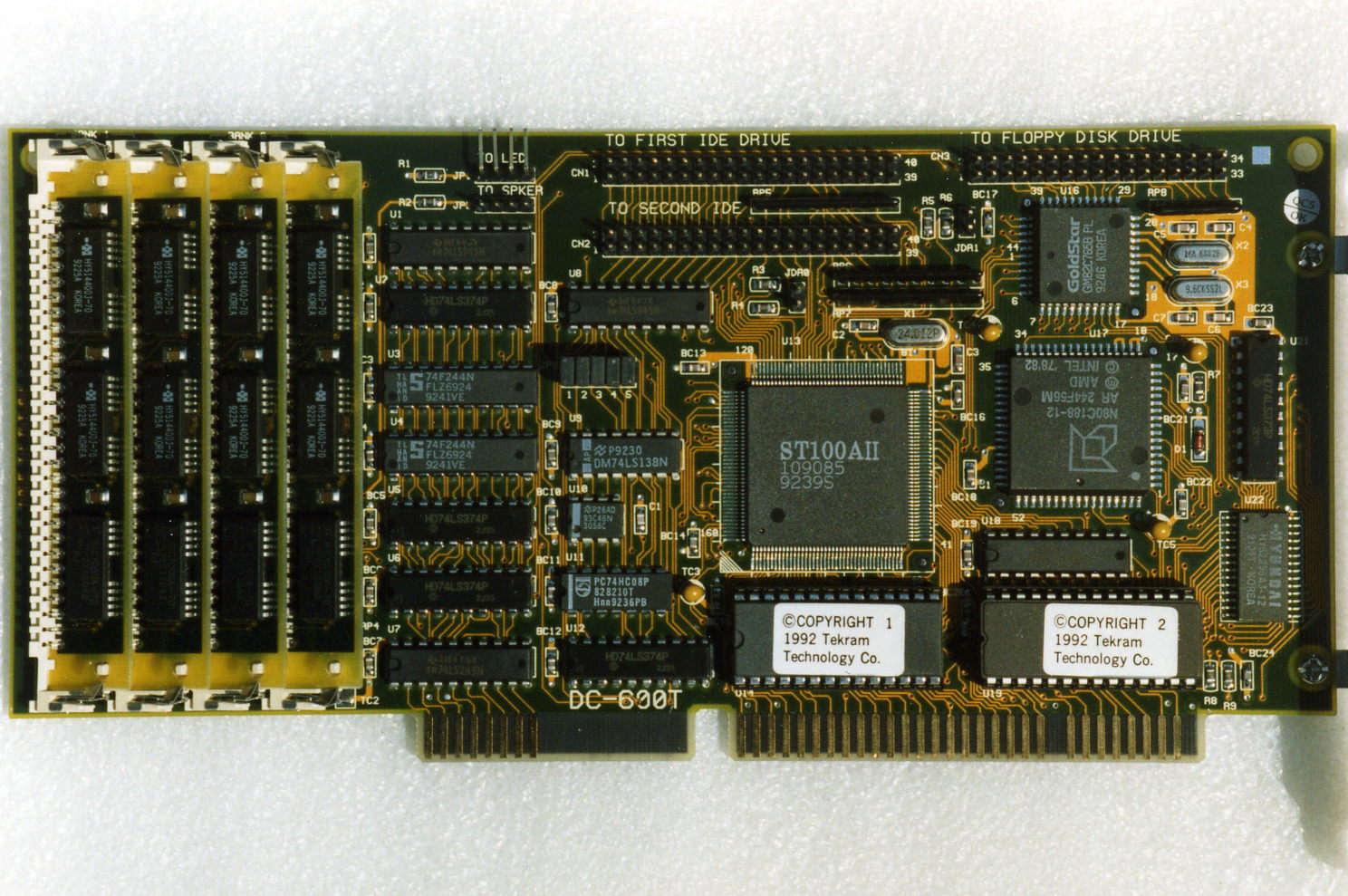

Image 2 of 2 (Carsten Braeuer)
