Pine Technology PT-627
Logs
typeType
Floppy controller Multi I/O IDE controller
interfaceInterface
signalSignaling
32-bit VLB
dimSlot height
1
datePCI ID
Empty
fccFCC ID
HBQUM8631 D08
chip Chips and specs
-> IDE ctrl.
UMC UM8672F (VLB IDE Controller)
-> Signal transmitter/receiver
UMC UM8667 (2 Port RS-232 Driver/Receiver)
-> Super I/O
UMC UM82C863F
MTL
Size: Three/quarter-length, half-height card
Data bus: 32-bit, VL-bus
HadProblem
Hard drive supported: Four IDE (AT) interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives
portintI/O ports
1x
  • 2x17 2.54mm pin header, FDD
1x
  • 2x8 2.54mm pin header, Game port
2x
  • 2x20 2.54mm pin header
1x
  • DB-25, ECP/EPP
1x
  • DE-9, RS-232
1x
  • 2x5 2.54mm pin header, RS-232
powerPower connectors
Empty
notes Notes
  • Pins for J1, Enable IOCHRDY, are not populated on the "A" version for the board
  • The FCC ID is actually for the chip, not for the card. It will be found on other cards as well.
Last updated 2025-11-11T01:38:55Z
bios 1 card BIOS file available
Version
Note
File
Logs
Version
VERSION 2.20
Note
Supports Cyl > 1024
File
Logs
chipbios 1 chip with BIOS files available
Warning: might not be fully compatible with this card, use at your own risk
Version
Note
File
Logs
Version
2.2
Note
UM82C872 / UM8672F
File
Logs
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
2.1
OS support
MS-DOS OS/2 2.x Windows 3.1x Windows NT 3.1
Arch
Size
990.1KB
Filename
doc 2 card documents available
Release date
File
Logs
Release date
1999
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
image1 Image 1 of 3 (Microhouse)
image2 Image 2 of 3 (Douglar)

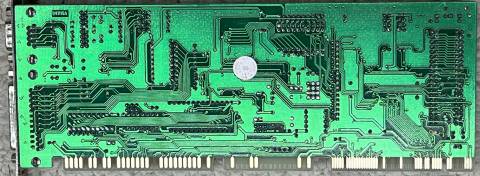

image3 Image 3 of 3 (Douglar)
