MONOLITHIC SYSTEMS, INC. (COLORADO MSI) MICROPAQ 452 REV. B
Type
Floppy controller
Multi I/O
IDE controller
Video
Interface
Signaling
16-bit ISA
Slot height1
PCI IDEmpty
Chips and specs
-> Floppy ctrl.
-> RAMDAC
-> Super I/O
| MTL | |
|---|---|
| Size: | Full-length, full-height card |
| Data bus: | 16-bit, ISA |
| HadProblem | |
| Hard drive supported: | Two IDE (AT) Interface drives |
| Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
Also known as
- MONOLITHIC SYSTEMS, INC. (COLORADO MSI) MICROPAQ 452 REV. C
I/O ports
1x
- DE-9
1x
- 2x17 2.54mm pin header
1x
- 2x20 2.54mm pin header
1x
- 2x13 2.54mm pin header
2x
- 2x5 2.54mm pin header
1x
- 2x13 2.54mm pin header
1x
- DE-15
Power connectorsEmpty
Last updated 2025-07-09T06:47:15Z
No BIOS files available
No drivers available
1 card document available
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs

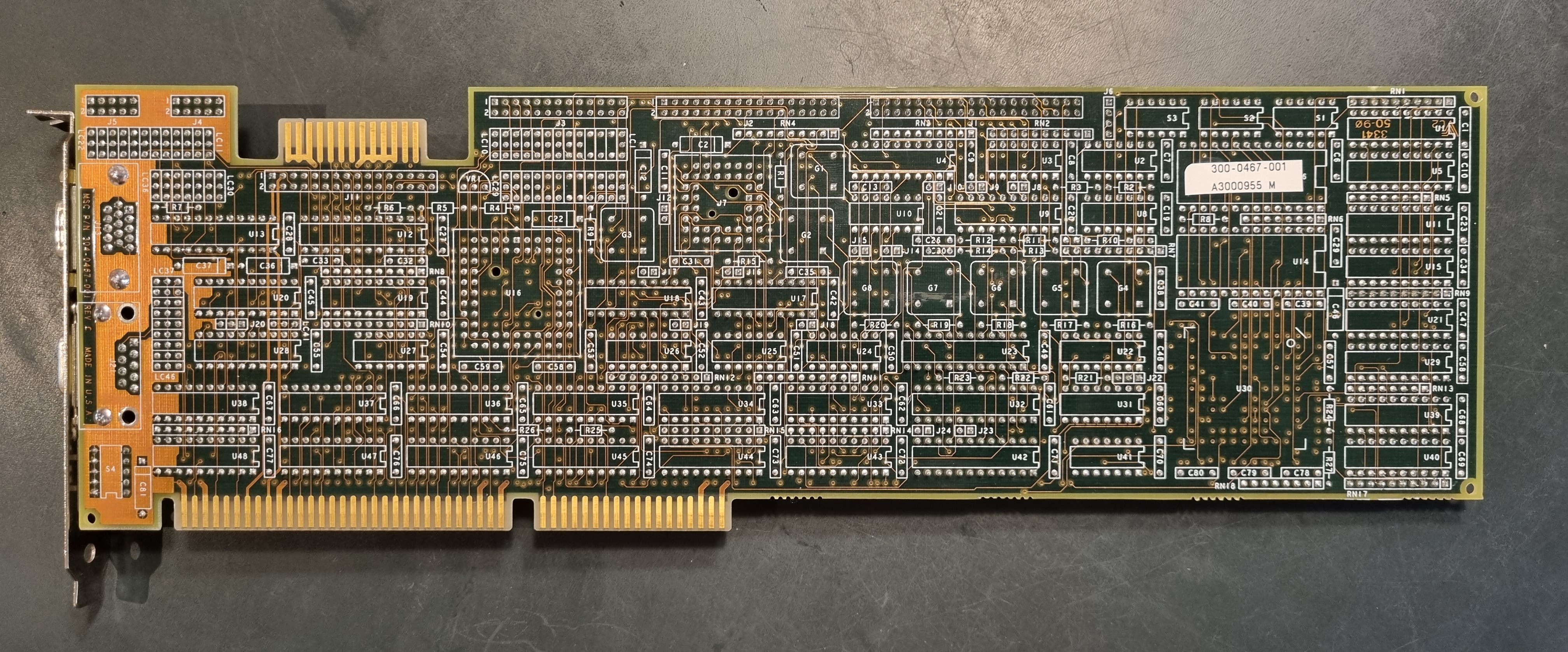

Image 1 of 3 (Microhouse)

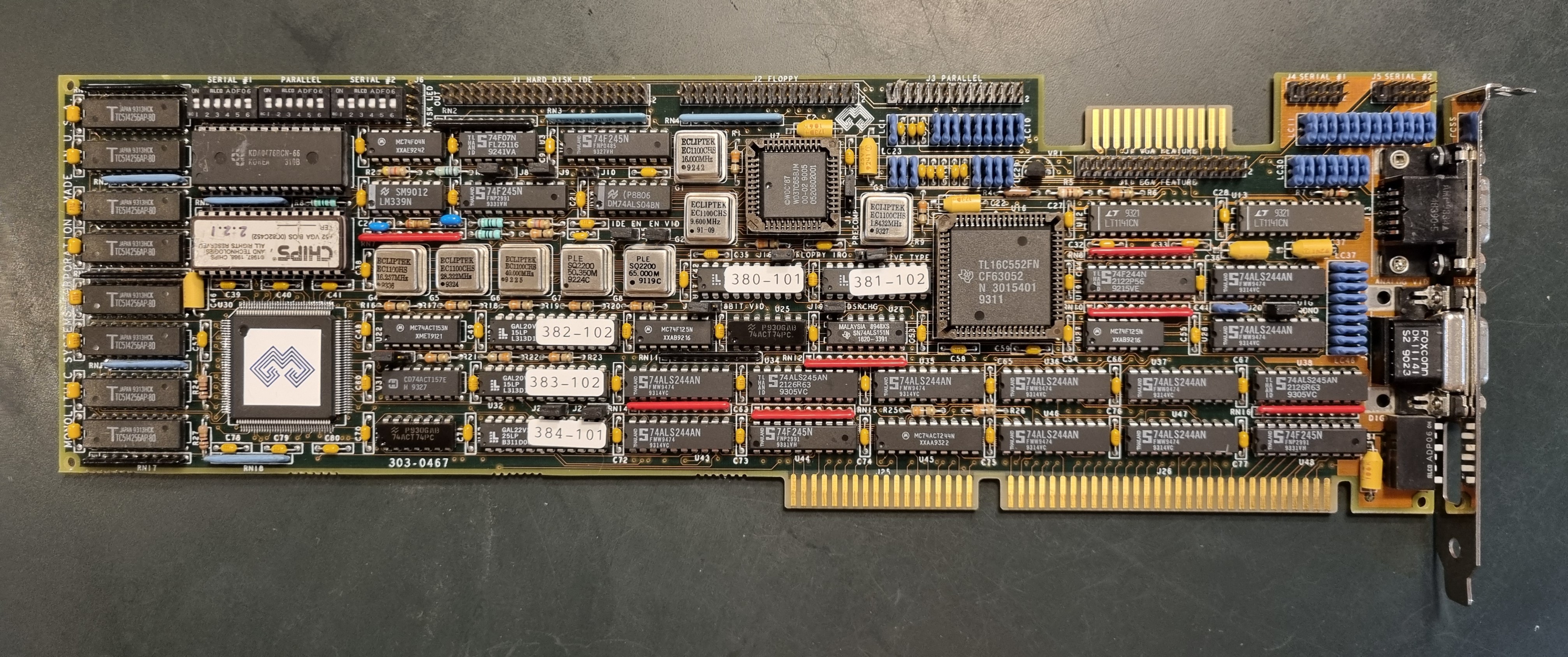

Image 2 of 3 (bjpower)
Image 3 of 3 (bjpower)
Disclaimer
The info found in this page might not be entirely correct. Check out this guide to learn how you can improve it.
