Miro DC10+
Logs
typeType
Video capture
interfaceInterface
signalSignaling
32-bit PCI
datePCI ID
6057
fccFCC ID
LAHVDRX-PCI-1
chip Chips and specs
-> Processor
Zoran ZR36060 (Integrated JPEG Processor)
-> Video
Philips SAA7110 (Video Input Frontend) Analog Devices ADV7176A (YCrCb to PAL/NTSC Encoder) Zoran ZR36067 (AV PCI Controller)
tag Also known as
portintI/O ports
2x
  • RCA Jack
2x
  • 4-pin Mini-DIN
powerPower connectors
Empty
notes Notes

part of the Miro DRX video editing system

Last updated 2025-07-04T11:59:54Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
Windows 2000 Windows 9x Windows XP/2k3
Arch
x86
Size
1.3MB
Filename
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-10-18
File
Logs
Chip
Release date
1999-10
File
Logs
Chip
Release date
1998-02
File
Logs

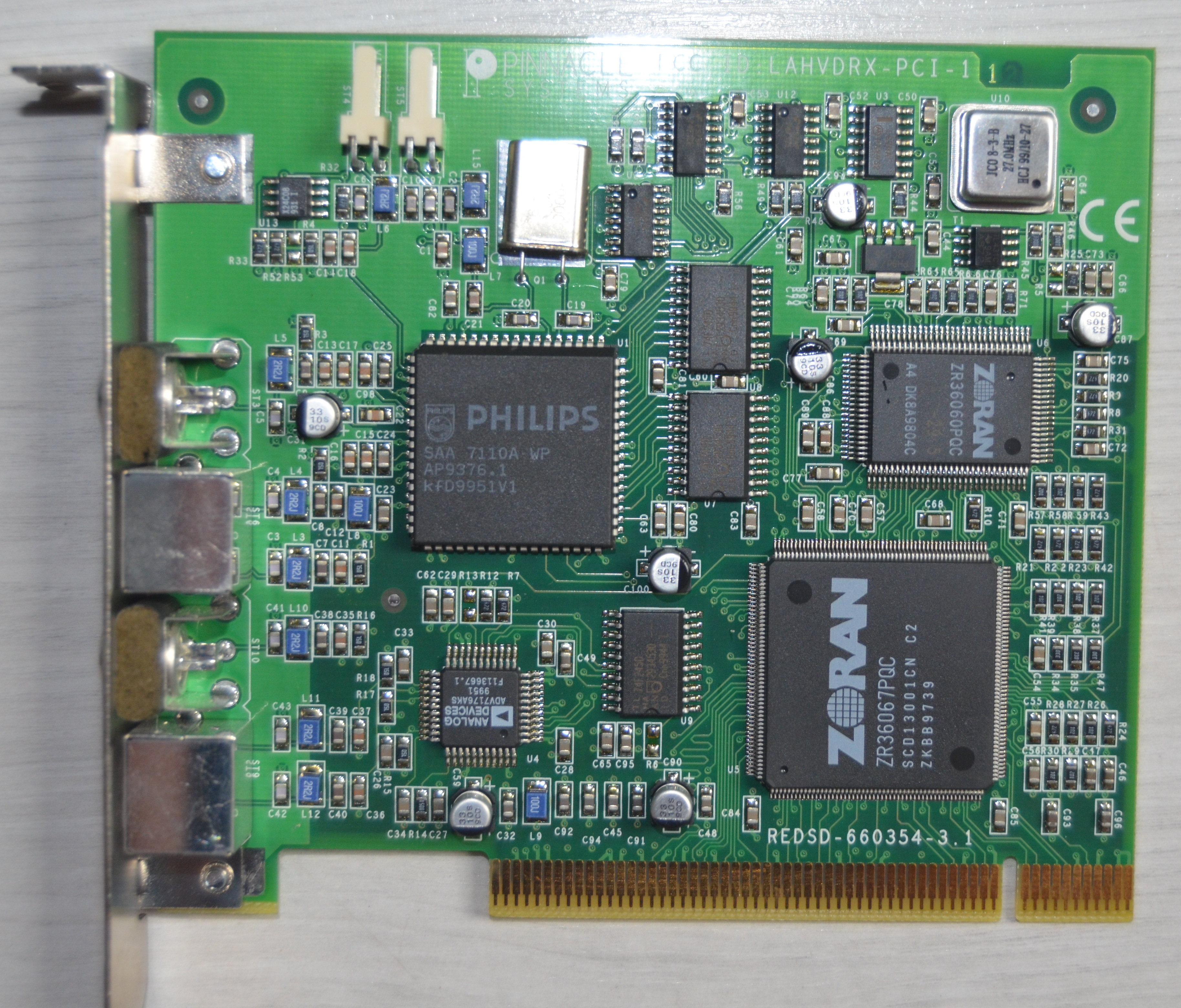

image1 Image 1 of 3 (kotelstudios)

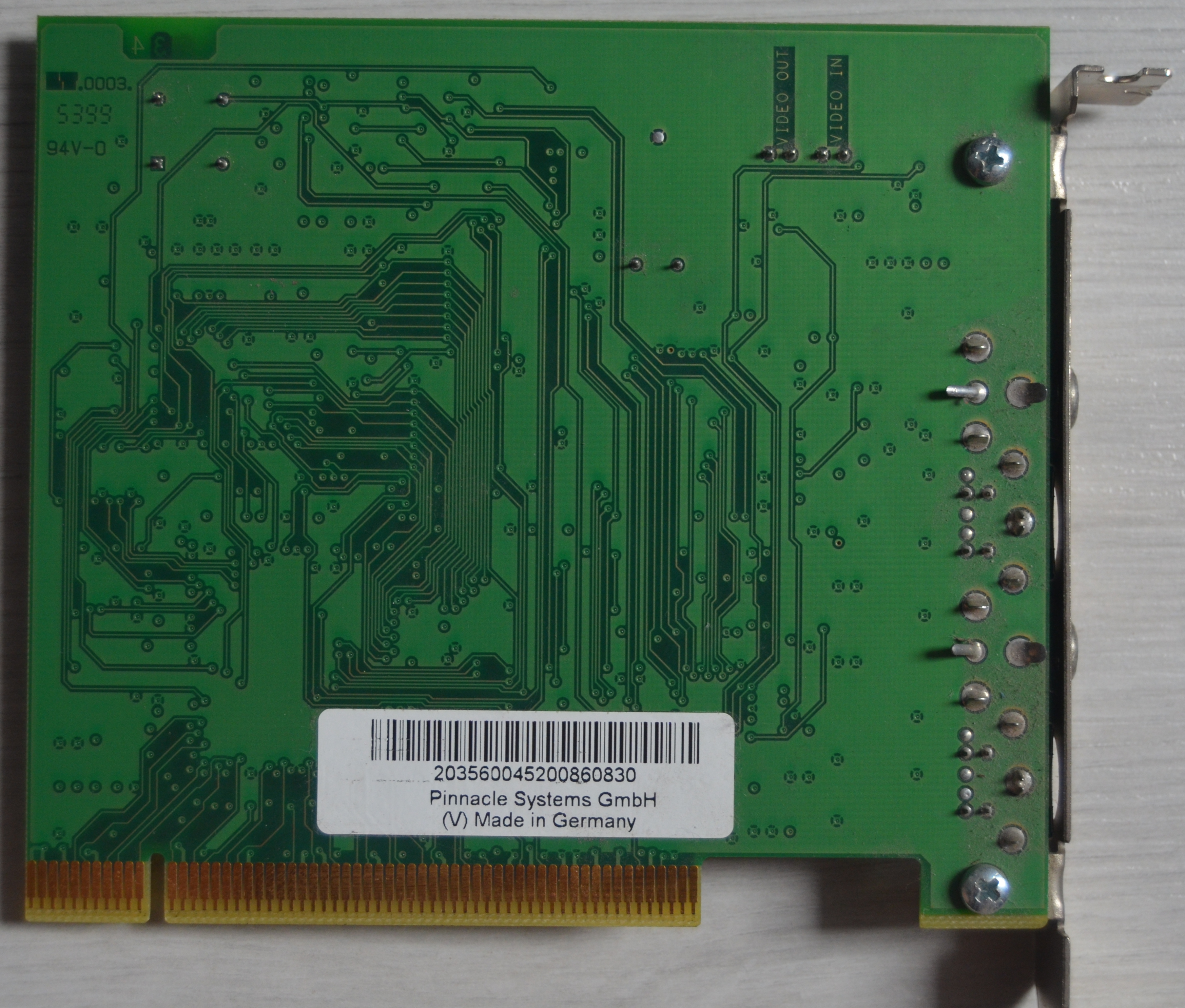

image2 Image 2 of 3 (Electromyne)

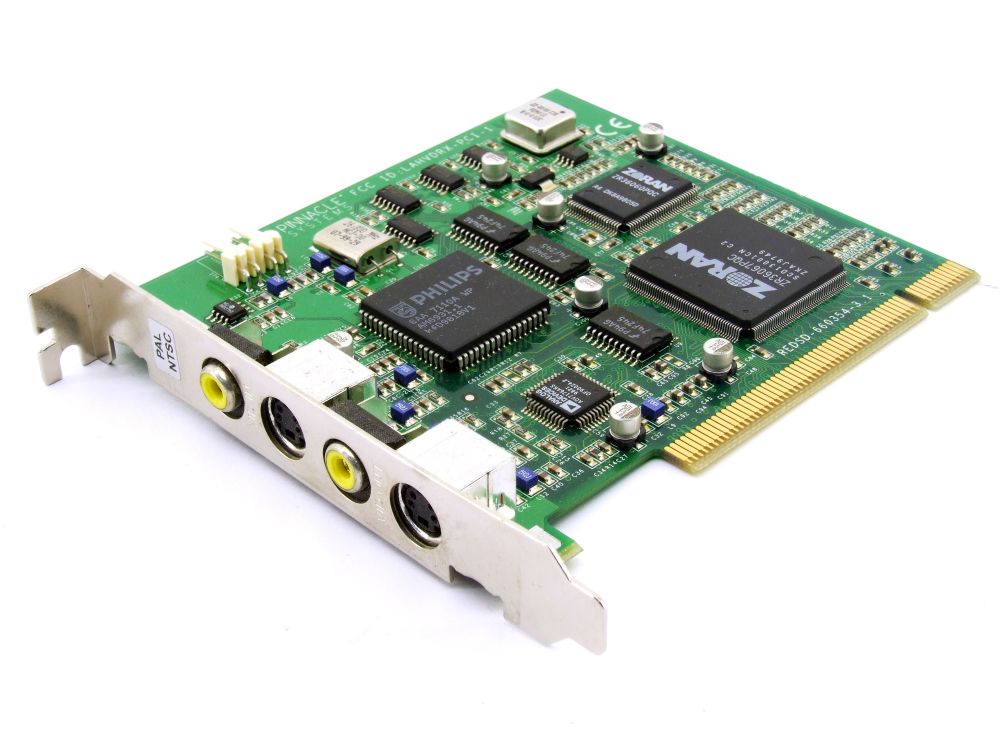

image3 Image 3 of 3 (kotelstudios)
