Microsoft Azure X930613-001 FPGA Card
Logs
typeType
Network Coprocessor
interfaceInterface
signalSignaling
PCIe 1.0 PCIe 2.0 PCIe 3.0
dimSlot height
1
datePCI ID
B100 B101
ramRAM type
DDR3 ECC
ramRAM size
4GB
dimDimensions
111 mm (width) x 168mm (length)
chip Chips and specs
-> Chipset part
FTDI FT232H (Hi-Speed USB UART/FIFO)
-> Programmable Logic
Altera 5SGSKF40I3LNAC (Stratix V GS FPGA)
General
Family Stratix V GS
Part Number 5SGSKF40I3LNAC
Temperature Grade Industrial
Base Product Number 5SGSMD5
Operating Temperature Range -40°C to 100°C
Resources
Total RAM 39,936,000 bits
Total PLLs 20
Max User I/O Pins 696
M20K Memory Blocks 1,963
Performance
Speed Grade K2
Total Transceivers 60
Transceivers up to 12.5 Gbps 30
Transceivers up to 6.5536 Gbps 30
Architecture
Device Type FPGA
Number of LABs/CLBs 172,600
Configuration Memory SRAM based
Logic Elements (LEs) Equivalent 457,000
Package
Package Size 40x40mm
Package Type 1517-BBGA, FCBGA
tag Also known as
portintI/O ports
2x
  • SFF-8436
1x
  • USB-B
powerPower connectors
Empty
wrench Known issues
  • Needs active airflow

This expansion card is designed for server use so it needs active airflow over the heatsink

notes Notes

https://j-marjanovic.io/stratix-v-accelerator-card-from-ebay-part-8.html
https://github.com/ruurdk/storey-peak
https://www.devops.lol/azure-fpga/

The PCIe slot must support bifurcation as x8x8 because the card shows up as two seperate devices

Last updated 2025-12-30T14:33:04Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
2019-11-29
File
Logs

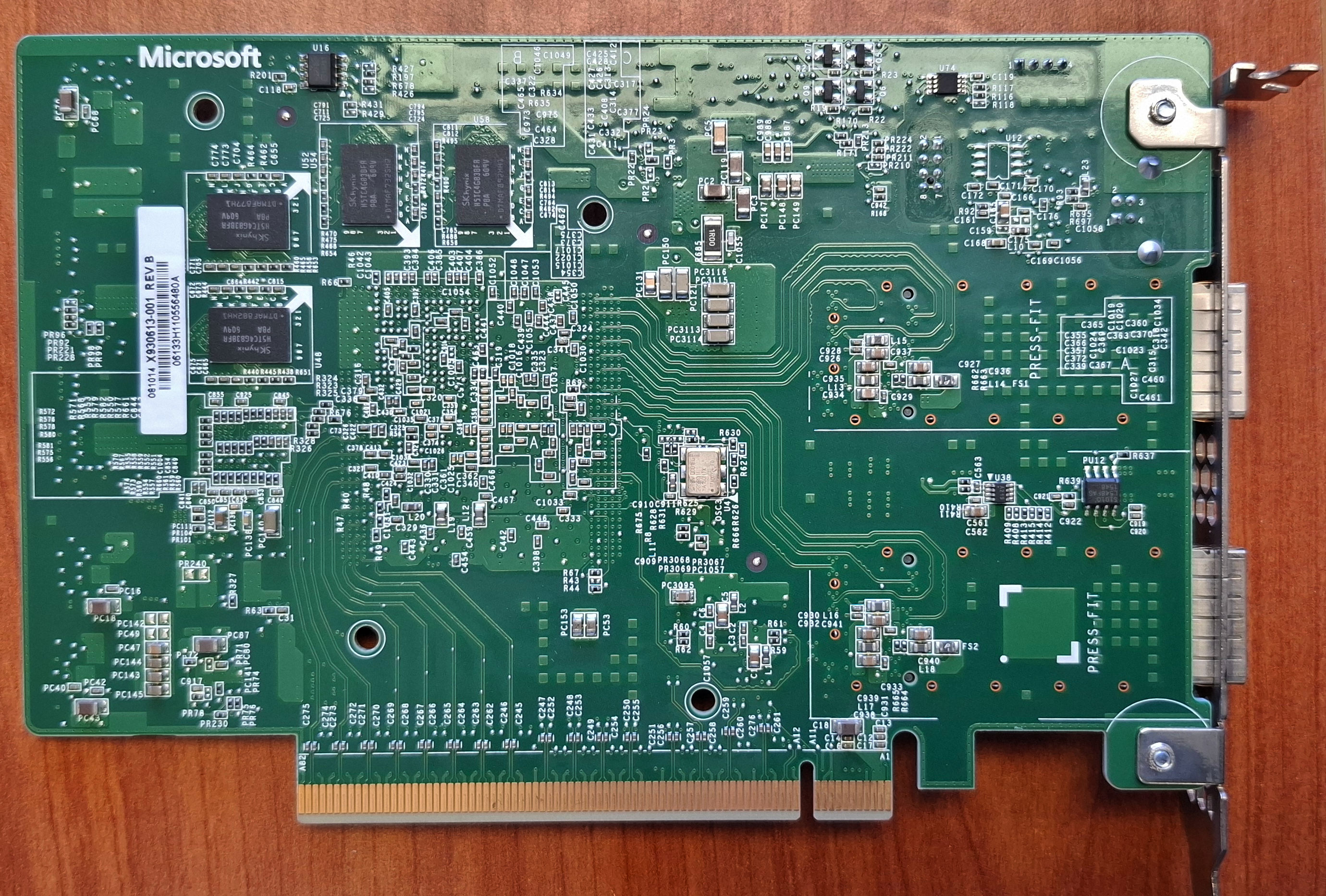

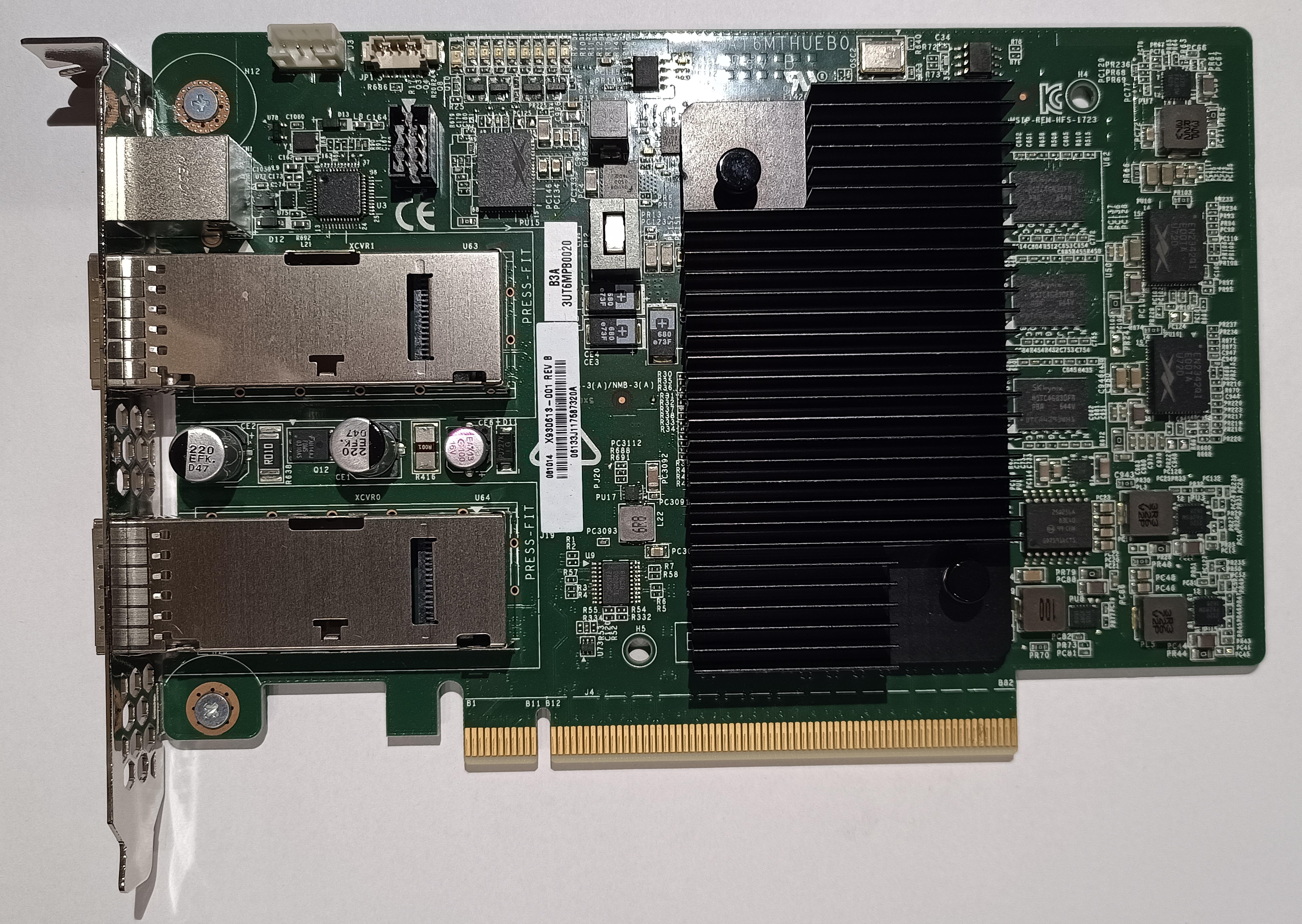

image1 Image 1 of 5 (Rigo "0xCats" Reddig)

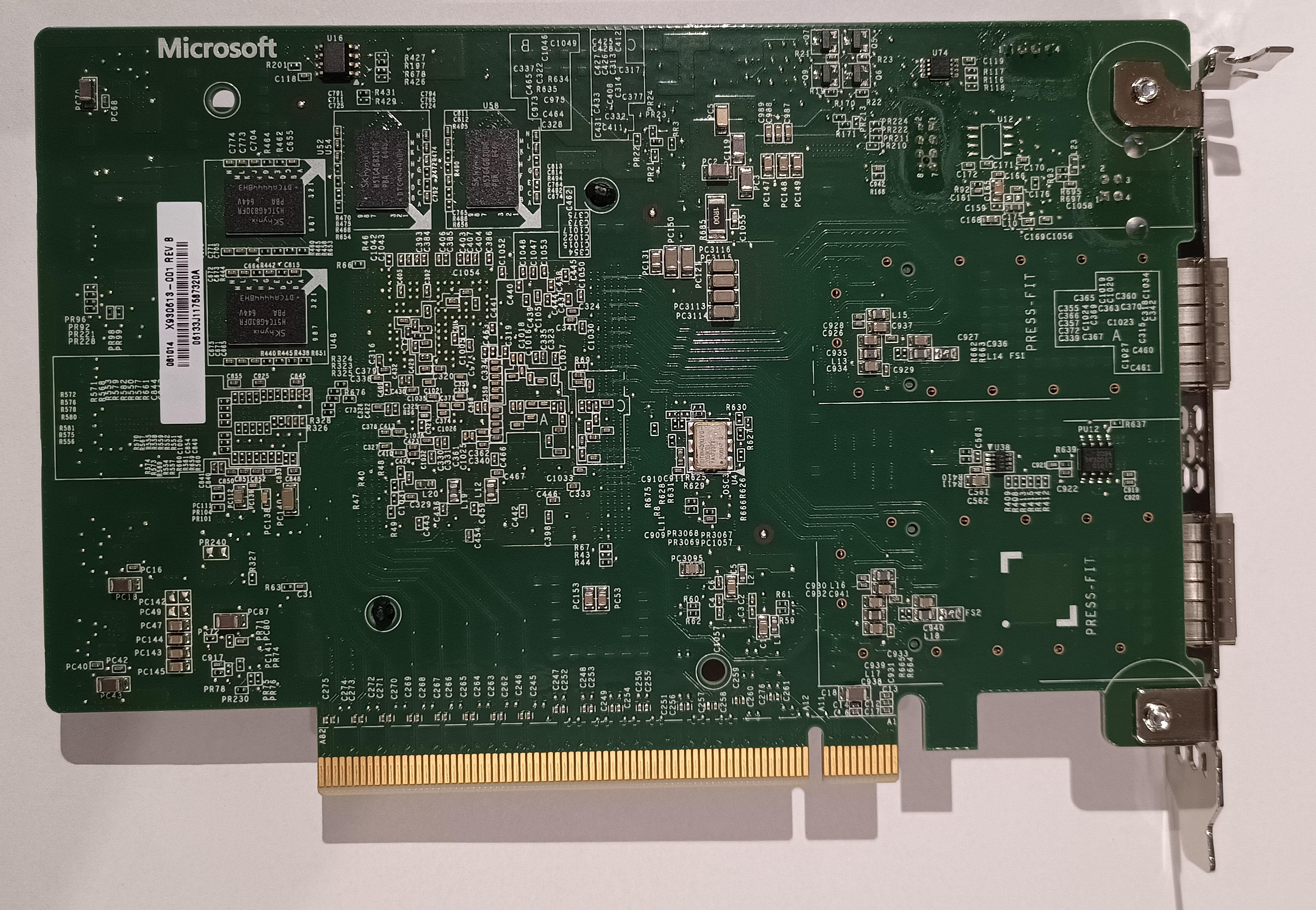

image2 Image 2 of 5 (Helen_Croft)

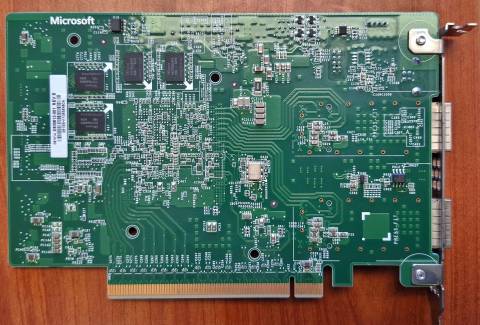

image3 Image 3 of 5 (Rigo "0xCats" Reddig)

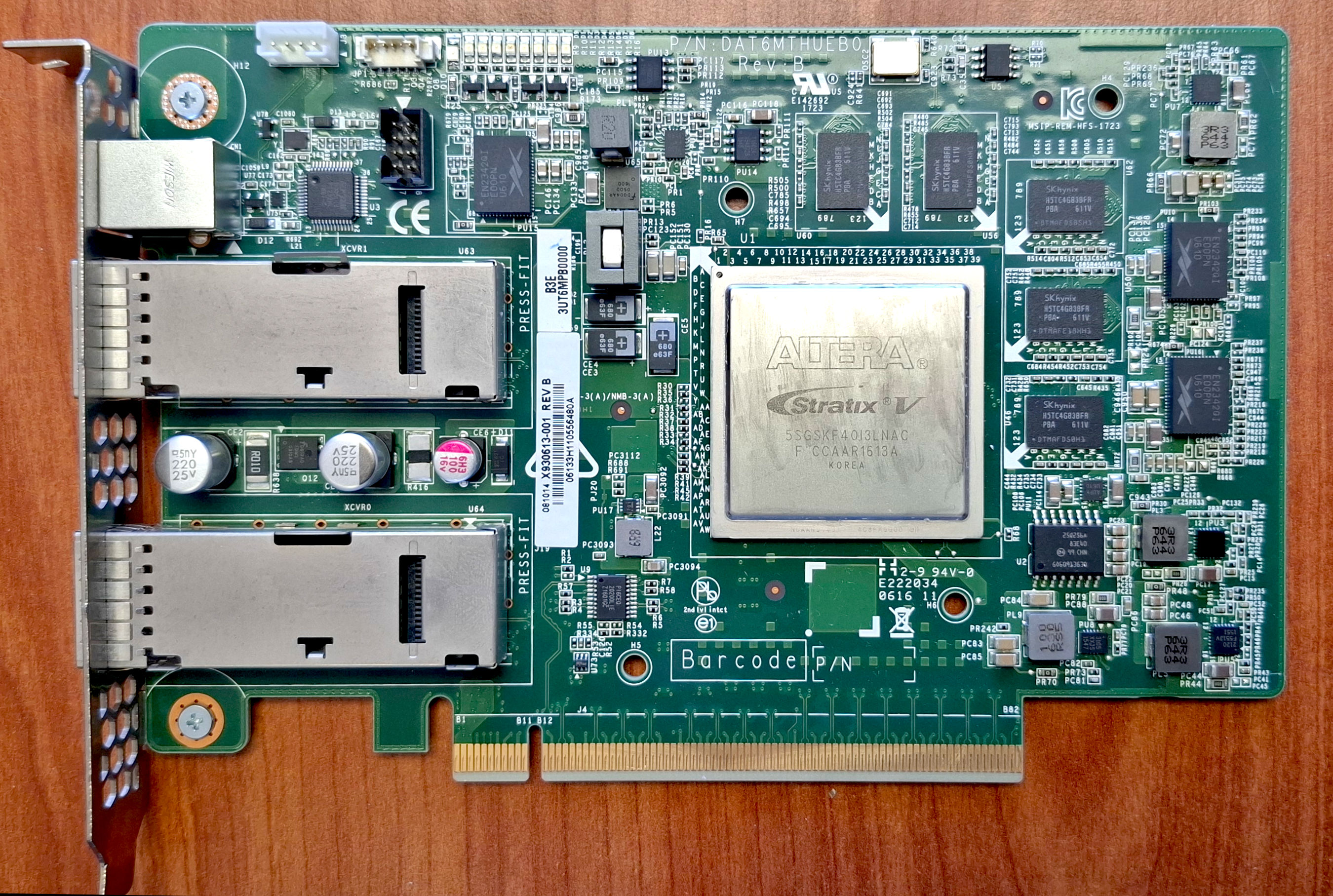

image4 Image 4 of 5 (Helen_Croft)

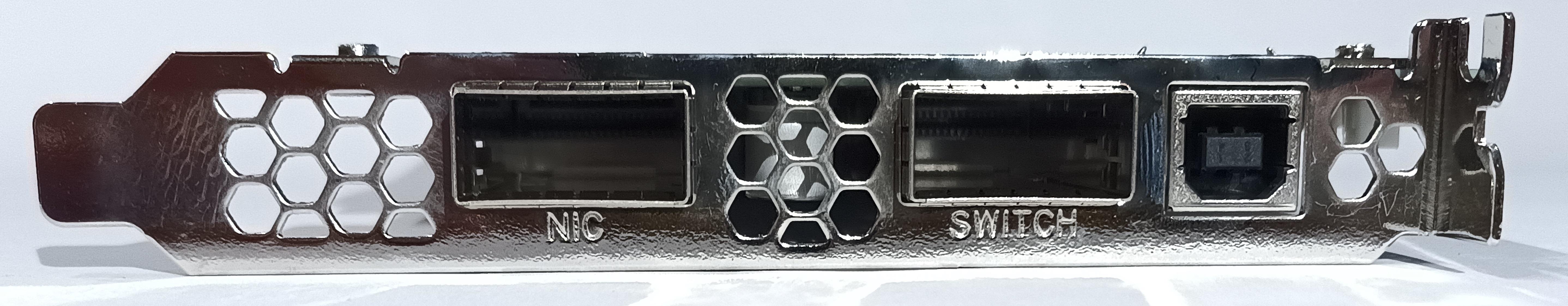

image5 Image 5 of 5 (Helen_Croft)
