Medion V.9X HAM 56K 1394V
Logs
typeType
Firewire controller Modem
interfaceInterface
signalSignaling
Proprietary
dimSlot height
1
datePCI ID
3044 4000
chip Chips and specs
-> FireWire ctrl.
VIA VT6306 (3 port FireWire 400 PCI ctrl.)
-> Modem
Ambient MD5628D (Data/Fax/Voice Modem DSP) Ambient MD1724T (Sigma-Delta Analog Front End)
tag Also known as
portintI/O ports
1x
  • IEEE-1394 (6-pin)
1x
  • 2x5 2.54mm pin header
1x
  • IEEE-1394 (4-pin)
2x
  • RJ11
powerPower connectors
Empty
notes Notes

The connector looks like regular Universal 32bit PCI but it's not. This card only works in an Medion MD3000 motherboard. There is NO information on what MSI/Medion have done here.

Last updated 2025-06-21T07:59:11Z
biosc No BIOS files available
drv 4 drivers available
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
370.2KB
Filename
Version
OS support
Windows 2000 Windows 9x
Arch
x86
Size
298.3KB
Filename
Version
OS support
Arch
Size
Filename
Version
OS support
Windows XP/2k3
Arch
x86
Size
3.3MB
Filename
Version
OS support
Windows 9x
Arch
x86
Size
319.2KB
Filename
doc 3 card documents available
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
2001
File
Logs
Chip
Release date
2001-10-30
File
Logs
Chip
Release date
2002-07-19
File
Logs

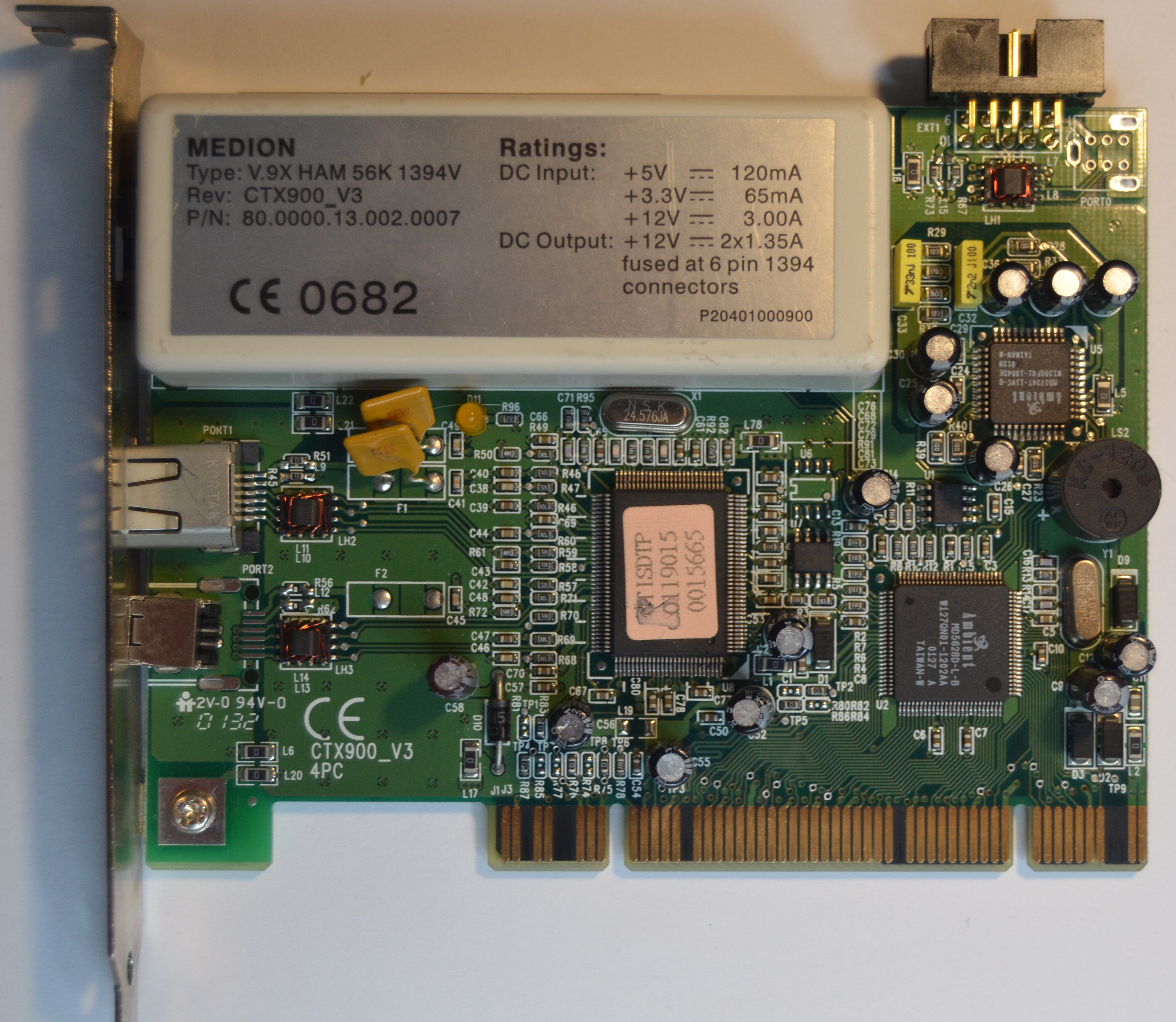

image1 Image 1 of 2 (kotelstudios)

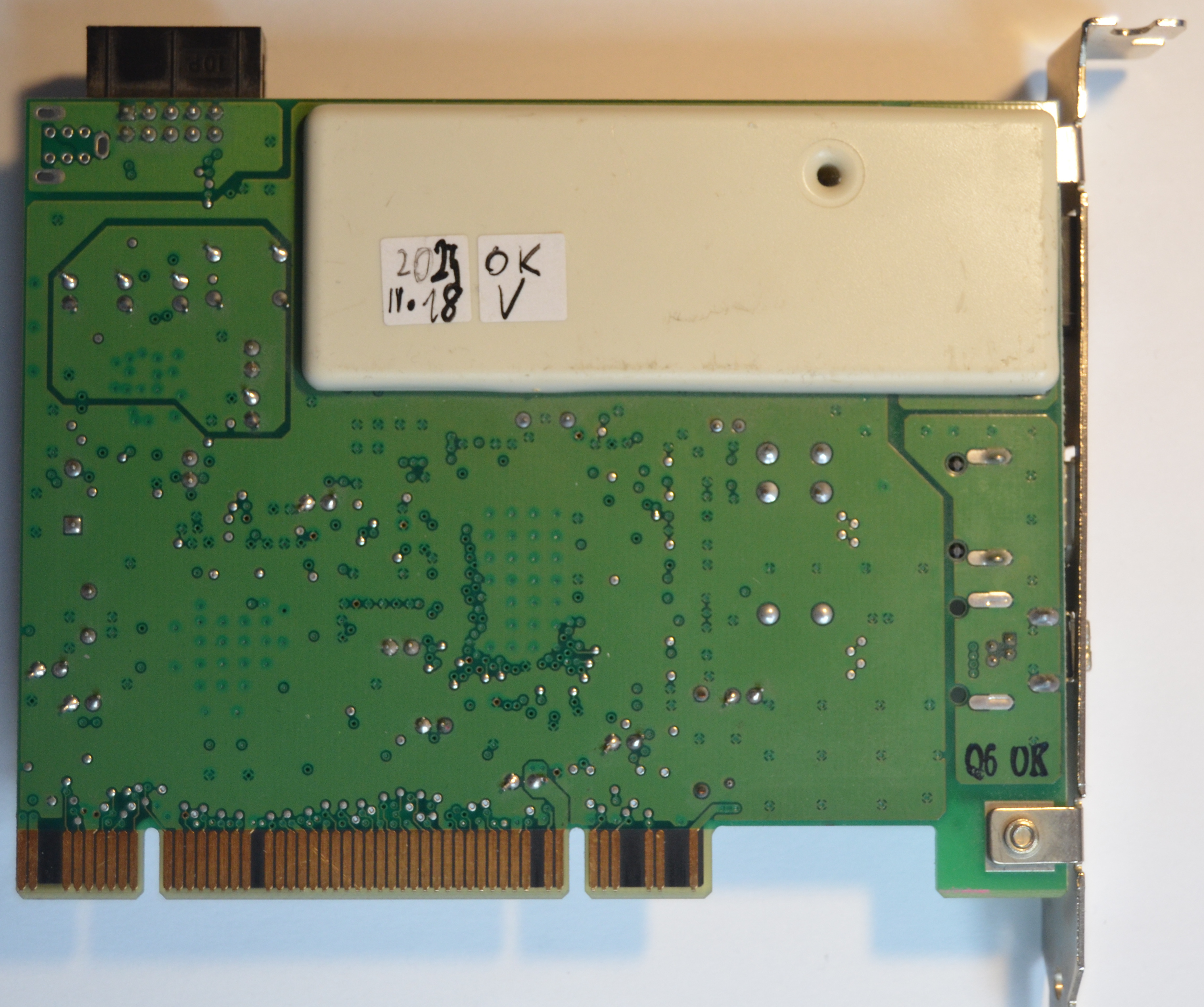

image2 Image 2 of 2 (kotelstudios)
