Intel Intel® PRO/10+ ISA (TP/AUI) (PCLA8200)
Logs
typeType
Network
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
EJMPCEDPCLA8200
chip Chips and specs
-> Network
National Semiconductor DP8392 (Coaxial Transceiver Interface) Intel 82595TX (ISA/PCMCIA Classic Ethernet)
MTL
Boot ROM Available
Data Bus 16-bit ISA
NIC Type Ethernet
Topology Linear Bus, Star
Wiring Type Unshielded twisted pairAUI transceiver via DB-15 portRG-58A/U 50ohm coaxial
Network Transfer Rate 10Mbps
Network speed
10Mb/s
tag Also known as
portintI/O ports
1x
  • DA-15
1x
  • BNC 50-ohms
1x
  • RJ45
1x
  • DIP socket
powerPower connectors
Empty
Last updated 2025-12-13T19:19:39Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1995-10
File
Logs
Chip
Release date
1988-05
File
Logs
Chip
Release date
1989-07
File
Logs
Chip
Release date
1995-10
File
Logs
image1 Image 1 of 4 (Gough Lui)
image2 Image 2 of 4 (pshipkov)

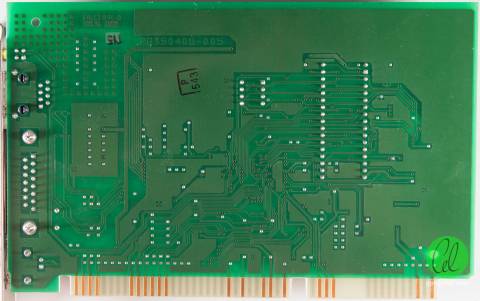

image3 Image 3 of 4 (Gough Lui)
image4 Image 4 of 4 (Gough Lui)
