Formosa Industrial MPEG DECODING CARD MP010
Logs
typeType
Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
fccFCC ID
KWX-MP0102
chip Chips and specs
-> RAMDAC
STMicroelectronics / Inmos STV8438CV (Triple 8bit DAC)
-> Video
Philips SAA7110 (Video Input Frontend) Texas Instruments TMXB320AV110 (A/V DSP (?)) MCT Inc MVM121A
MTL
Data Bus 16-bit ISA
Card Type MPEG card
Video Chip Set None
Maximum Video Memory None
Video Types Supported XVGA
Highest Resolution Supported 1024 x 768
tag Also known as
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • RCA Jack
1x
  • 7-pin Mini-DIN
1x
  • DE-15
powerPower connectors
Empty
Last updated 2025-09-28T18:08:01Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1995-10-18
File
Logs

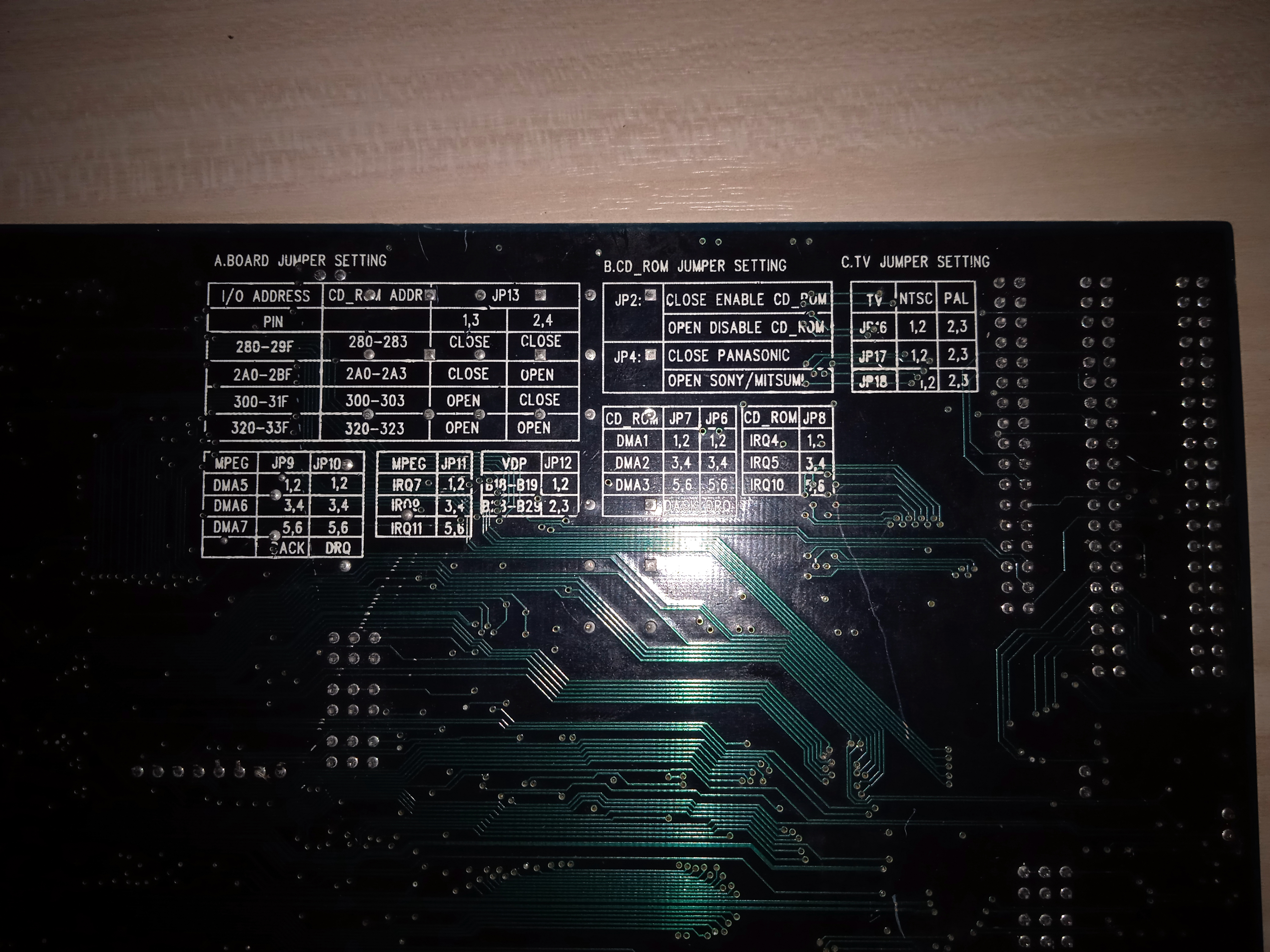

image1 Image 1 of 3 (Time00)

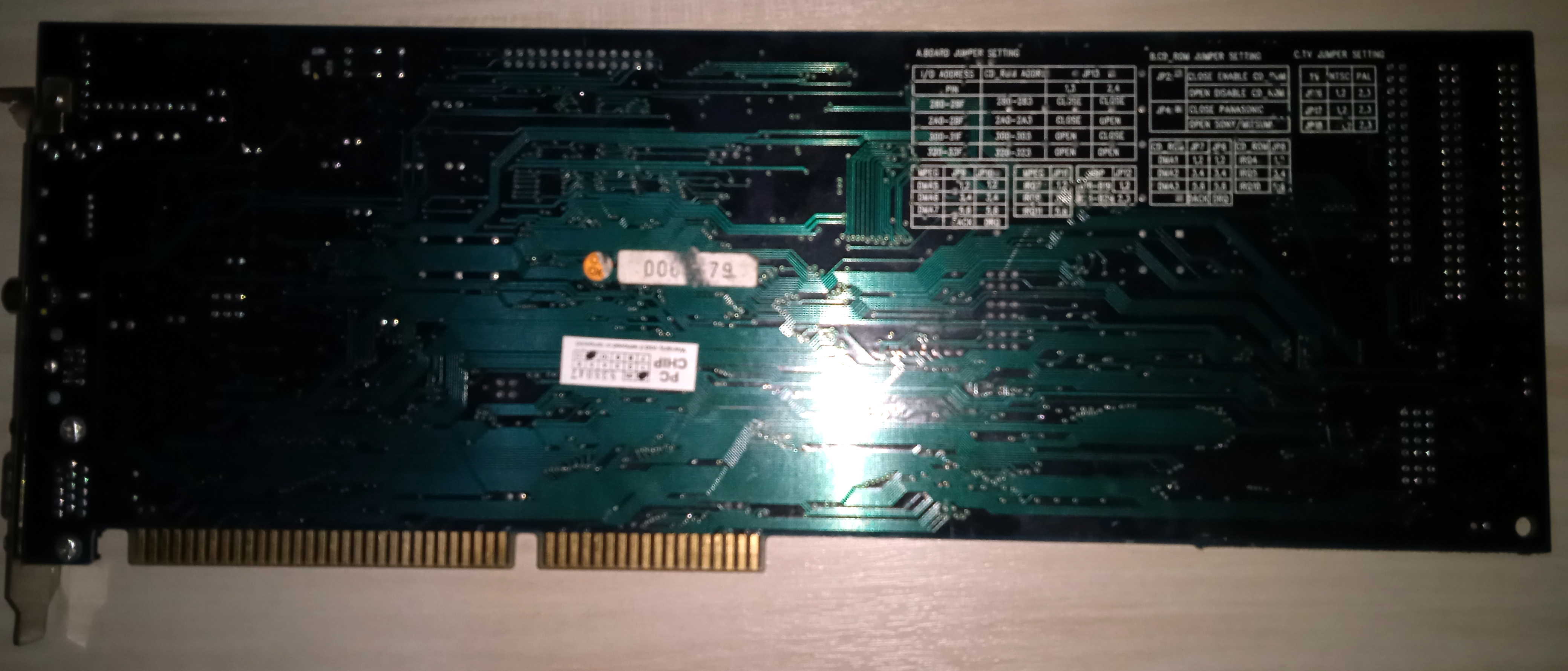

image2 Image 2 of 3 (Time00)

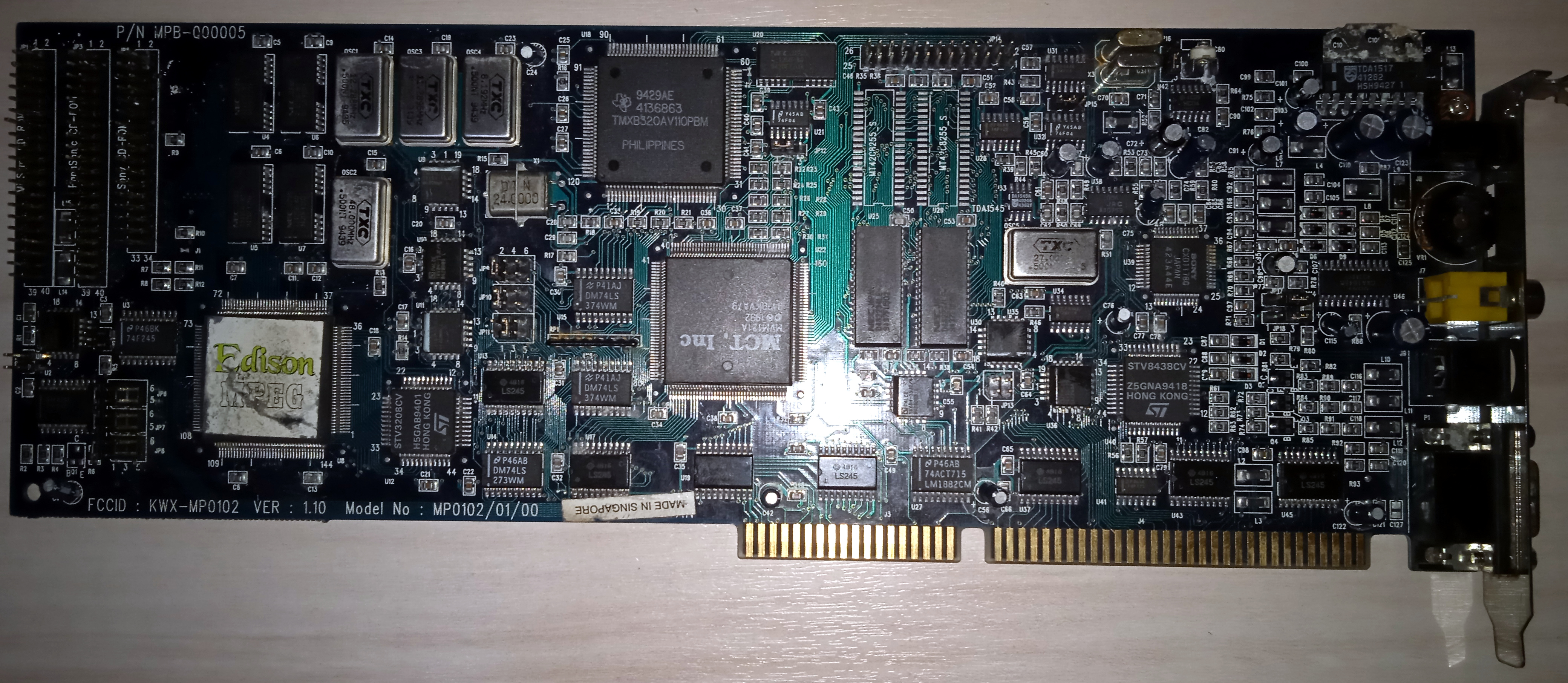

image3 Image 3 of 3 (Time00)
