Anthem / Eagle / Novell NE2100
Logs
typeType
Network
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Network
AMD AM7990 (LANCE Ethernet) AMD AM7992B (Ethernet Transceiver) National Semiconductor DP8392 (Coaxial Transceiver Interface)
MTL
Boot ROM Available
Data Bus 16-bit ISA
NIC Type Ethernet
Topology Linear Bus
Wiring Type RG--58A/U 50ohm coaxialAUI transceiver via DB-15 port
Transfer Rate 10Mbps
Network speed
10Mb/s
tag Also known as
portintI/O ports
1x
  • DA-15
1x
  • BNC 50-ohms
1x
  • 28-pin DIP socket
powerPower connectors
Empty
Last updated 2025-10-14T14:50:52Z
biosc No BIOS files available
drv No drivers available
doc 1 card document available
Release date
File
Logs
Release date
1999
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1988-05
File
Logs
Chip
Release date
1989-07
File
Logs
Chip
Release date
1995-10
File
Logs
Chip
Release date
1993-05
File
Logs

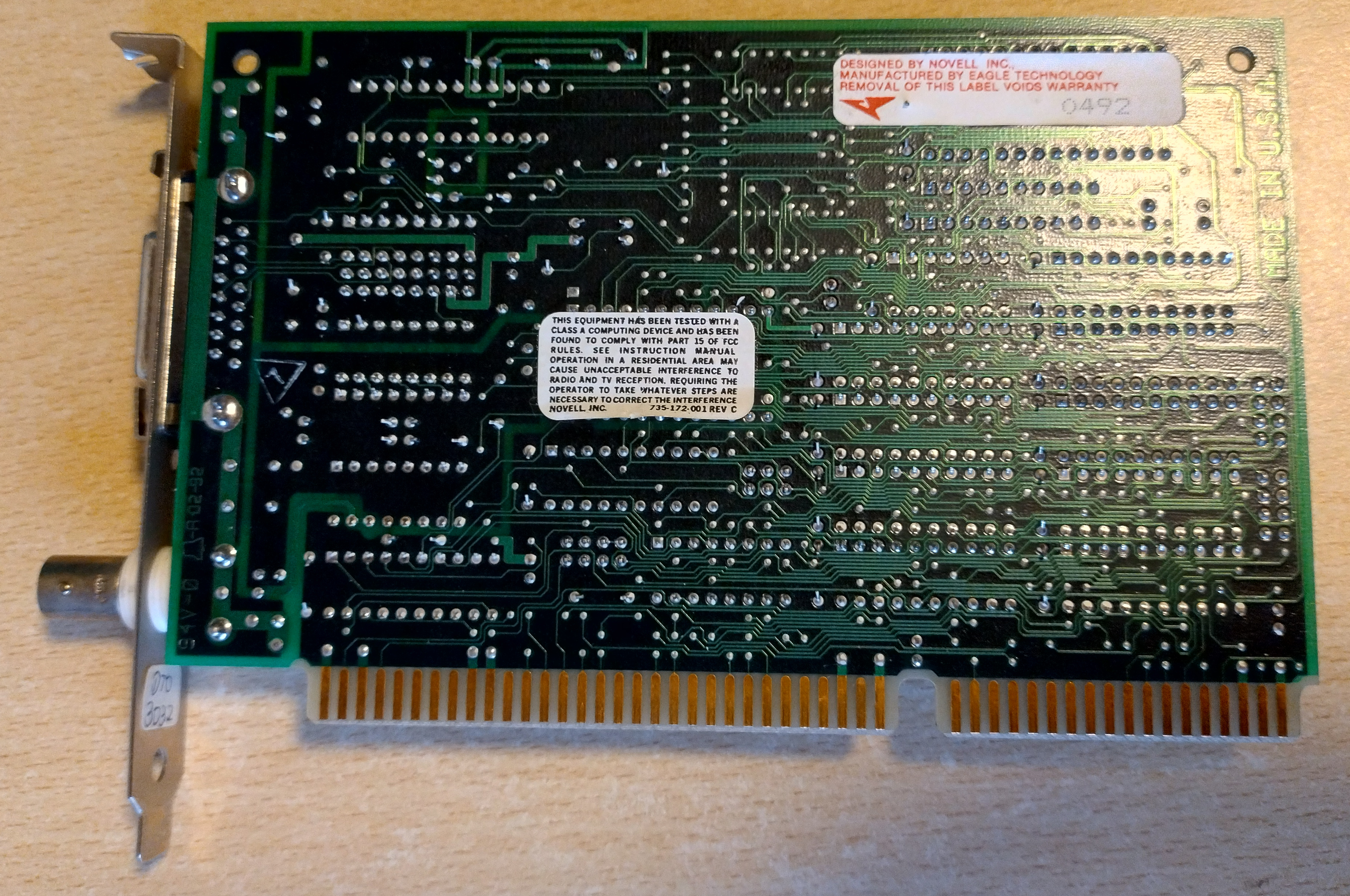

image1 Image 1 of 5 (Microhouse)

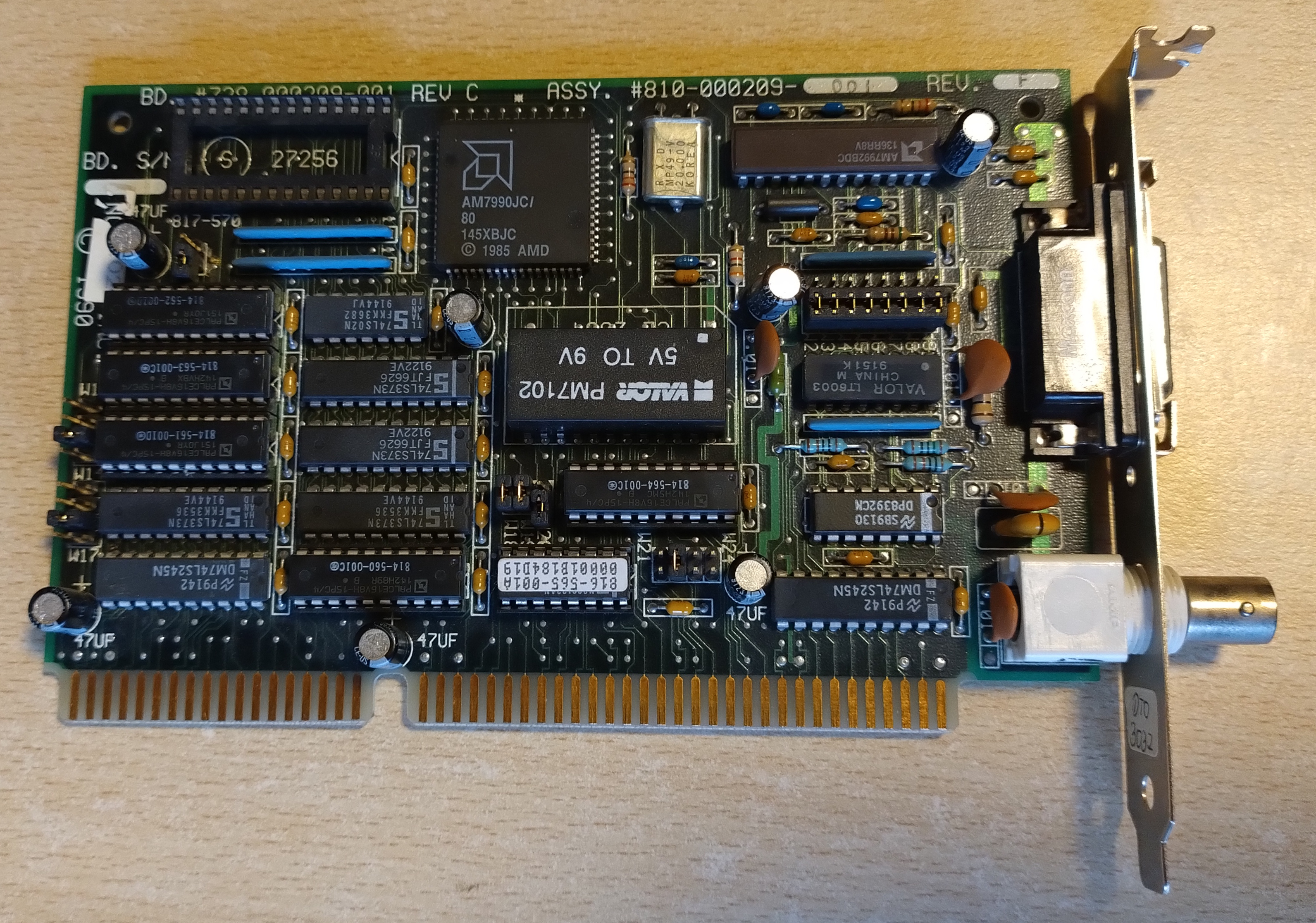

image2 Image 2 of 5 (CircusCat)

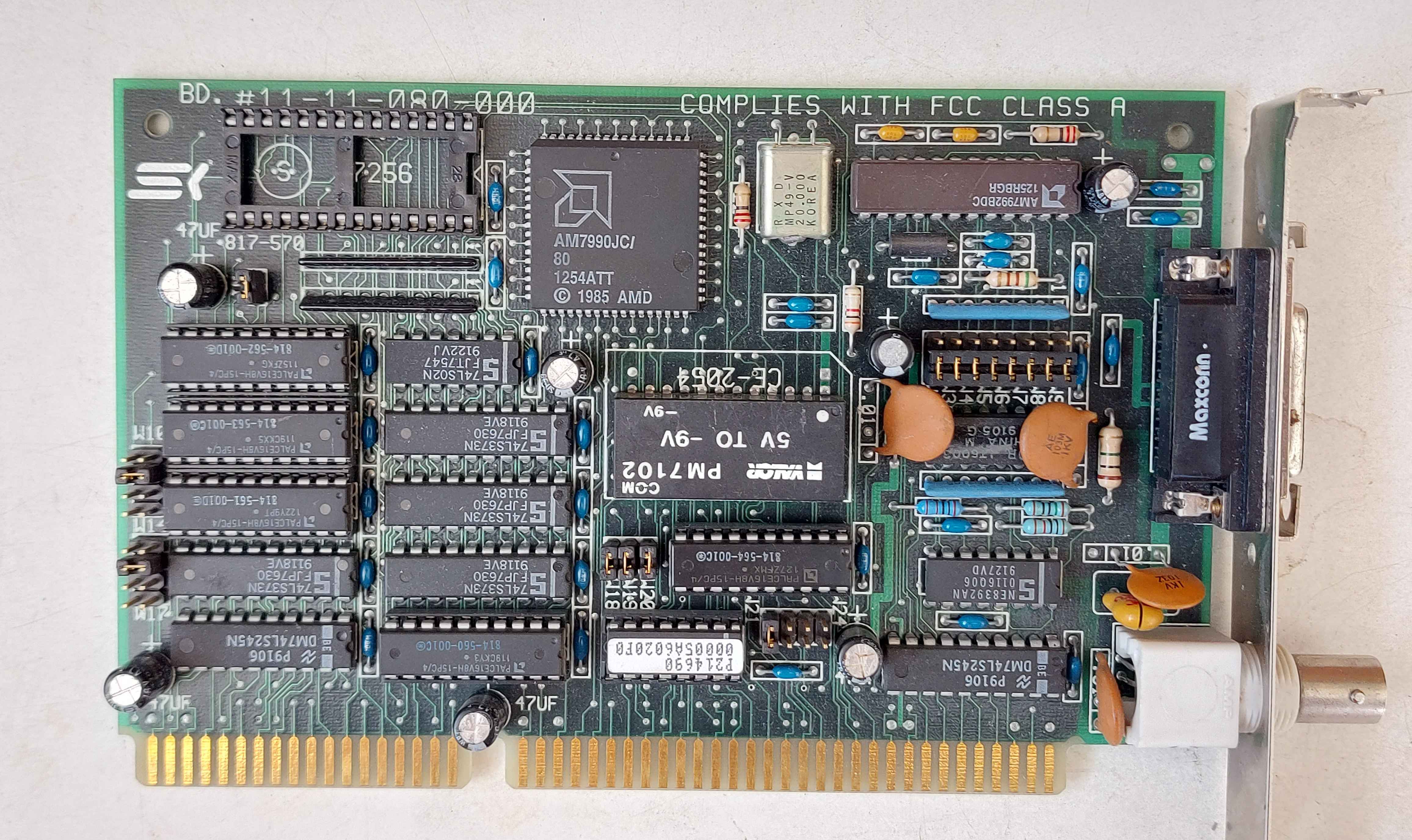

image3 Image 3 of 5 (i440bx)

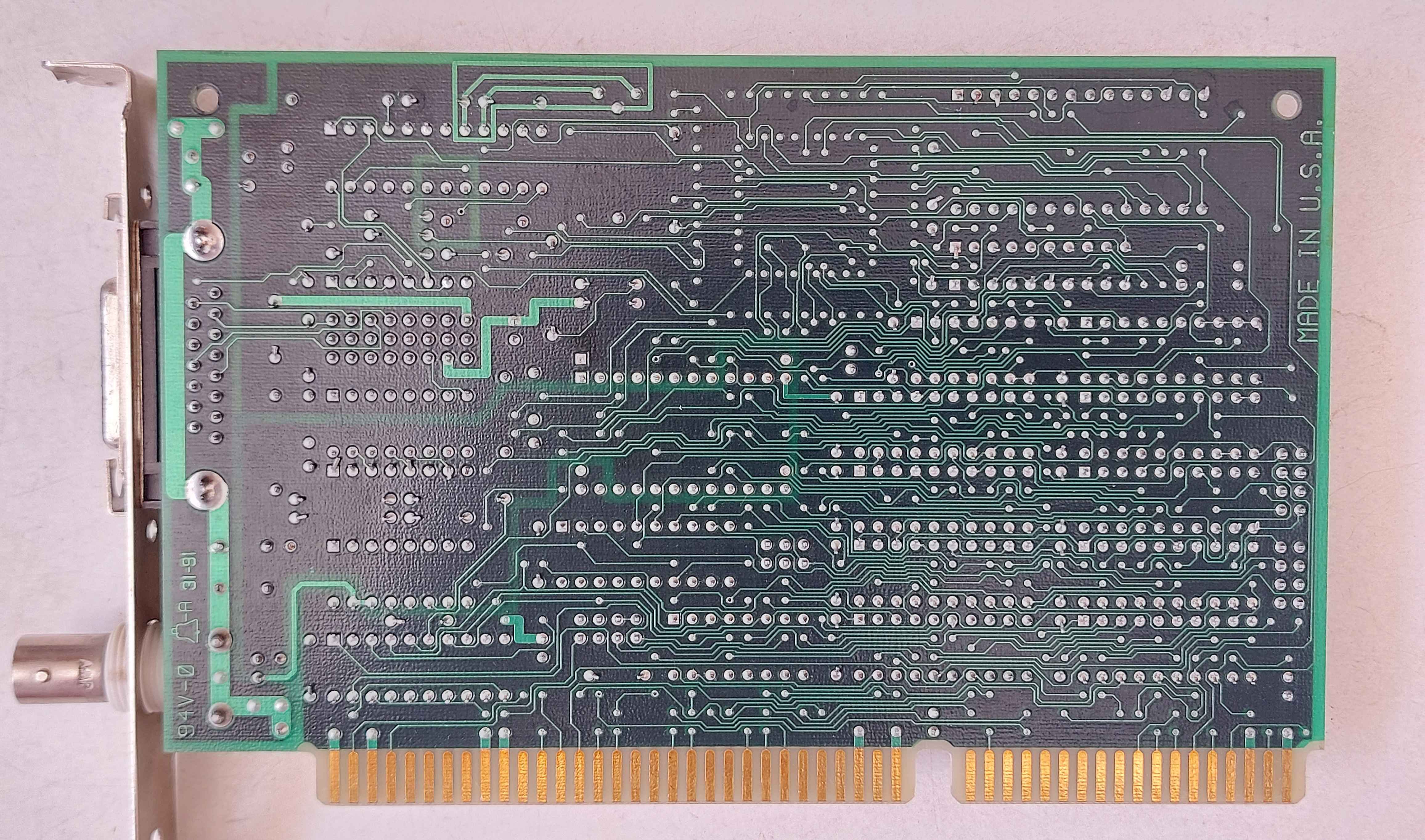

image4 Image 4 of 5 (CircusCat)

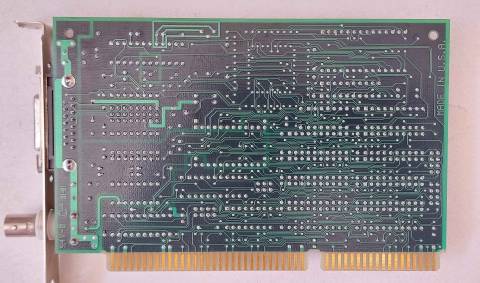

image5 Image 5 of 5 (i440bx)
