DPT PM3011E/759
Logs
typeType
Floppy controller SCSI controller ESDI controller
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
ramRAM size
512KB4MB16MB
dimDimensions
337mm (length) x 125mm (height)
chip Chips and specs
-> Disk Legacy MFM/RLL
ADSI ADS10C00
-> Floppy ctrl.
NEC uPD765 (Floppy Controller)
-> Miscellaneous
DPT DPT1001B DPT DPT1000A
-> Processor
Motorola MC68000
Microarchitecture
CPUID
Process node 3500nm
Core
Bus speed 10MHz
Frequency 10MHz
Multiplier 1x
Power
Voltage
tag Also known as
  • DPT PM3011E/70 (no SCSI, no floppy)
  • DPT PM3011E/75 (no SCSI)
  • DPT PC-0040-002
portintI/O ports
1x
  • 2x17 2.54mm pin header
4x
  • 2x10 2.54mm pin header
1x
  • 2x17 2.54mm pin header
1x
  • 50-pin Centronics Connector
powerPower connectors
Empty
notes Notes

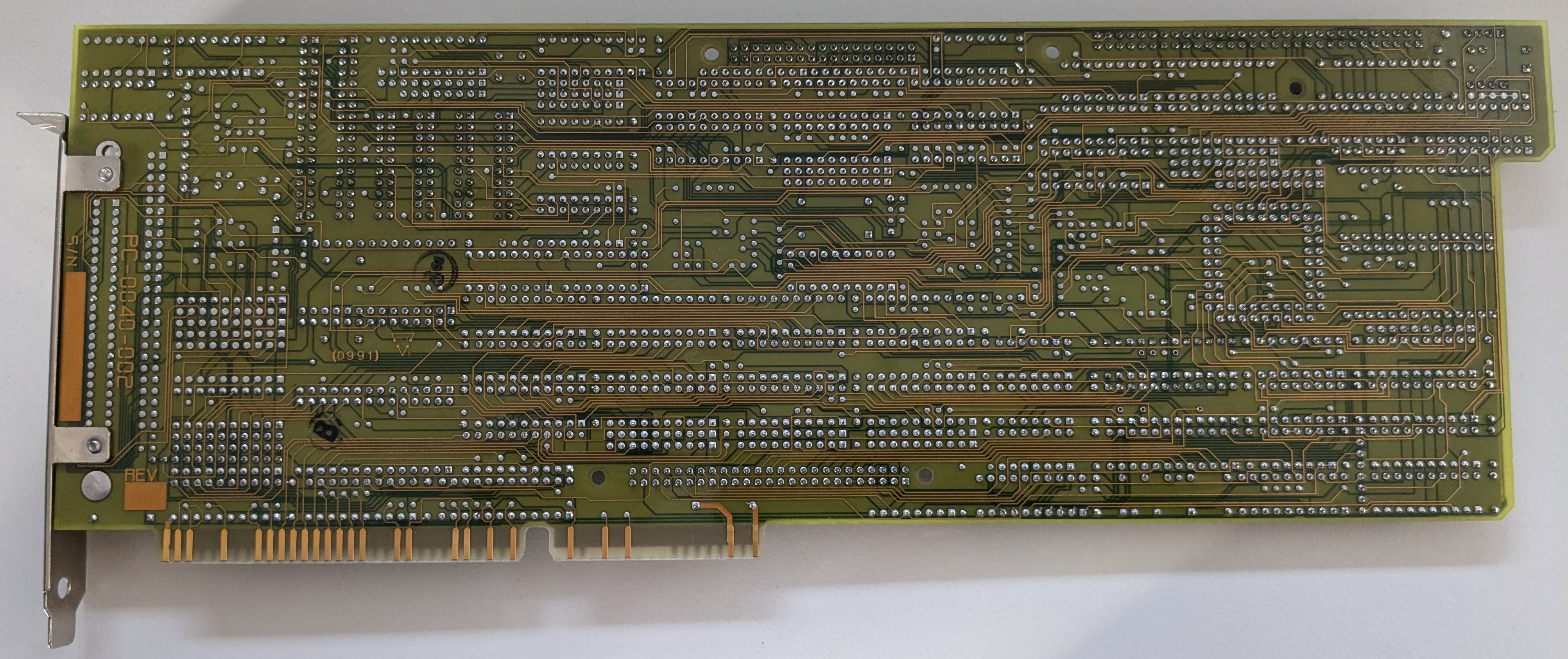

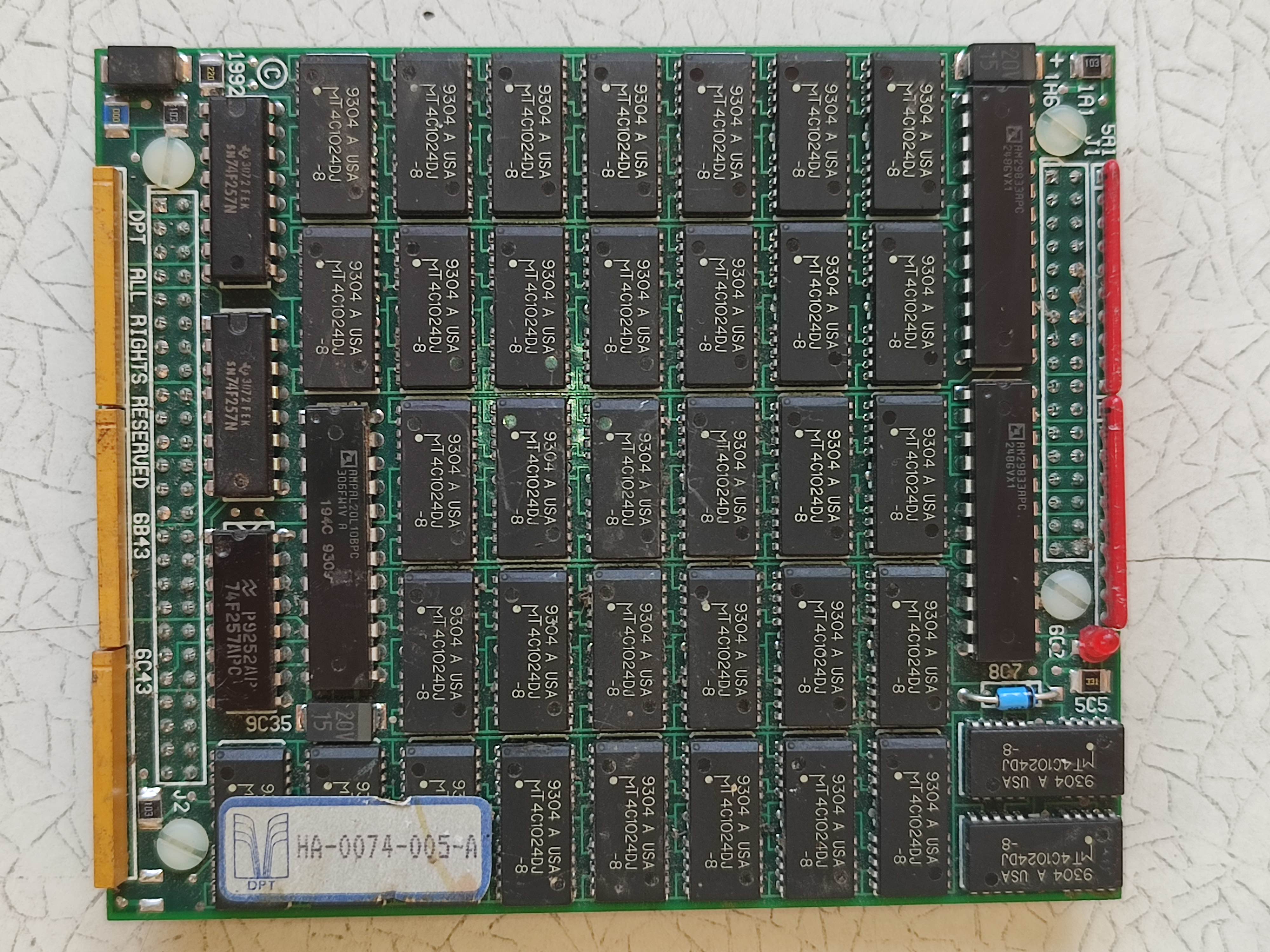

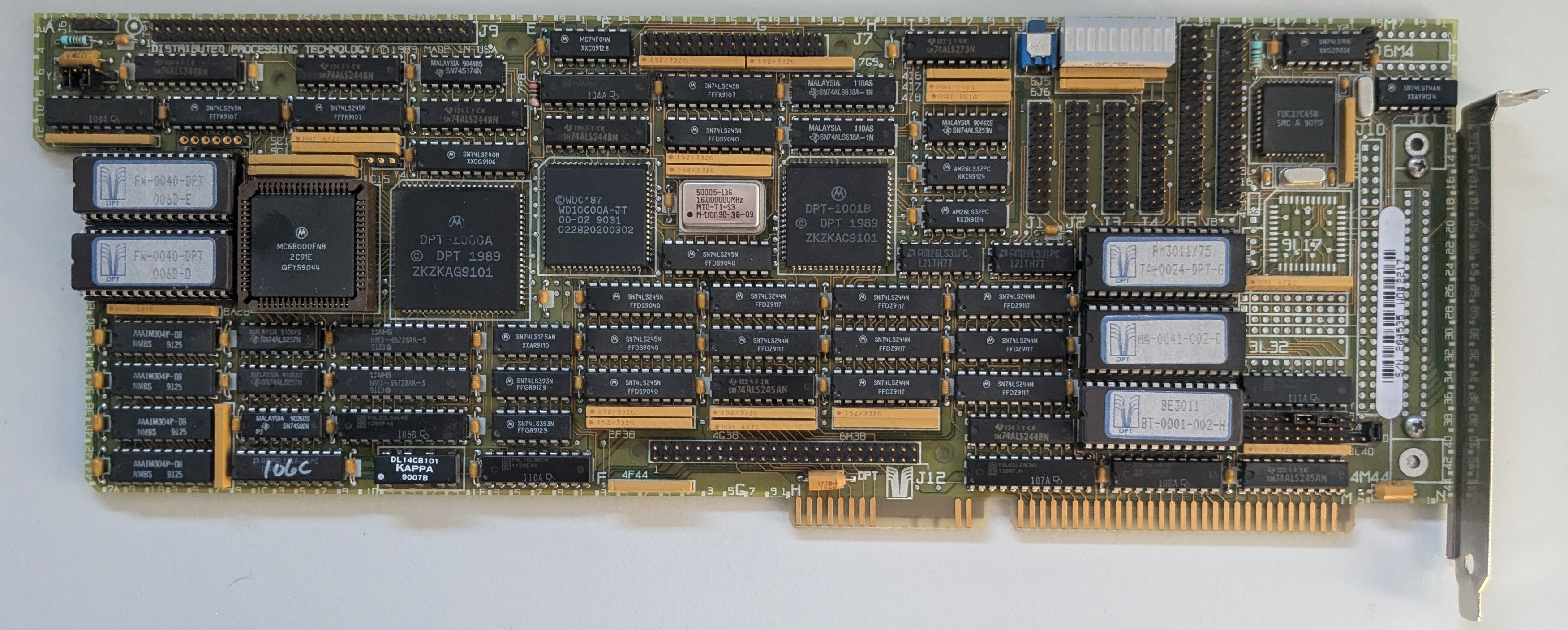

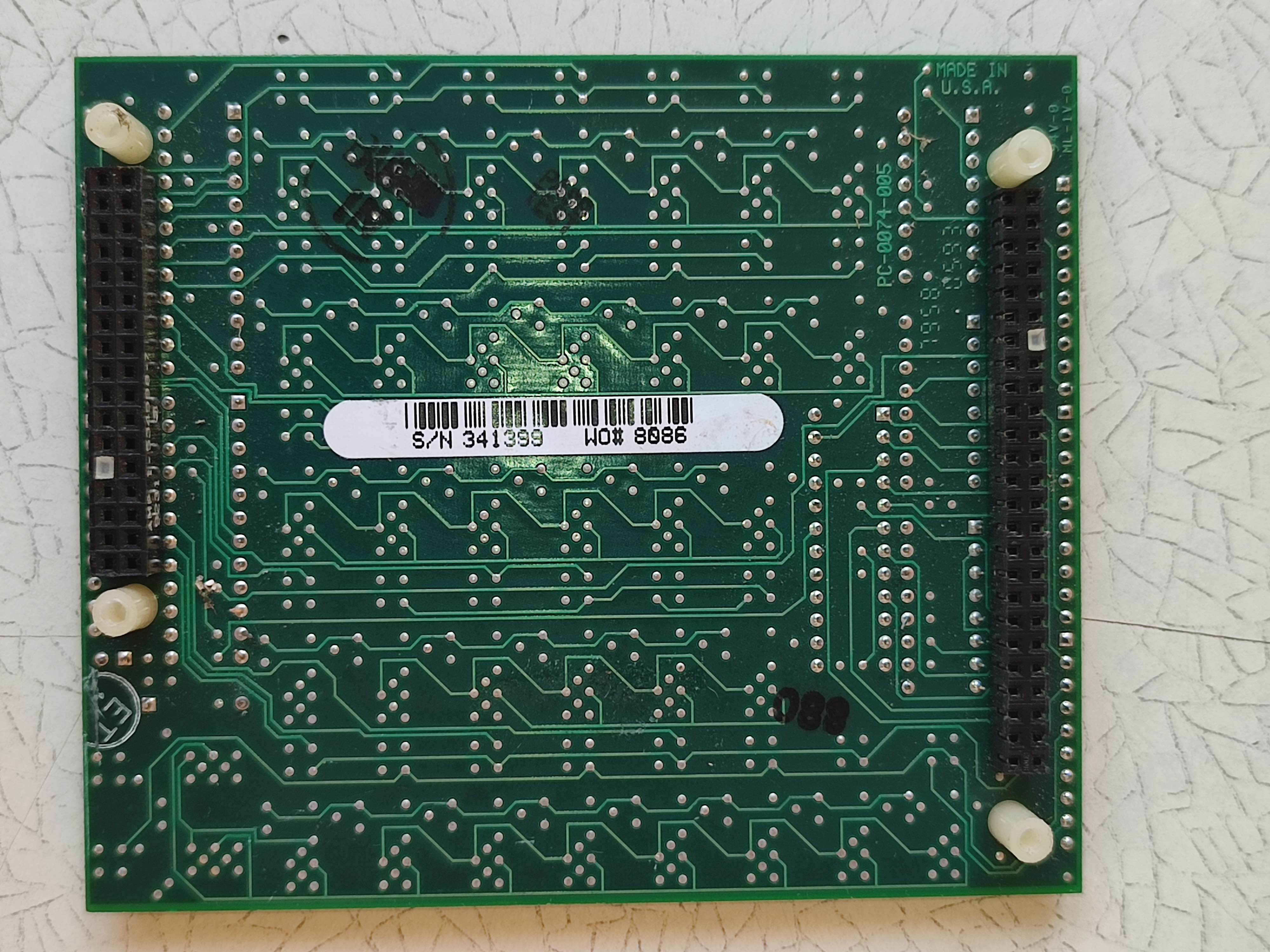

upgradeable with 2/4MB cache memory expansion board MM3011, up to 16MB with memory modules on MX3011 expansion card. optional drive mirroring expansion board. the 2 ICs above Drive Table Expansion Rom are KM75C01AP.
