Dazzle DV.Now AV
Logs
typeType
Video capture
interfaceInterface
signalSignaling
32-bit PCI
dimSlot height
1
datePCI ID
8020 0024 B152
chip Chips and specs
-> Bridge Interface
Intel 21152 (PCI to PCI Bridge) Philips SAA7146 (Multimedia PCI Bridge (SPCI))
-> FireWire ctrl.
Texas Instruments TSB12LV26 (FireWire 400 PCI ctrl.) Texas Instruments TSB41LV03A (3 port FireWire 400 PHY)
-> Video
Philips SAA7114H (Video decoder with comb filter) Philips SAA7121H (Digital Video Encoder) LSI iDVX (CODEC)
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack, Stereo audio out
1x
  • RCA Jack
2x
  • IEEE-1394 (4-pin), Composite video
2x
  • 4-pin Mini-DIN
1x
  • RCA Jack
powerPower connectors
Empty
notes Notes

Ports or on a i.LINK cable and a breakout box, both not shown

Last updated 2025-09-22T06:34:03Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
7.00
OS support
Windows 2000 Windows XP/2k3
Arch
x86
Size
4.5MB
Filename

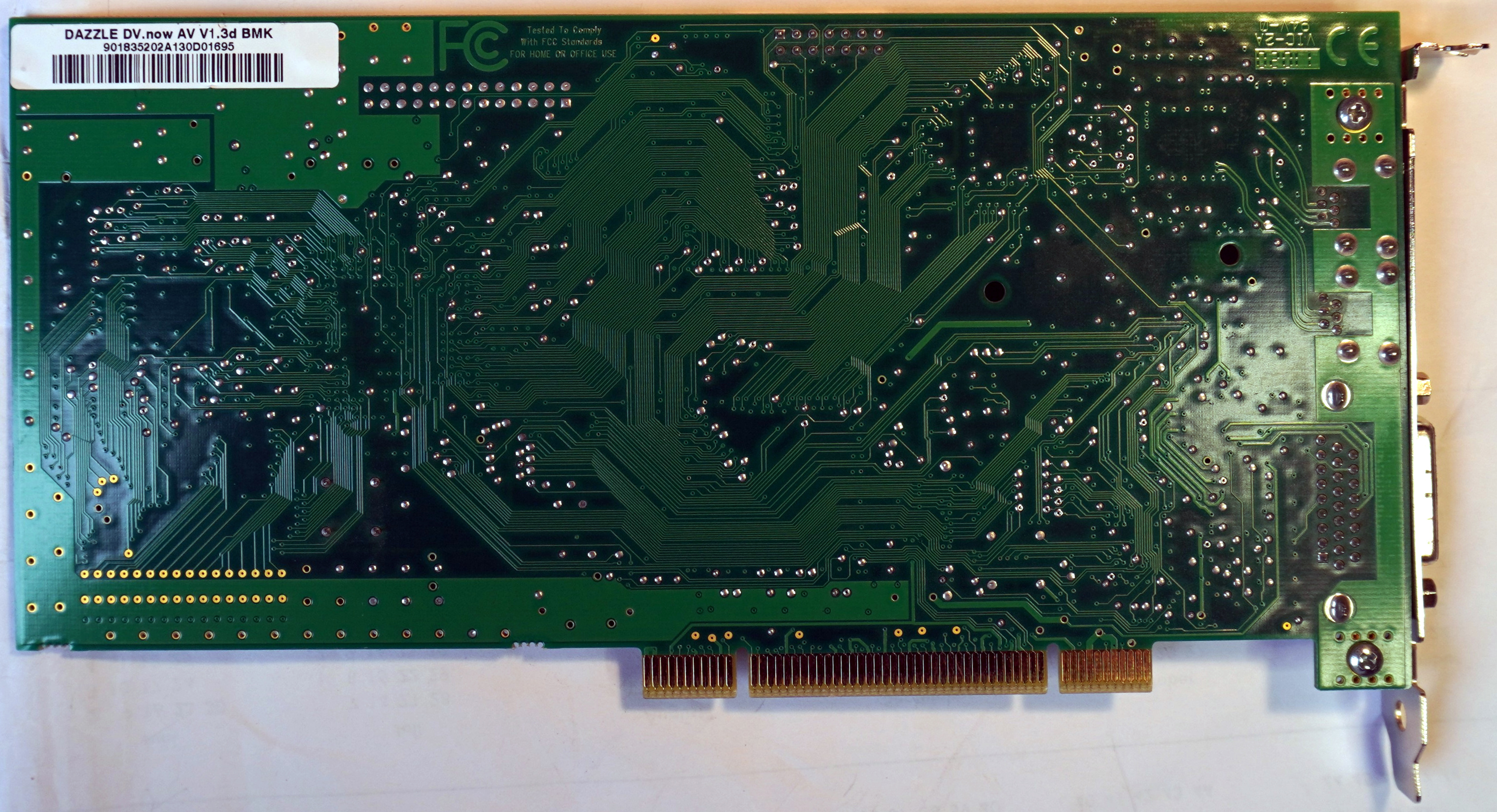

image1 Image 1 of 2 (Elke Wehmer)
image2 Image 2 of 2 (Elke Wehmer)
