Creative Video Blaster (CT6000)
Logs
typeType
Sound Video capture Video
interfaceInterface
signalSignaling
16-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Audio
Samsung KA2209 (2x0.6W Audio Power Amplifier) STMicroelectronics / Inmos TDA7284 (Record/Playback circuit with ALC) Creative CT1345 (Stereo mixer)
-> Clock Synth / PLL
Philips SAA9057A (Clock Generator For Digital TV)
-> Video
Philips SAA9051 (Digital multistandard TV decoder) CHIPS and Technologies F82C9001 (SVGA) Philips TDA4680 (Video proc. with auto cut-off) Philips TDA8708 (Video analog input interface) Philips SAA9060 (Video processor with DACs)
portintI/O ports
1x
  • 3.5mm TRS jack
1x
  • 3.5mm TRS jack
1x
  • 1x4 2.54mm pin header
1x
  • 1x4 2.50mm pin header
1x
  • 2x13 2.54mm pin header
2x
  • DE-15
powerPower connectors
Empty
Last updated 2025-10-19T14:24:02Z
biosc No BIOS files available
drv 1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
R1.2
OS support
Windows 3.1x Windows 9x
Arch
x86
Size
971KB
Filename

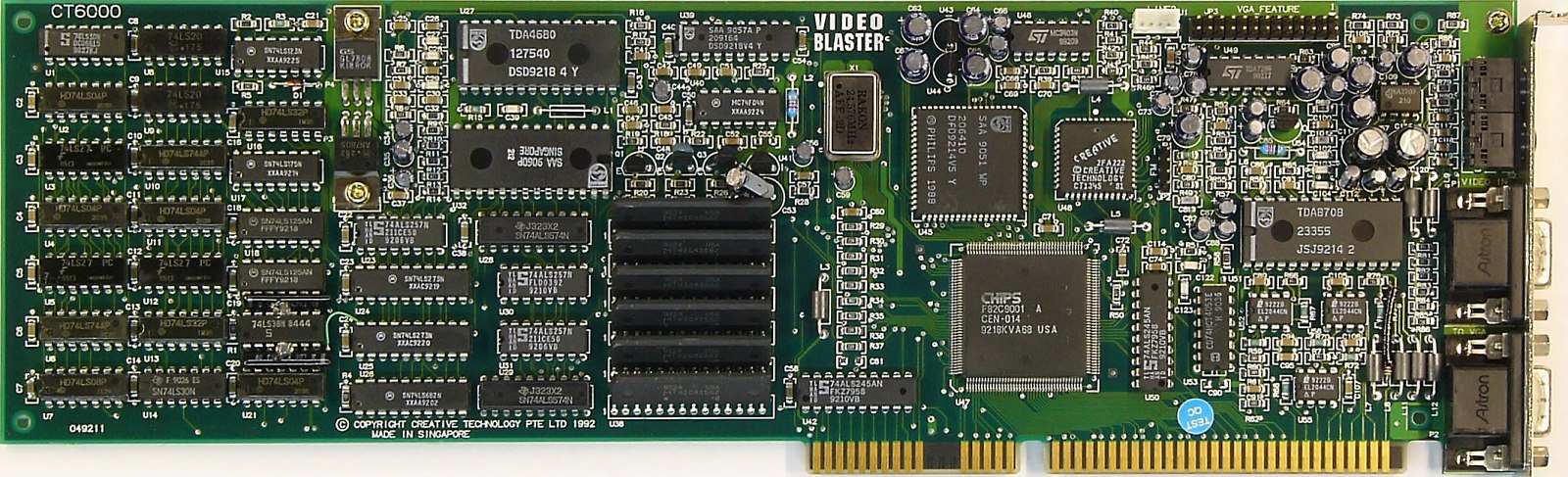

image1 Image 1 of 4 (Palcal)

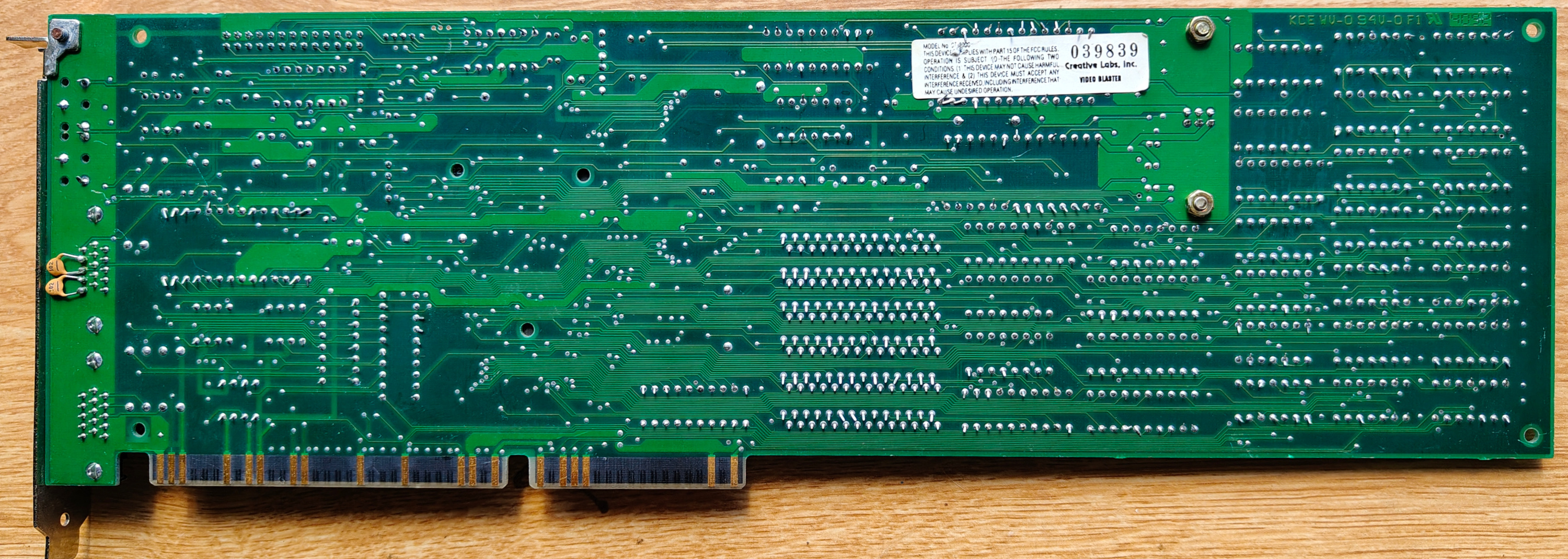

image2 Image 2 of 4 (Yargoro)

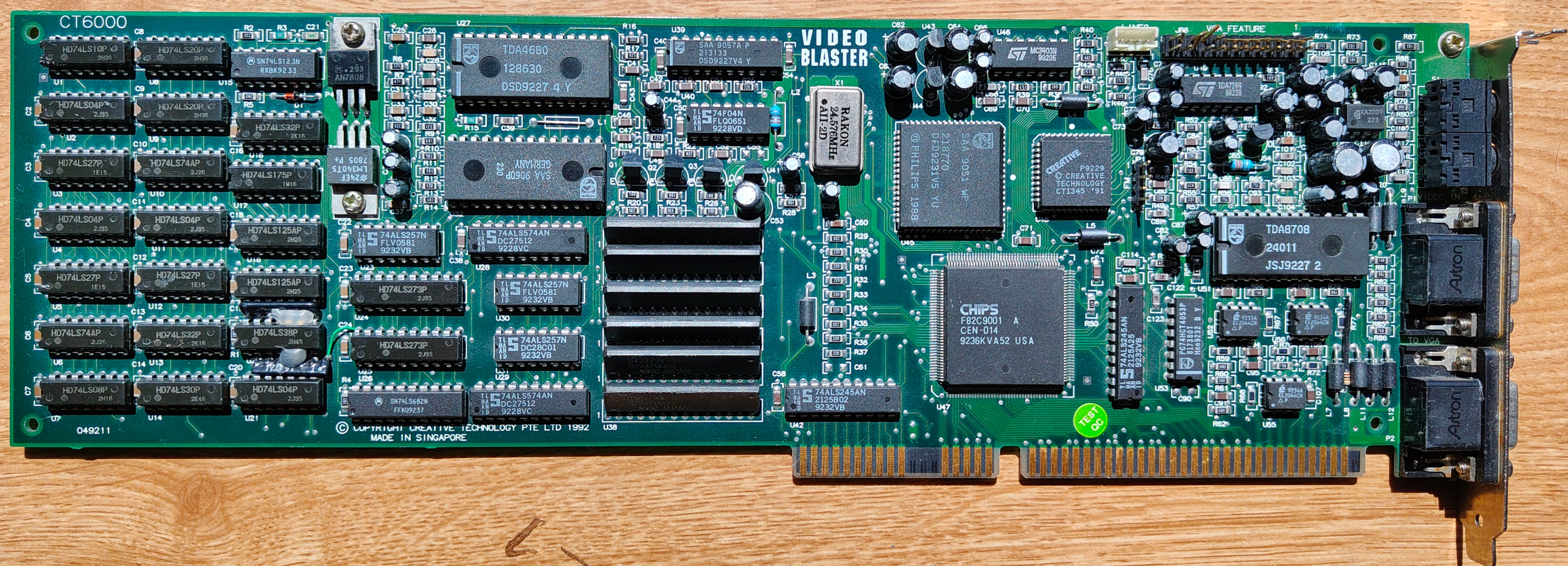

image3 Image 3 of 4 (Palcal)

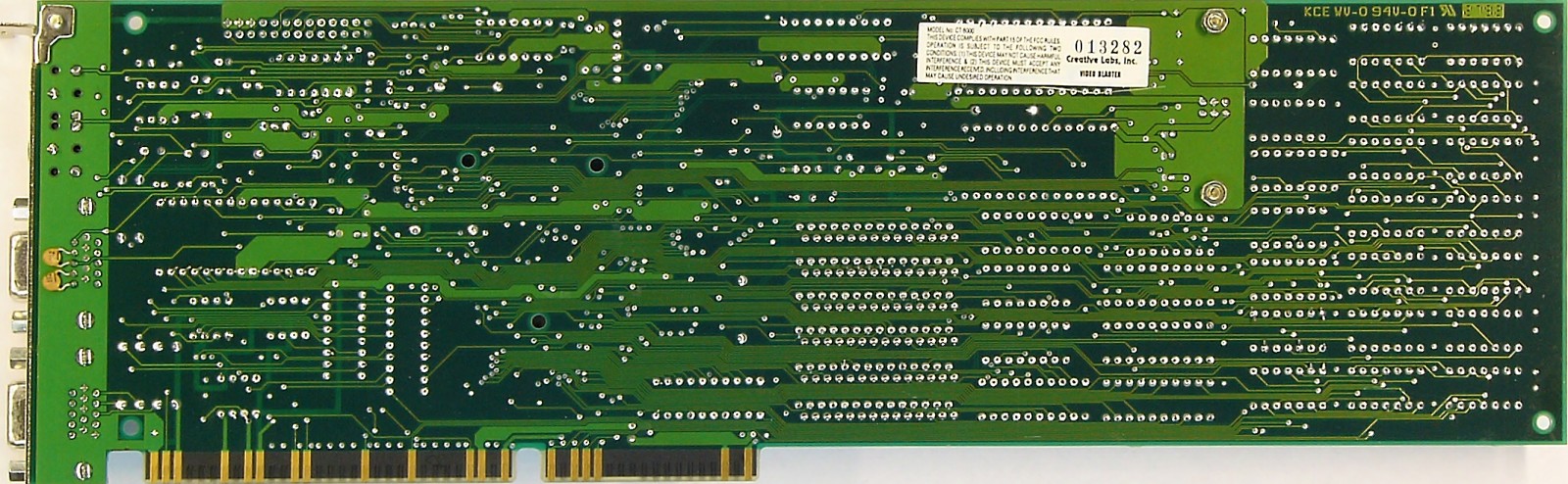

image4 Image 4 of 4 (Yargoro)
