Compaq Floppy/Printer Board
Logs
typeType
Floppy controller Parallel controller
interfaceInterface
signalSignaling
8-bit ISA
dimSlot height
1
datePCI ID
Empty
chip Chips and specs
-> Floppy ctrl.
NEC uPD765 (Floppy Controller)
MTL
Data Bus 8-bit ISA
Card Type Floppy drive controller
I/O Options floppy drive interface, parallel port, serial port
Floppy drives supported Two 360KB, 720KB, 1.2MB, or 1.44MB drives
tag Also known as
portintI/O ports
1x
  • 2x17 2.54mm pin header
1x
  • DB-25
powerPower connectors
Empty
notes Notes

MB64H303 chip which is probably a programmable gate array

Last updated 2025-07-26T15:11:31Z
biosc No BIOS files available
drv No drivers available
doc No card documents available
Chip
Release date
File
Logs
Chip
Release date
1992-03-13
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1986-11
File
Logs
Chip
Release date
File
Logs
Chip
Release date
File
Logs
Chip
Release date
1988-10
File
Logs
Chip
Release date
File
Logs

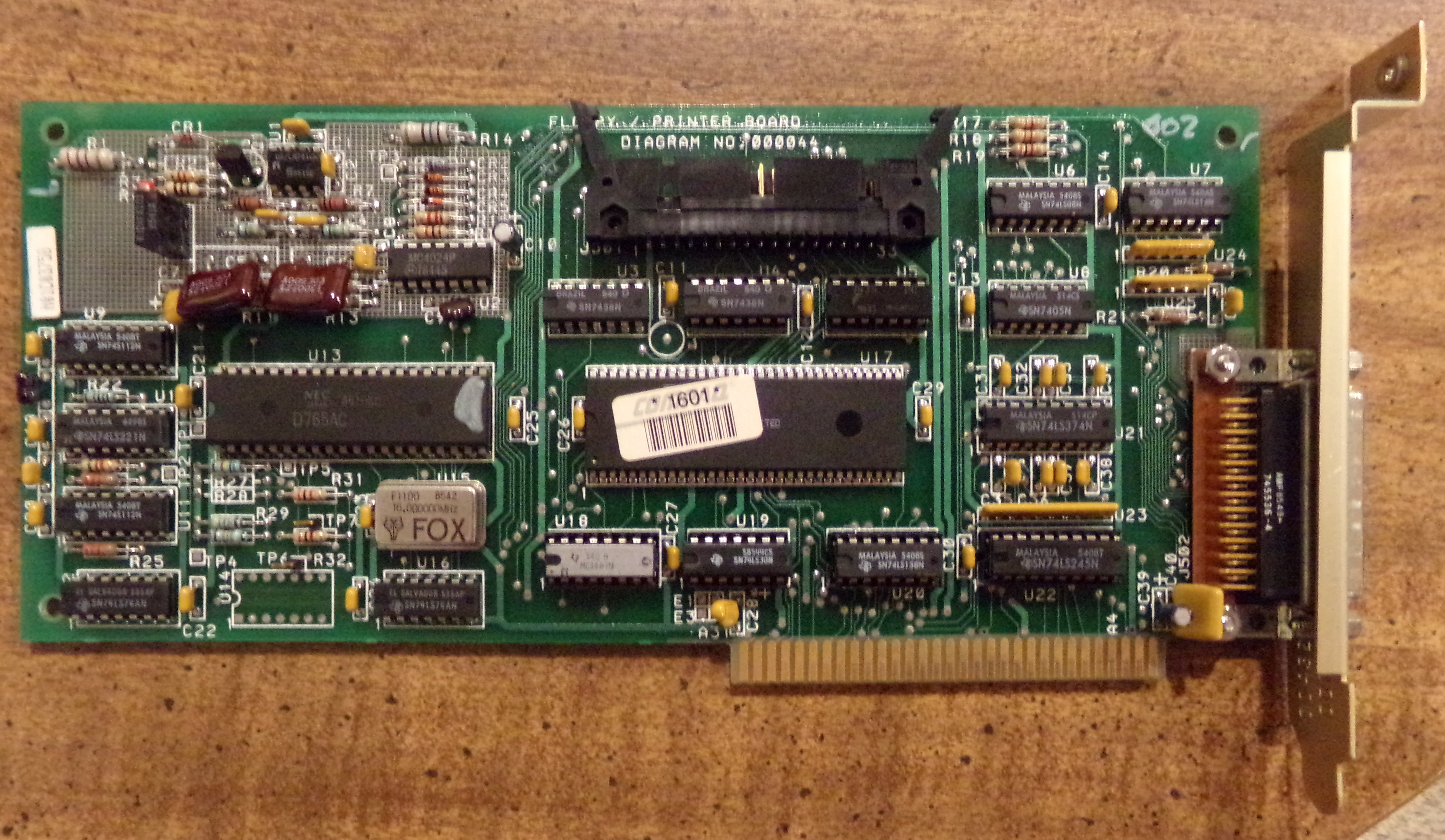

image1 Image 1 of 2 (Adam Hansen)

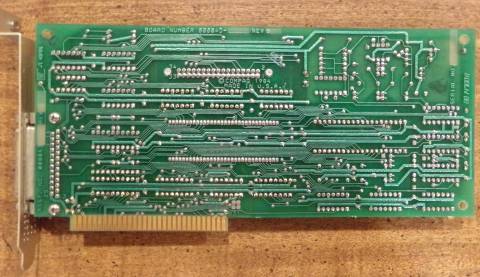

image2 Image 2 of 2 (Adam Hansen)
