BusLogic BT-410A
Logs
Interface
Signaling
Slot height
PCI IDEmpty
RAM type 72-pin FPM
RAM size
16MB
Chips and specs
-> Floppy ctrl.
-> IDE ctrl.
-> Processor
| MTL | |
|---|---|
| Size: | Full-length, full-height card |
| Data bus: | 32-bit, VL-bus |
| Hard drive supported: | Up to four IDE(AT) interface devices |
| Floppy drives supported: | 360KB, 720KB, 1.2MB or 1.44MB drives |
| Microarchitecture | |
|---|---|
| Core | |
| Bus speed | 20MHz |
| Frequency | 20MHz |
| Multiplier | 1x |
| Power | |
|---|---|
| Voltage | 5V |
Also known as
- BusLogic ASSY 1002313A
I/O ports
1x
- 2x17 2.54mm pin header, FDD
2x
- 2x20 2.54mm pin header
Power connectorsEmpty
Notes
Card seems to have 4GB disk limit. 8GB disks may be detected but "track remap" may not work.
Last updated 2025-12-29T13:26:50Z
2 card BIOS files available
Version
Note
File
Logs
1 driver available
Name
Version
OS support
Arch
Size
Filename
Name
Version
N/A
OS support
NetWare Server 3
NetWare Server 4
OS/2 2.x
Windows 3.1x
Arch
x86
Size
720KB
Filename
2 card documents available
Chip
Release date
File
Logs
Image 1 of 5 (Microhouse)

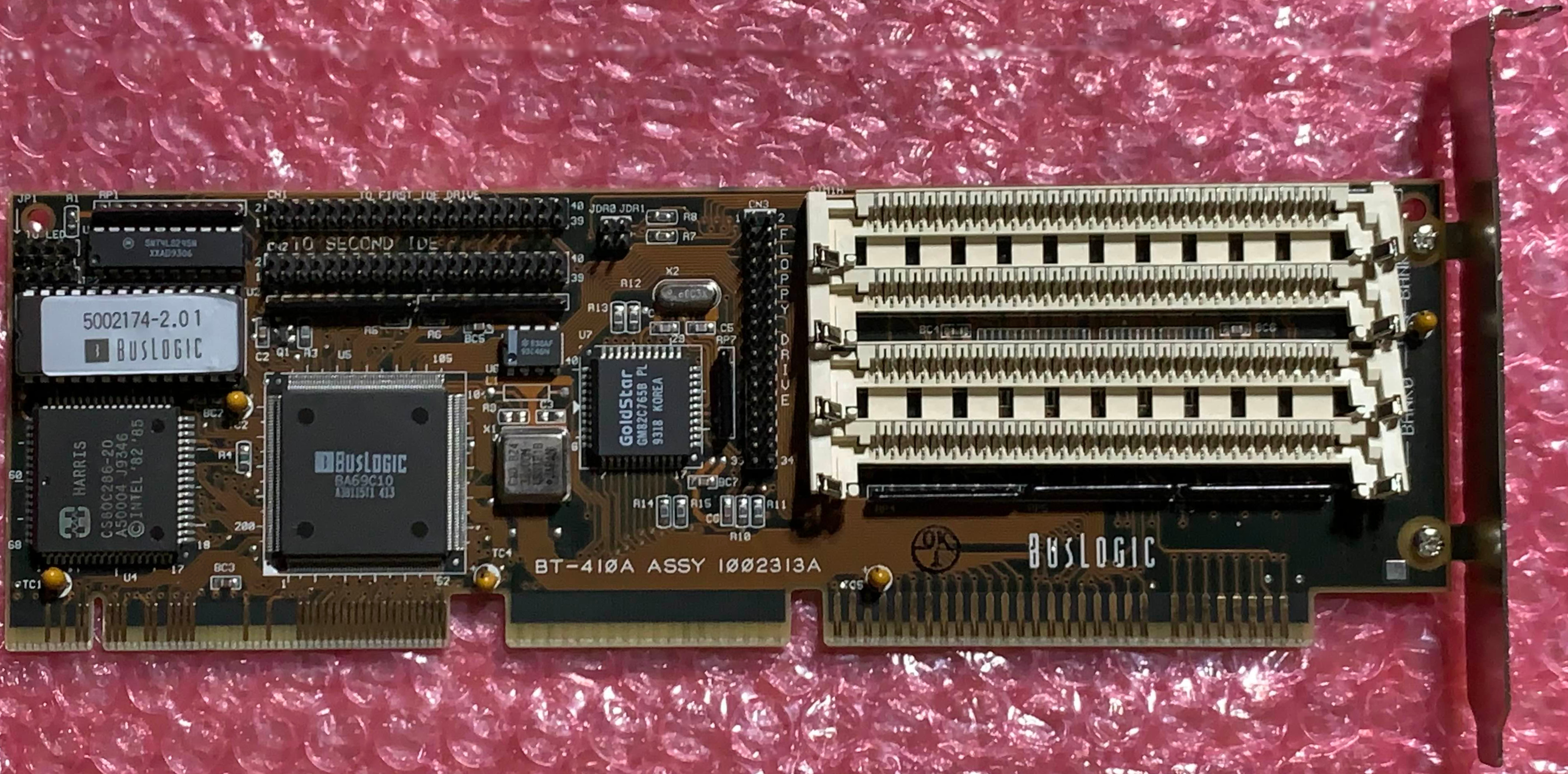

Image 2 of 5 (Justin D. Morgan)
Image 3 of 5 (Justin D. Morgan)

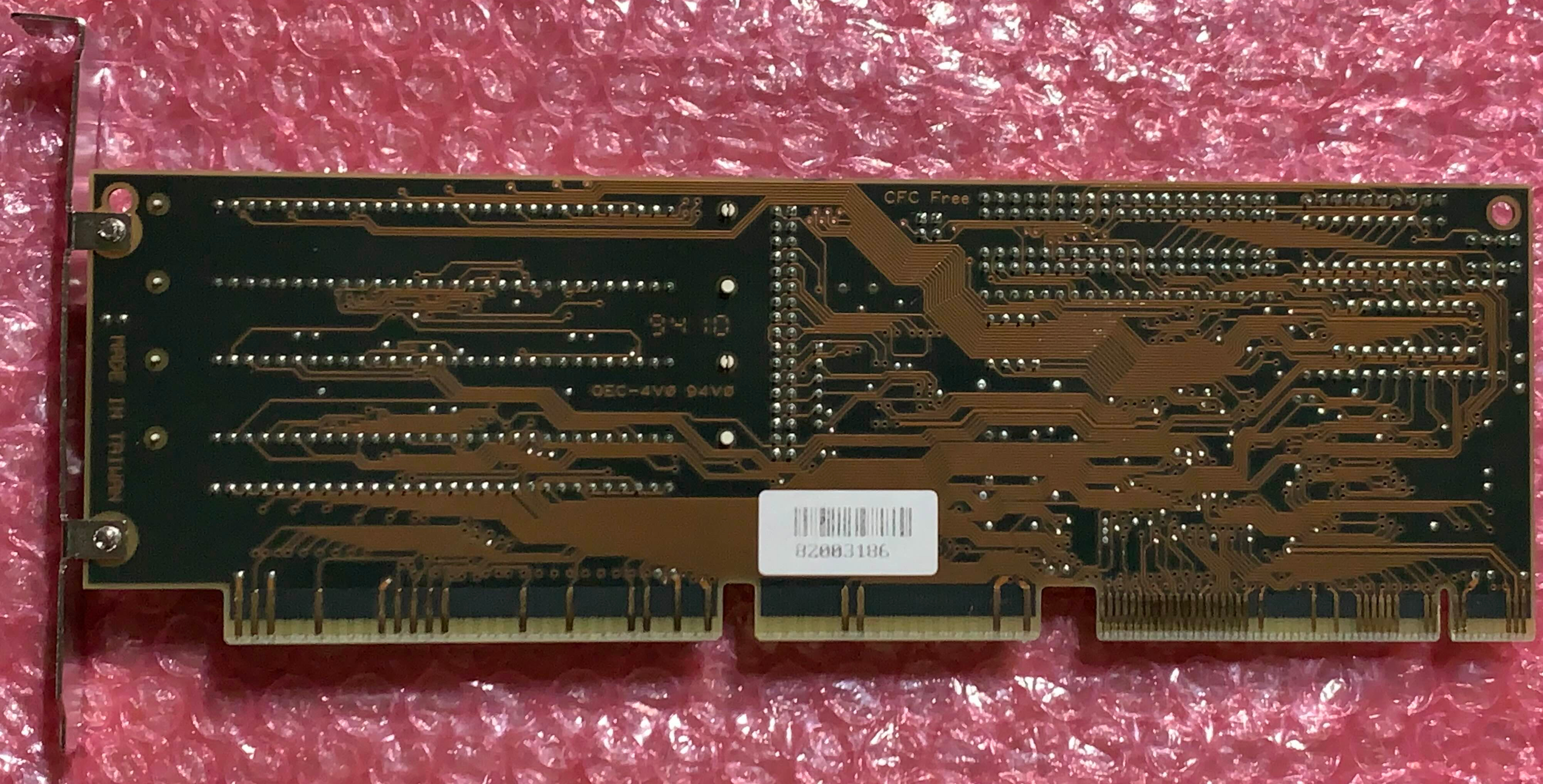

Image 4 of 5 (Justin D. Morgan)

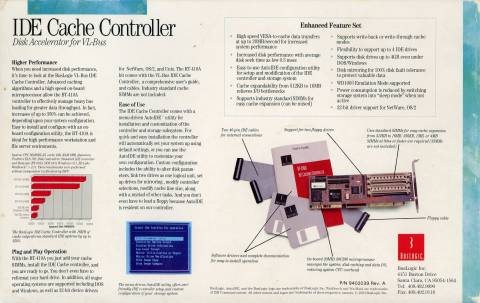

Image 5 of 5 (Justin D. Morgan)
